Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The front wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Do not service the harness pigtail individually because the harness pigtail is part of the sensor. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

Raise and support the vehicle on a suitable hoist.
Refer to LIFTING AND JACKING THE VEHICLE .
Remove the front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Disconnect the front wheel speed sensor jumper harness electrical connector (1).

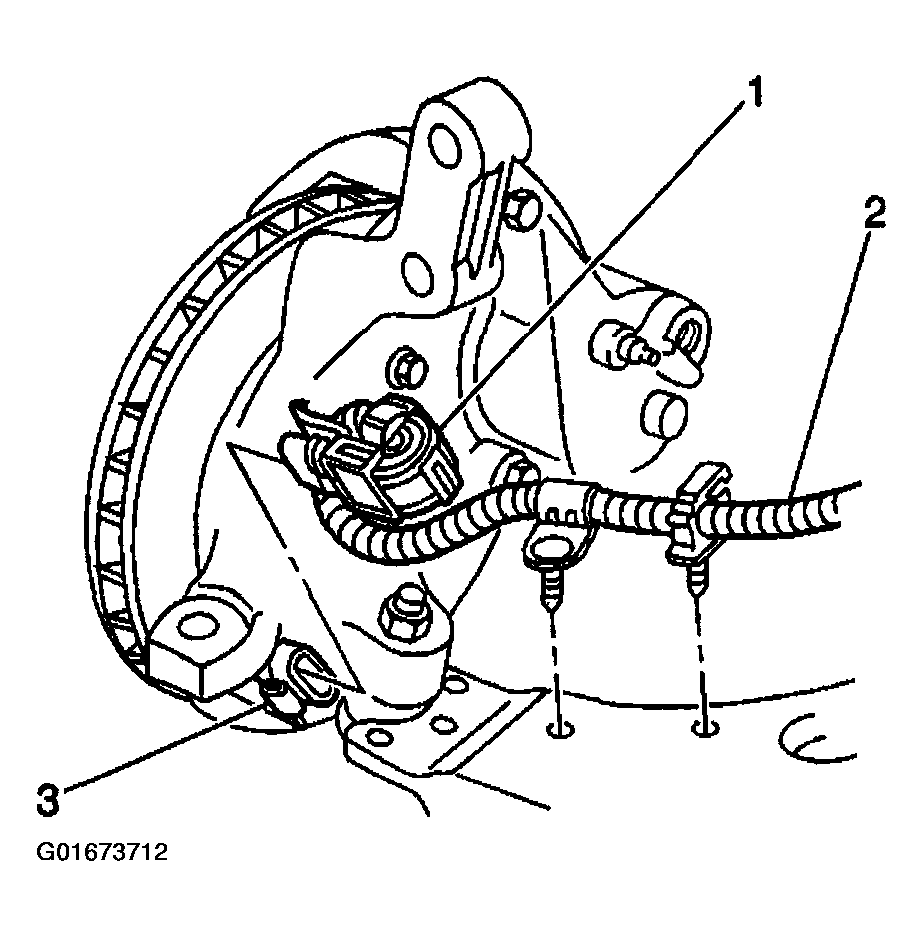

Fig 1: Front Wheel Speed Sensor Jumper Harness Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the hub and bearing assembly (2). Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

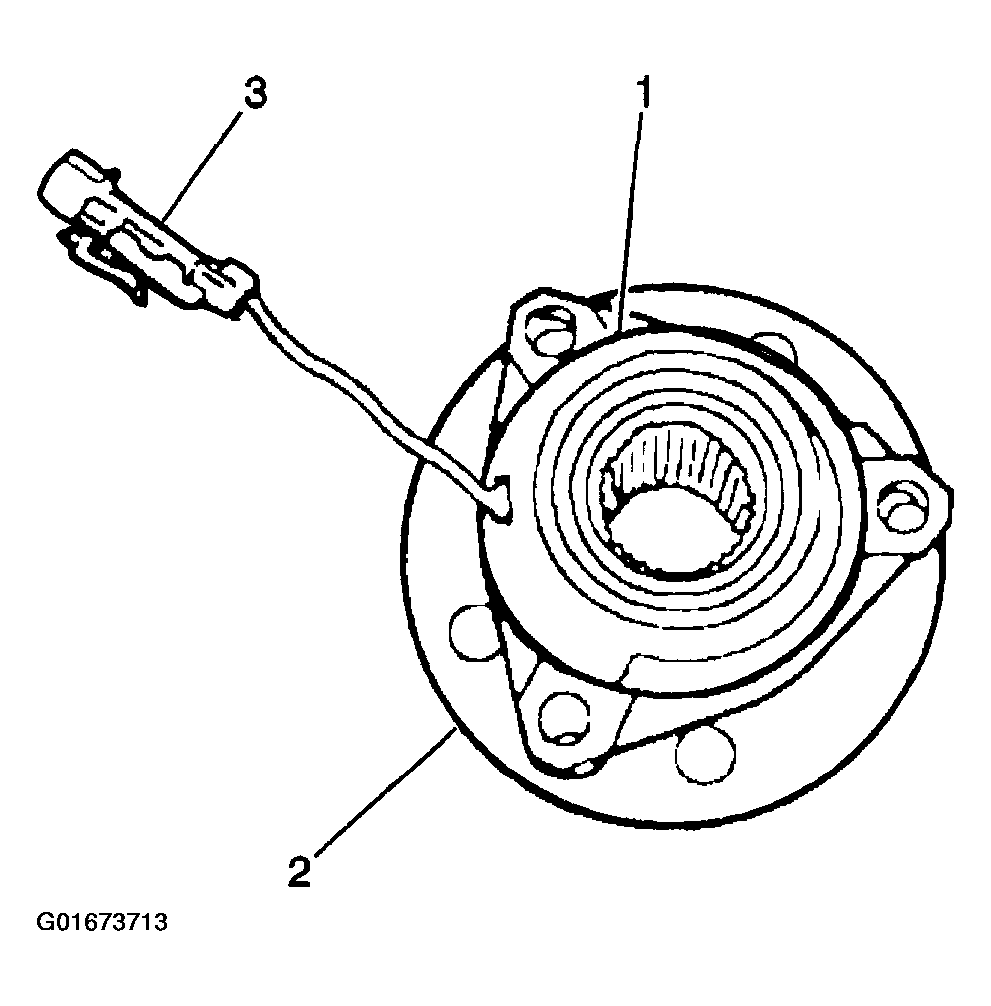

Fig 2: Hub & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
