Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

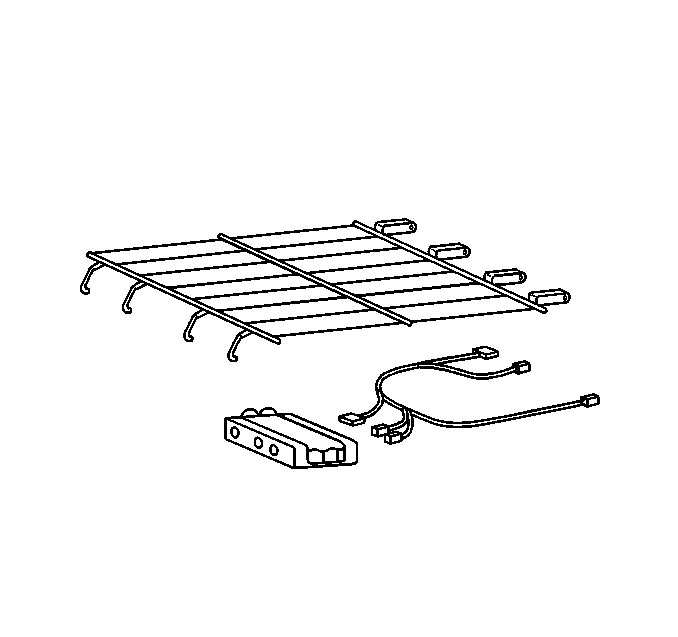

    Fig 1: Wire Assembly To Seat Cushion Frame
    GM281999Courtesy of GENERAL MOTORS CORP.
  1. Connect harness connectors to the memory seat control module.
  2. Install the memory seat control module to the seat cushion foam support wires.

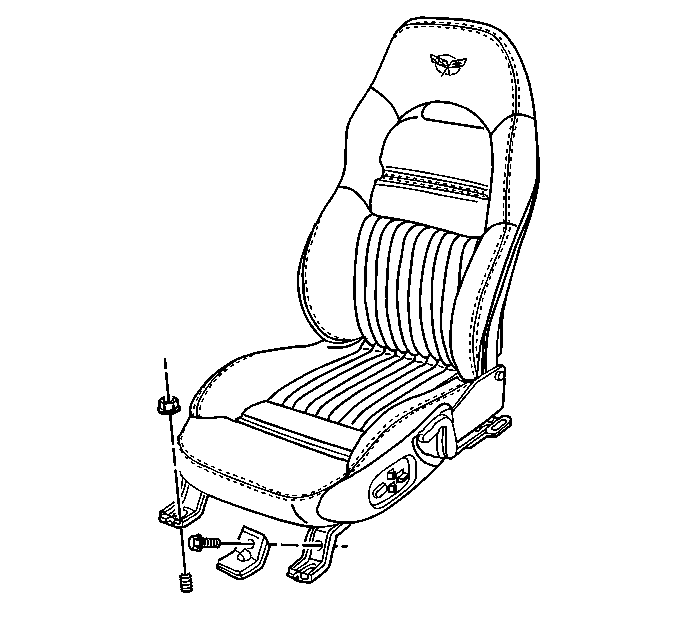

    3. Fig 2: Seat Mounting Component View
    GM71215Courtesy of GENERAL MOTORS CORP.
  3. Install the seat. Refer to Seat Replacement (Power)  or Seat Replacement (Manual) .
  4. Calibrate the seat. Refer to Memory Seat Calibration Procedure .
