Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

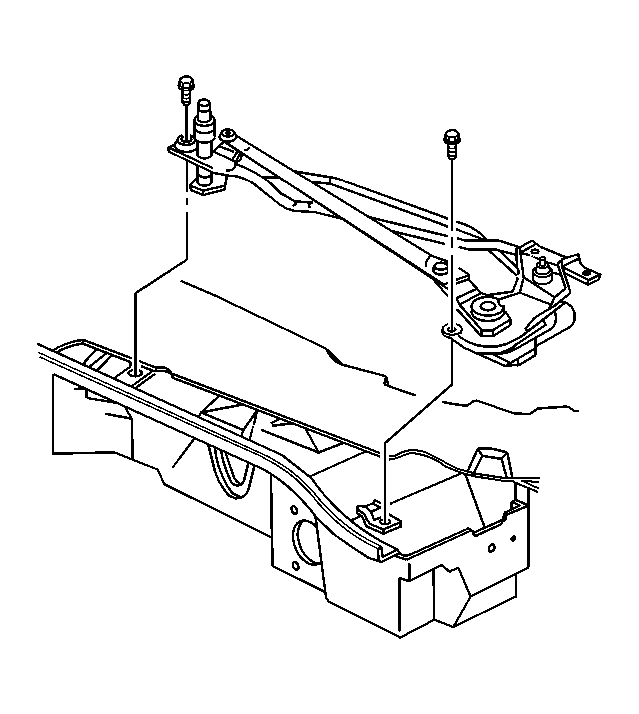

    Fig 1: Wiper Drive System Module To Wiper Motor Electrical Connector
    GM70104Courtesy of GENERAL MOTORS CORP.
  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
  3. Install the wiper drive system module into the cowl area.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the wiper drive system module screws.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

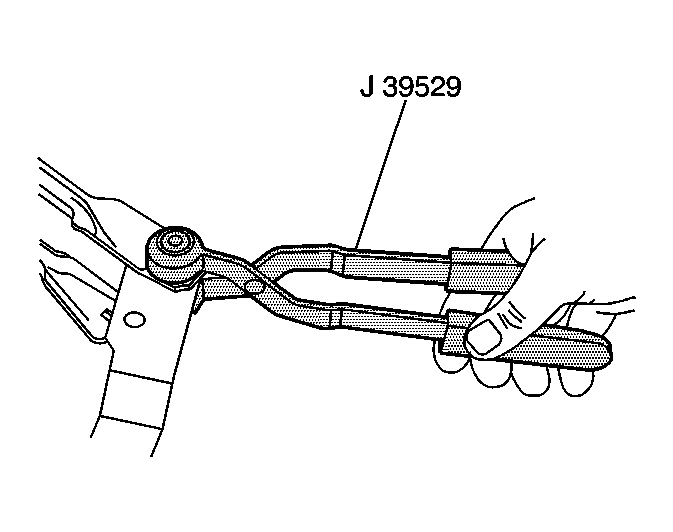

    5. Fig 2: Wiper Transmission To Wiper Motor Crank Arm
    GM70090Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39529 , connect the wiper transmission to the wiper motor crank arm.
  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  7. Inspect the wipers for proper operation.
