Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.

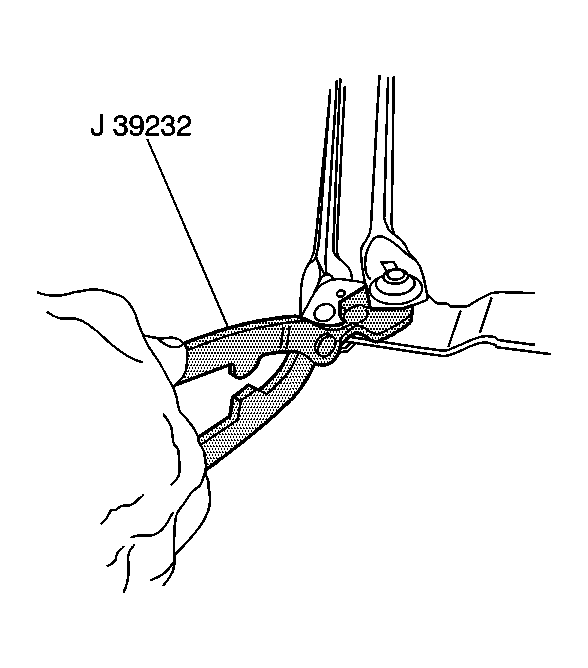

    2. Fig 1: Wiper Transmission To Wiper Motor Crank Arm
    GM70093Courtesy of GENERAL MOTORS CORP.
  2. Using the J 39232 , disconnect the wiper transmission from the wiper motor crank arm to aid in the removal of the wiper drive system module.
    3. Fig 2: Wiper Drive System Module To Wiper Motor Electrical Connector
    GM70104Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiper drive system module screws.
  4. Remove the wiper drive system module from the cowl area to gain access to the wiper motor electrical connector.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.
