Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

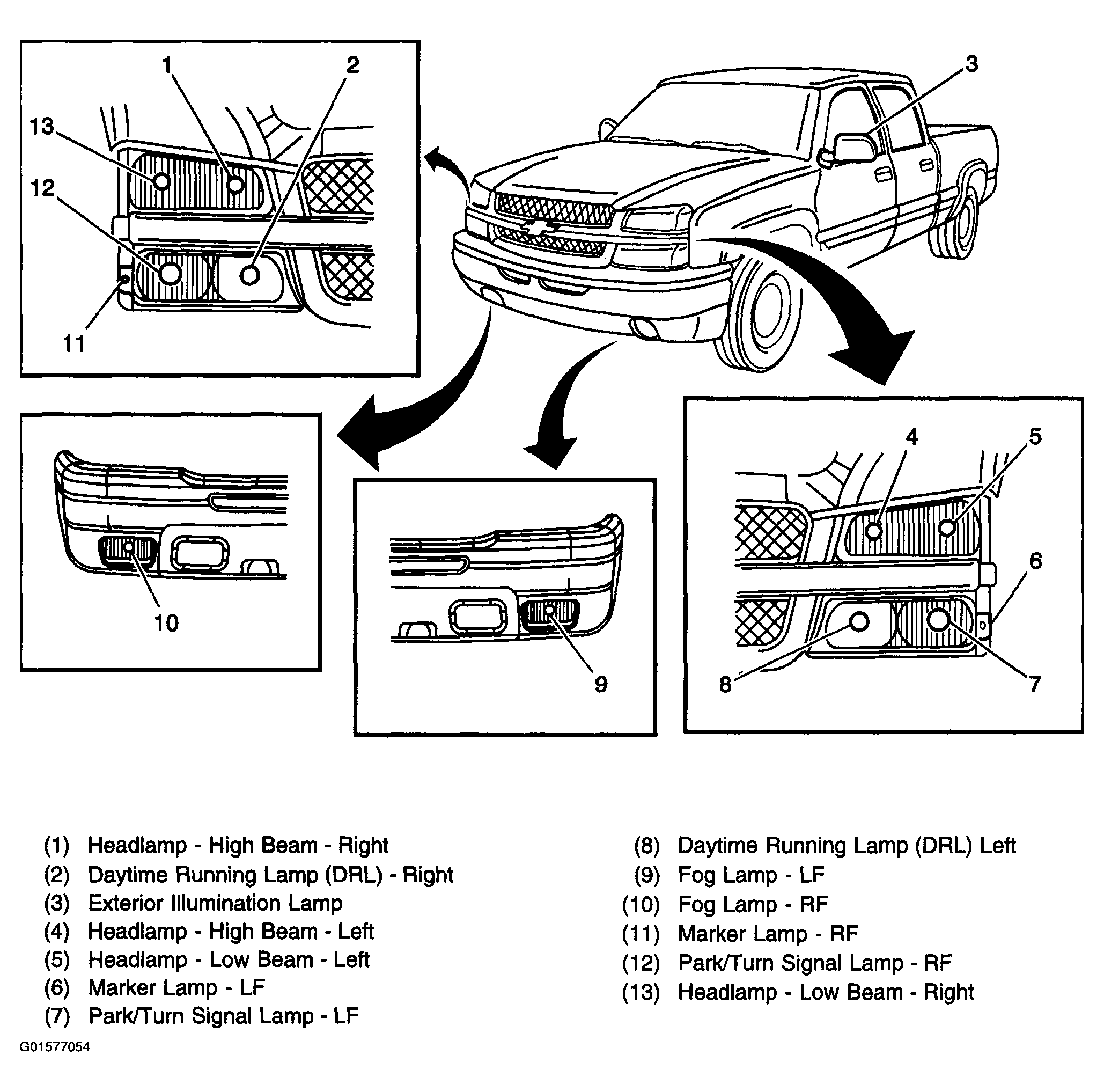

Fig 1: Front Lamps Component View
G01577054Courtesy of GENERAL MOTORS CORP.

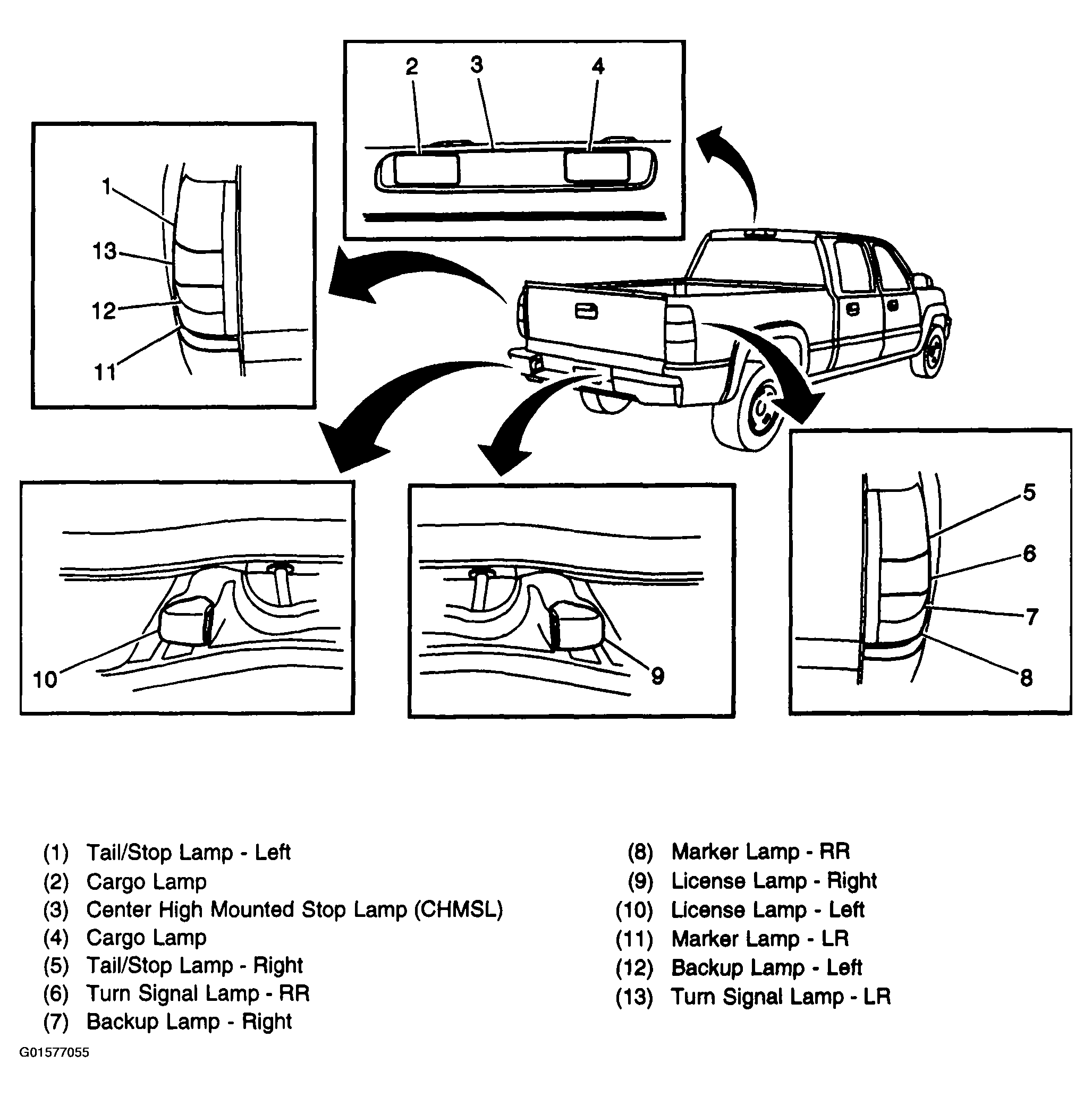

Fig 2: Rear Lamps Component View
G01577055Courtesy of GENERAL MOTORS CORP.

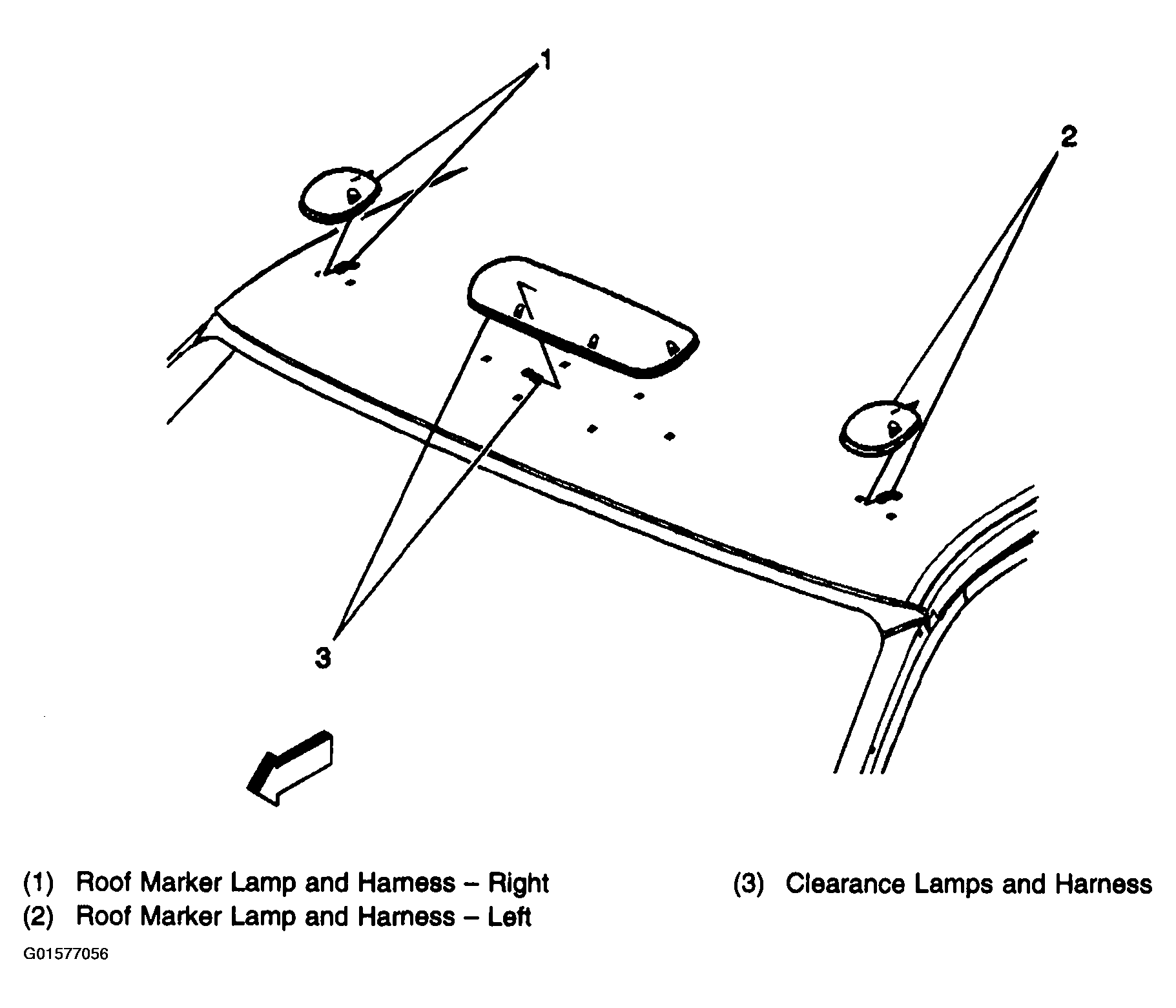

Fig 3: Roof Marker & Clearance Lamps Component View
G01577056Courtesy of GENERAL MOTORS CORP.

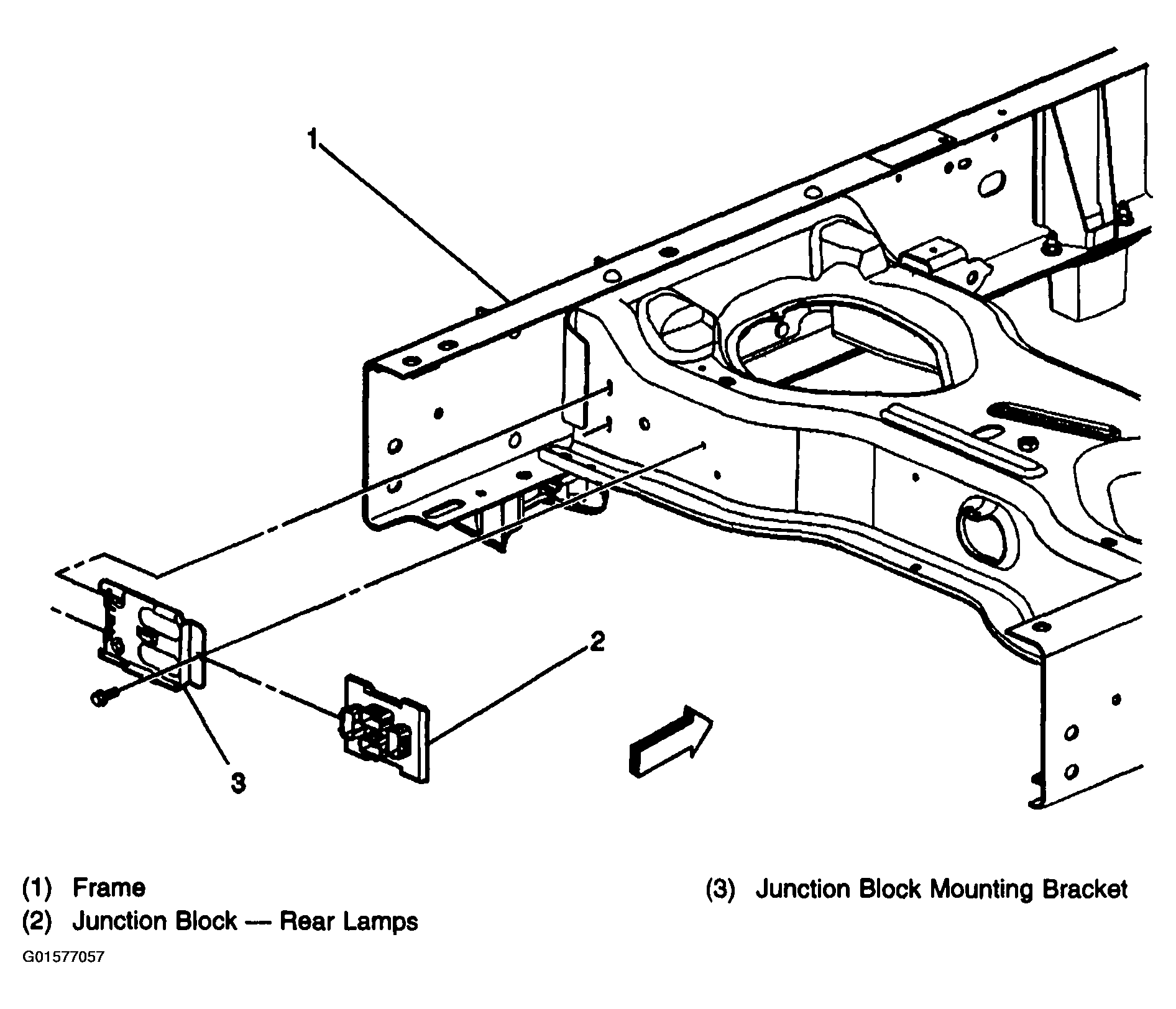

Fig 4: Junction Block - Rear Lamps Component View
G01577057Courtesy of GENERAL MOTORS CORP.

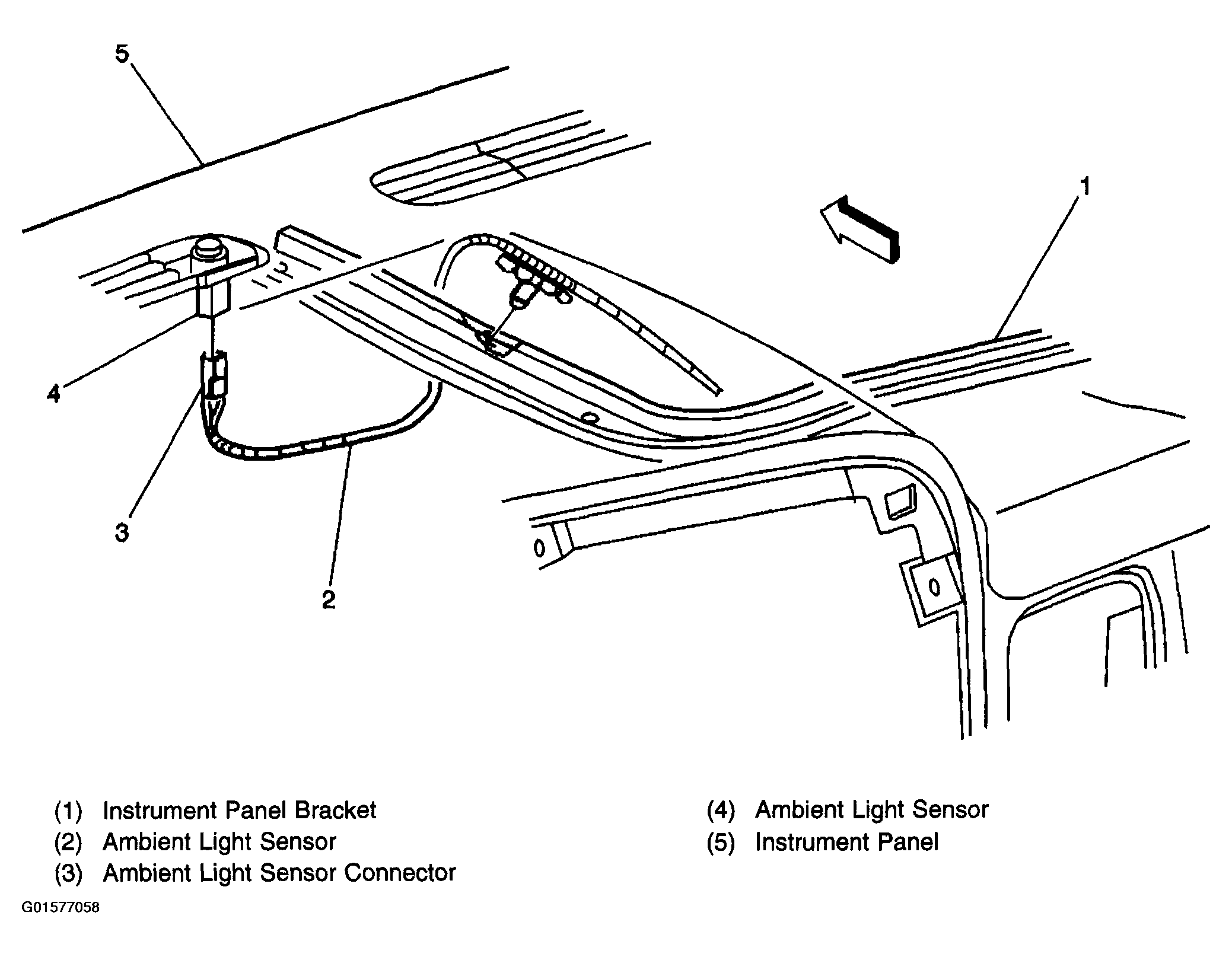

Fig 5: Ambient Light Sensor Component View
G01577058Courtesy of GENERAL MOTORS CORP.

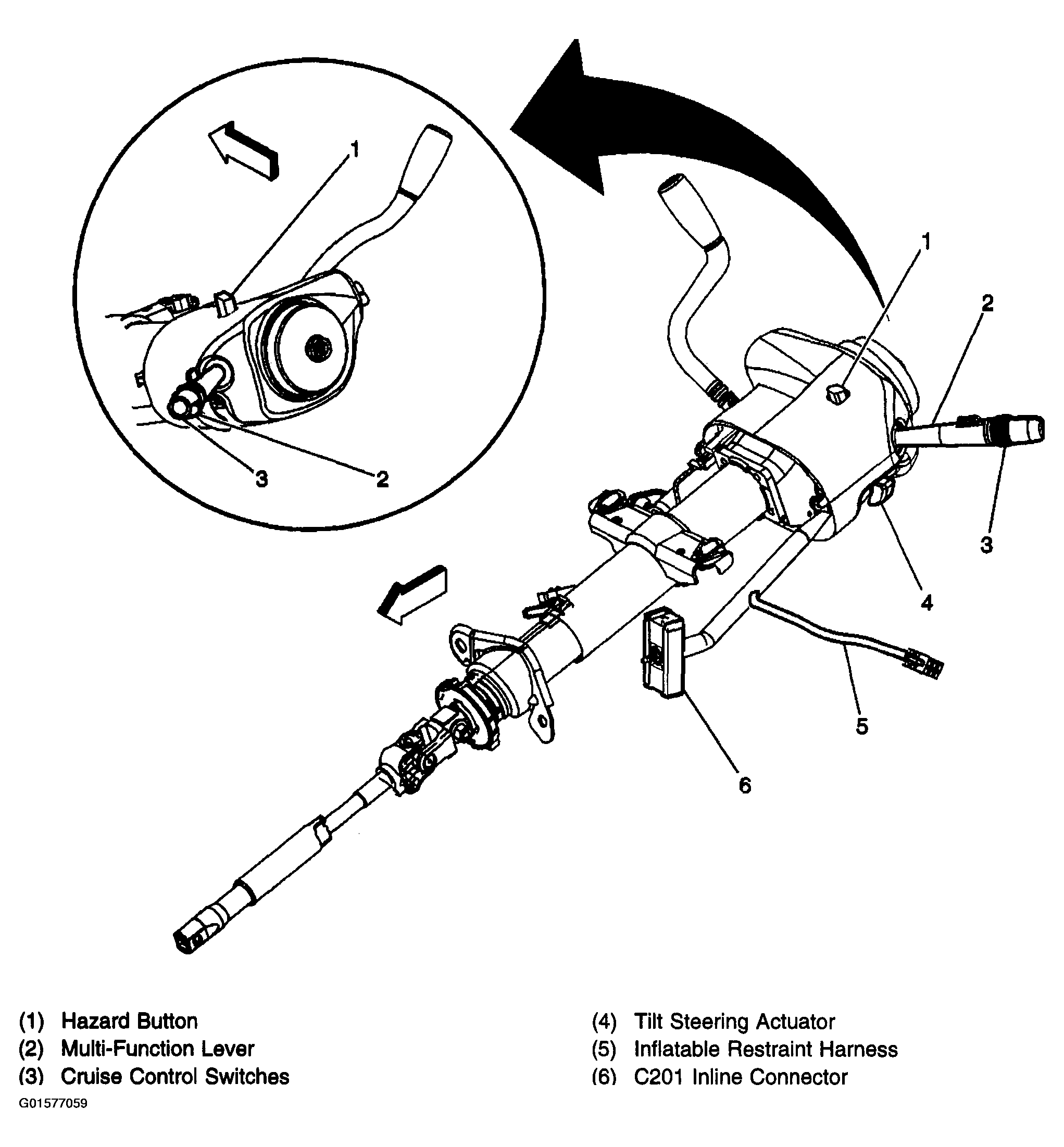

Fig 6: Steering Column Component View
G01577059Courtesy of GENERAL MOTORS CORP.

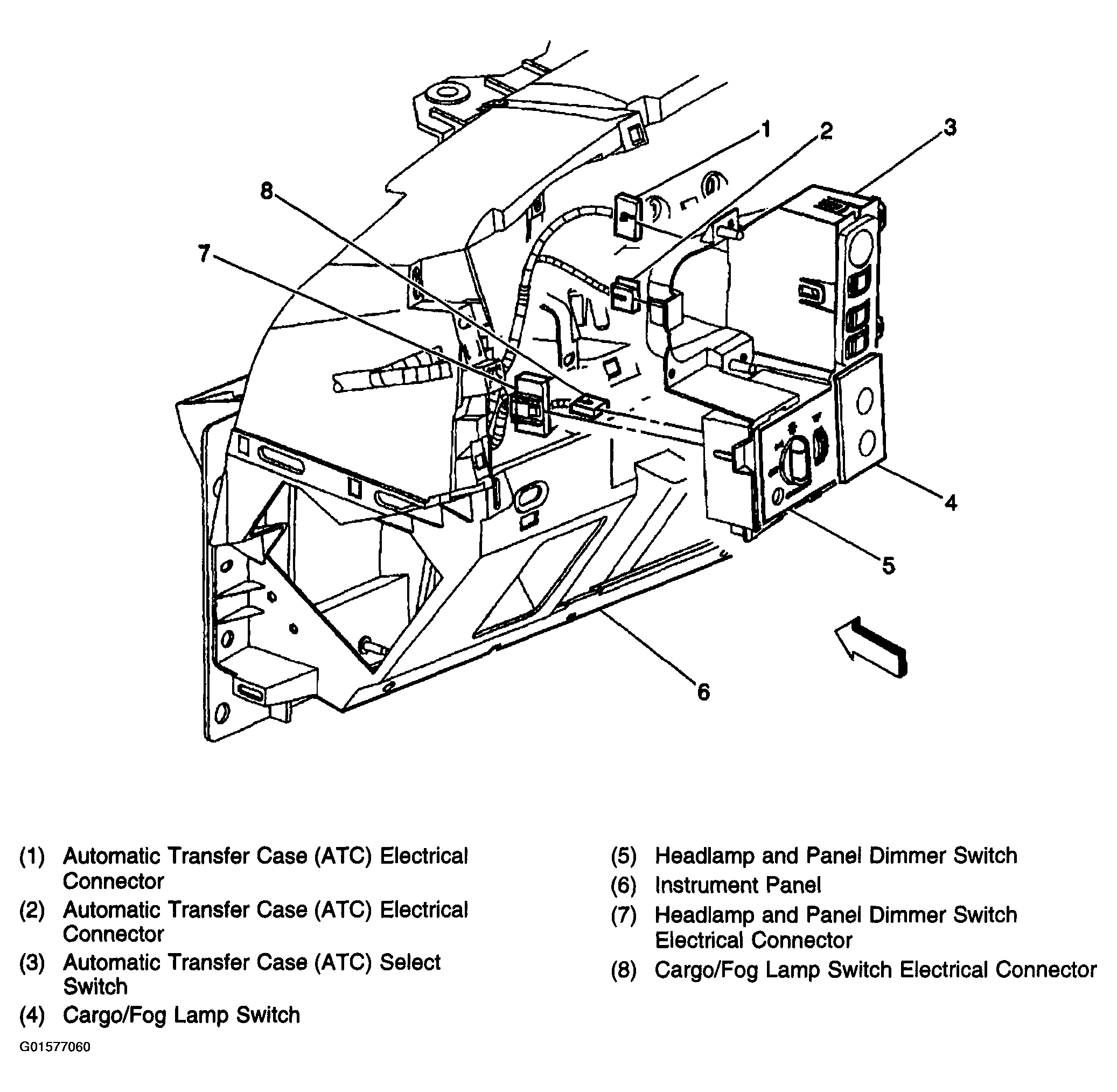

Fig 7: Instrument Panel Switches Component View - LH
G01577060Courtesy of GENERAL MOTORS CORP.

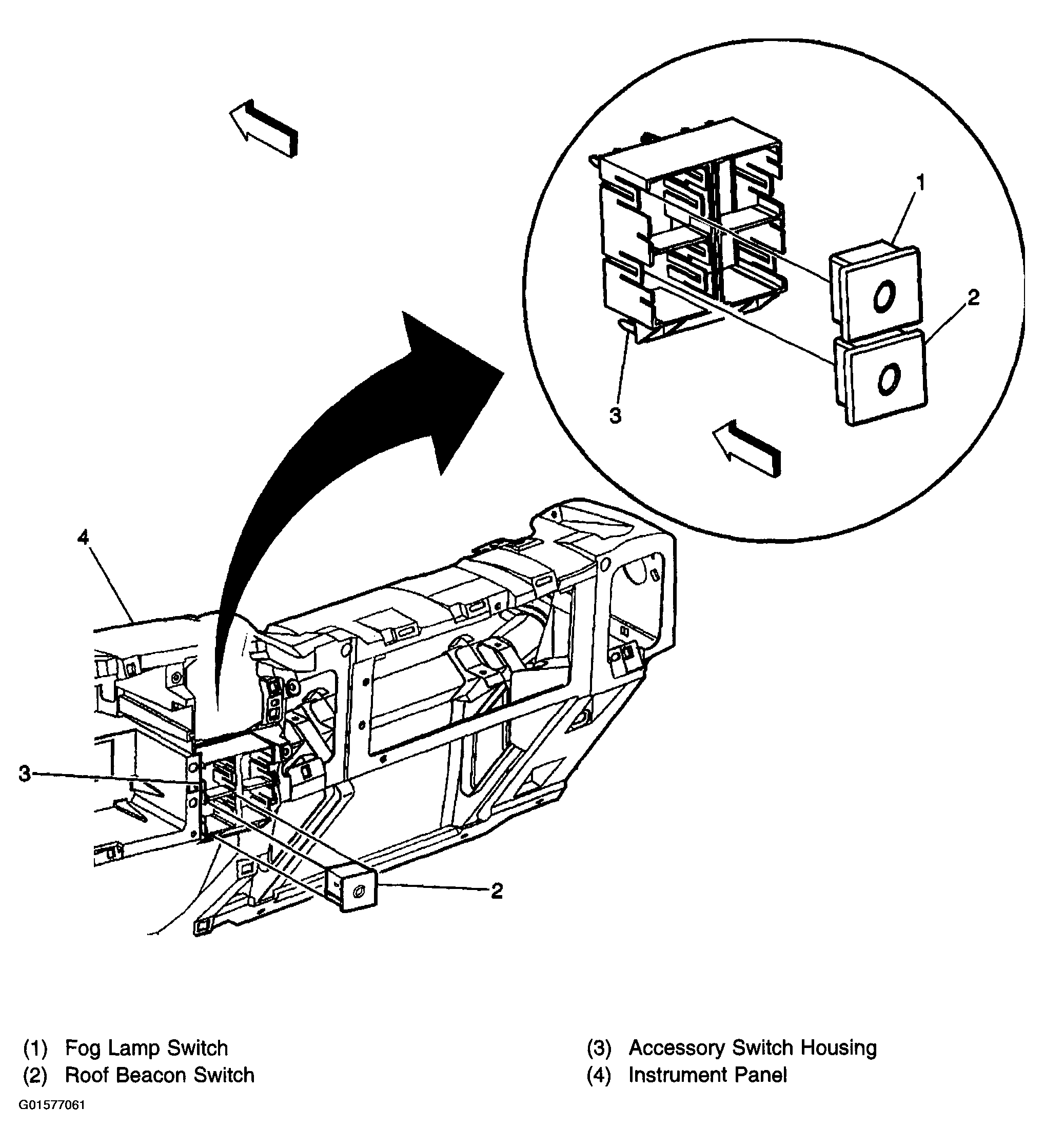

Fig 8: Accessory Switch Housing Component View
G01577061Courtesy of GENERAL MOTORS CORP.

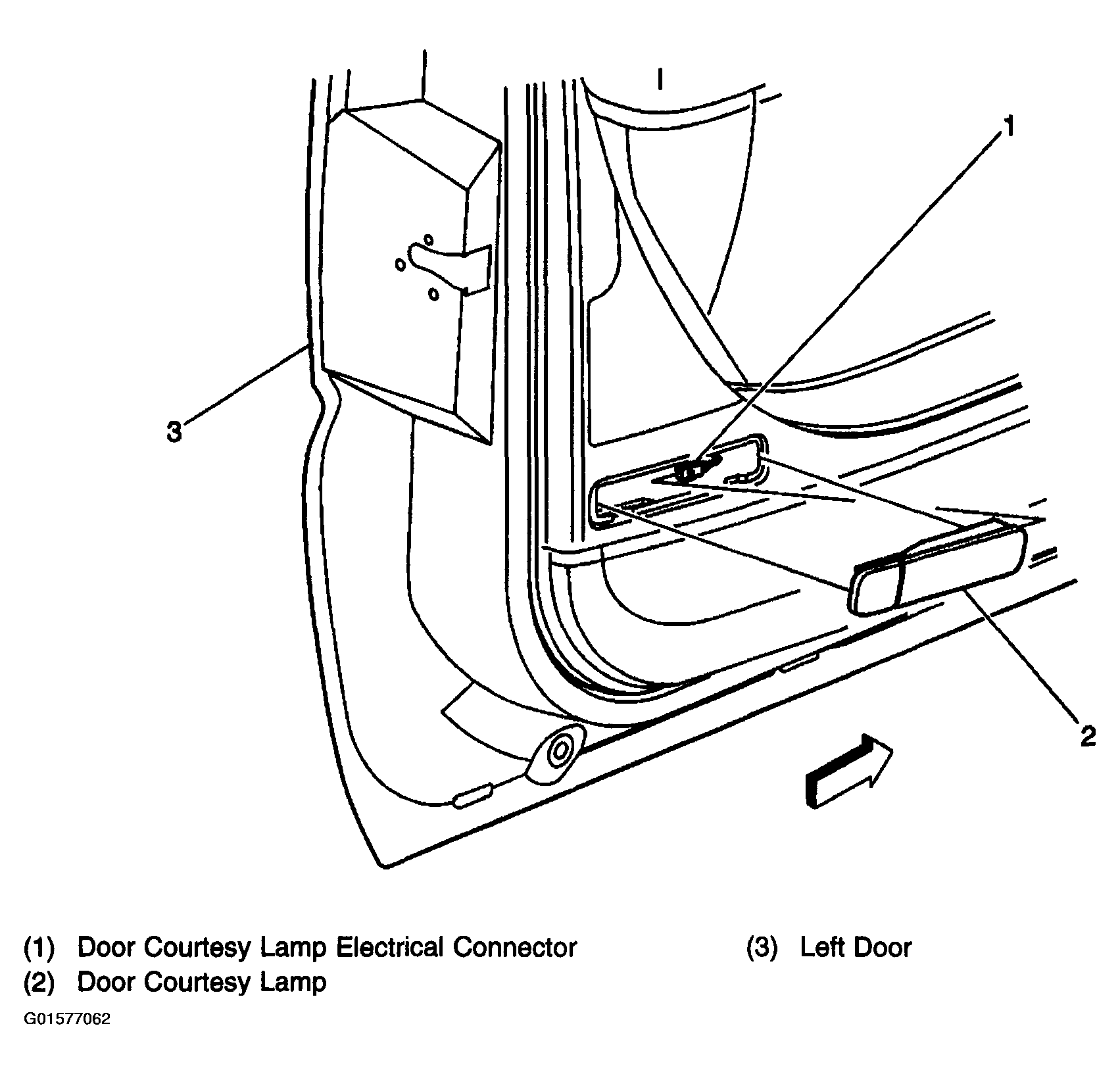

Fig 9: Left Door Courtesy Lamp Component View (RH Similar)
G01577062Courtesy of GENERAL MOTORS CORP.

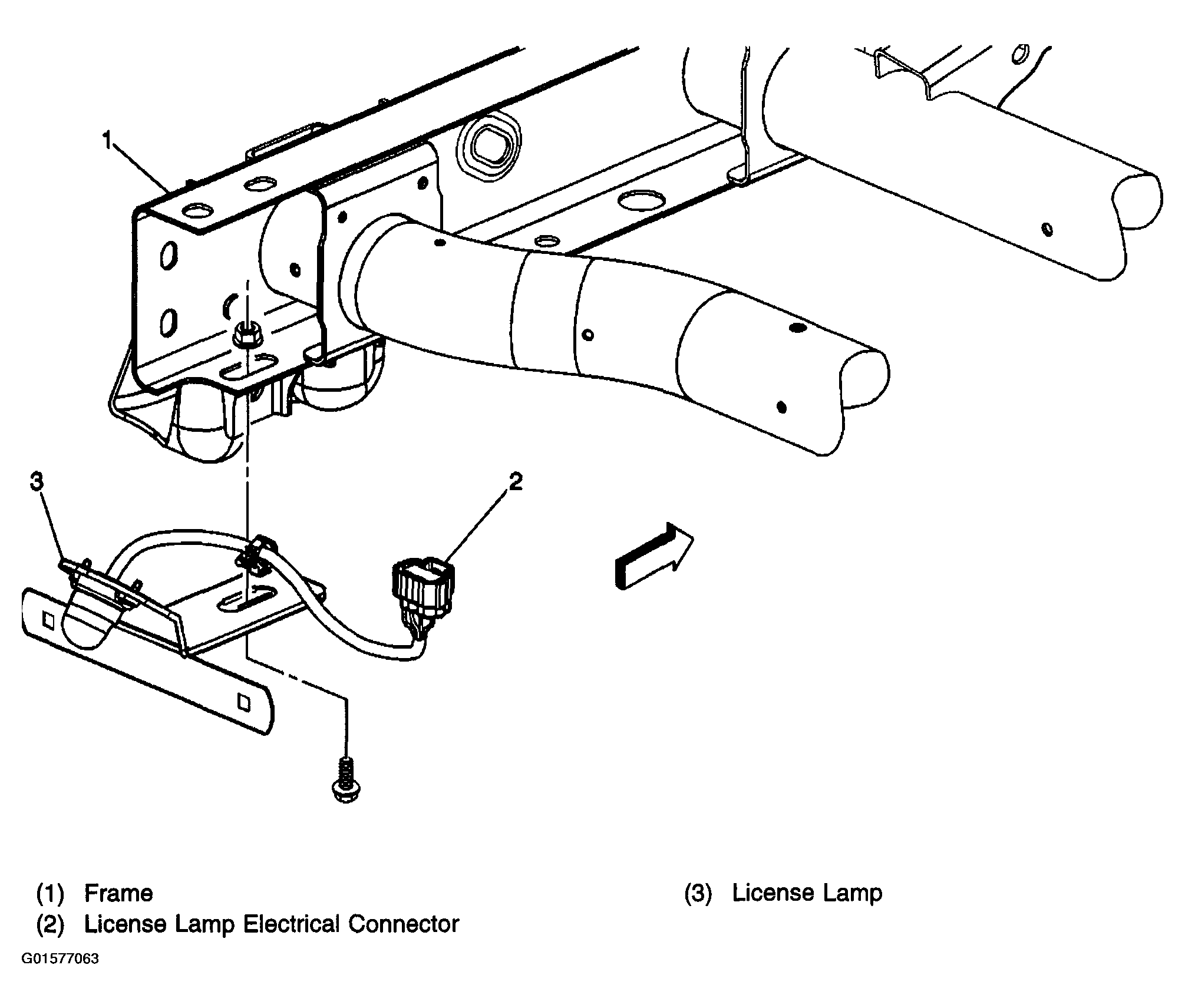

Fig 10: License Lamp Component View, W/O Bumper
G01577063Courtesy of GENERAL MOTORS CORP.

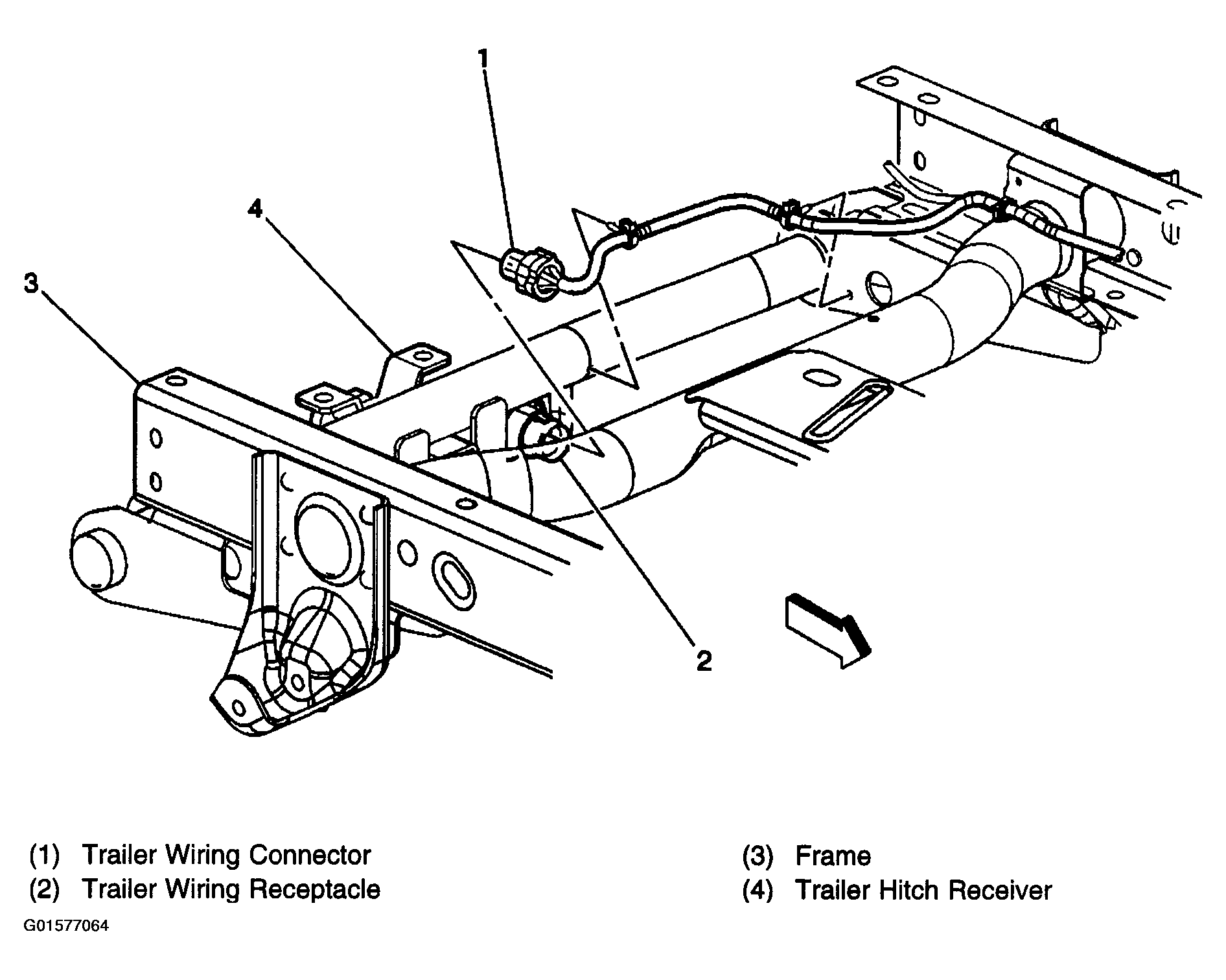

Fig 11: Trailer Wiring Connector Component View, Heavy Duty
G01577064Courtesy of GENERAL MOTORS CORP.
