Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the hood latch support to the vehicle.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the bolts to the hood latch support at the upper tie bar.
Tighten

Tighten the bolts to 25 N.m (18 lb ft).

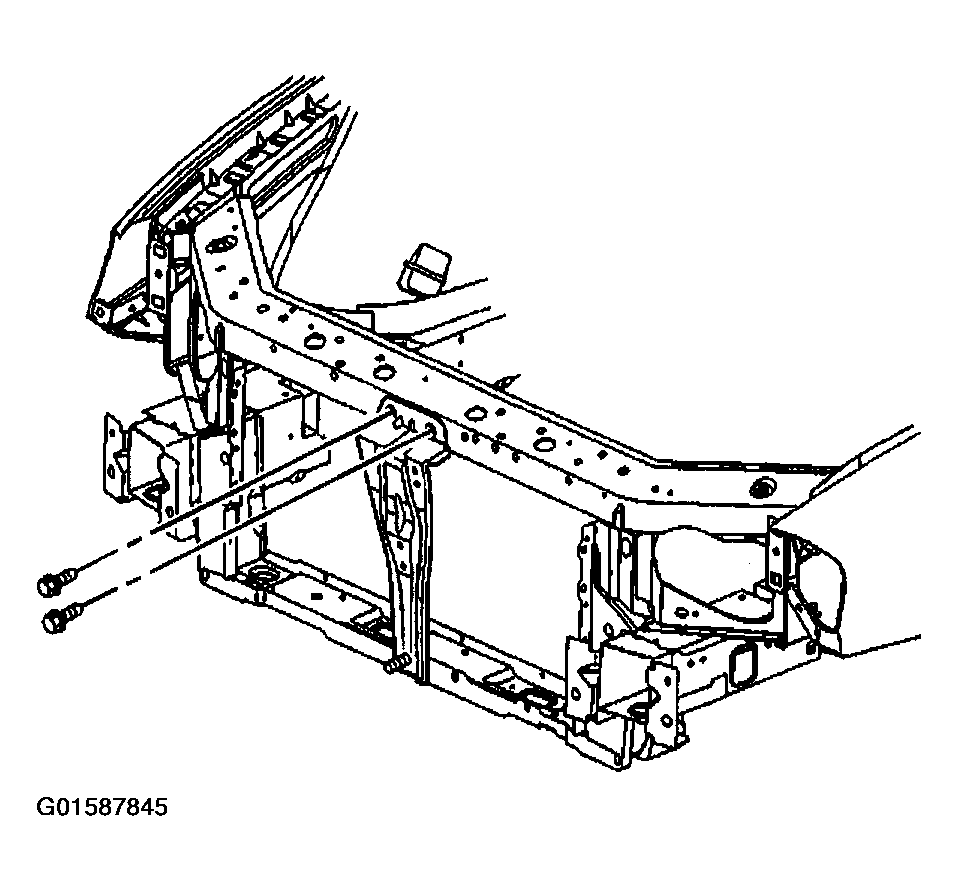

Fig 1: Installing Bolts To Hood Latch Support At Upper Tie Bar

Courtesy of GENERAL MOTORS CORP.

Install the nut to the hood latch support at the lower tie bar.
Tighten

Tighten the nut to 10 N.m (18 lb in).

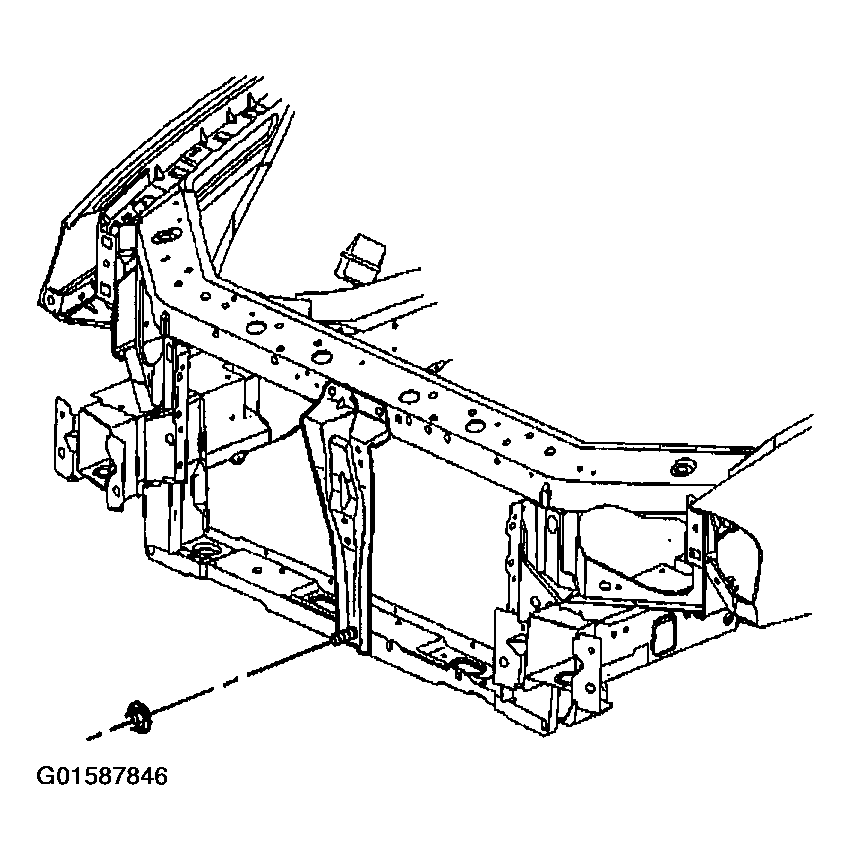

Fig 2: Installing Nut To Hood Latch Support At Lower Tie Bar

Courtesy of GENERAL MOTORS CORP.

Install the front bumper fascia bracket to the hood latch support. Refer to FASCIA BRACKET REPLACEMENT - FRONT BUMPER in Bumpers.
Install the hood latch to the hood latch support bracket. Refer to HOOD LATCH REPLACEMENT .
