Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp (2) to the IP upper trim panel (1):
    1. 2.1. Insert the lamp.
    2. 2.2. Rotate the lamp clockwise approximately 1/4 turn.
    IMPORTANT: On vehicles equipped with head up display (HUD), install the 3 HUD retainers last. Push down from left to right.
  3. Align the locating pins and retainers with the slots in the IP. Push down and forward on the IP upper trim panel, locking the trim panel into place.

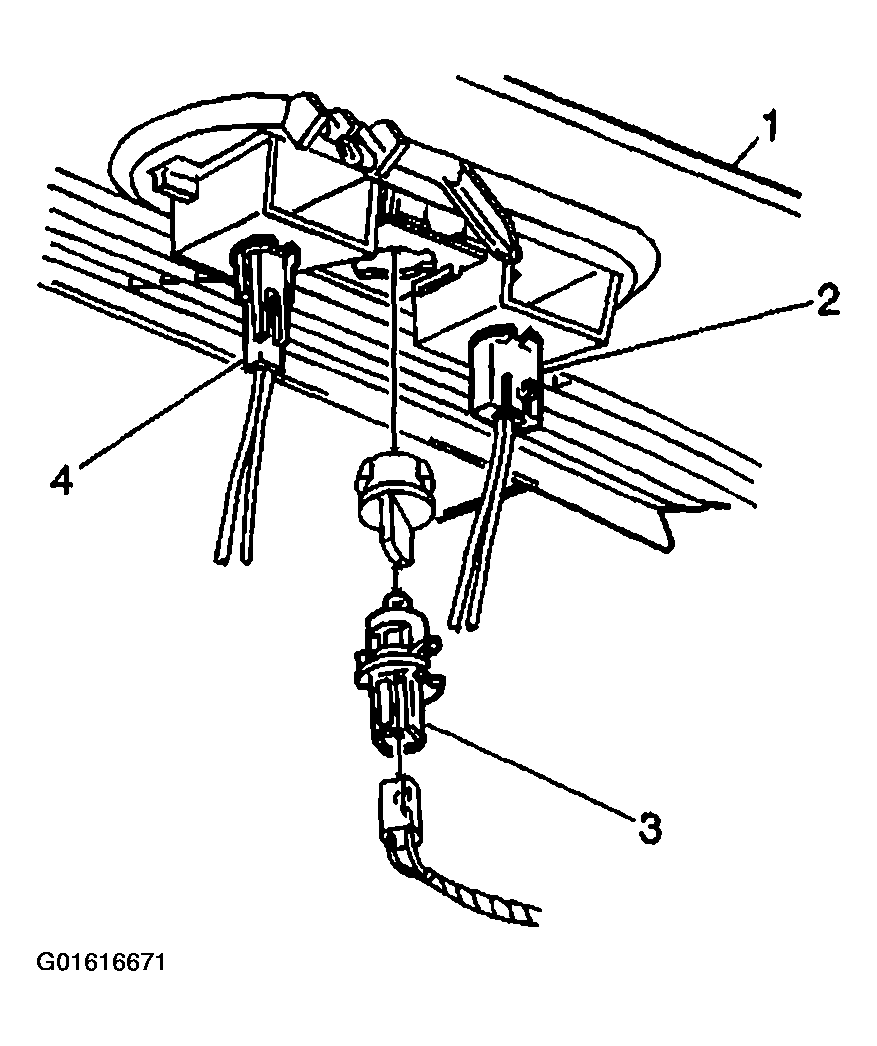

    Fig 1: Security Indicator Lamp
    G01616671Courtesy of GENERAL MOTORS CORP.
