Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Remove the instrument panel (IP) upper trim slowly to prevent the retainer clips from falling into the IP.
  1. Lift up the IP upper trim panel approximately 51 cm (2 in). Pull rearward to release the retainers.

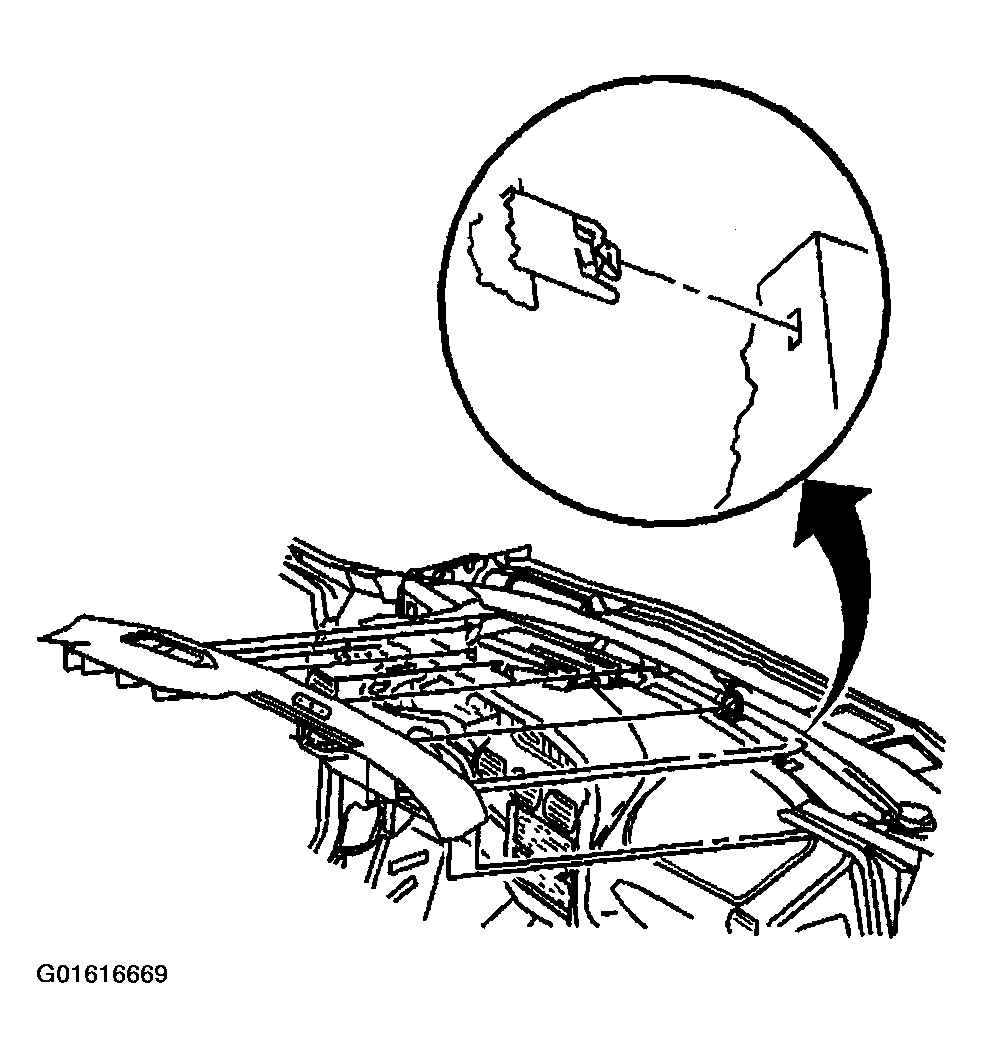

    Fig 1: Removing IP Upper Trim
    G01616669Courtesy of GENERAL MOTORS CORP.
  2. Remove the security indicator lamp (2) from the IP upper trim panel (1):
    1. 2.1. Rotate the lamp counterclockwise approximately 1/4 turn.
    2. 2.2. Pull the lamp out.
  3. Disconnect the electrical connector from the security indicator lamp.

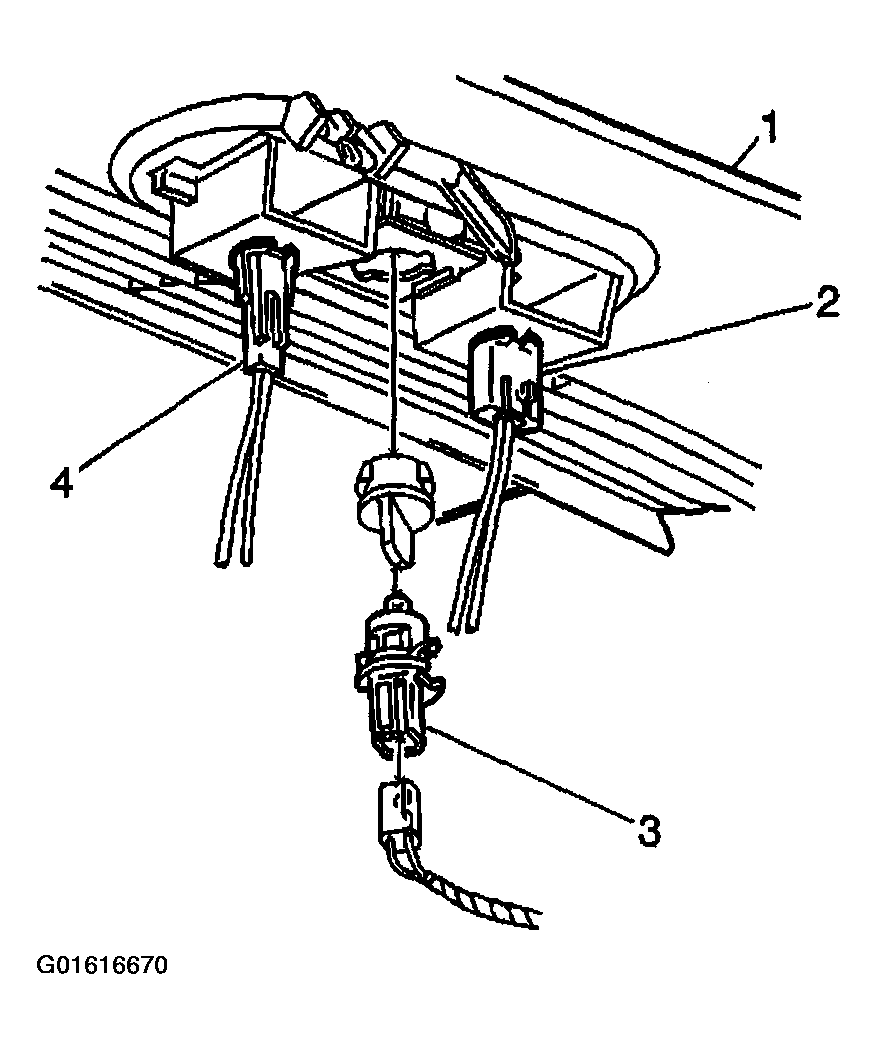

    Fig 2: Security Indicator Lamp
    G01616670Courtesy of GENERAL MOTORS CORP.
