Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control module to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the control module (2) retaining bolts (1).

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Connect the electrical connectors to the module.

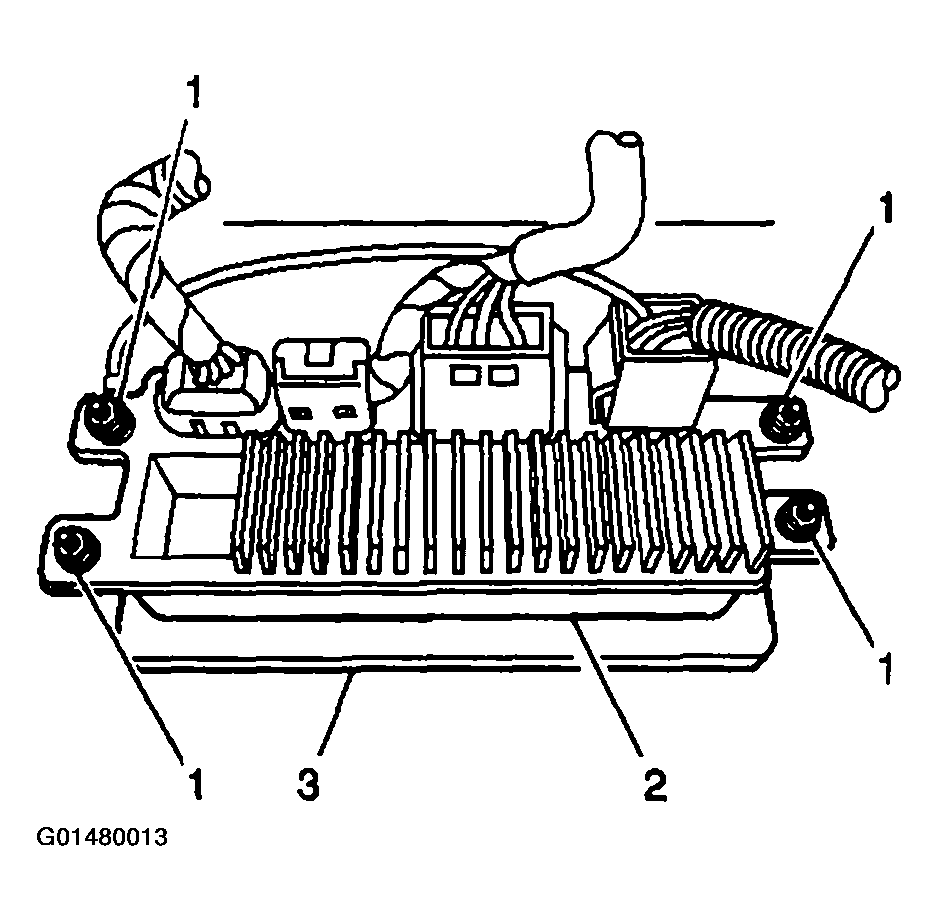

    Fig 1: Control Module & Retaining Bolts
    G01480013Courtesy of GENERAL MOTORS CORP.
  4. Install the spare tire to the vehicle.
  5. Lower the vehicle.
  6. Perform a learn alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) .

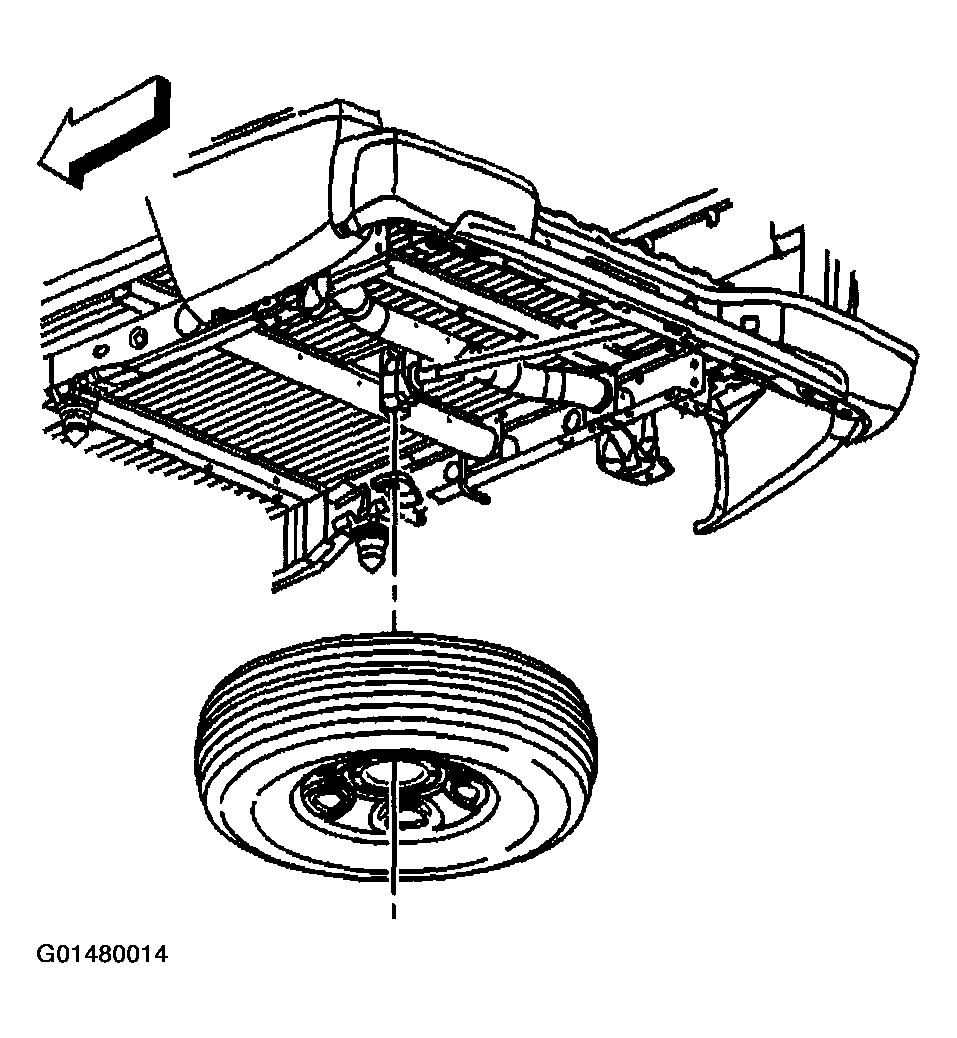

    Fig 2: Installing Spare Tire
    G01480014Courtesy of GENERAL MOTORS CORP.
