Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

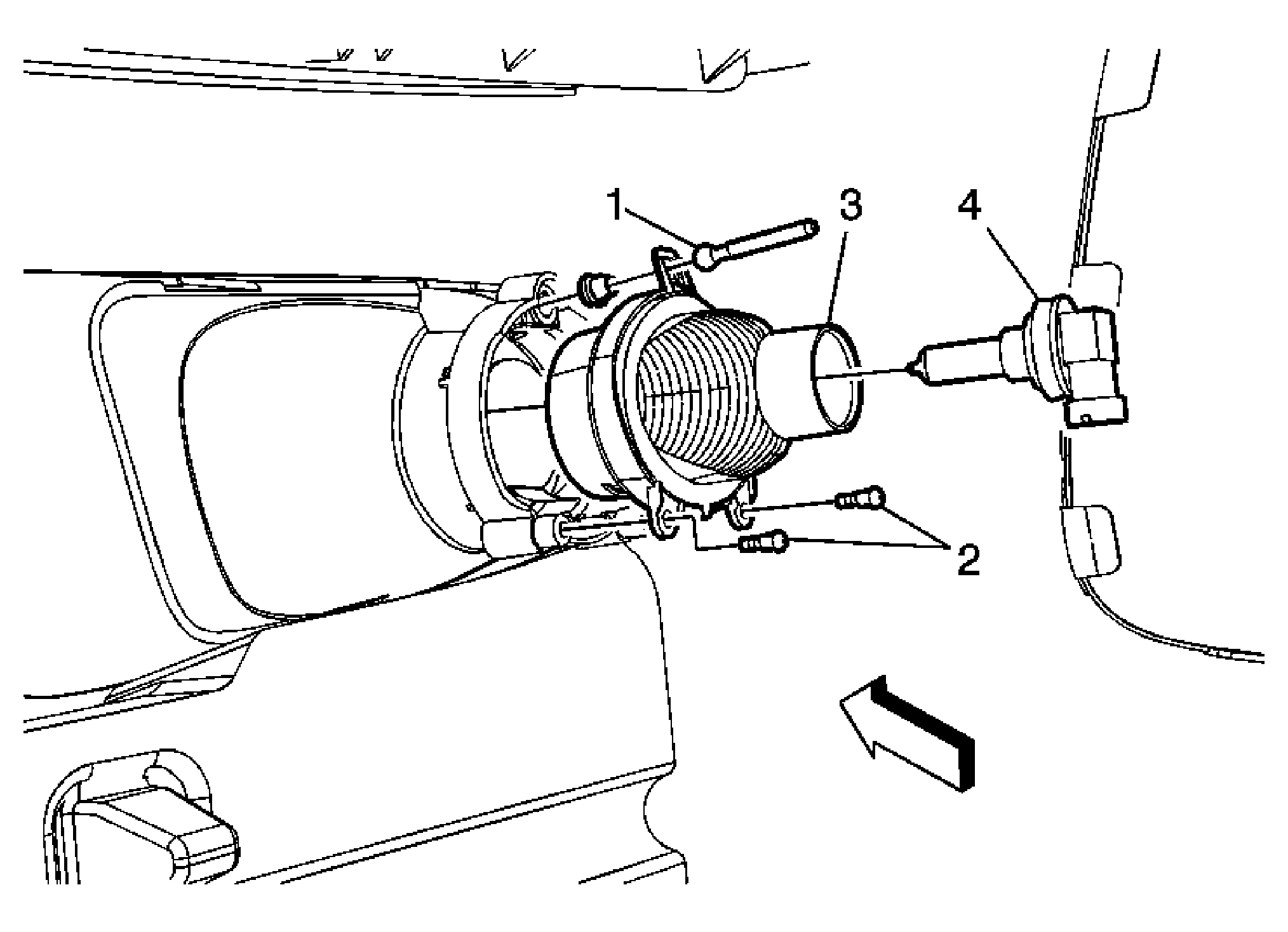

Fig 1: Front Fog Lamp And Components

GM1671189

Courtesy of GENERAL MOTORS CORP.

Front Fog Lamp Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove either the LF or RF front fender liner. Refer to Front Wheelhouse Liner Replacement . Disconnect fog lamp bulb socket electrical connector.
1	Front Fog Lamp Adjuster Screw Remove the adjuster screw from the fog lamp bracket and lamp assembly. Count the number of turns when removing the adjuster screw for a reference upon installation. Aim the fog lamp after installation. Refer to Fog Lamp Aiming .
2	Front Fog Lamp Screws (Qty: 2) Tighten: 2 N.m(18 lb in)
3	Front Fog Lamp Assembly Tip: Remove the lamp assembly from the fog lamp bracket.
4	Front Fog Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counter clockwise and remove from lamp assembly.
