Generator Control Module Coolant Outlet Hose Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

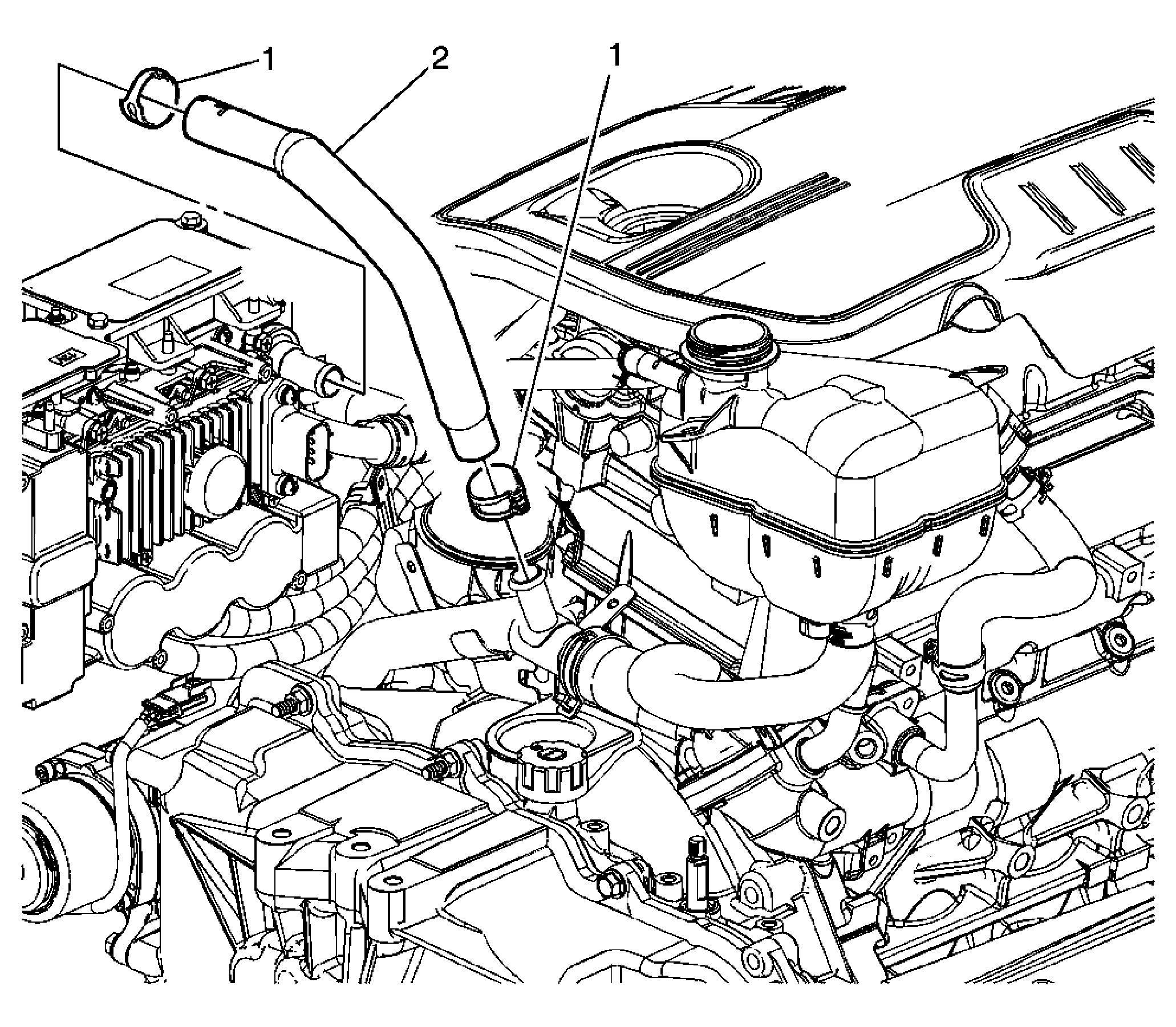

Fig 1: View Of Generator Control Module Coolant Outlet Hose
GM1759372Courtesy of GENERAL MOTORS CORP.
Generator Control Module Coolant Outlet Hose Replacement

Callout Component Name
Preliminary Procedures:
Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) .
1 Generator Control Module Coolant Outlet Hose
Tip:  Using SA9111E  reposition the generator control module coolant outlet hose clamps.
