Generator Control Module Coolant Pump Hose Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

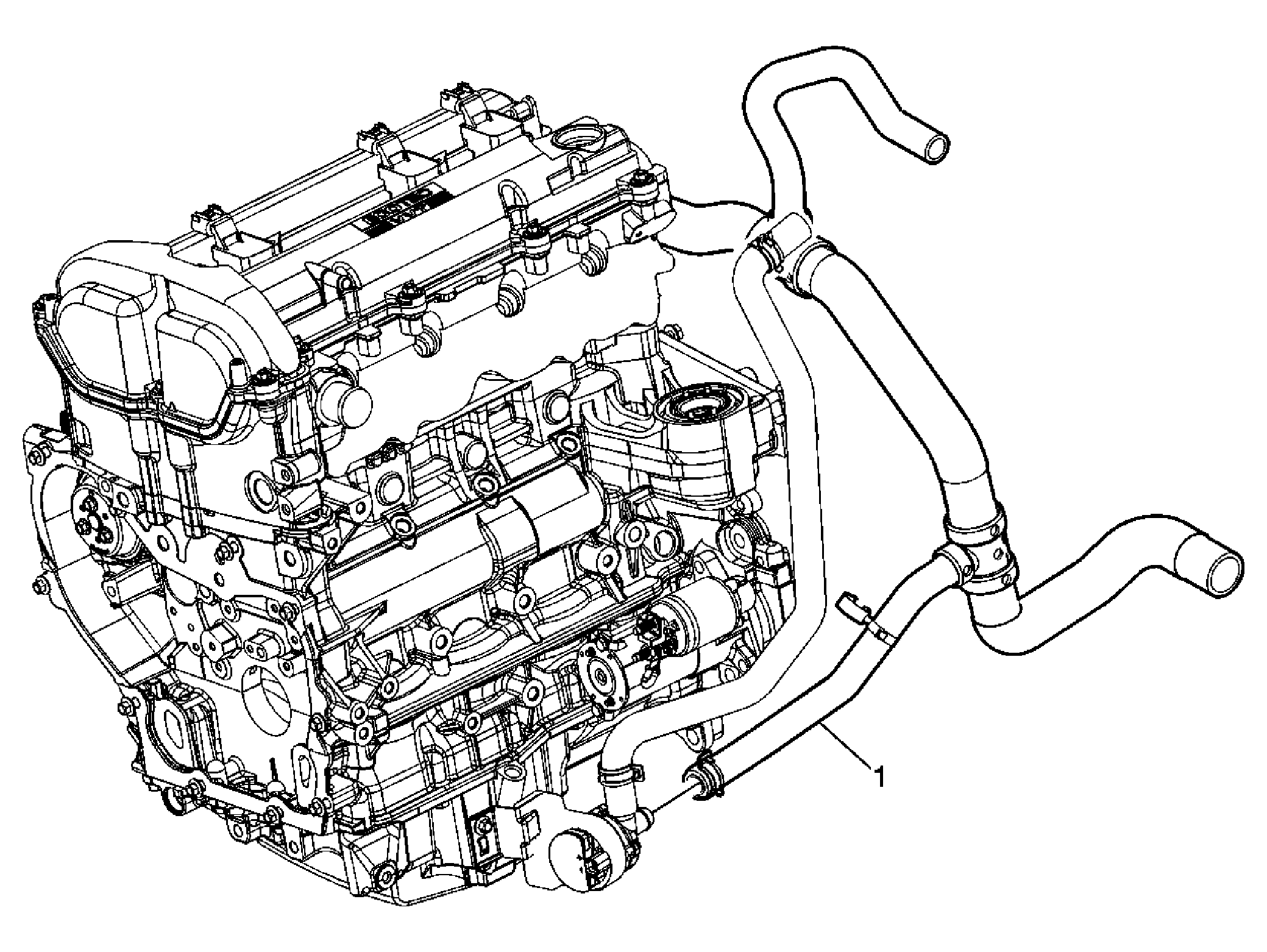

Fig 1: View Of Generator Control Module Coolant Pump Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . IMPORTANT: This hose is integral to the radiator outlet hose and must replaced as an assembly.
1	Generator Coolant Pump Inlet Hose Tip: Using SA9111E reposition the generator coolant pump inlet hose clamps.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

IMPORTANT: This hose is integral to the radiator outlet hose and must replaced as an assembly.

Generator Coolant Pump Inlet Hose
Tip: Using SA9111E reposition the generator coolant pump inlet hose clamps.
