Generator Control Module Coolant Pump Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

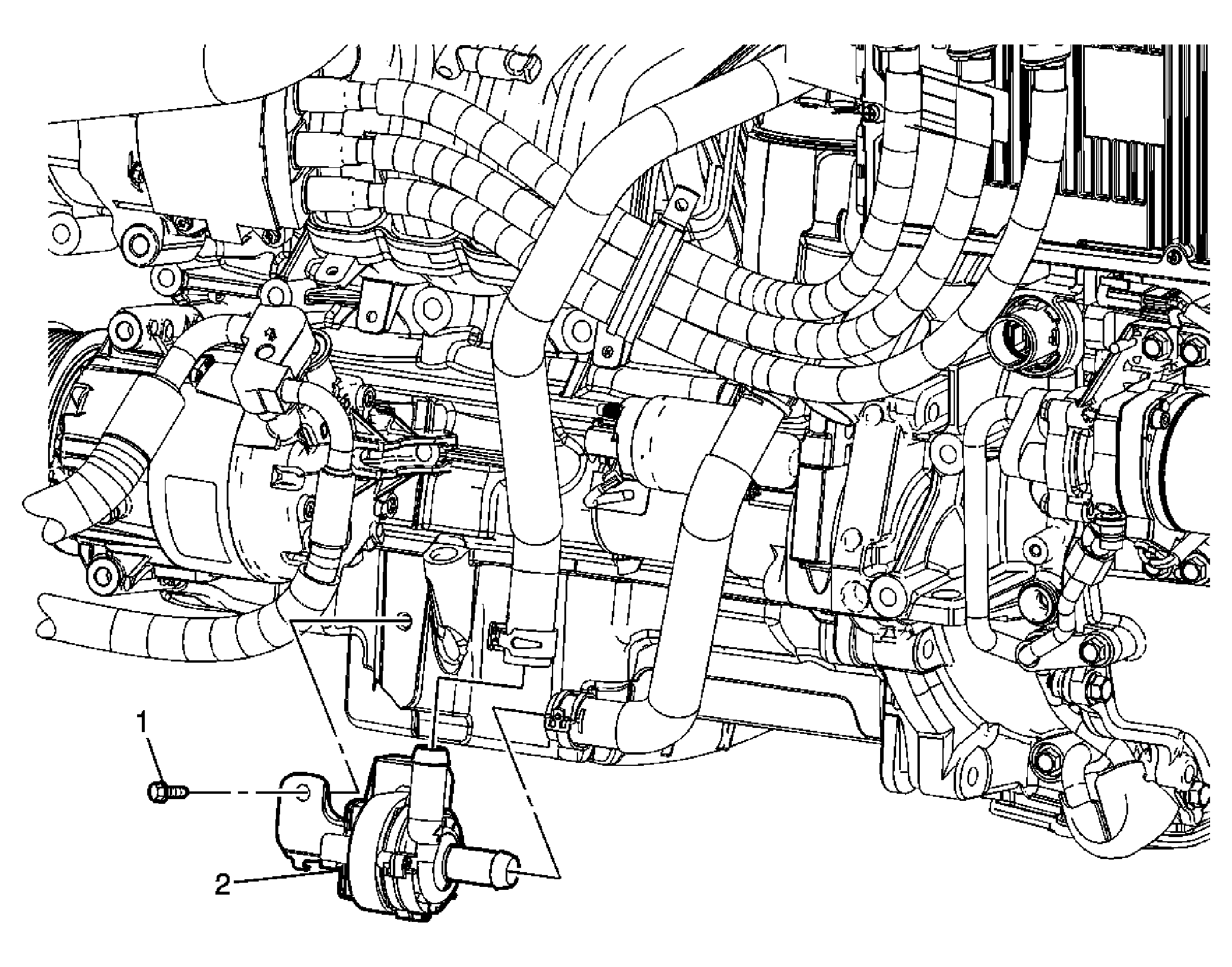

Fig 1: View Of Generator Control Module Coolant Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Generator Control Module Coolant Pump Bolt NOTE: Refer to Fastener Notice . Tighten: 22 N.m (16 lb ft)
2	Generator Control Module Coolant Pump Tip: Using SA9111E reposition the hose clamps on the generator control module coolant pump. Remove the hoses from the generator control module coolant pump.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (GE 47716 Fill) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Generator Control Module Coolant Pump Bolt

NOTE: Refer to Fastener Notice .

Tighten: 22 N.m (16 lb ft)

Generator Control Module Coolant Pump
Tip:

Using SA9111E reposition the hose clamps on the generator control module coolant pump.
Remove the hoses from the generator control module coolant pump.
