Front Fog Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

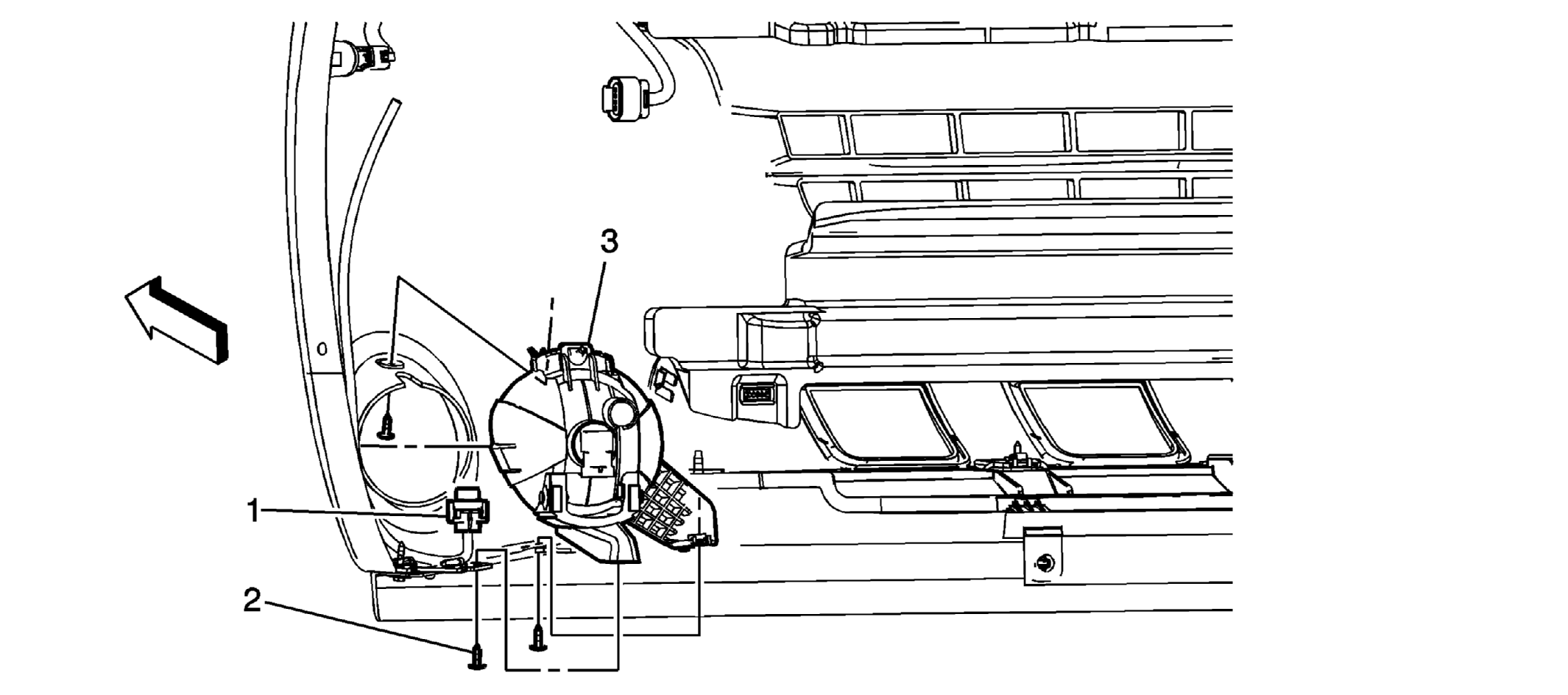

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Front Fog Lamp Assembly Electrical Connector |
| 2 | Front Fog Lamp Assembly Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 3 | Front Fog Lamp Assembly Procedure: Aim the front fog lamps after replacement. Refer to Fog Lamp Aiming . |
