Instrument Panel Compartment Lamp Switch Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

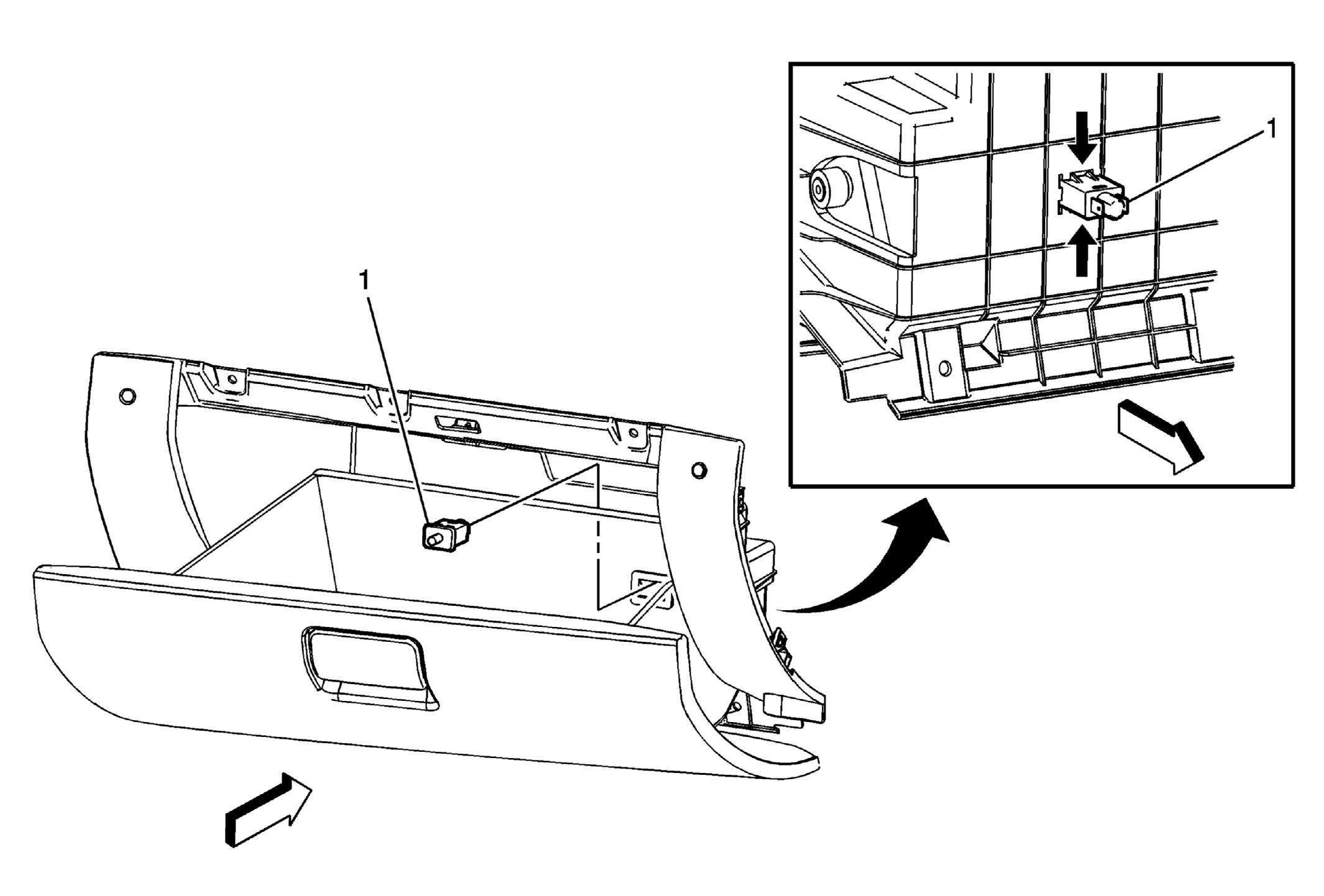

Fig 1: Instrument Panel Compartment Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Instrument Panel Compartment Lamp Switch Assembly Procedure Disconnect the electrical connection. Push the tabs in to release the lamp switch from the housing.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .

Instrument Panel Compartment Lamp Switch Assembly

Procedure

Disconnect the electrical connection.
Push the tabs in to release the lamp switch from the housing.
