Component Locations
WARNING: This page is about a different car, the 2002 GMC Savana, 2002 Chevrolet Chevy Express, 2001 GMC Savana, and 2001 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Under Right Side Of Instrument Panel |

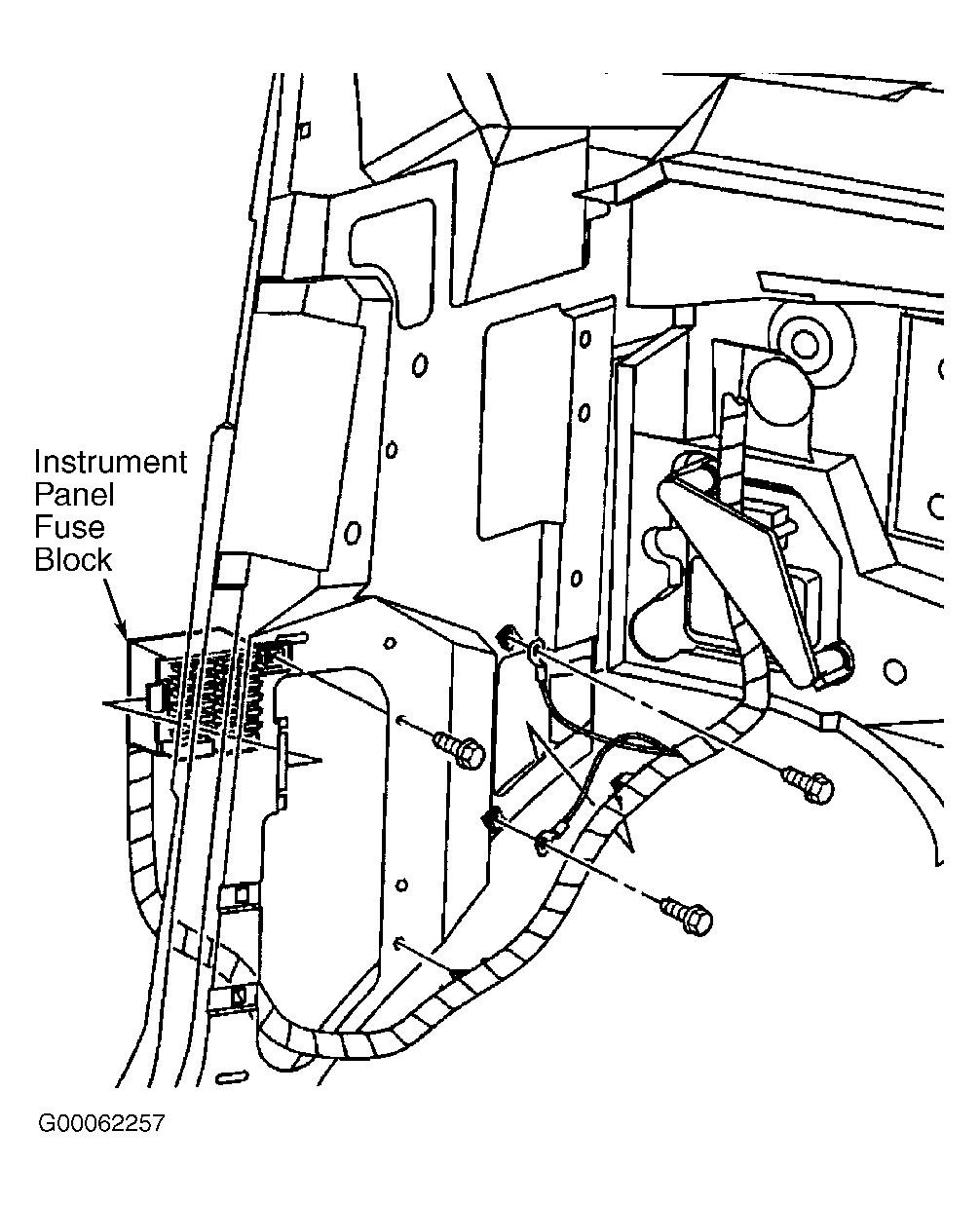

| Instrument Panel Fuse Block | In Left Lower Kick Panel |
| Passlock(tm) Module | Below Center Of Instrument Panel |
| Passlock(tm) Sensor | Internal To Steering Column |

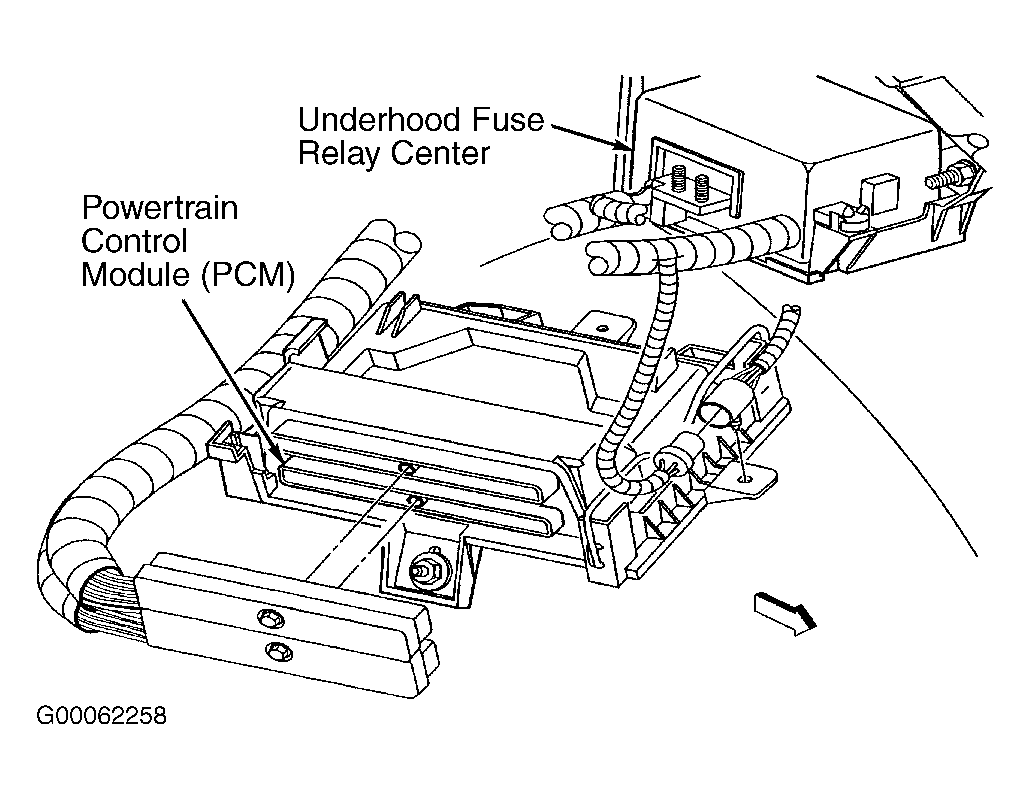

| Powertrain Control Module (4.3L, 5.7L & 8.1L) | In Engine Compartment, On Left Fender |
| Powertrain Control Module (6.5L) | Behind Center Of Instrument Panel |
| Rear Fuse Block | Behind Left Side Interior Panel To Rear Of Driver Door, Above RSA-T Module |
| Underhood Fuse Block | In Engine Compartment, On Left Fender |
