Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the driver information center to the steering column filler.

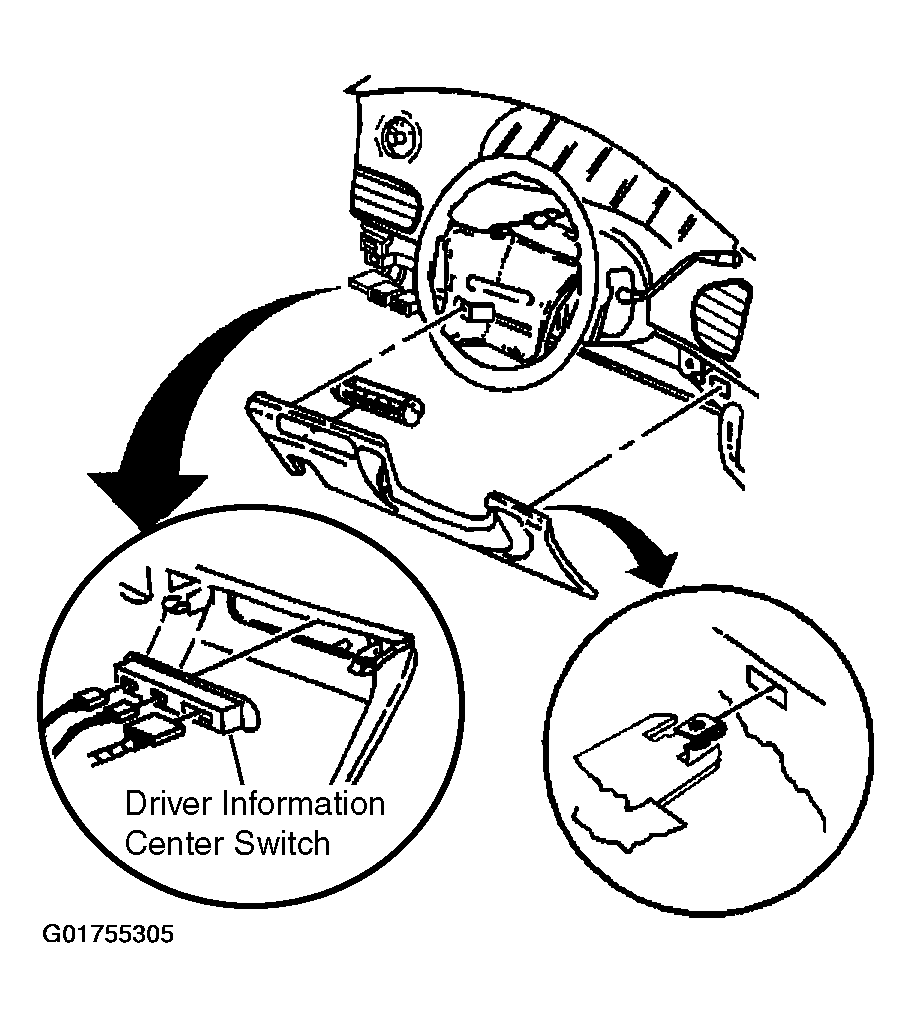

    2. Fig 1: Identifying Driver Information Center Switch
    G01755305Courtesy of GENERAL MOTORS CORP.
  2. Install driver information center, pressing in until the retainers are fully seated.
  3. Connect the electrical connectors to the driver information center.
  4. Install the steering column opening filler. Refer to Steering Column Filler Replacement .
