Connector End Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Air Temperature Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

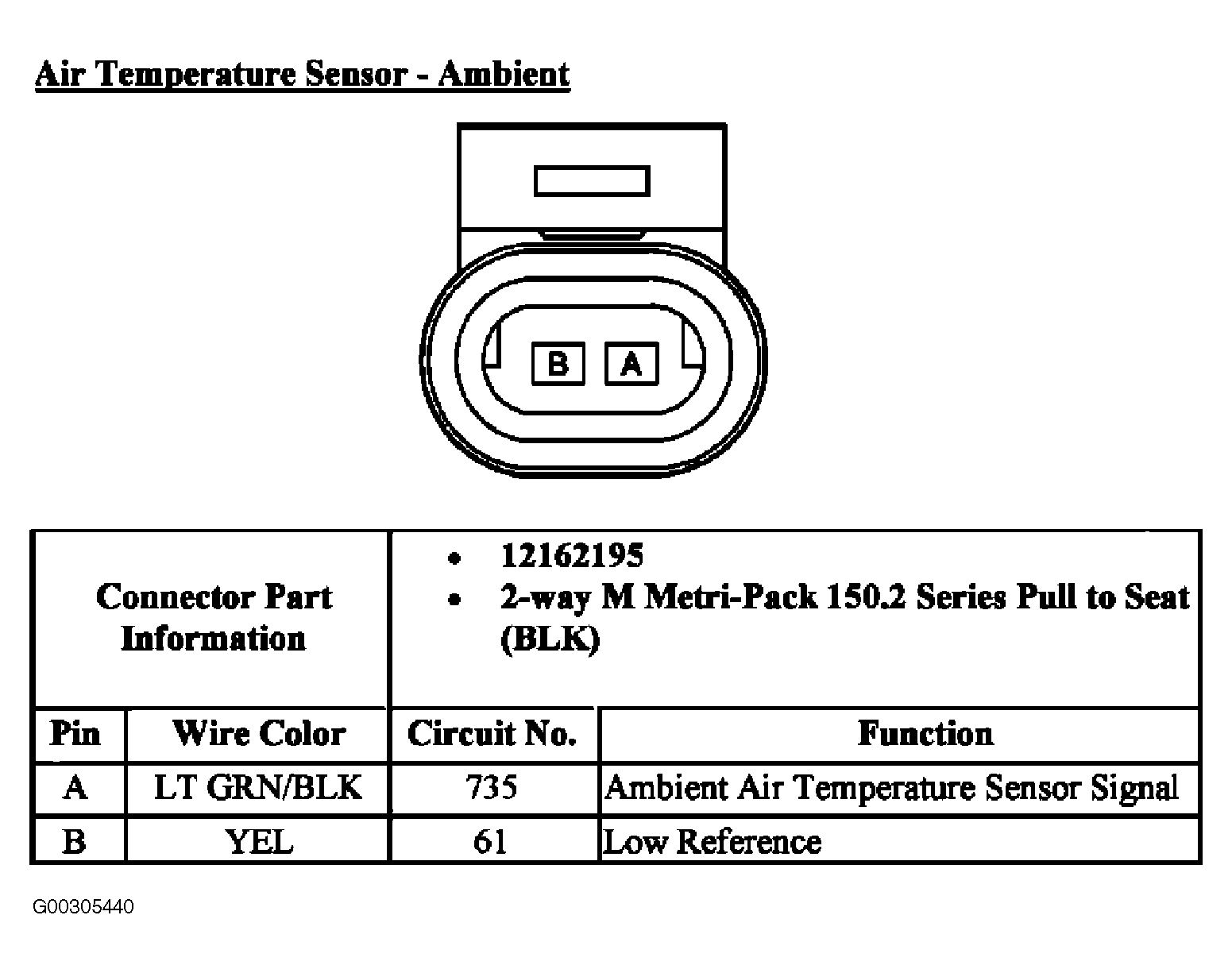

Fig 2: Ambient Air Temperature Sensor Connector

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Sunload Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

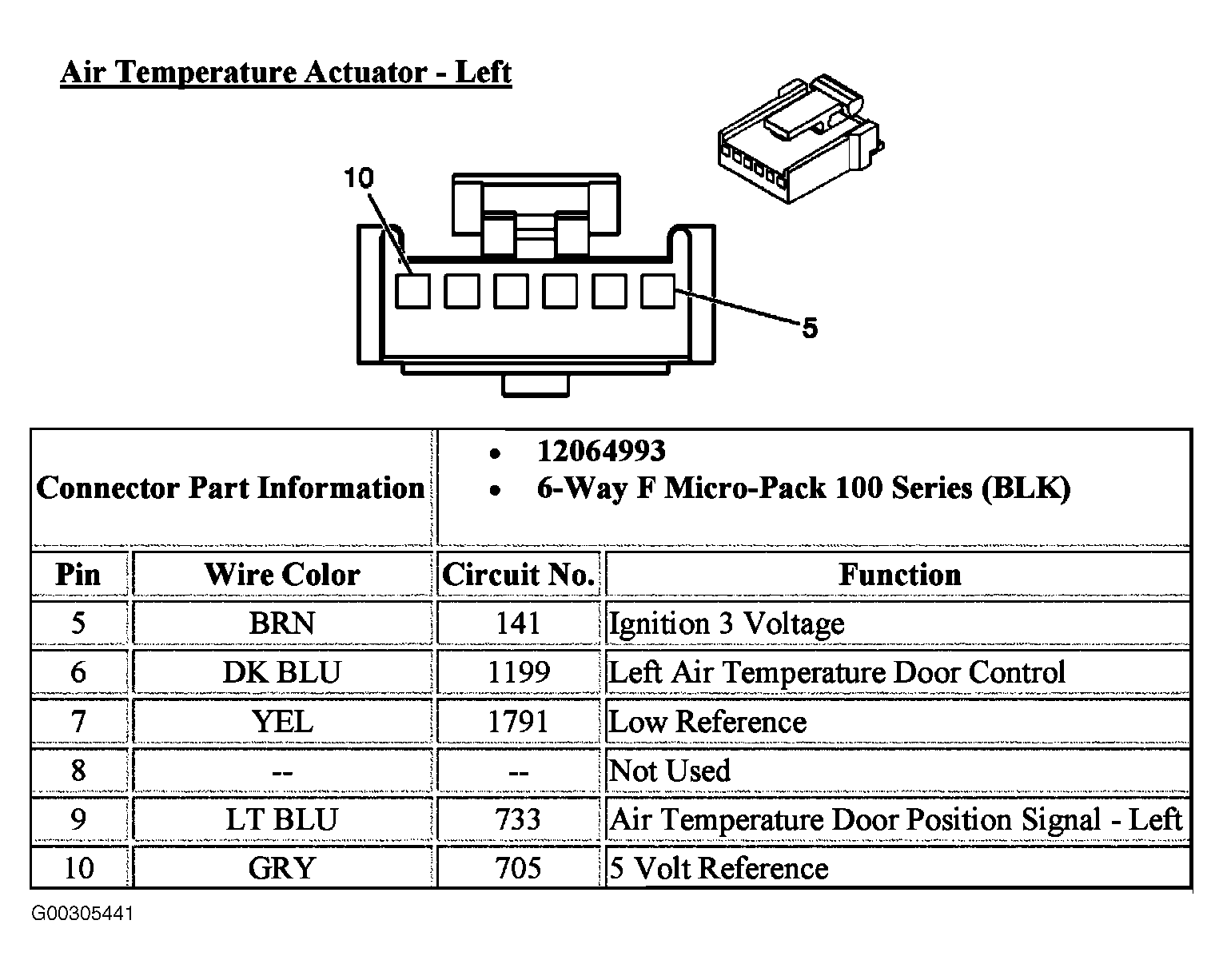

Fig 4: Left Air Temperature Actuator Connector

Courtesy of GENERAL MOTORS CORP.

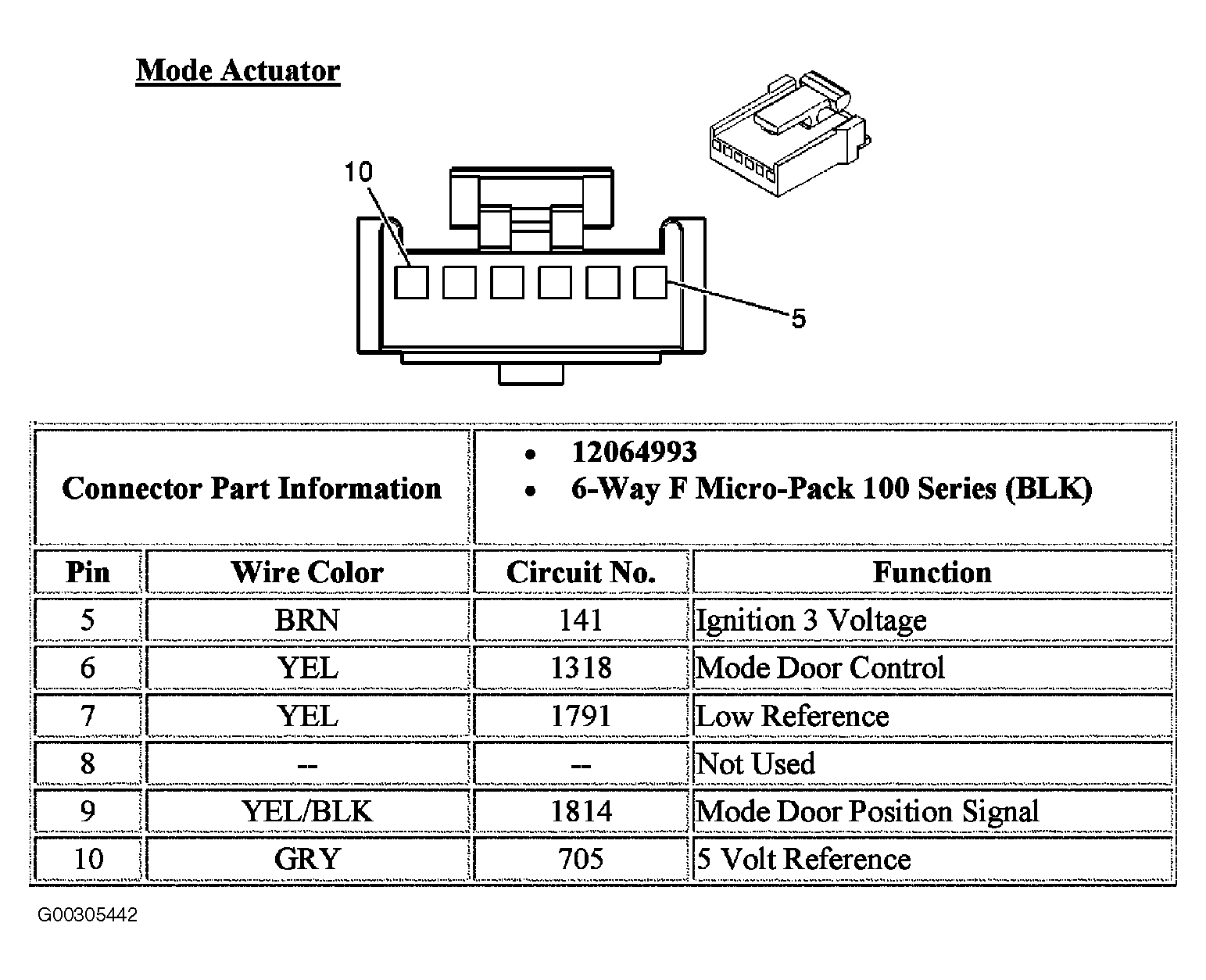

Fig 5: Mode Actuator Connector

Courtesy of GENERAL MOTORS CORP.

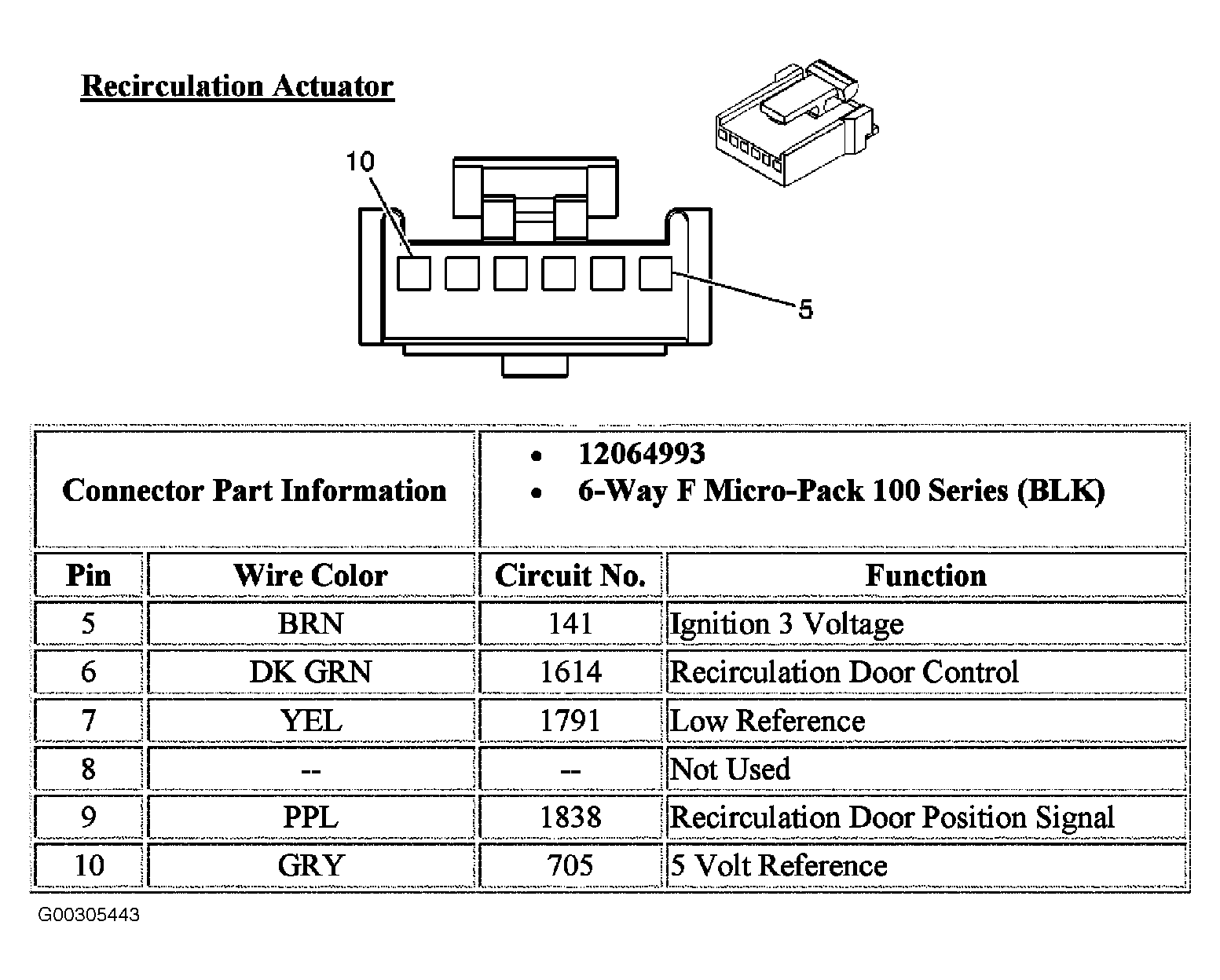

Fig 6: Recirculation Actuator Connector

Courtesy of GENERAL MOTORS CORP.

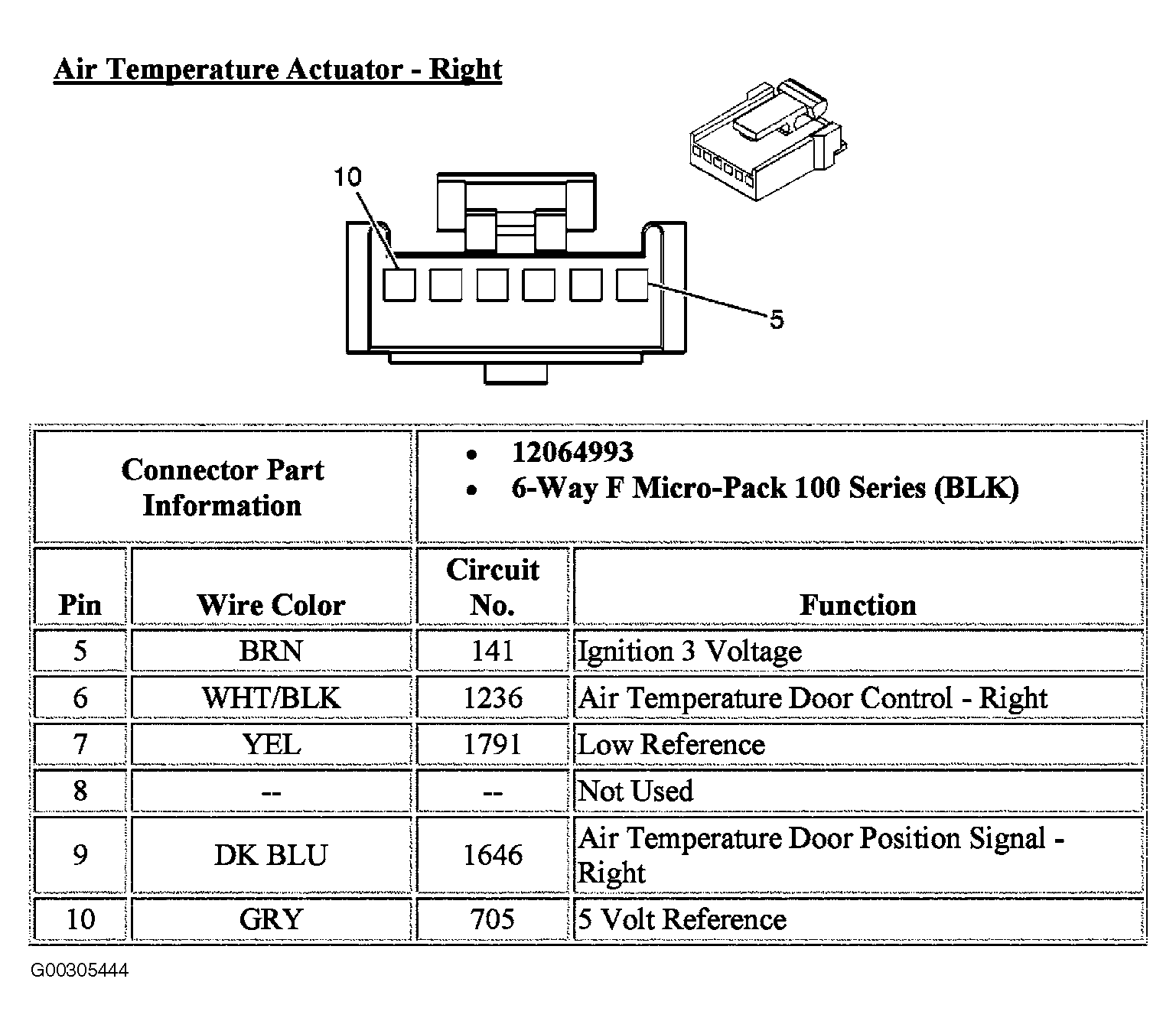

Fig 7: Right Air Temperature Actuator Connector

Courtesy of GENERAL MOTORS CORP.

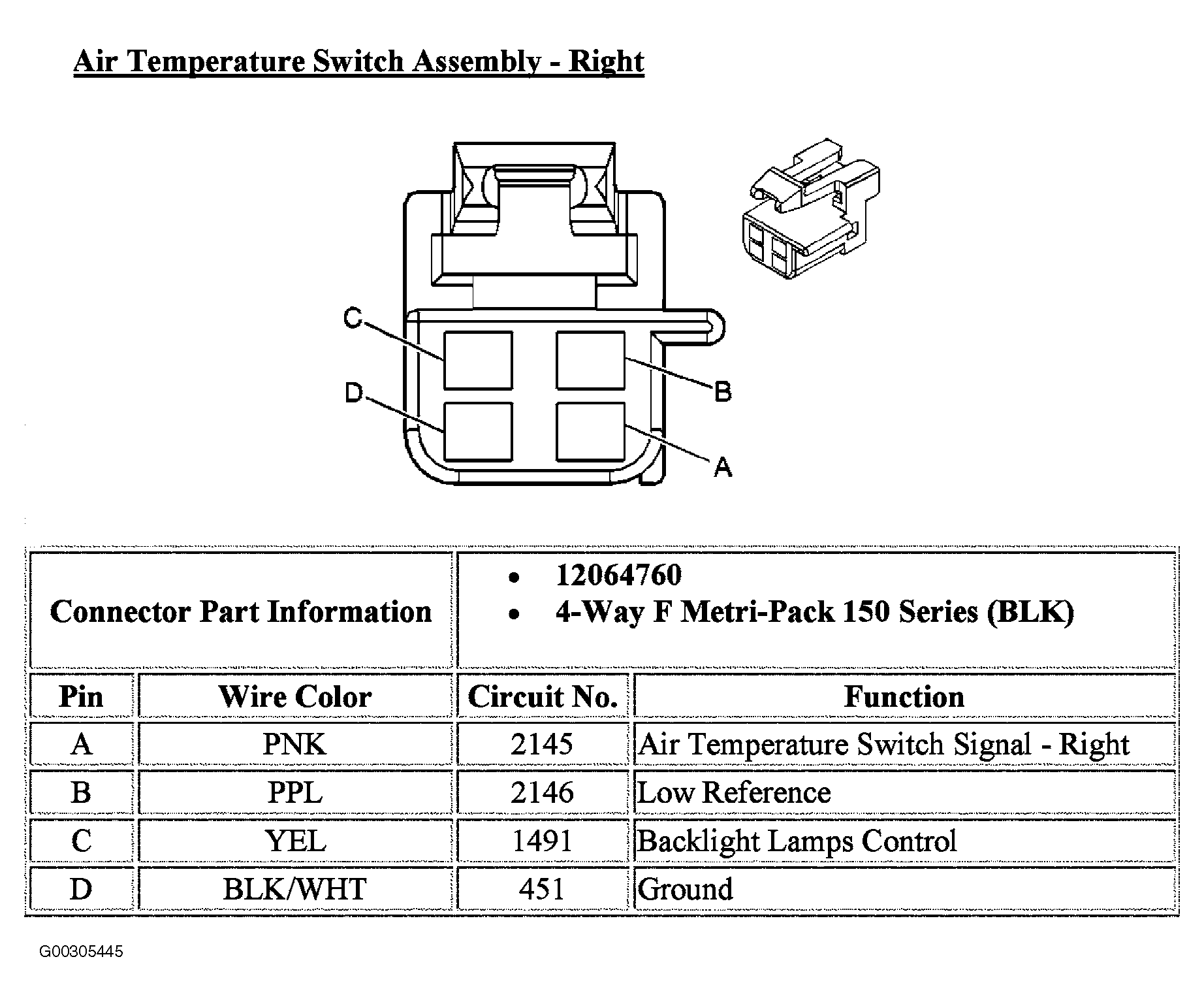

Fig 8: Passenger Door Temperature Switch Connector

Courtesy of GENERAL MOTORS CORP.

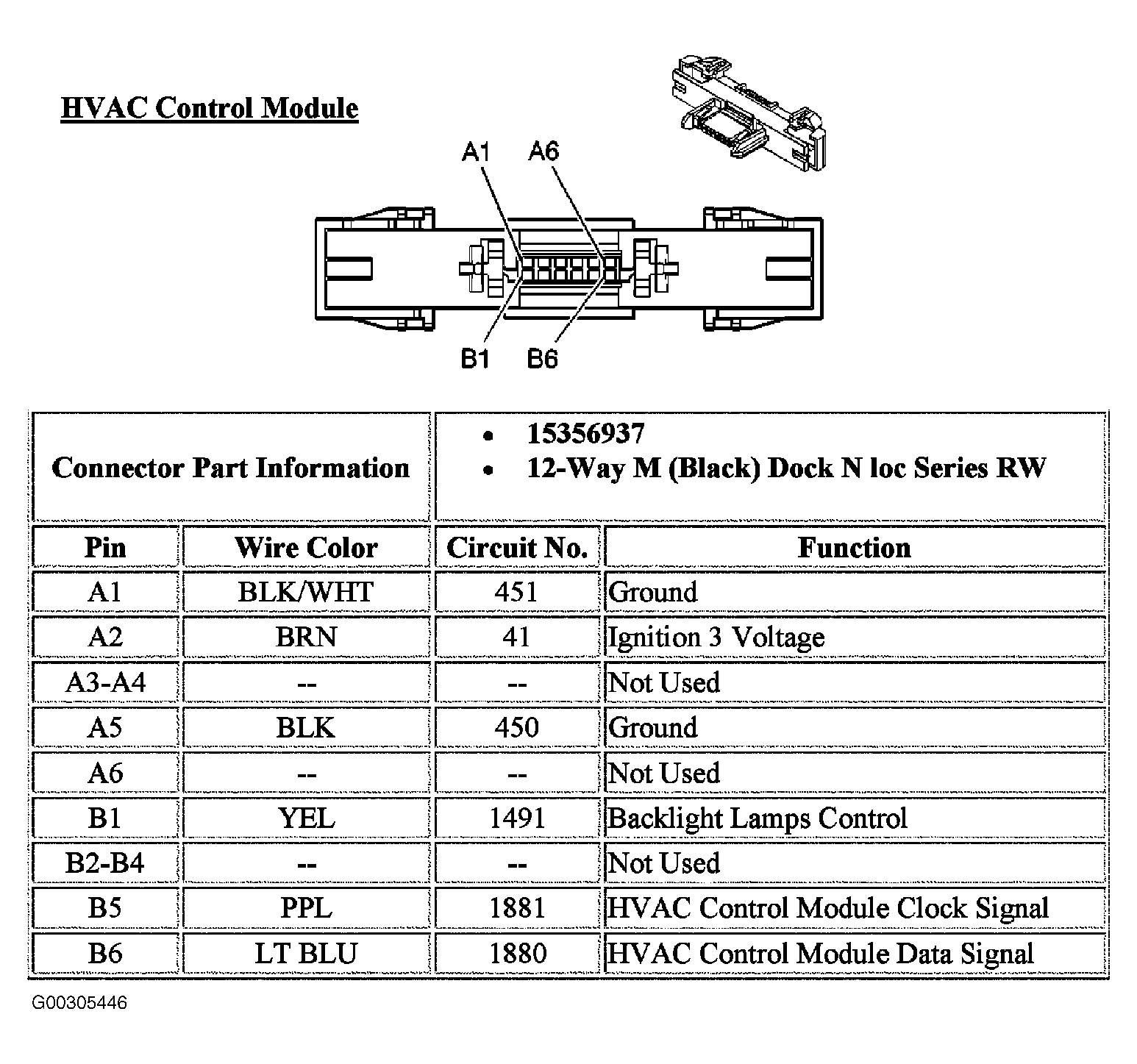

Fig 9: HVAC Control Module Connector

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Instrument Panel Integration Module (IPM) Harness Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Instrument Panel Integration Module (IPM) Harness Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

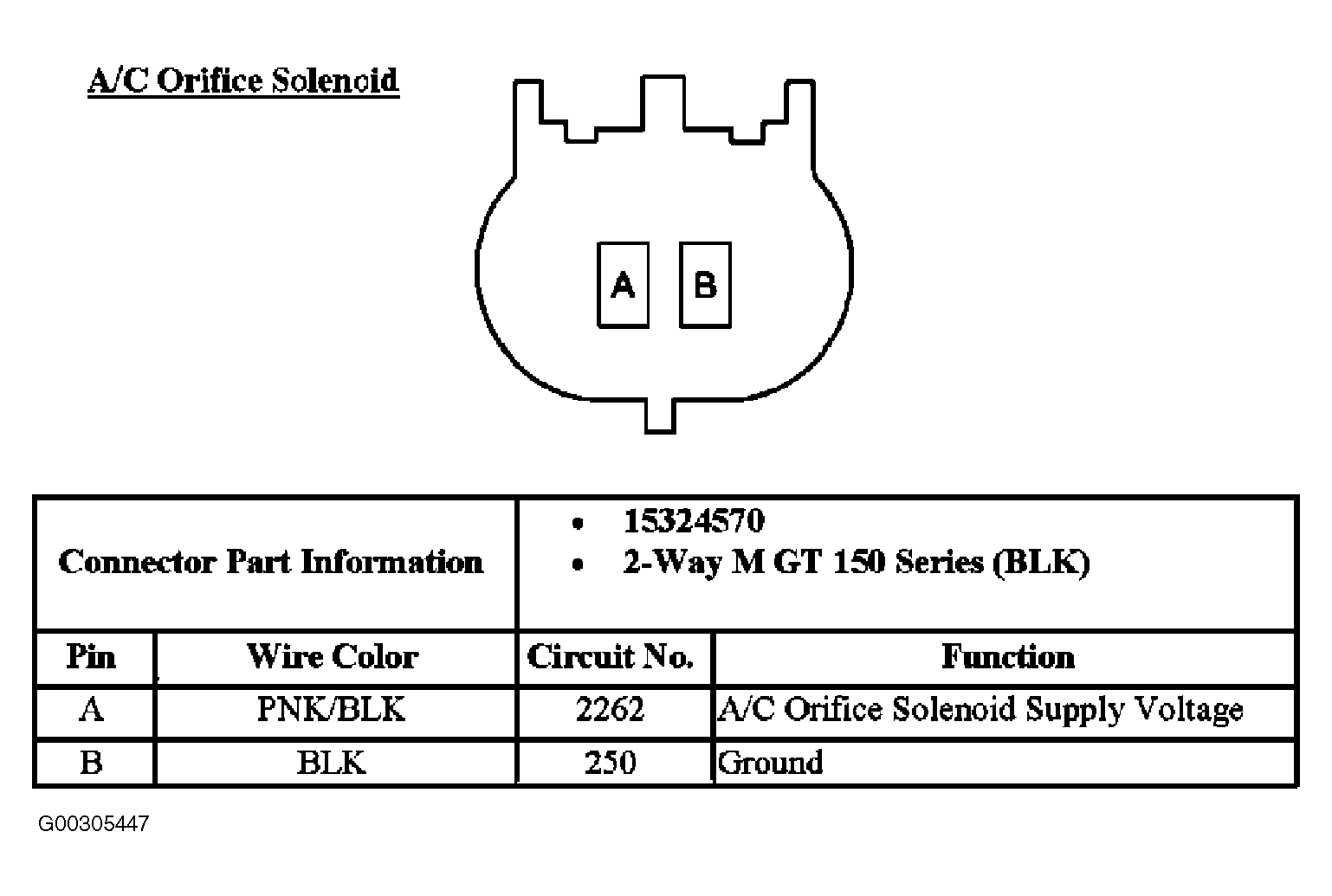

Fig 12: A/C Orifice Connector

Courtesy of GENERAL MOTORS CORP.
