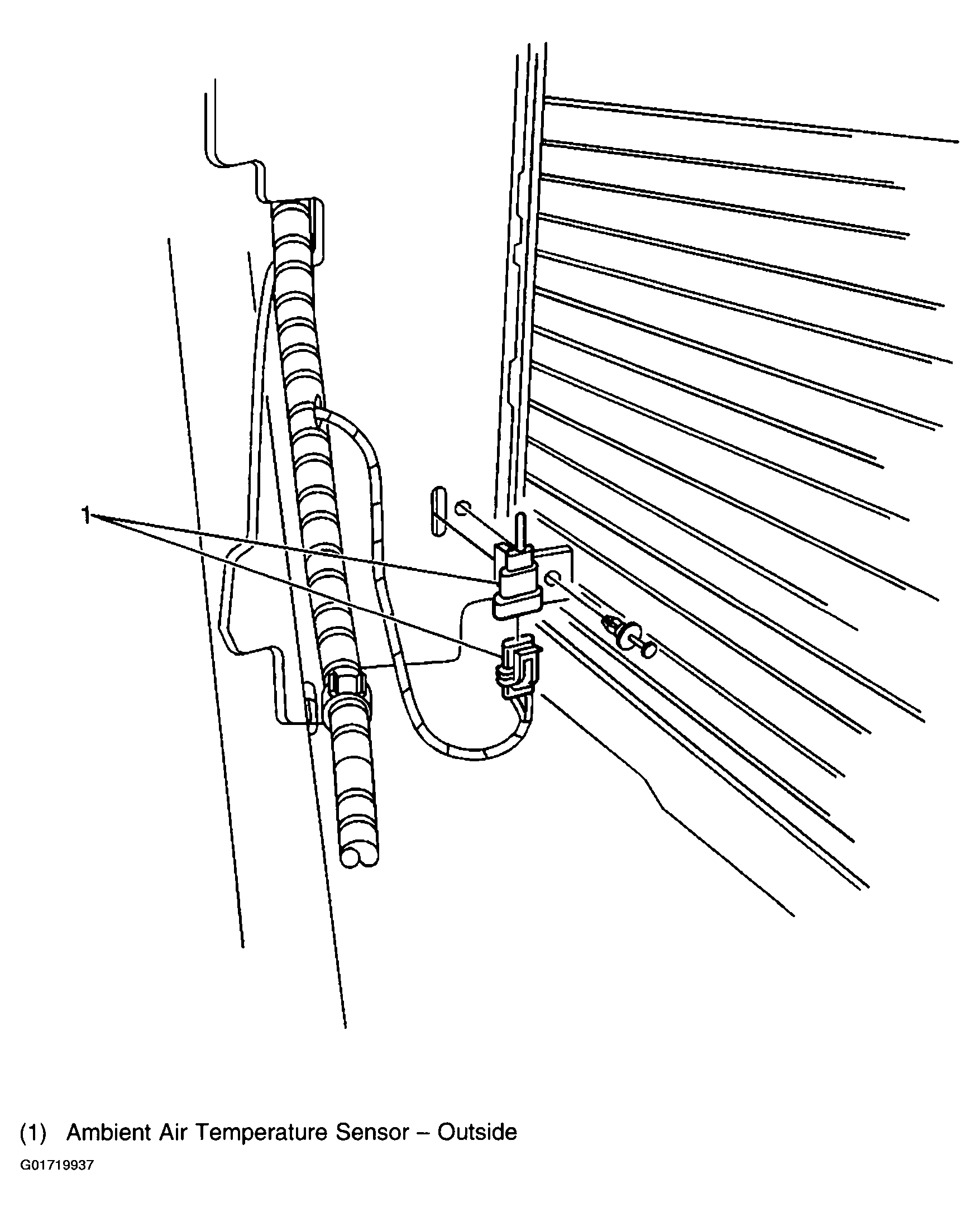

Fig 1: Between Engine Radiator and Forward Lamp Assembly - Right Side (CJ2)
Courtesy of GENERAL MOTORS CORP.

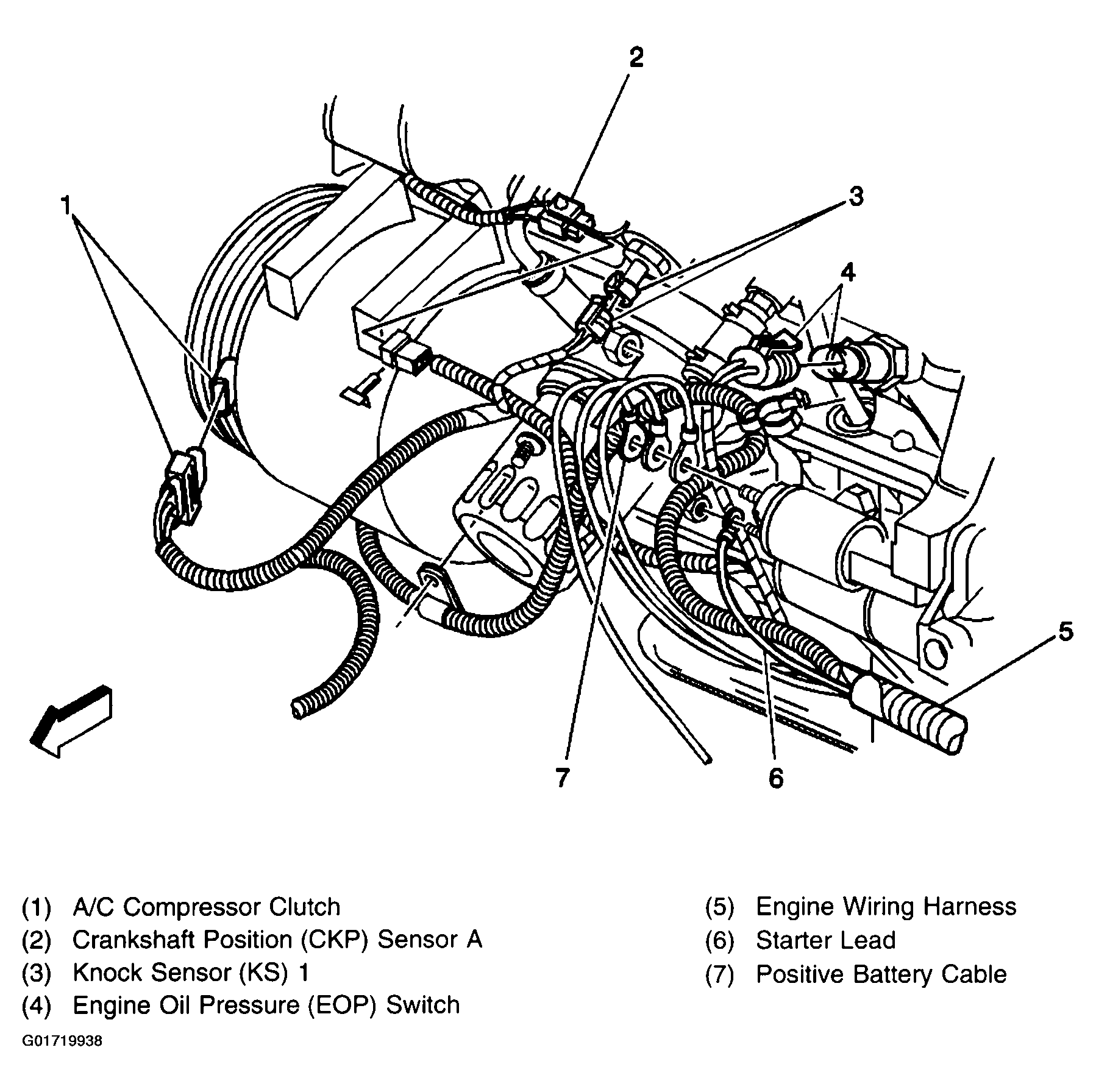

Fig 2: Lower Left Side of Engine (LG8)
Courtesy of GENERAL MOTORS CORP.

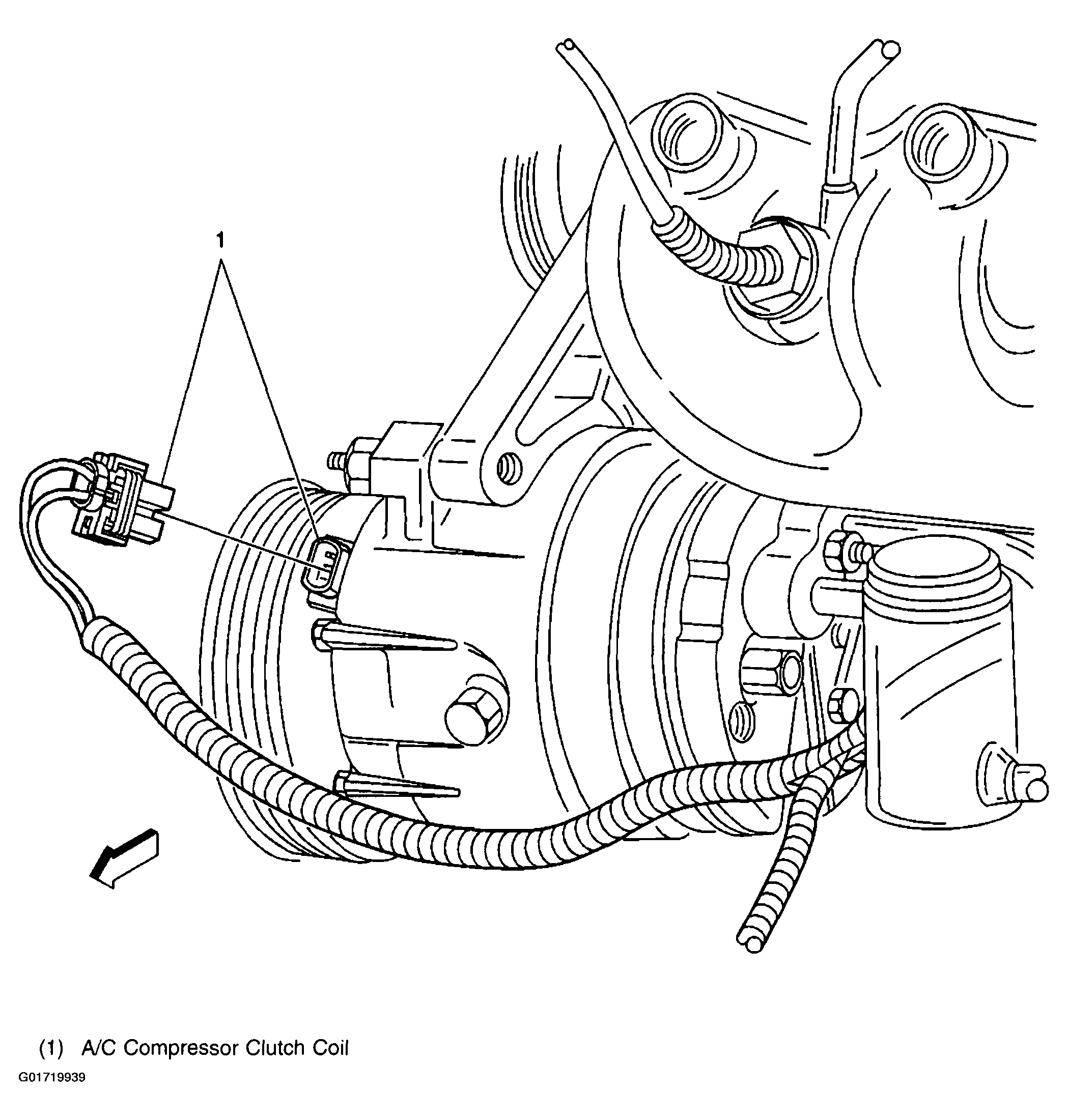

Fig 3: Lower Left Side of Engine (L36/L67)
Courtesy of GENERAL MOTORS CORP.

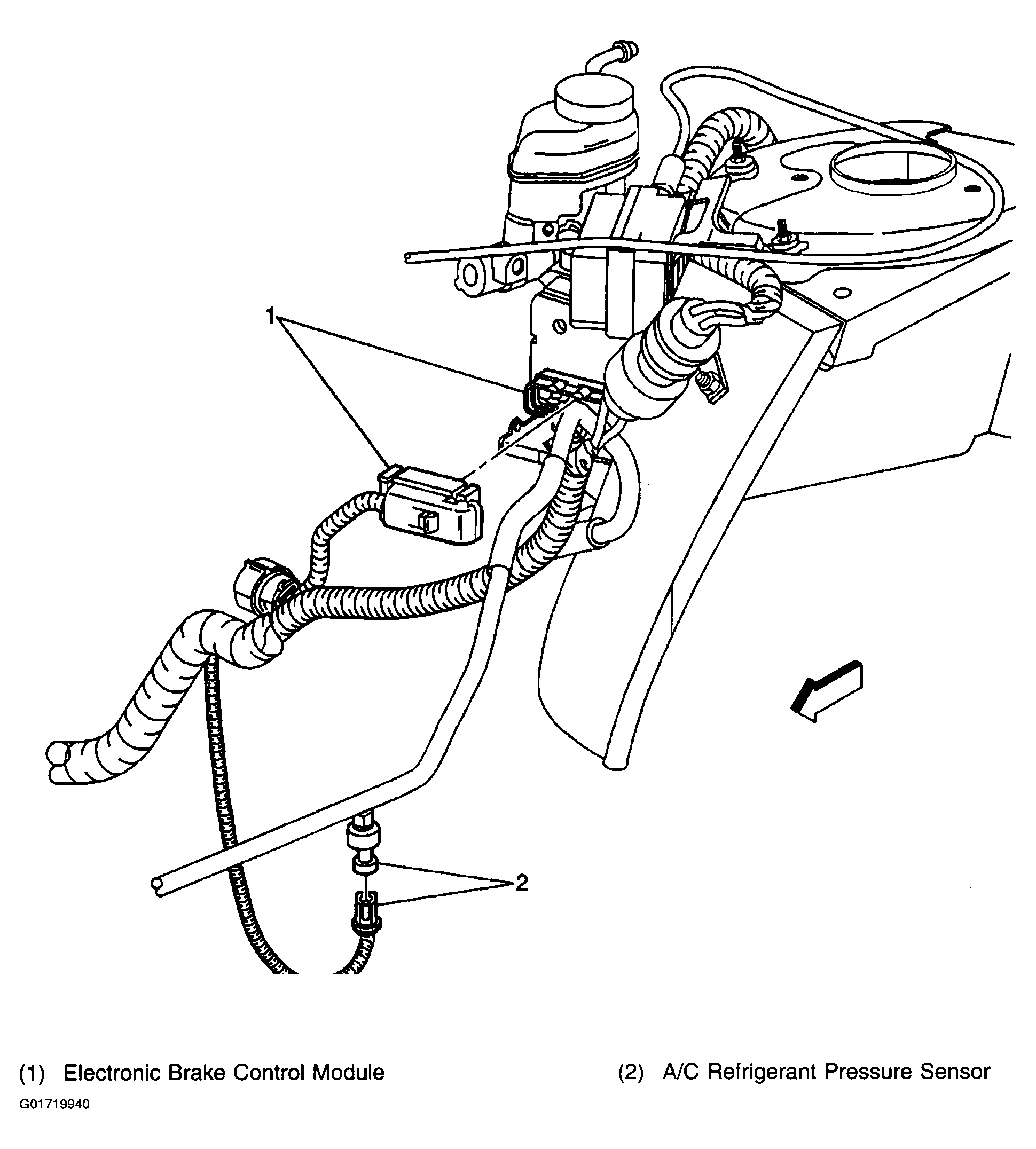

Fig 4: Forward Left Side of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

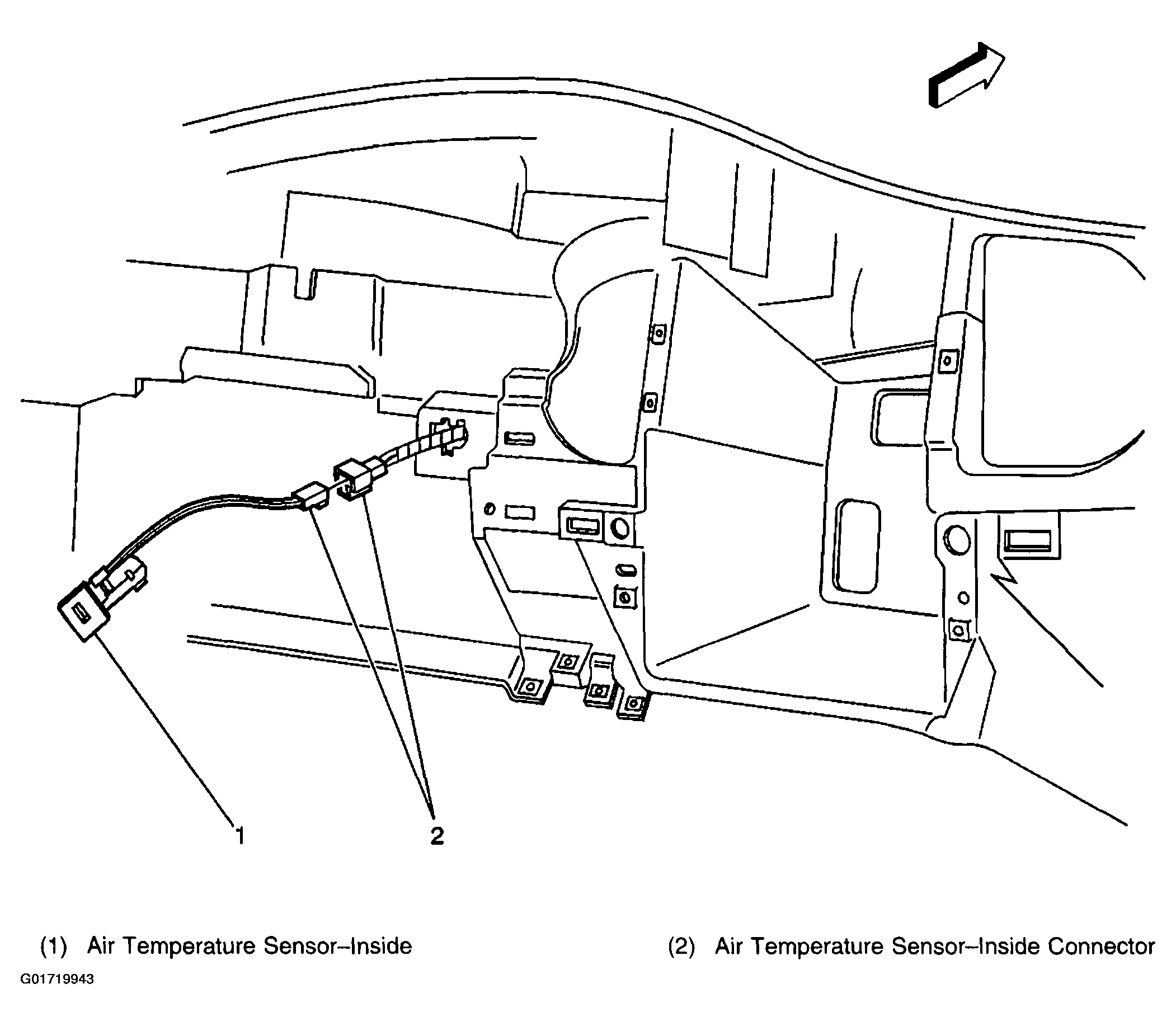

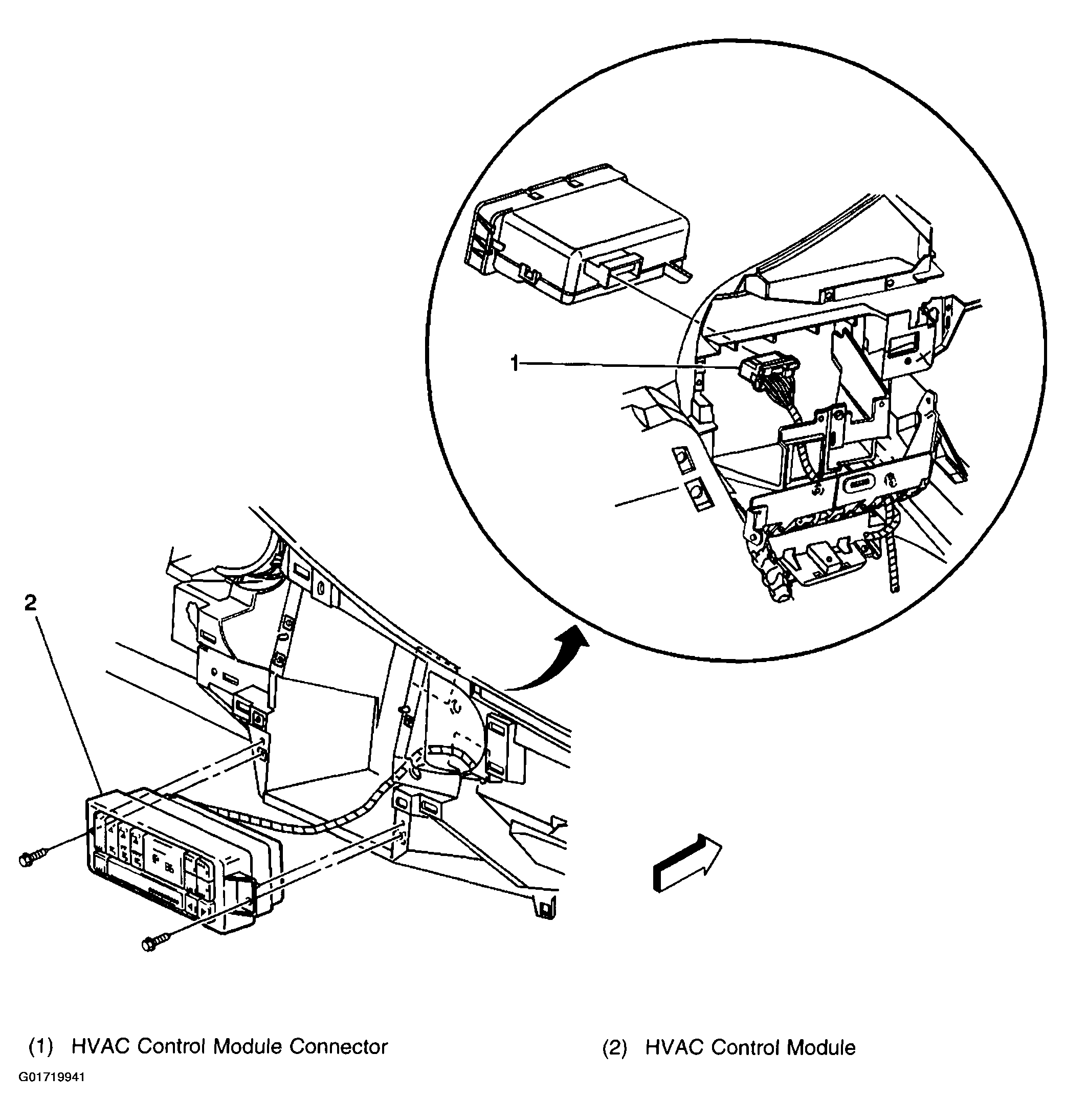

Fig 5: Lower Center of Instrument Panel (CJ2)
Courtesy of GENERAL MOTORS CORP.

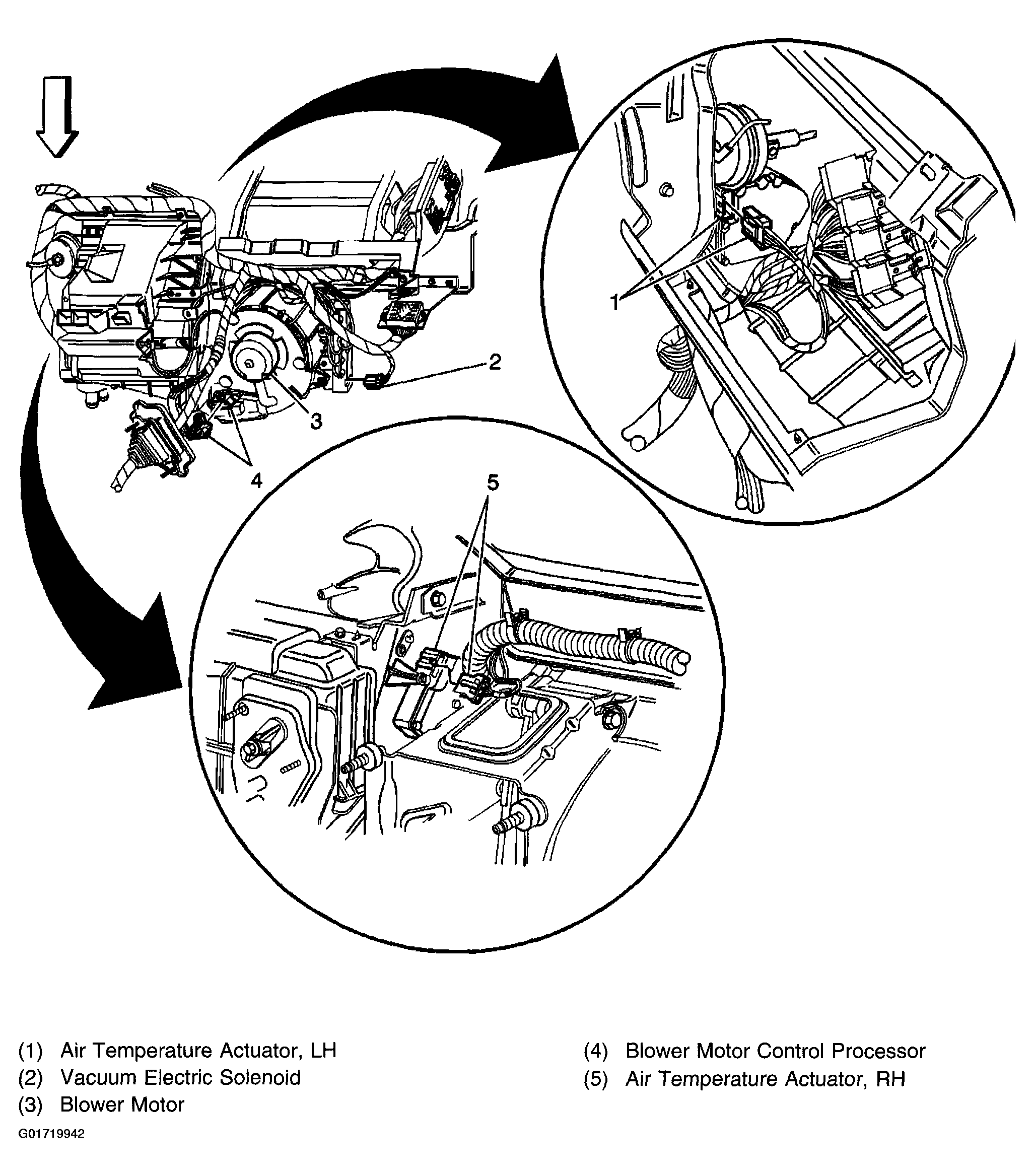

Fig 6: Behind Right Side of Instrument Panel (CJ2)
