Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Align the blower motor control processor forward retaining slots onto the screws and seat the blower motor control processor against HVAC module.

Install the blower motor control processor.
Install the blower motor control processor rearward screw.
Tighten:

Tighten the screw to 1.5 N.m (13 in lbs)

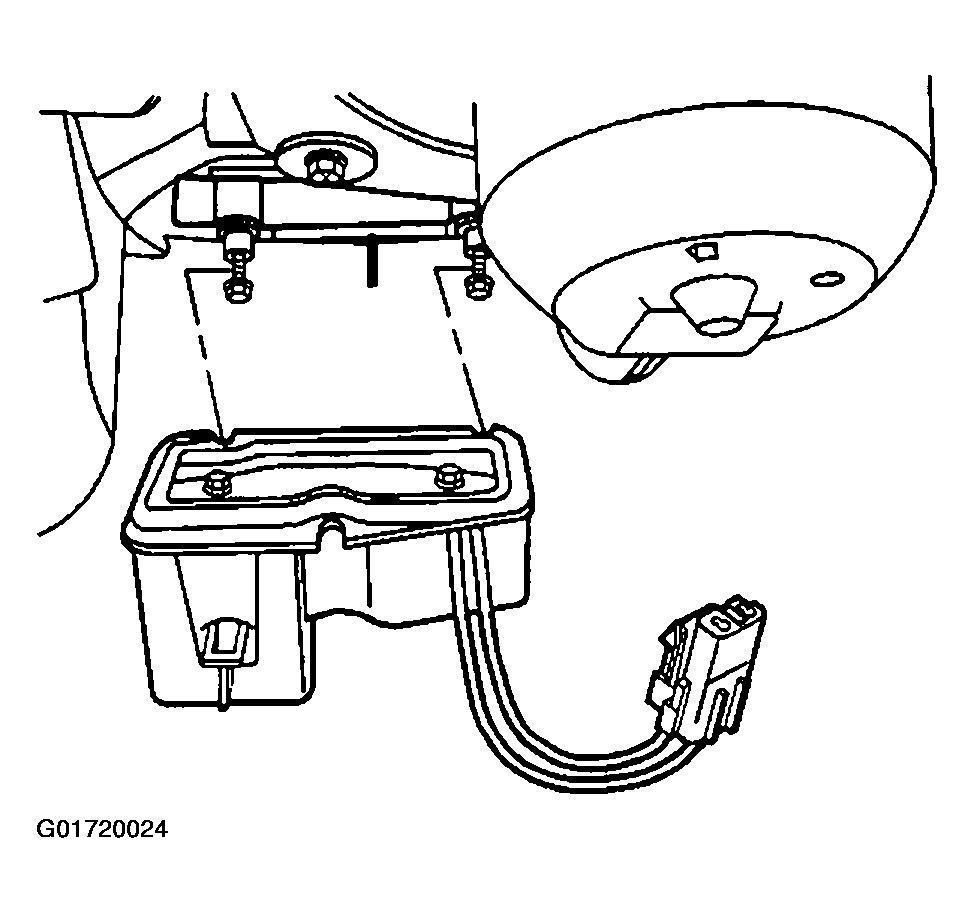

Fig 1: Blower Motor Control Processor And Mounting Screws
Courtesy of GENERAL MOTORS CORP.
Tighten the blower motor control processor forward screws.
Tighten:

Tighten the screws to 1.5 N.m (13 in lbs)
Connect the blower motor control processor electrical connector to the blower motor.

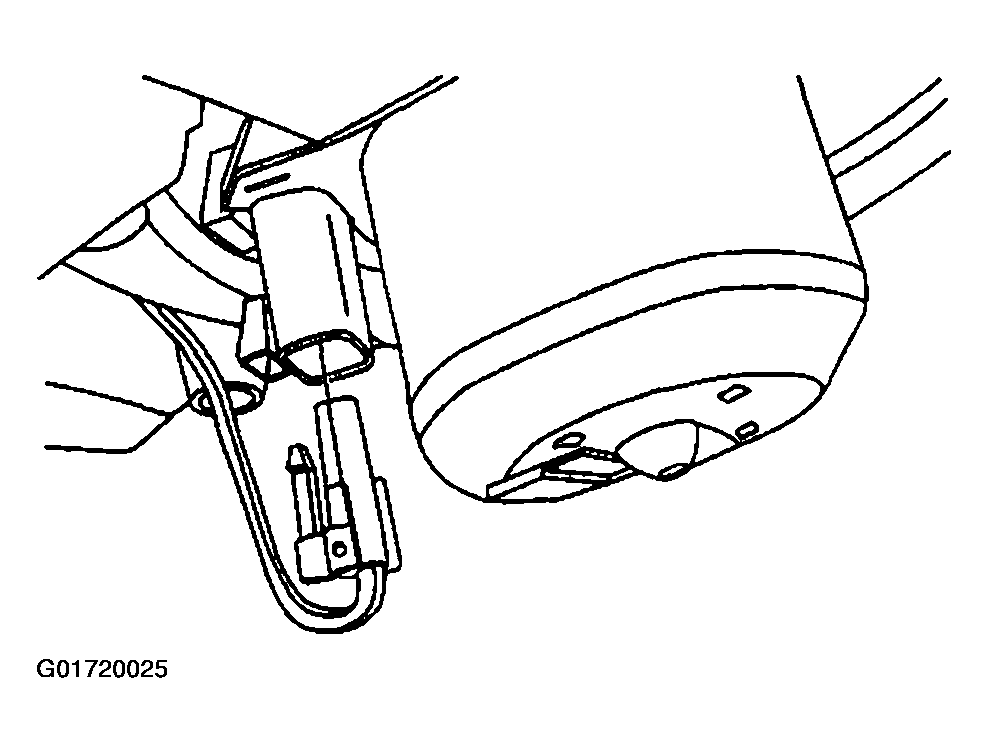

Fig 2: Blower Motor Control Processor Electrical Connector To The Blower Motor
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector from the blower motor control processor.

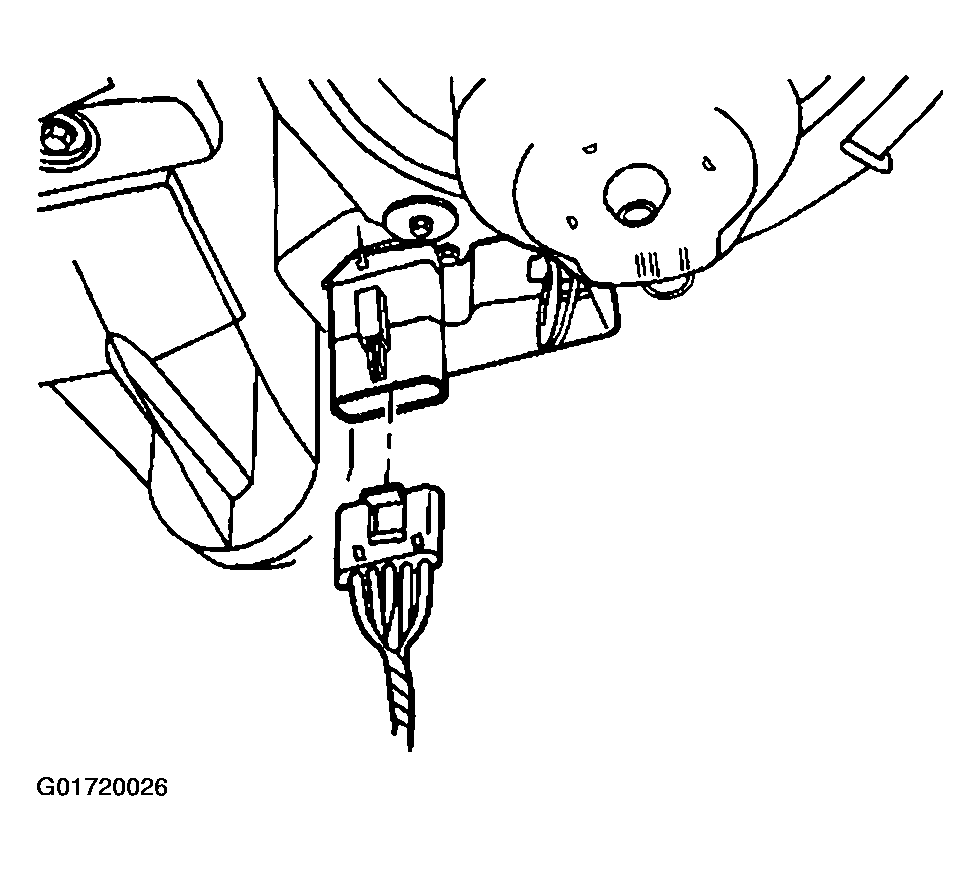

Fig 3: Electrical Connector To The Blower Motor Control Processor
Courtesy of GENERAL MOTORS CORP.
Install the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in GAUGES AND INSTRUMENT PANELS
