Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

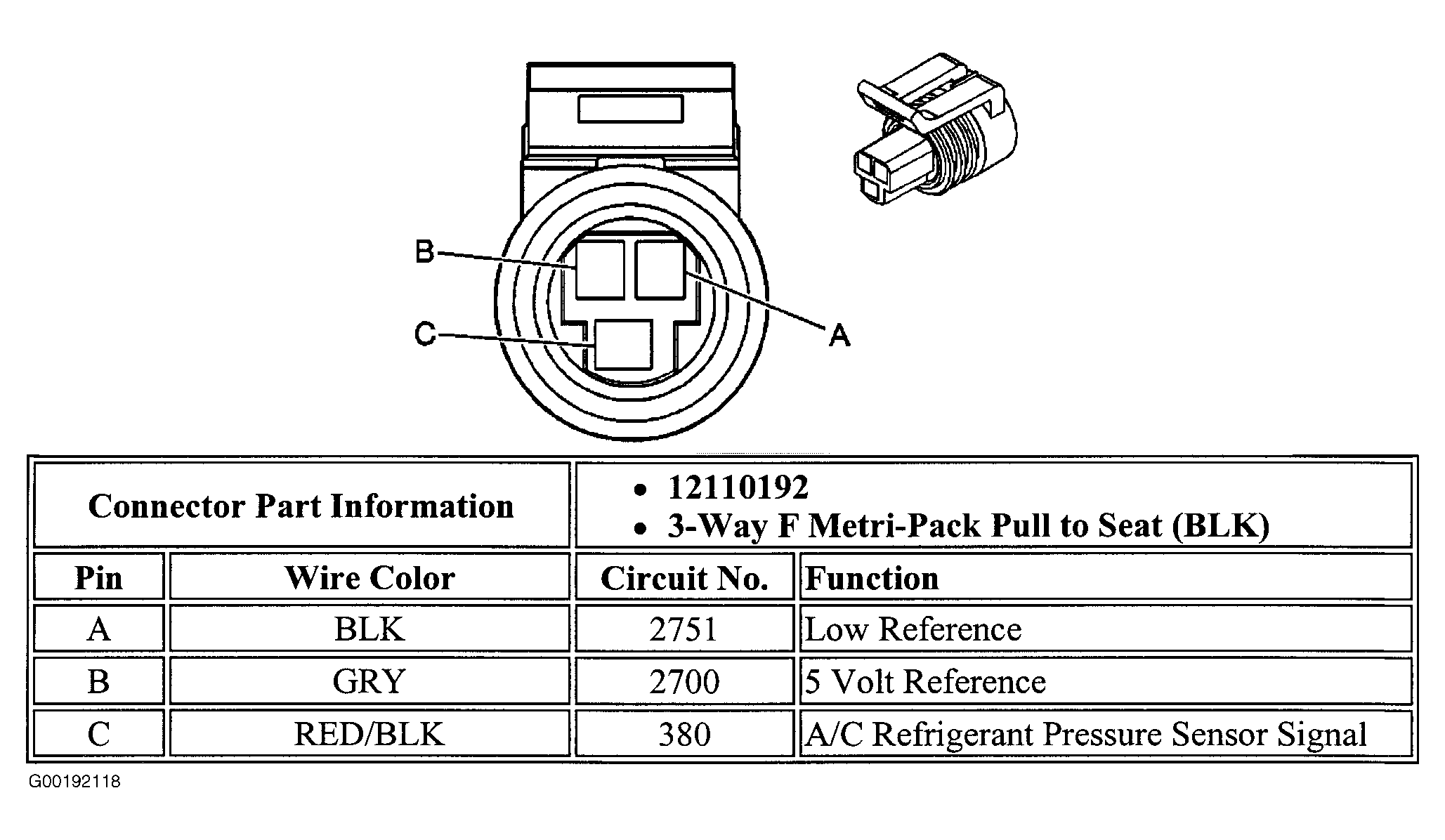

Fig 1: Identifying Refrigerant Pressure Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

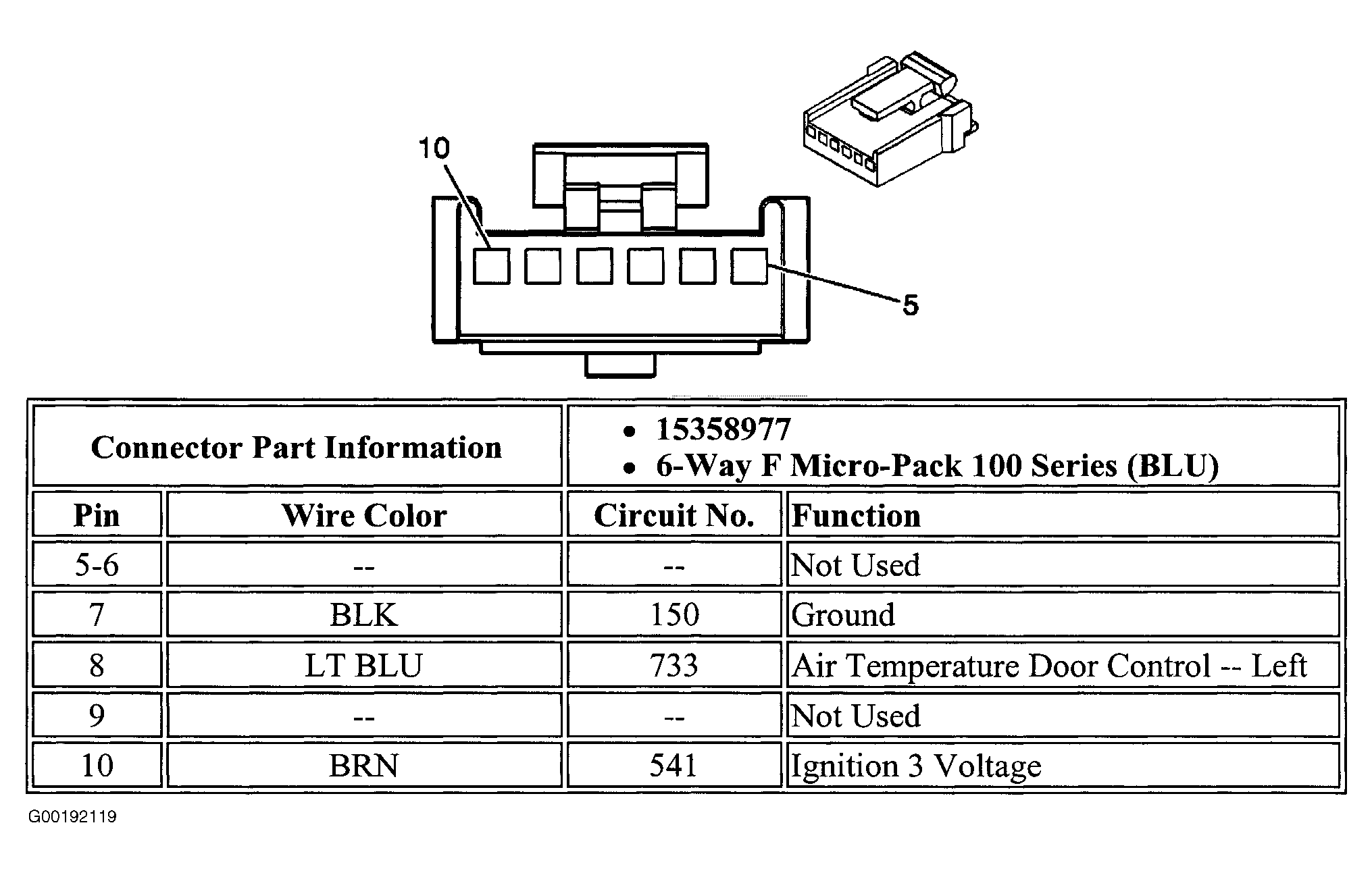

Fig 2: Identifying Temperature Actuator Harness Connector Terminals (Drivers Side)

Courtesy of GENERAL MOTORS CORP.

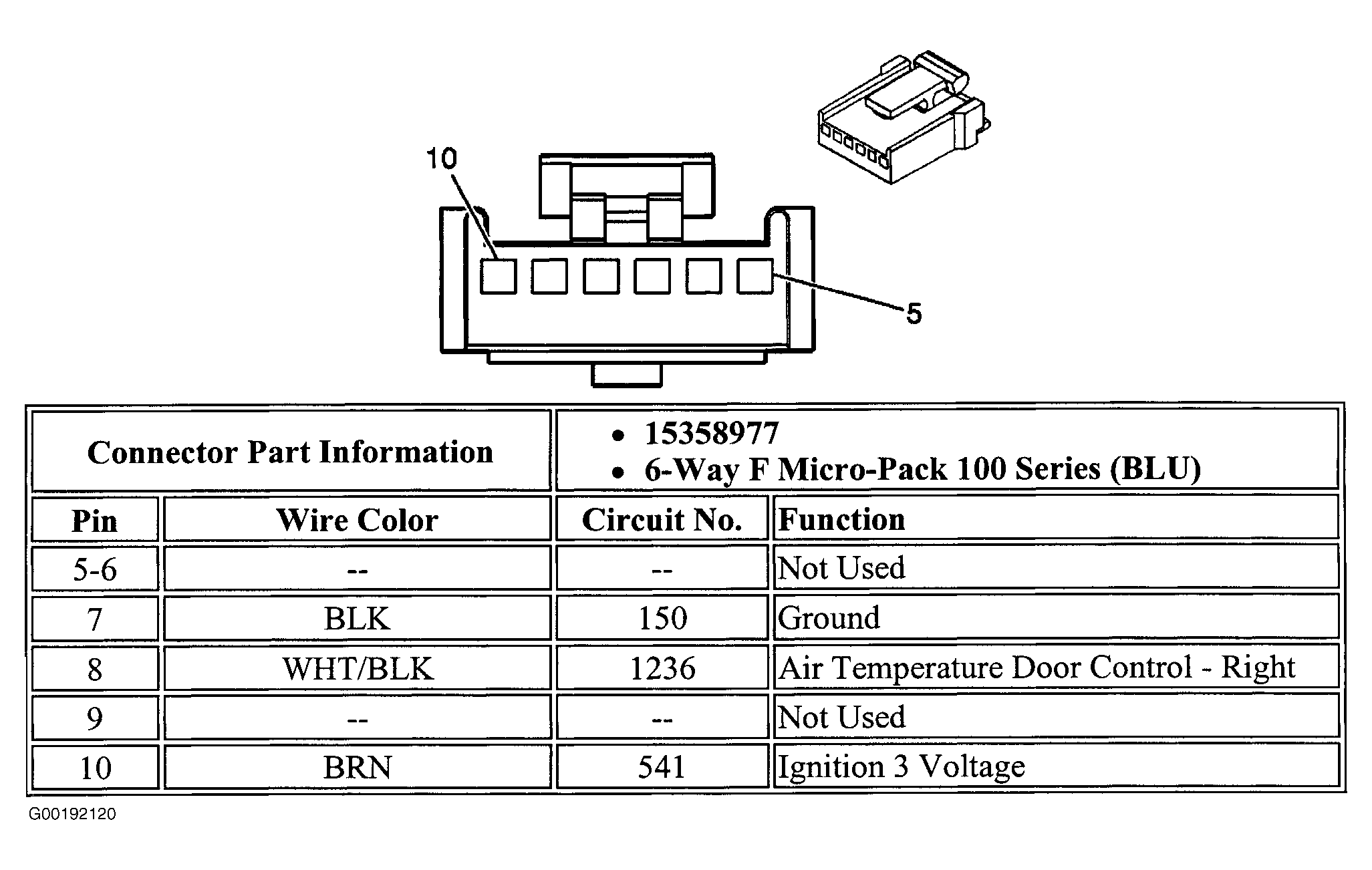

Fig 3: Identifying Temperature Actuator Harness Connector Terminals (Passenger Side)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Blower Motor Resistor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

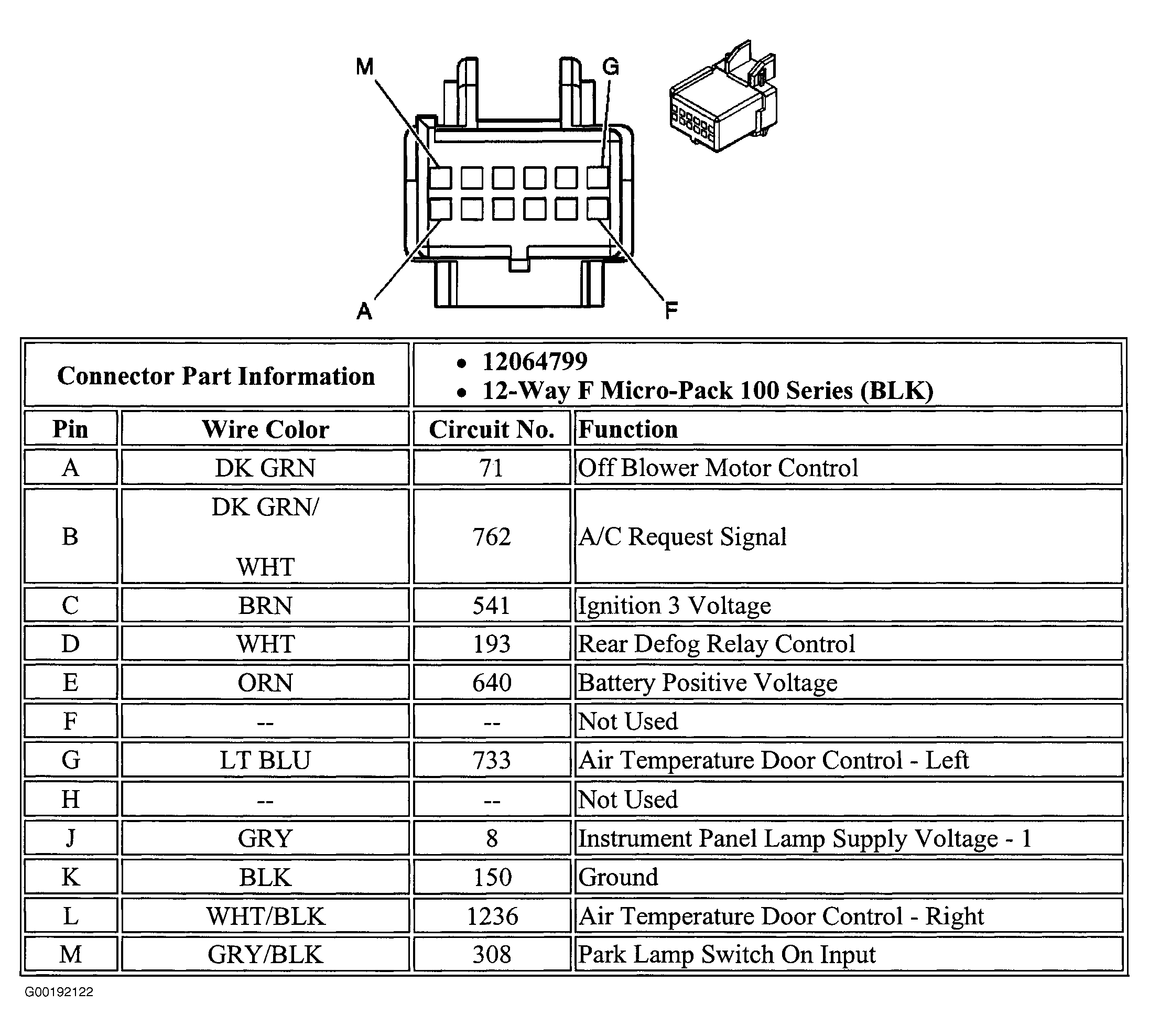

Fig 5: Identifying HVAC Control Module Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

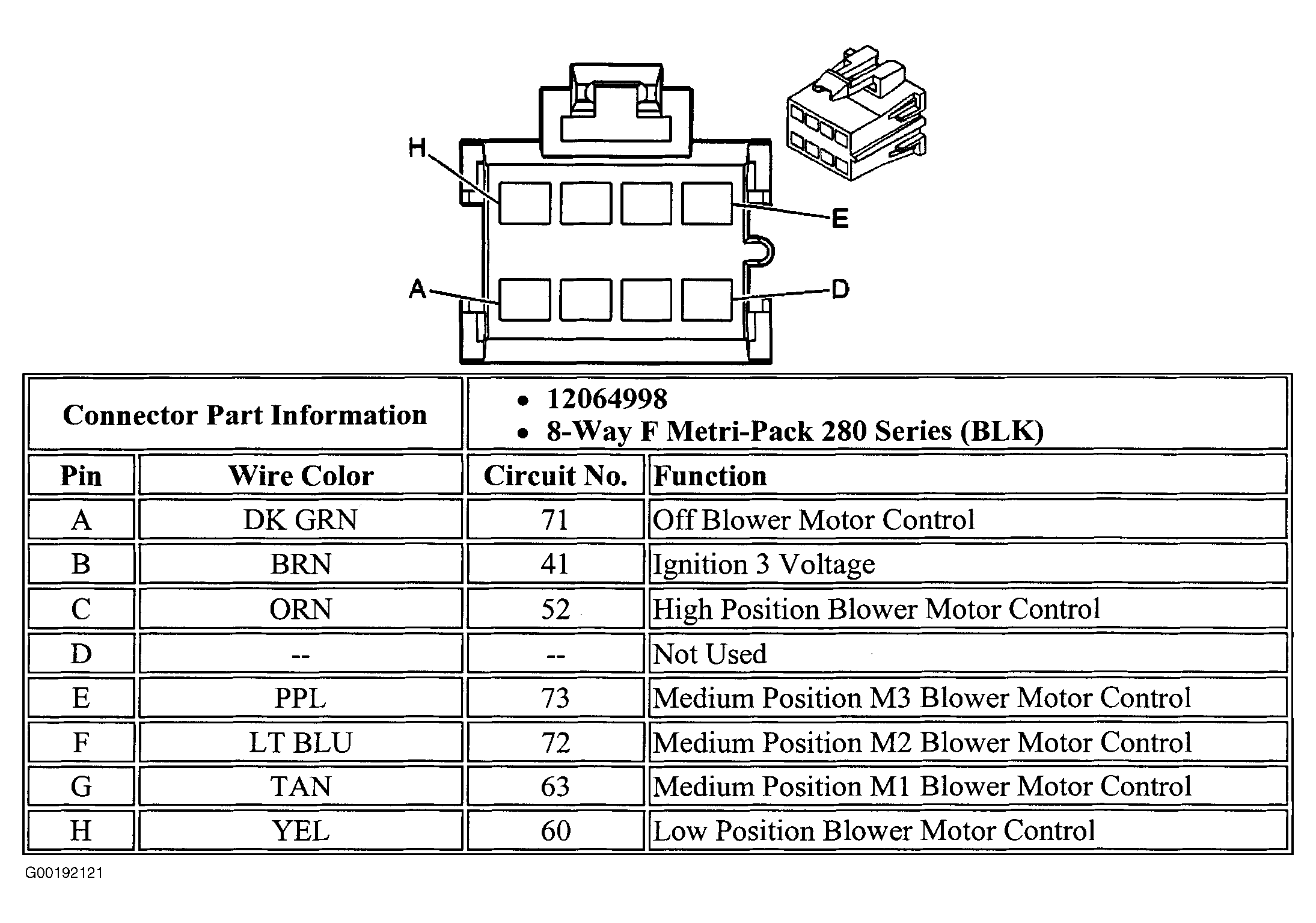

Fig 6: Identifying HVAC Control Module Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.
