Connector Identification

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

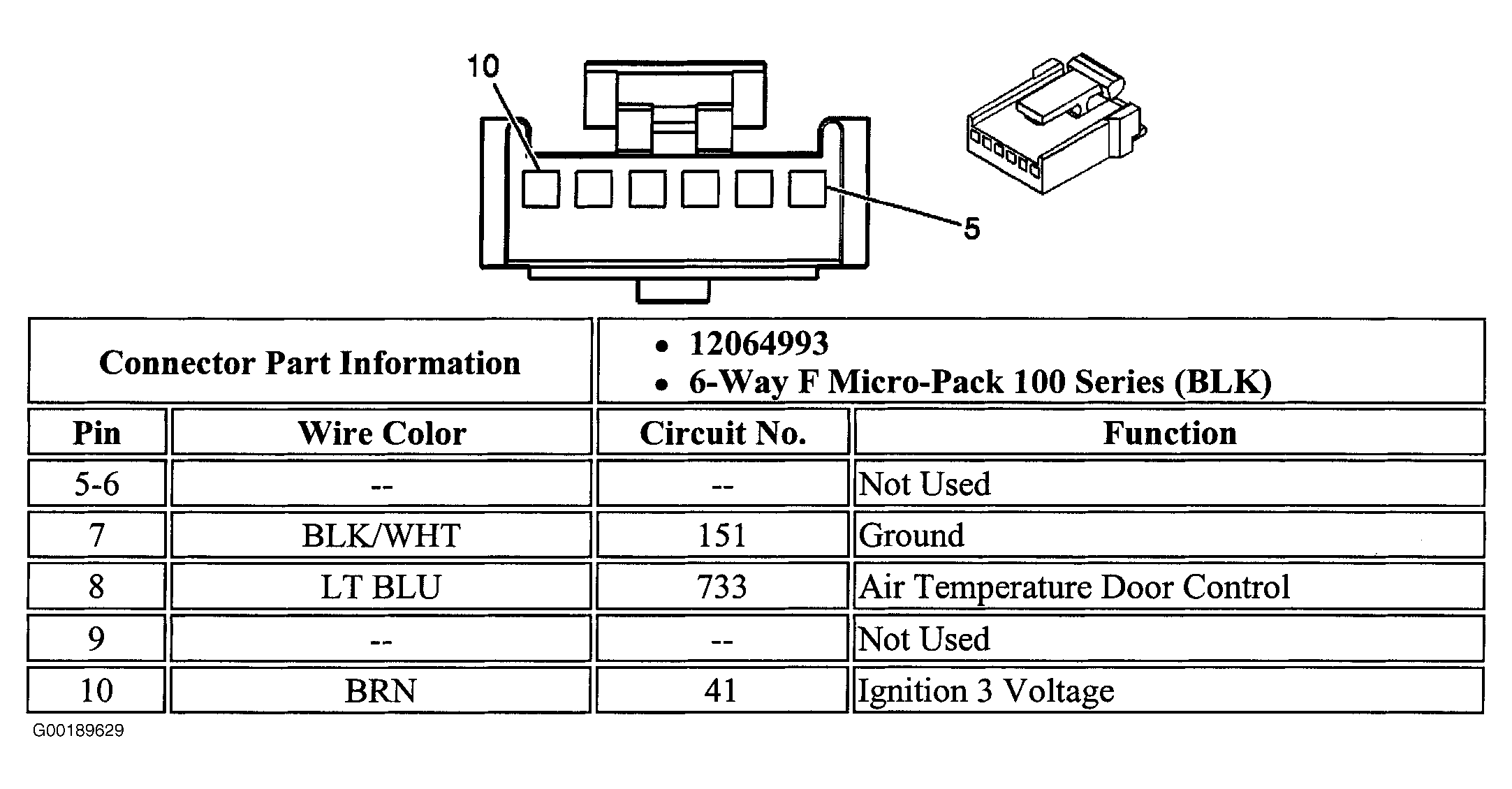

Fig 1: Identifying Temperature Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

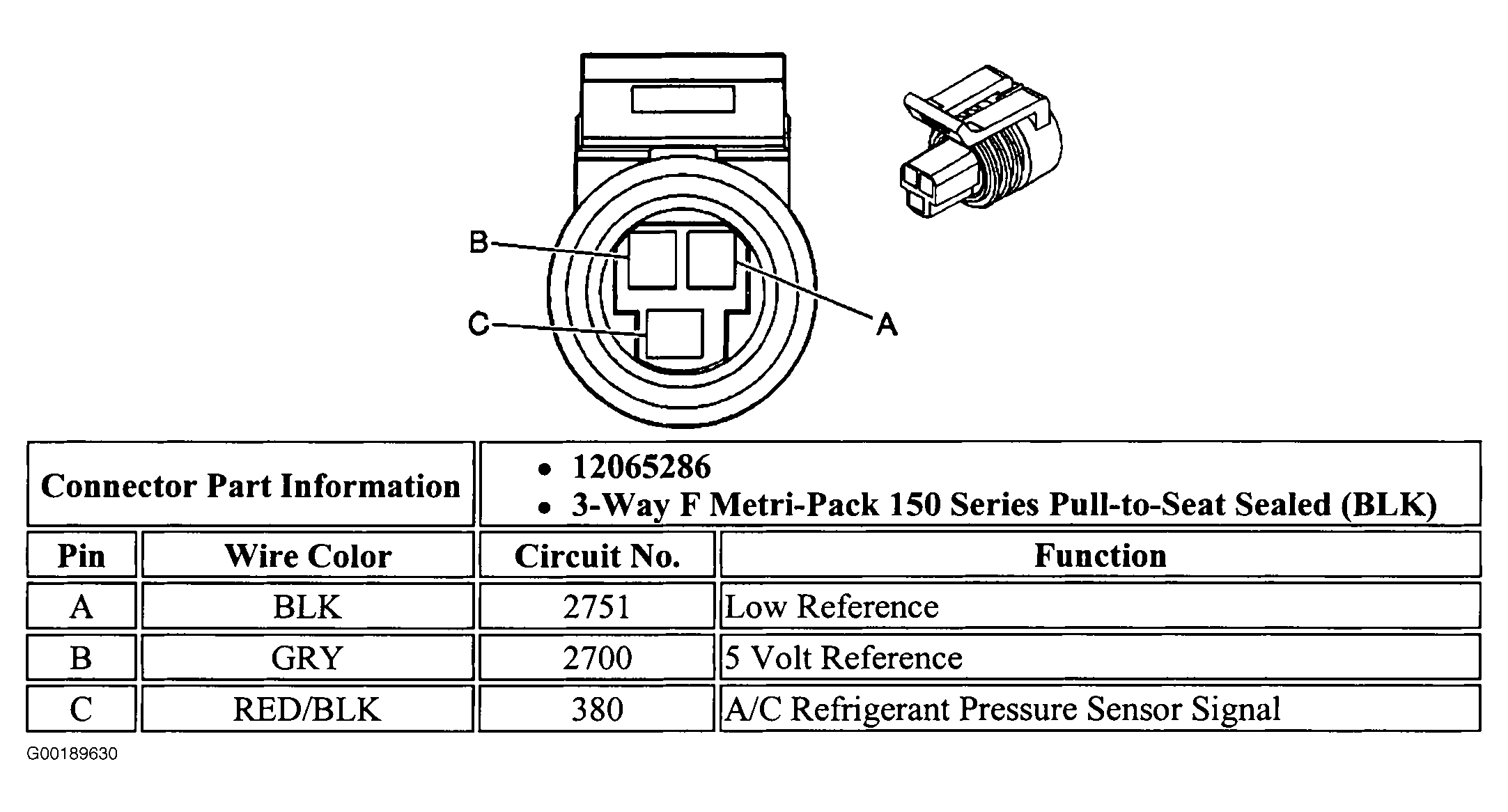

Fig 2: Identifying Refrigerant Pressure Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

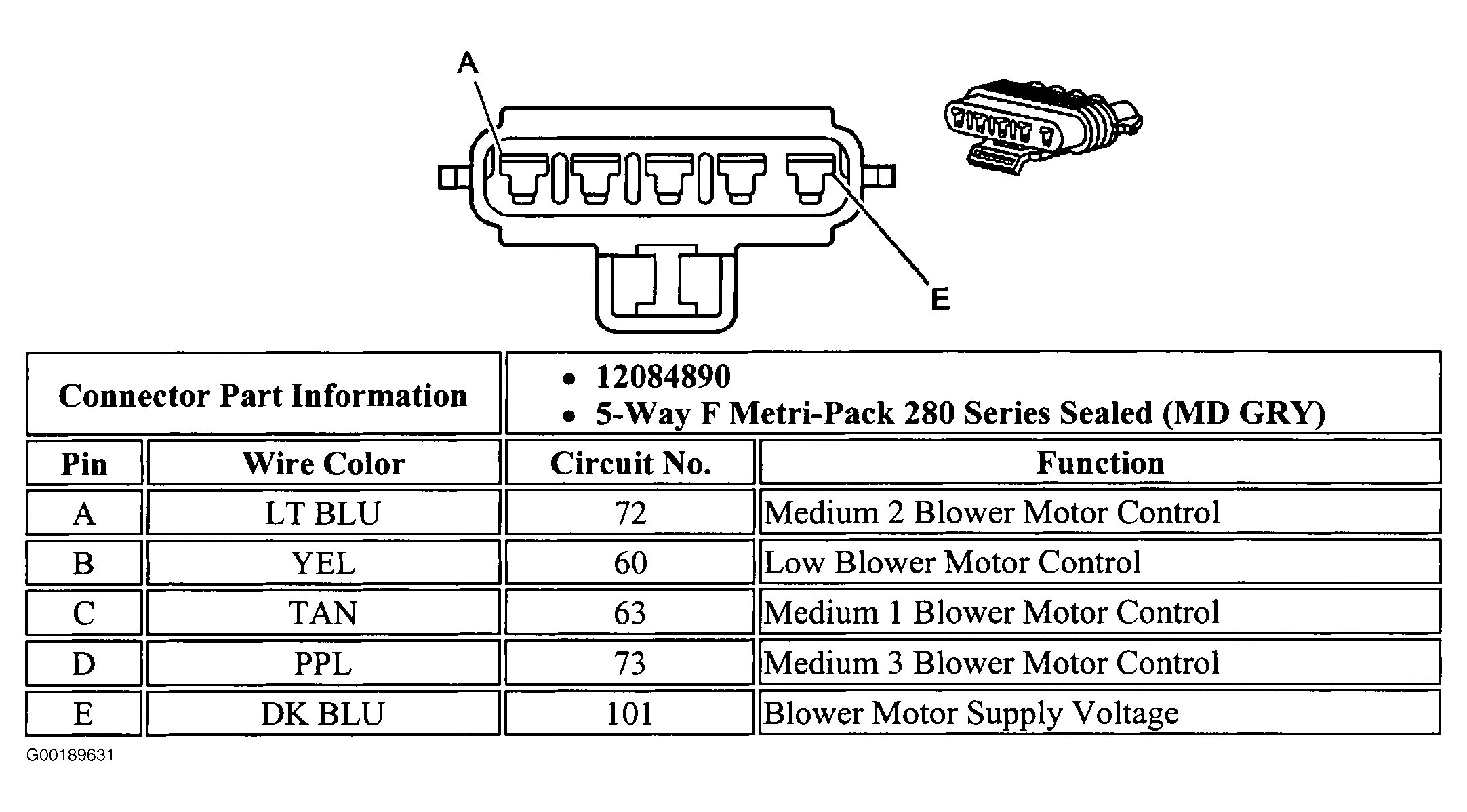

Fig 3: Identifying Blower Motor Resistor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

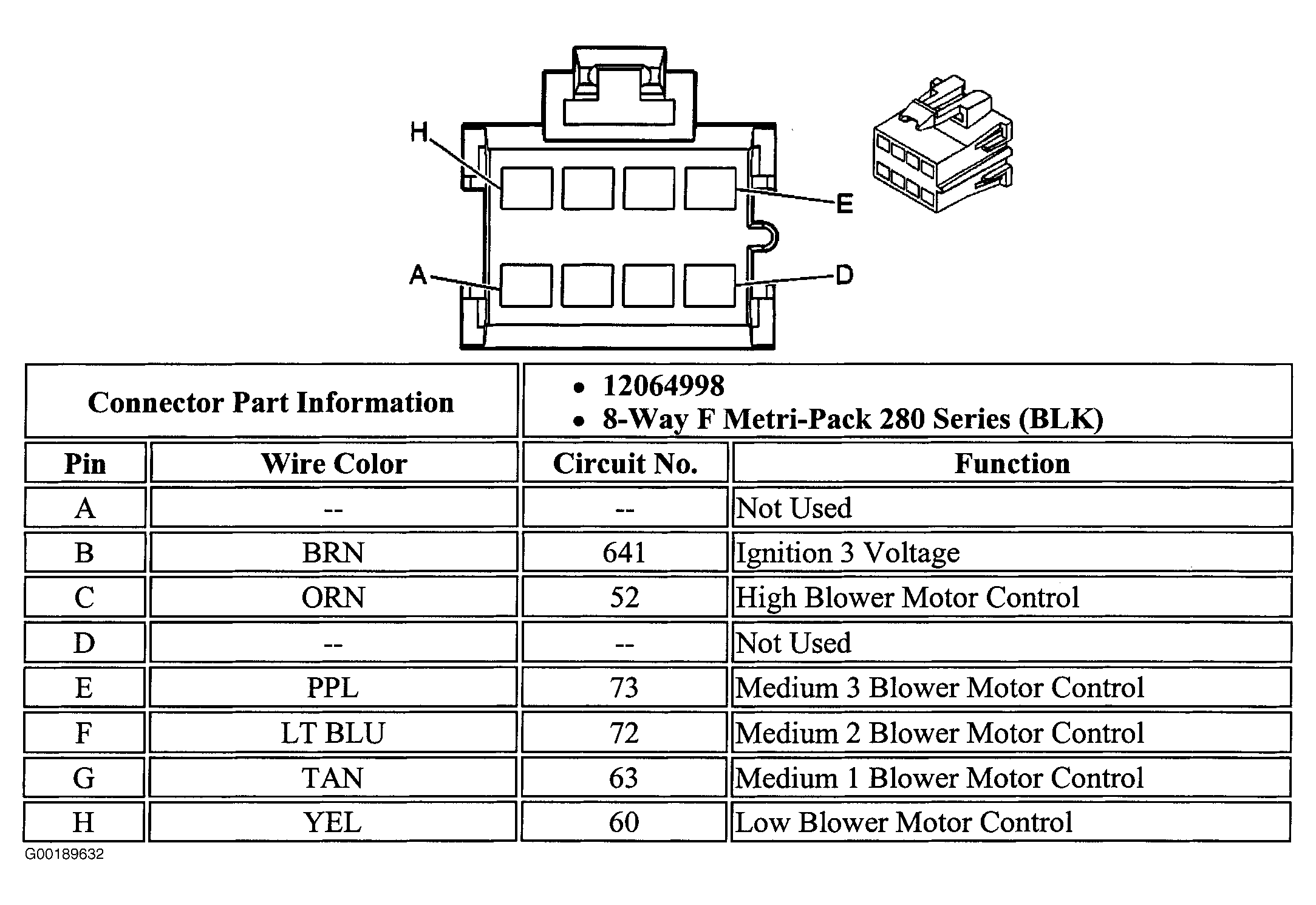

Fig 4: Identifying HVAC Control Harness Connector (C1) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

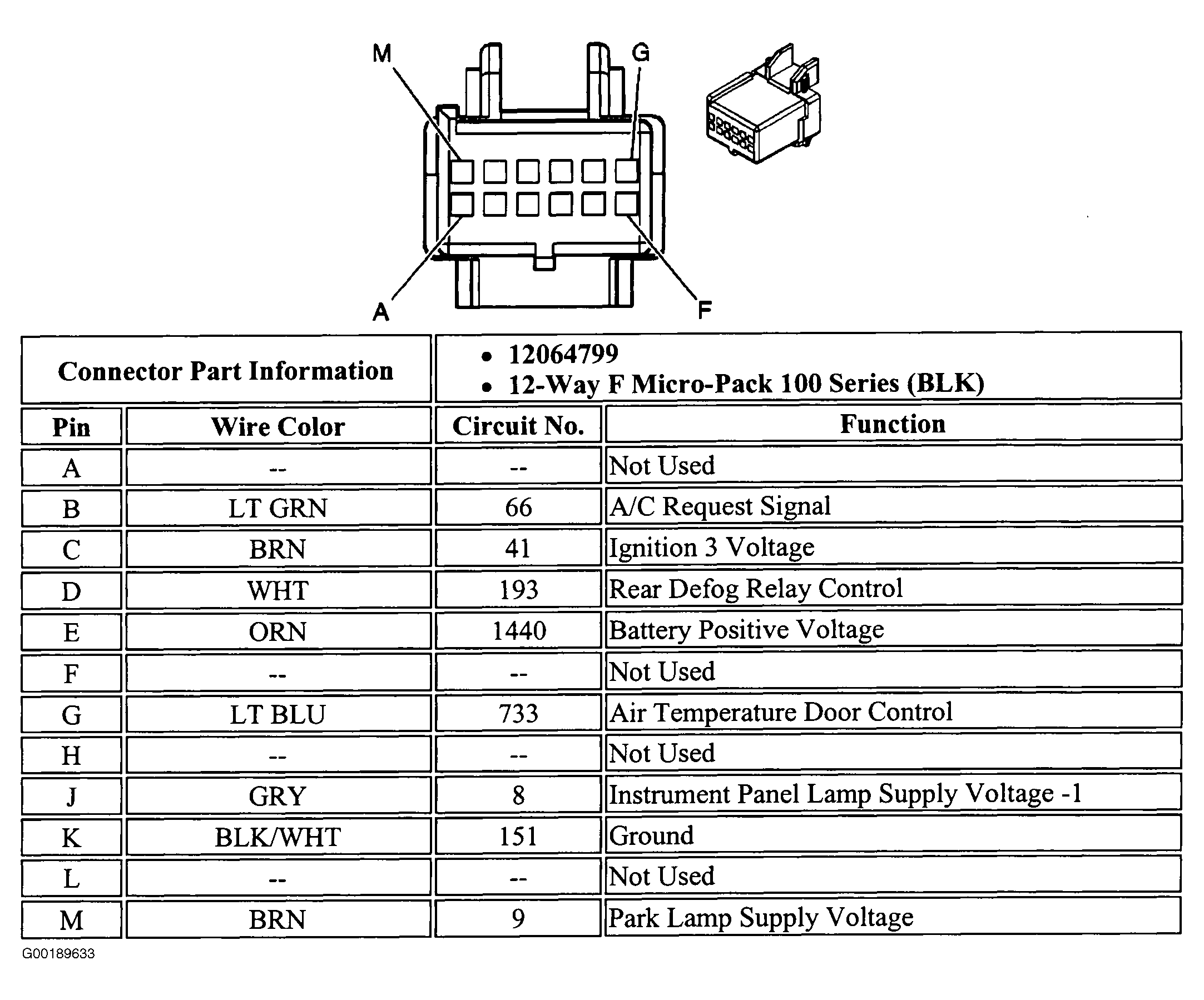

Fig 5: Identifying HVAC Control Harness Connector (C2) Connector Terminals

Courtesy of GENERAL MOTORS CORP.
