Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

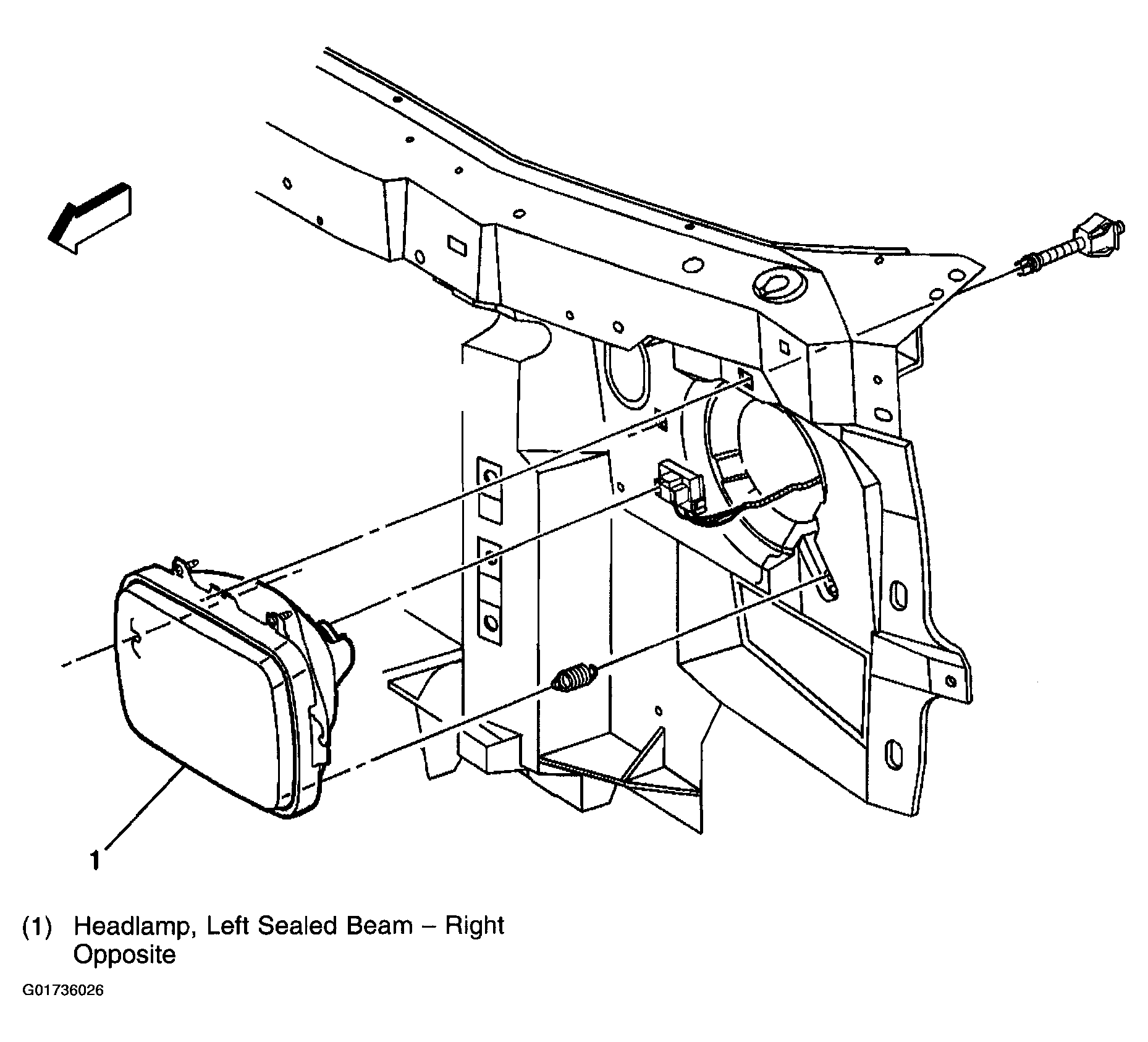

Fig 1: Headlamp
G01736026Courtesy of GENERAL MOTORS CORP.

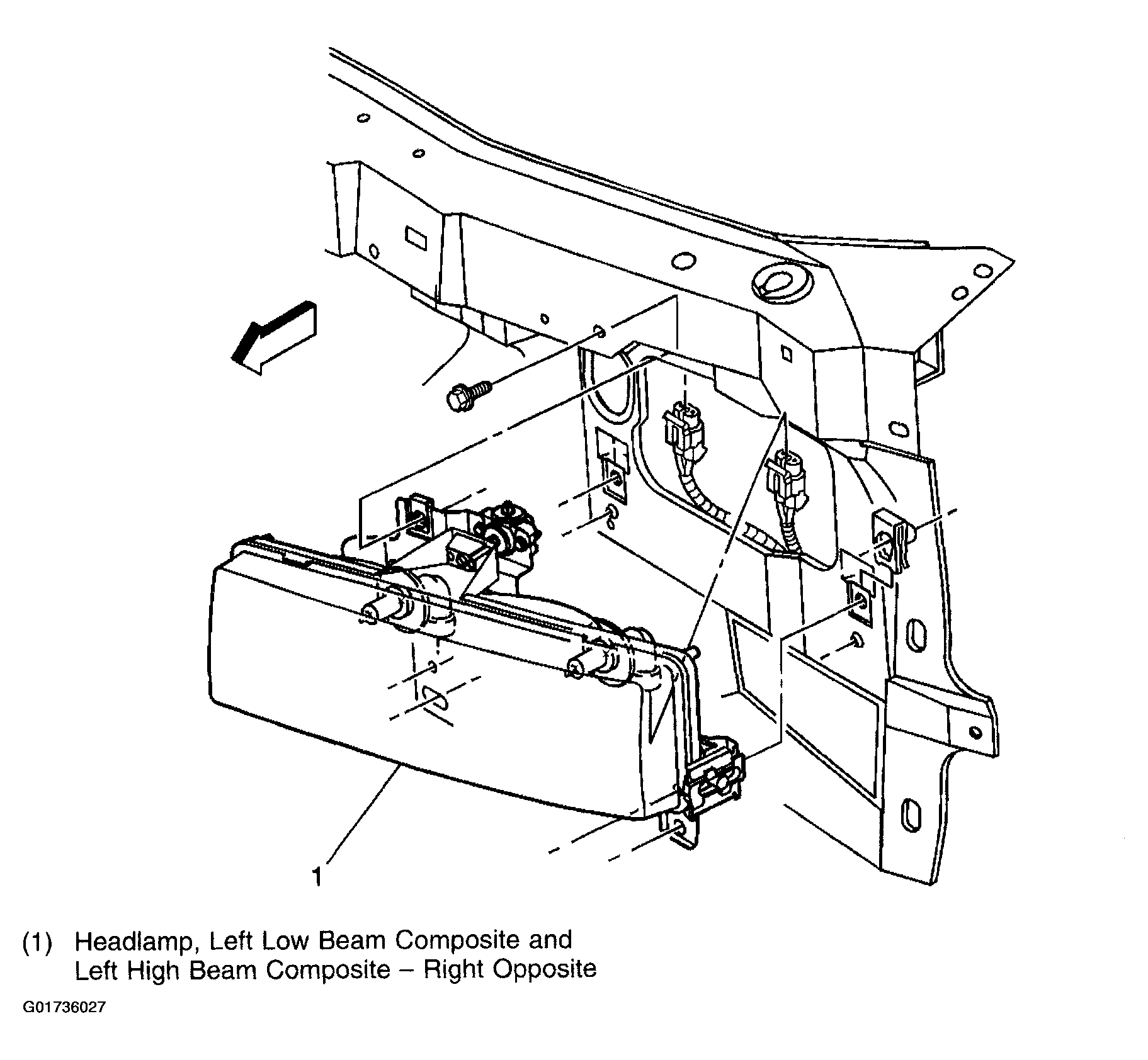

Fig 2: Headlamp, Low Beam & High Beam
G01736027Courtesy of GENERAL MOTORS CORP.

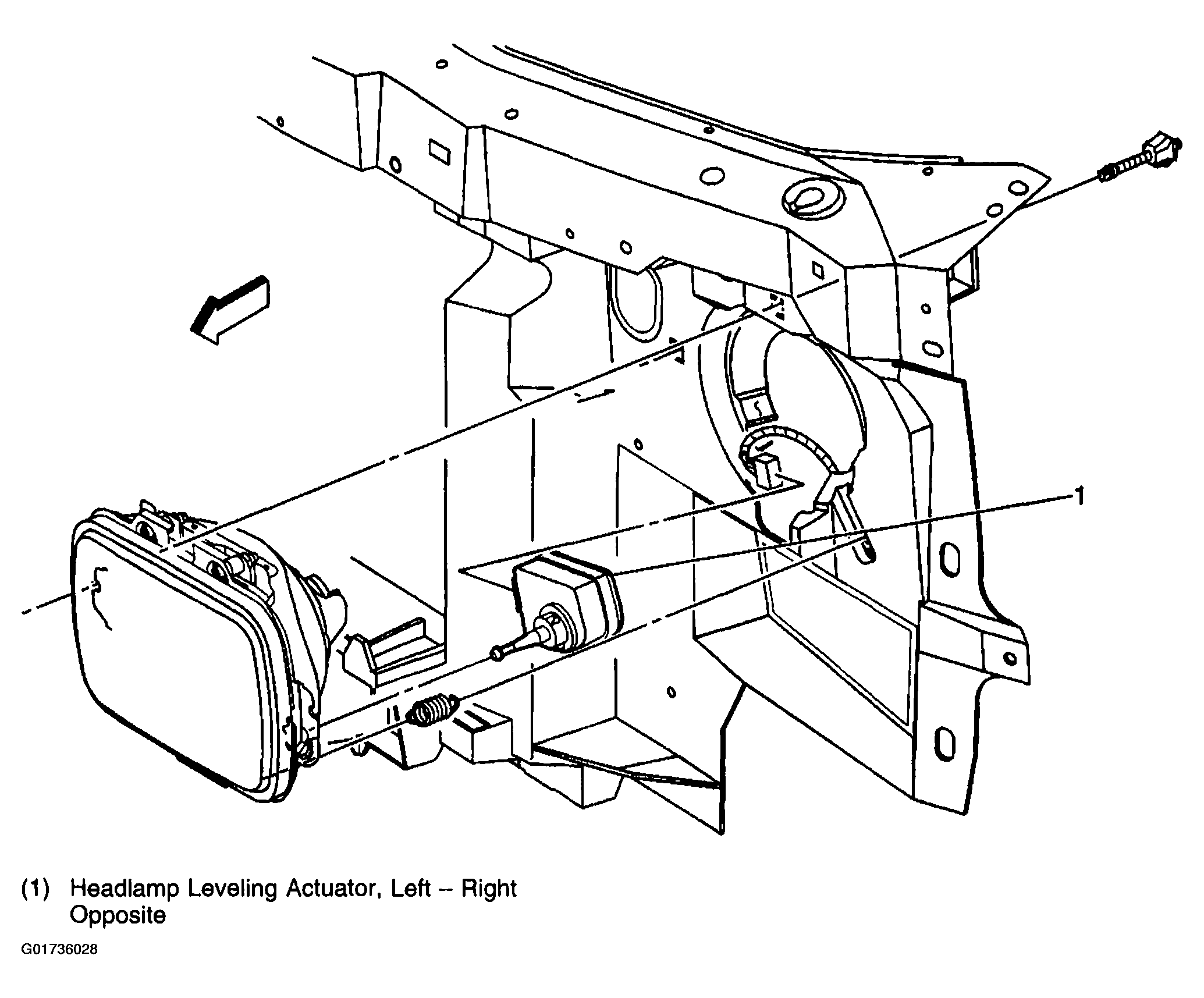

Fig 3: Headlamp Leveling Actuator
G01736028Courtesy of GENERAL MOTORS CORP.

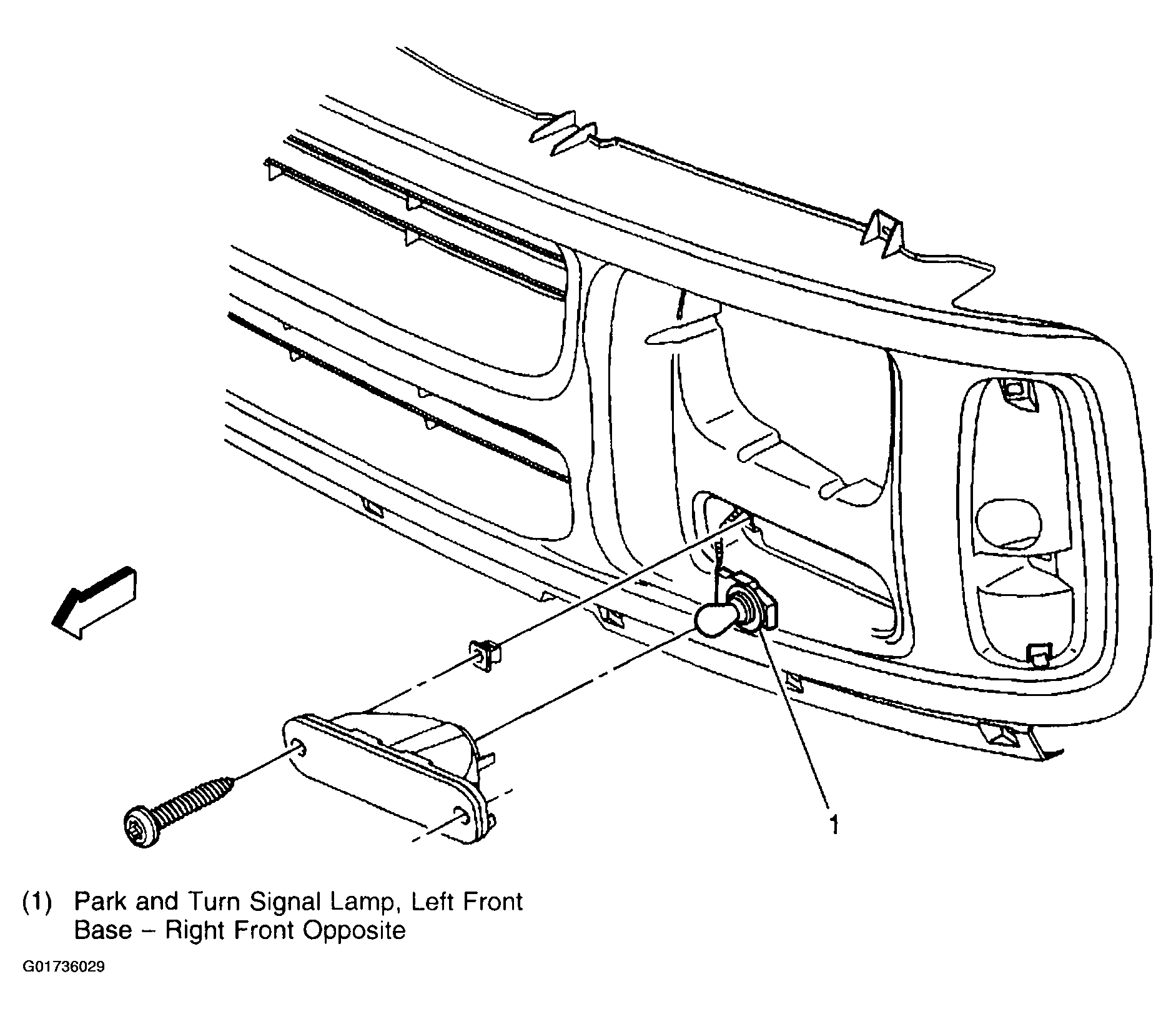

Fig 4: Park and Turn Signal Lamp, Front
G01736029Courtesy of GENERAL MOTORS CORP.

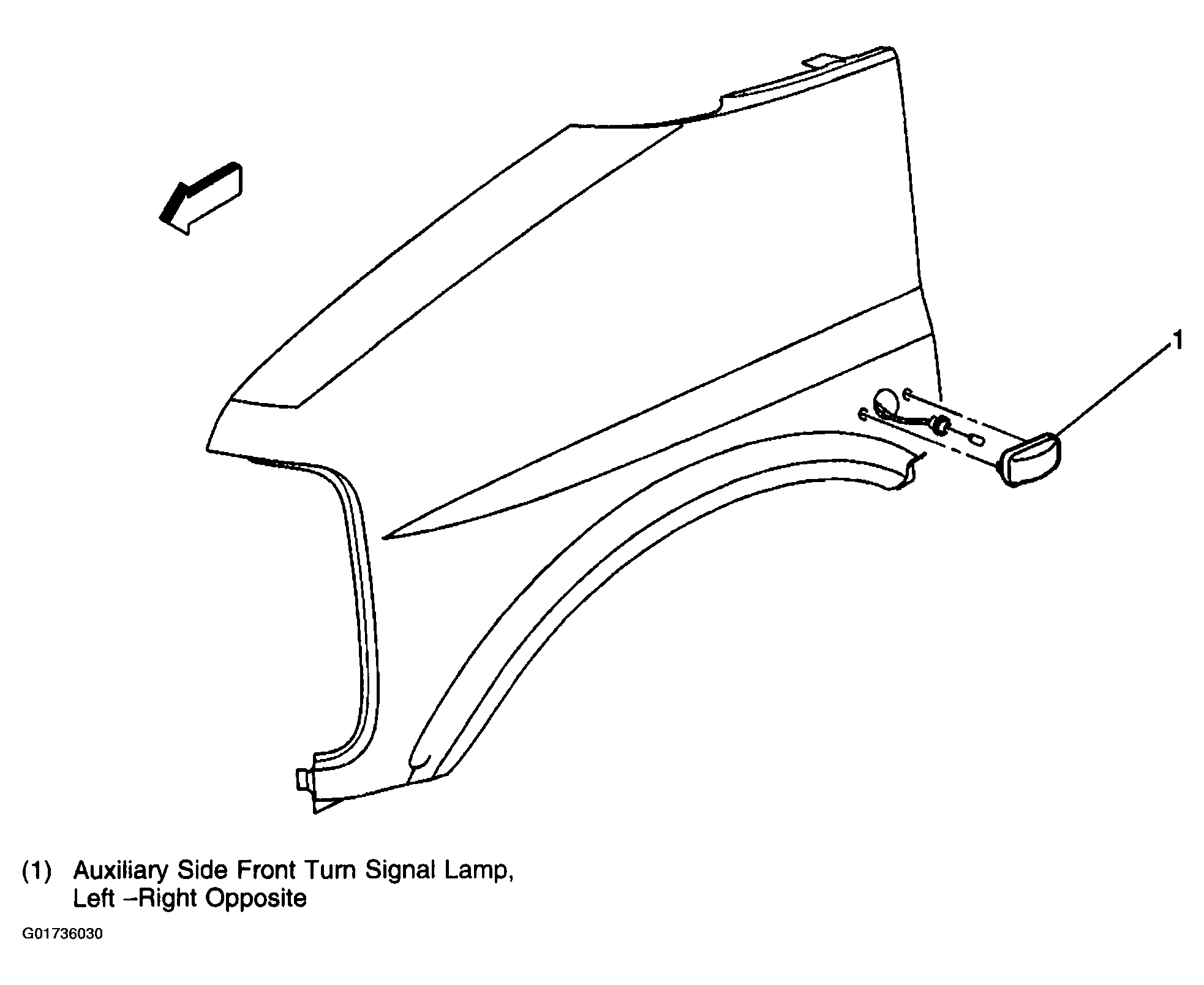

Fig 5: Auxiliary Side Front Signal Lamp
G01736030Courtesy of GENERAL MOTORS CORP.

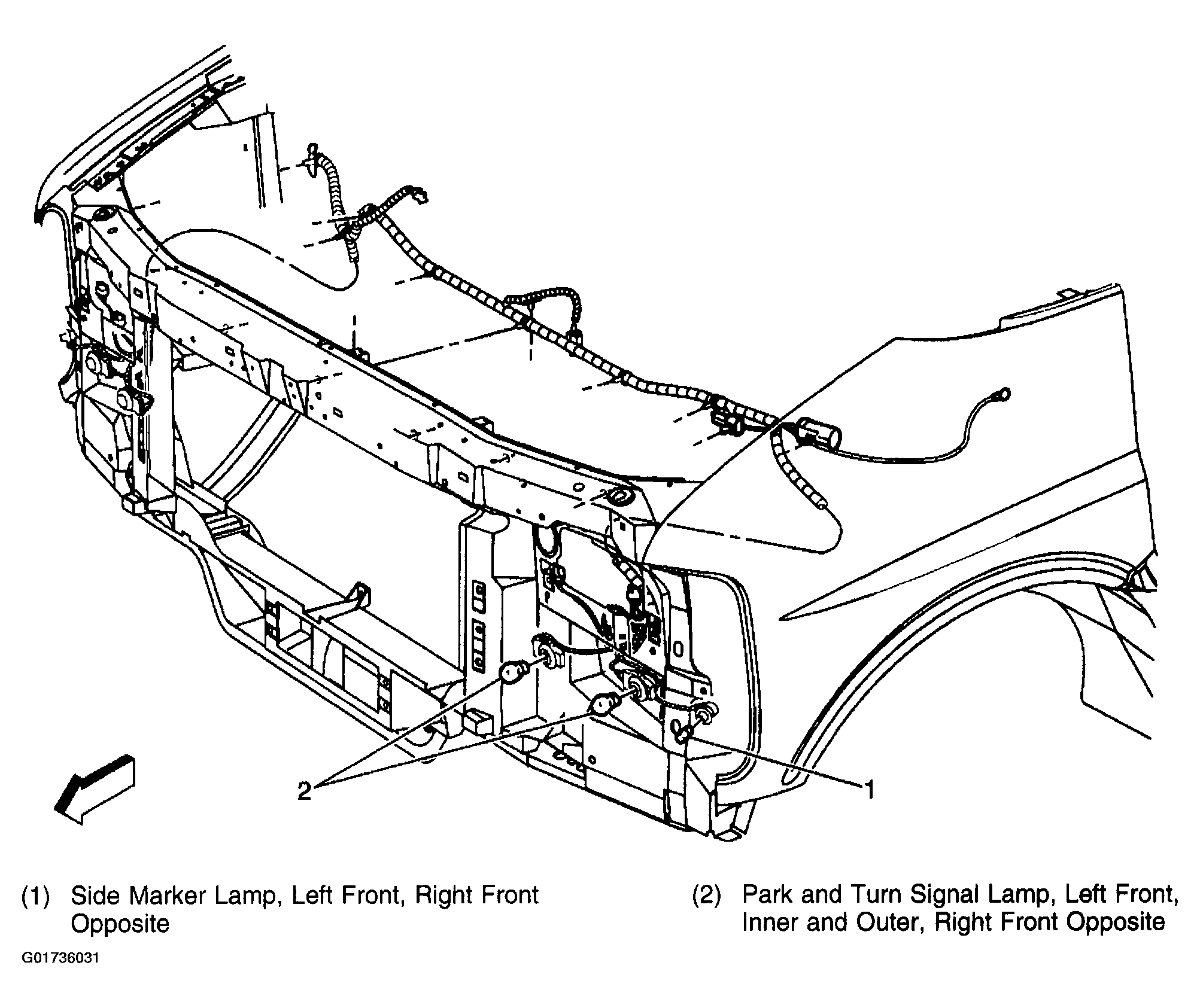

Fig 6: Side Marker Lamp, Front; Park and Turn Signal Lamp, Front, Inner & Outer
G01736031Courtesy of GENERAL MOTORS CORP.

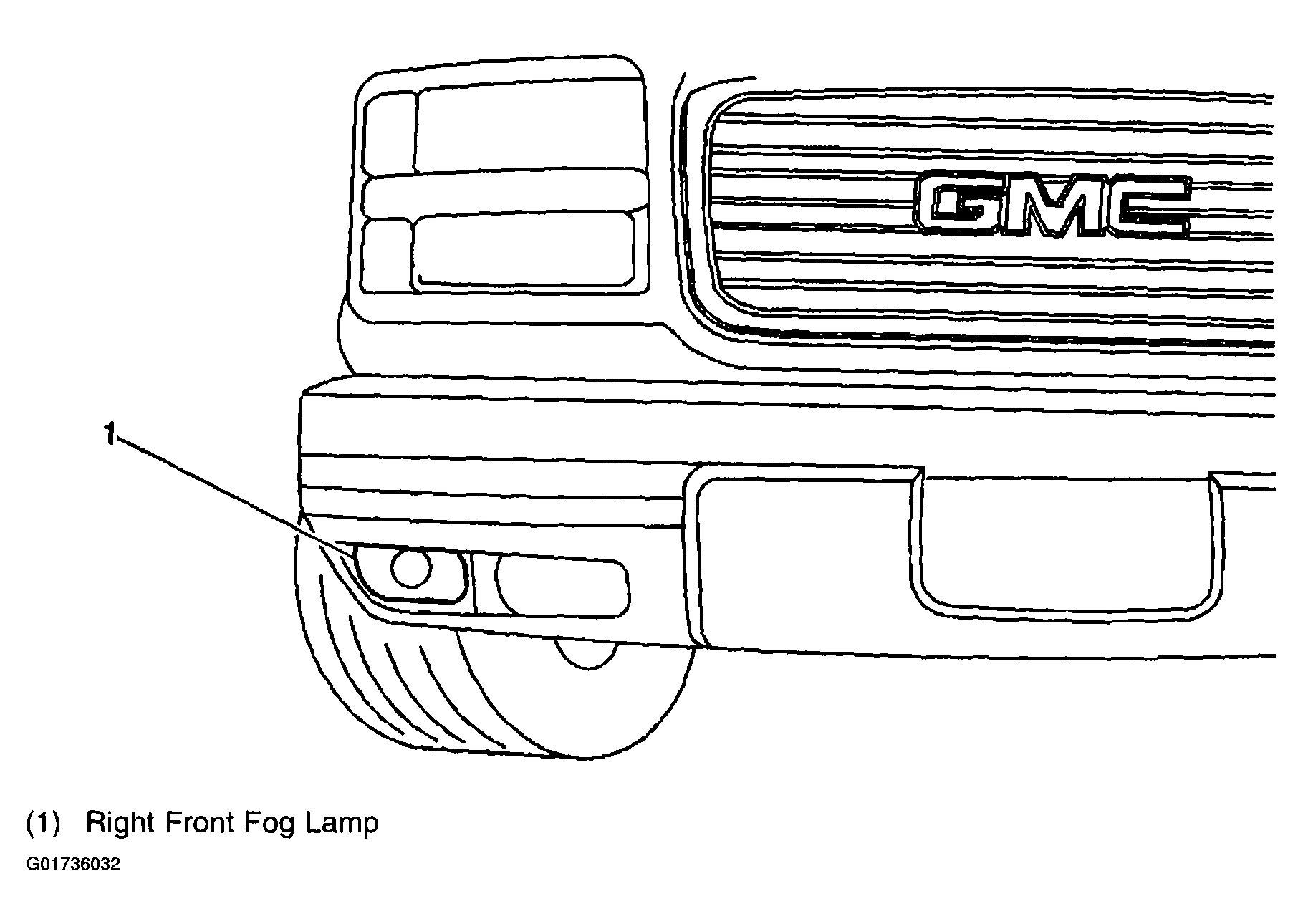

Fig 7: Right Front Fog Lamp (Left Side Similar)
G01736032Courtesy of GENERAL MOTORS CORP.

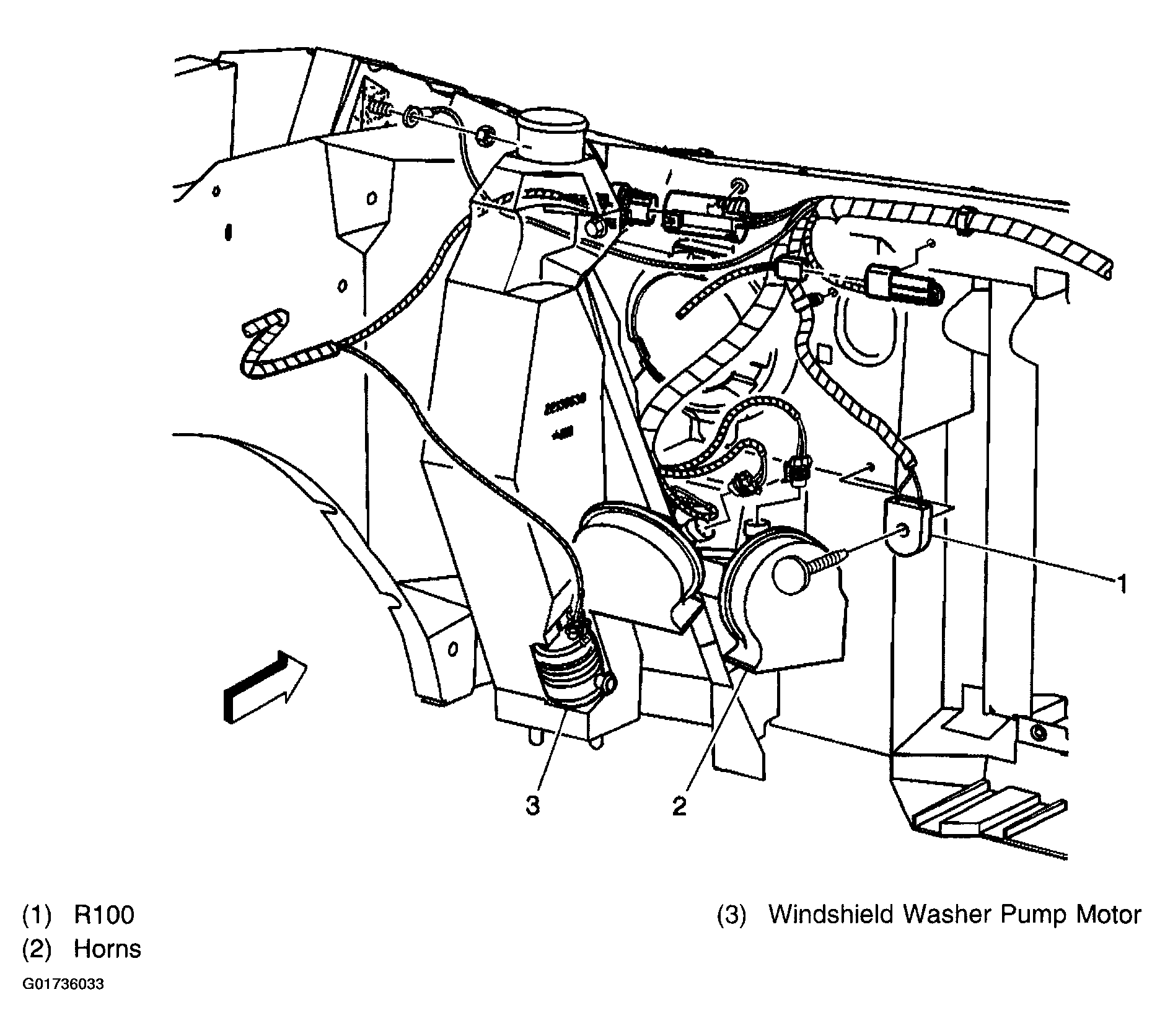

Fig 8: R100 - Turn Signal Resistor
G01736033Courtesy of GENERAL MOTORS CORP.

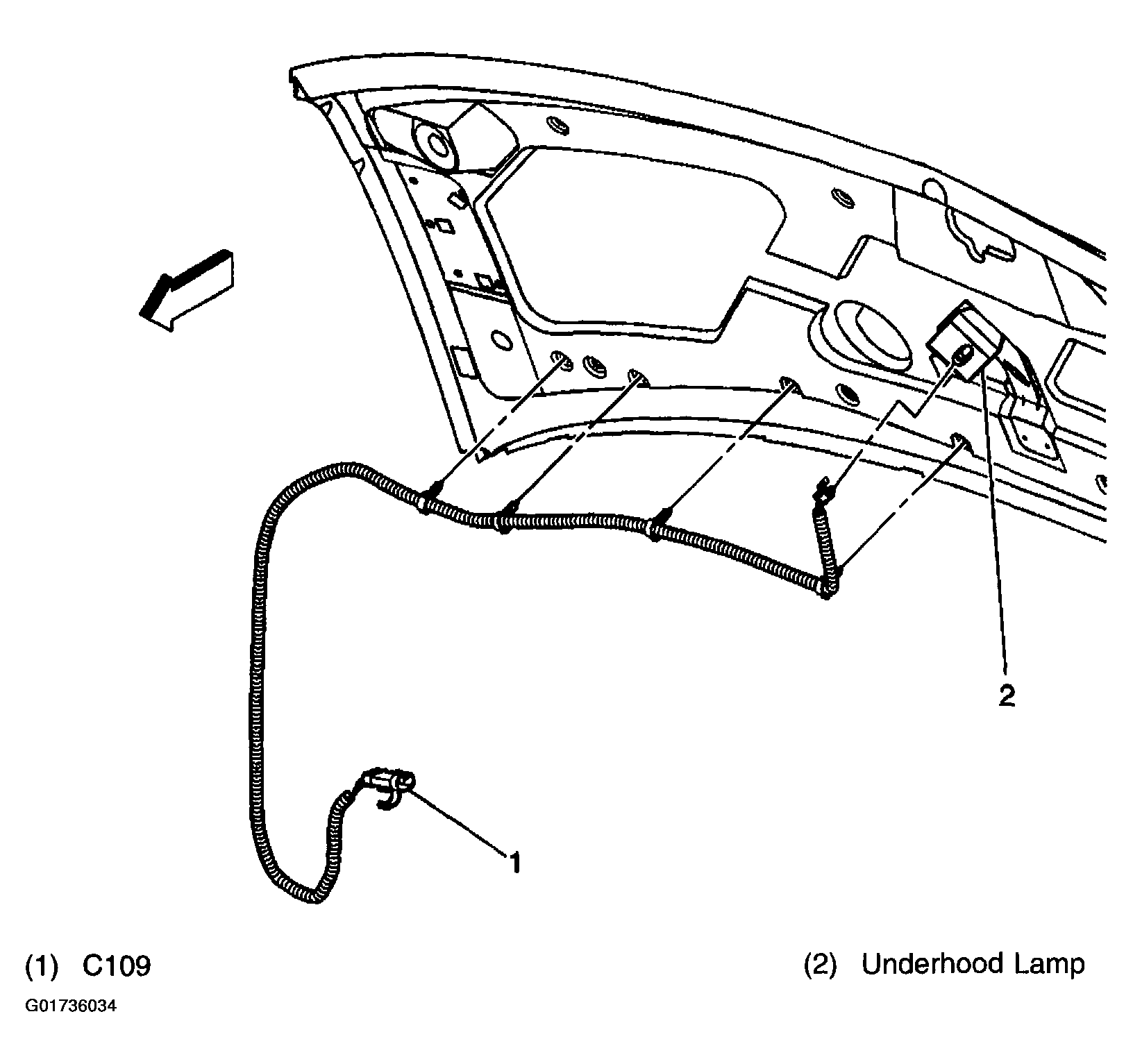

Fig 9: Underhood Lamp, C109
G01736034Courtesy of GENERAL MOTORS CORP.

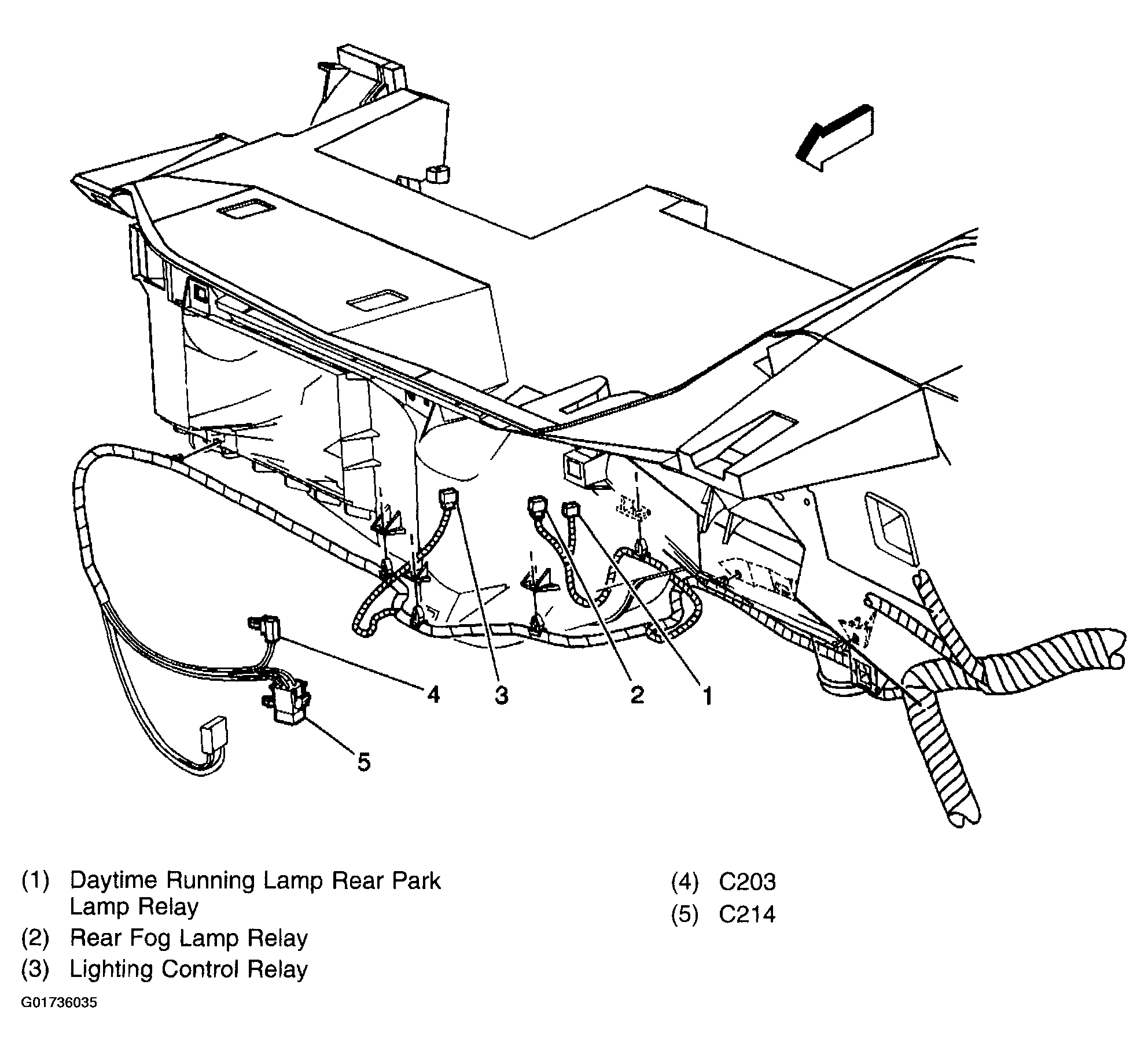

Fig 10: Relays - Right Side I/P Harness
G01736035Courtesy of GENERAL MOTORS CORP.

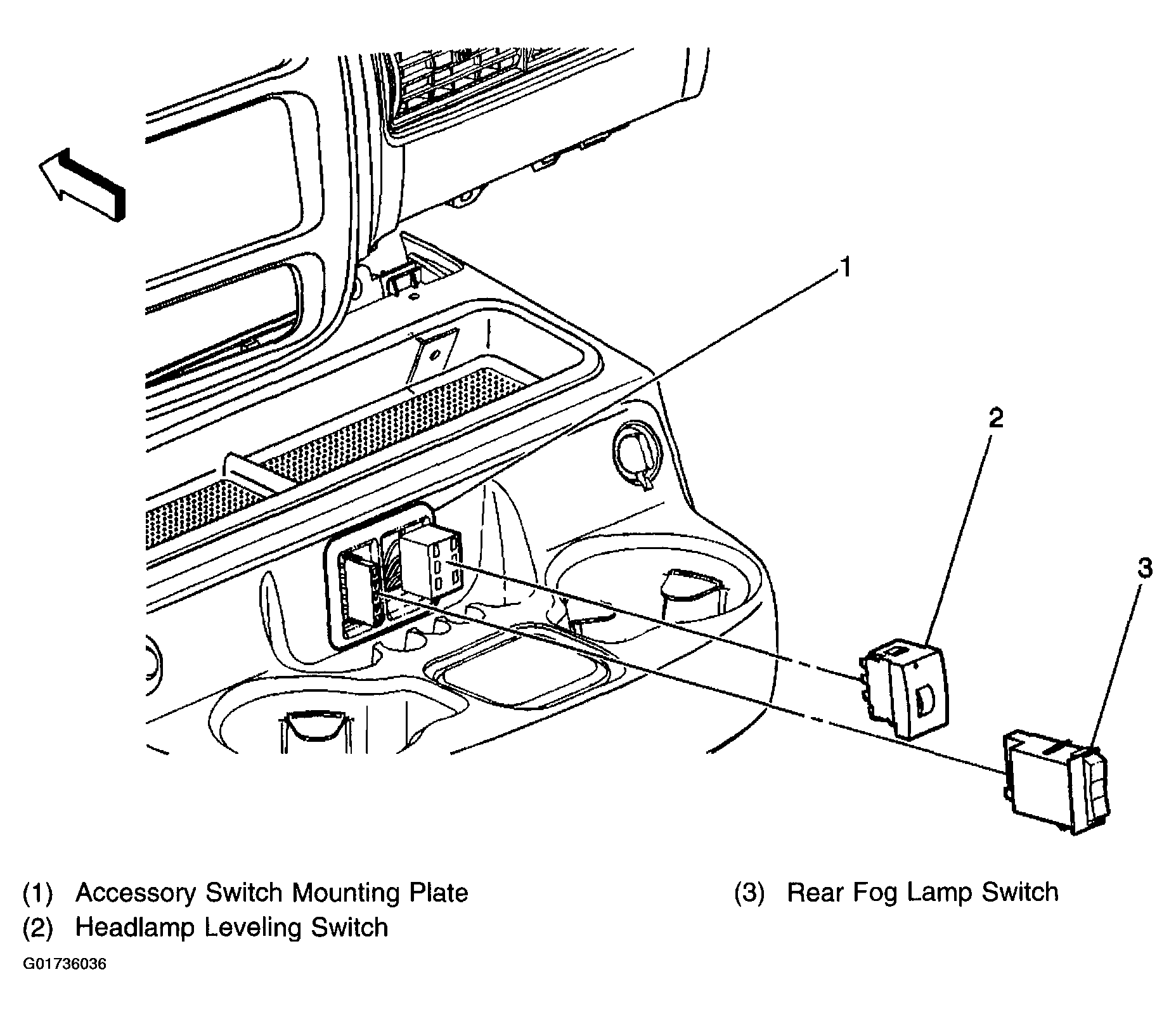

Fig 11: Lower IP Console - Export
G01736036Courtesy of GENERAL MOTORS CORP.

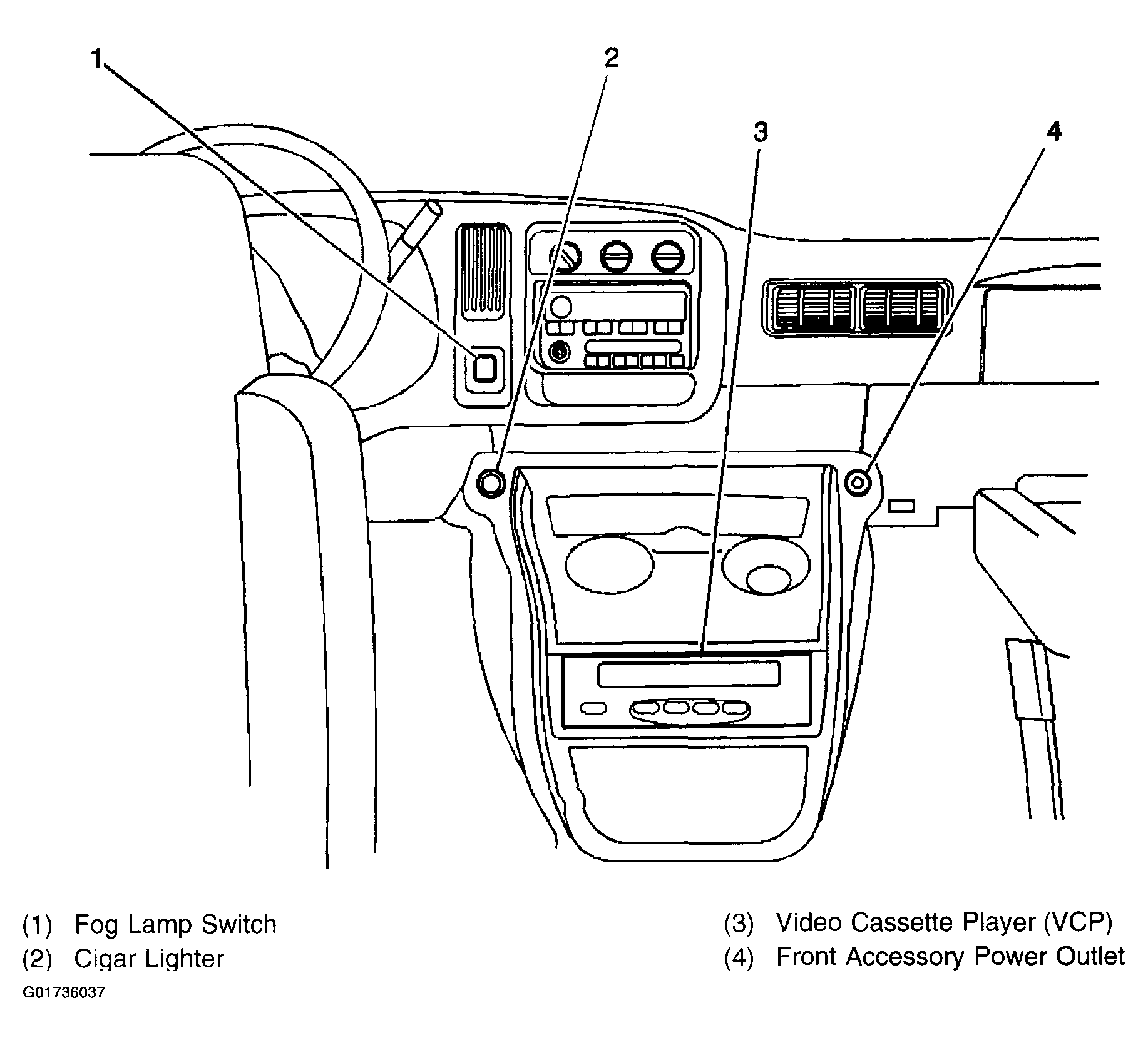

Fig 12: Front Fog Lamp Switch & Center Console Components
G01736037Courtesy of GENERAL MOTORS CORP.

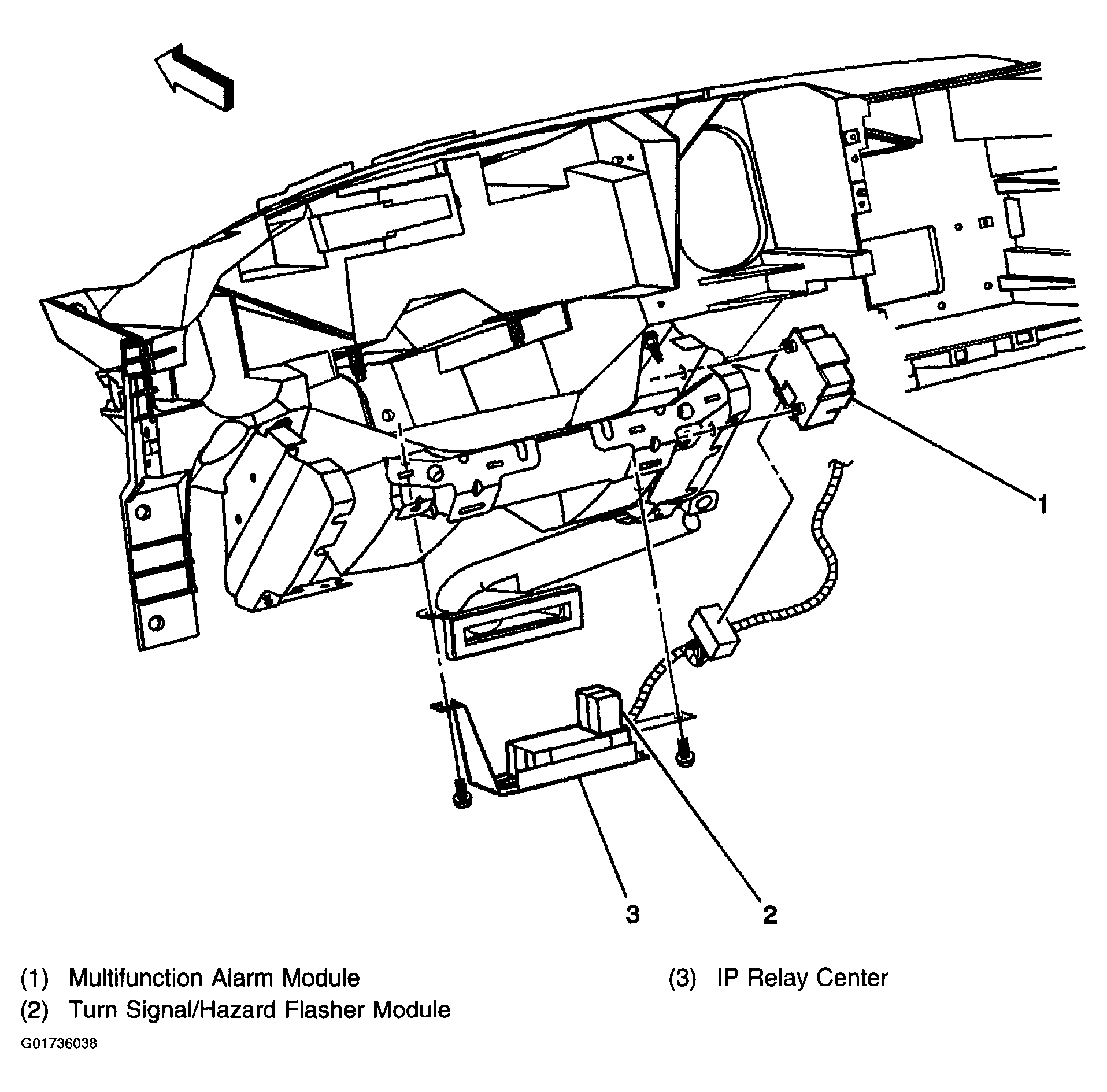

Fig 13: IP Relay Center
G01736038Courtesy of GENERAL MOTORS CORP.
Fig 14: Daytime Running Lamp Control Module
G01736039Courtesy of GENERAL MOTORS CORP.

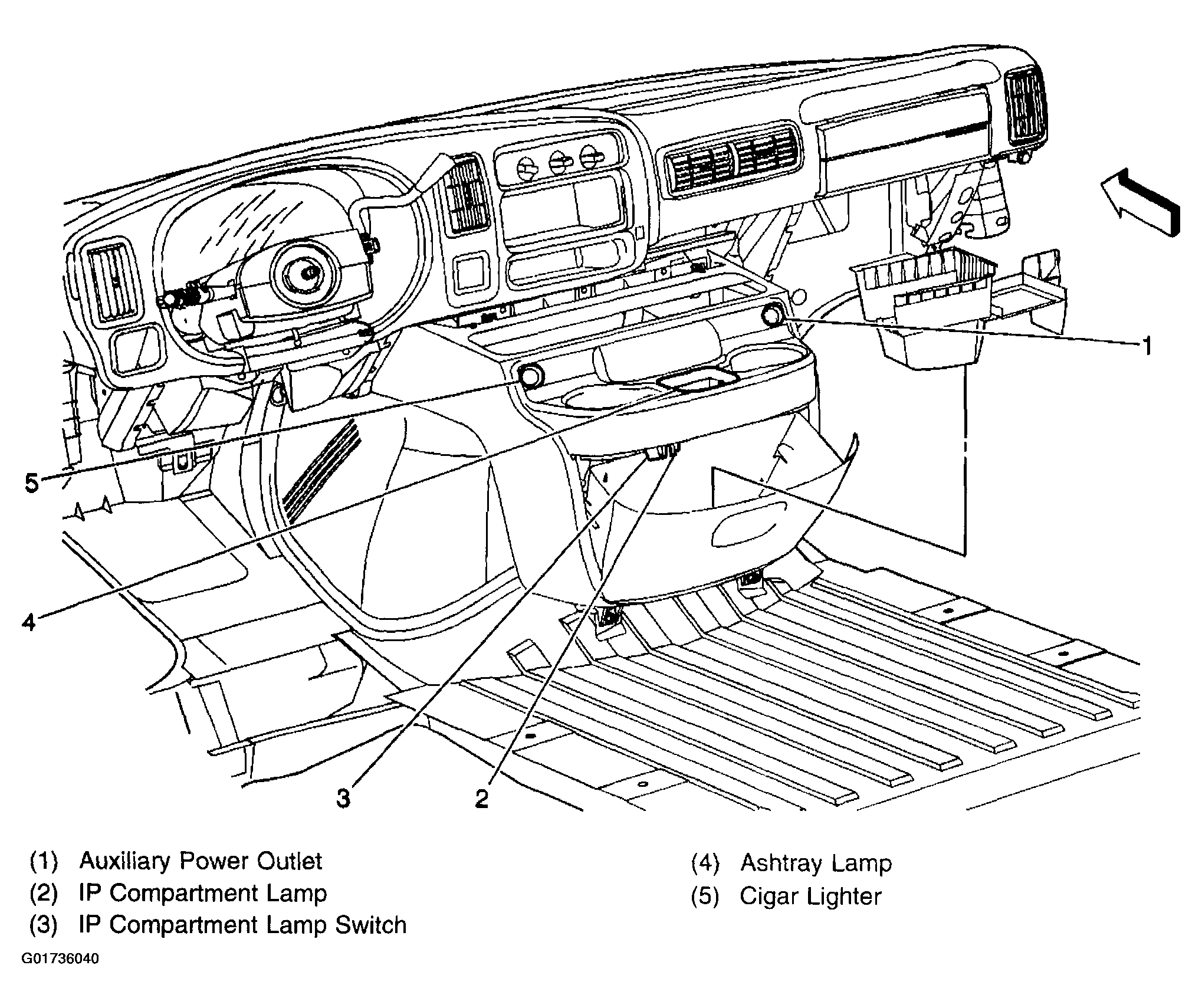

Fig 15: IP Compartment Lamp Switch, IP Compartment Lamp, Ashtray Lamp
G01736040Courtesy of GENERAL MOTORS CORP.

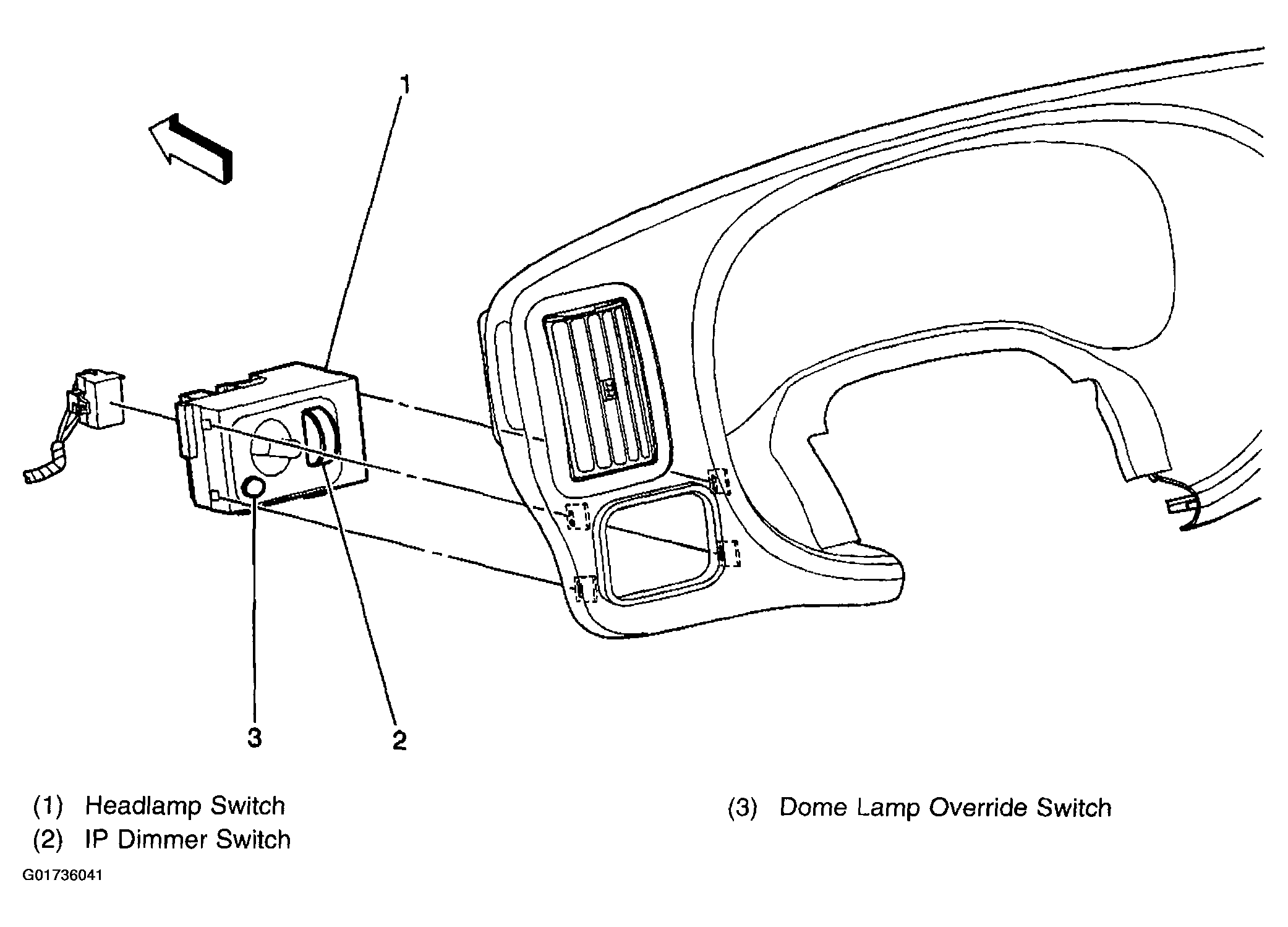

Fig 16: Headlamp Switch, Dome Lamp Override Switch, IP Dimmer Switch
G01736041Courtesy of GENERAL MOTORS CORP.

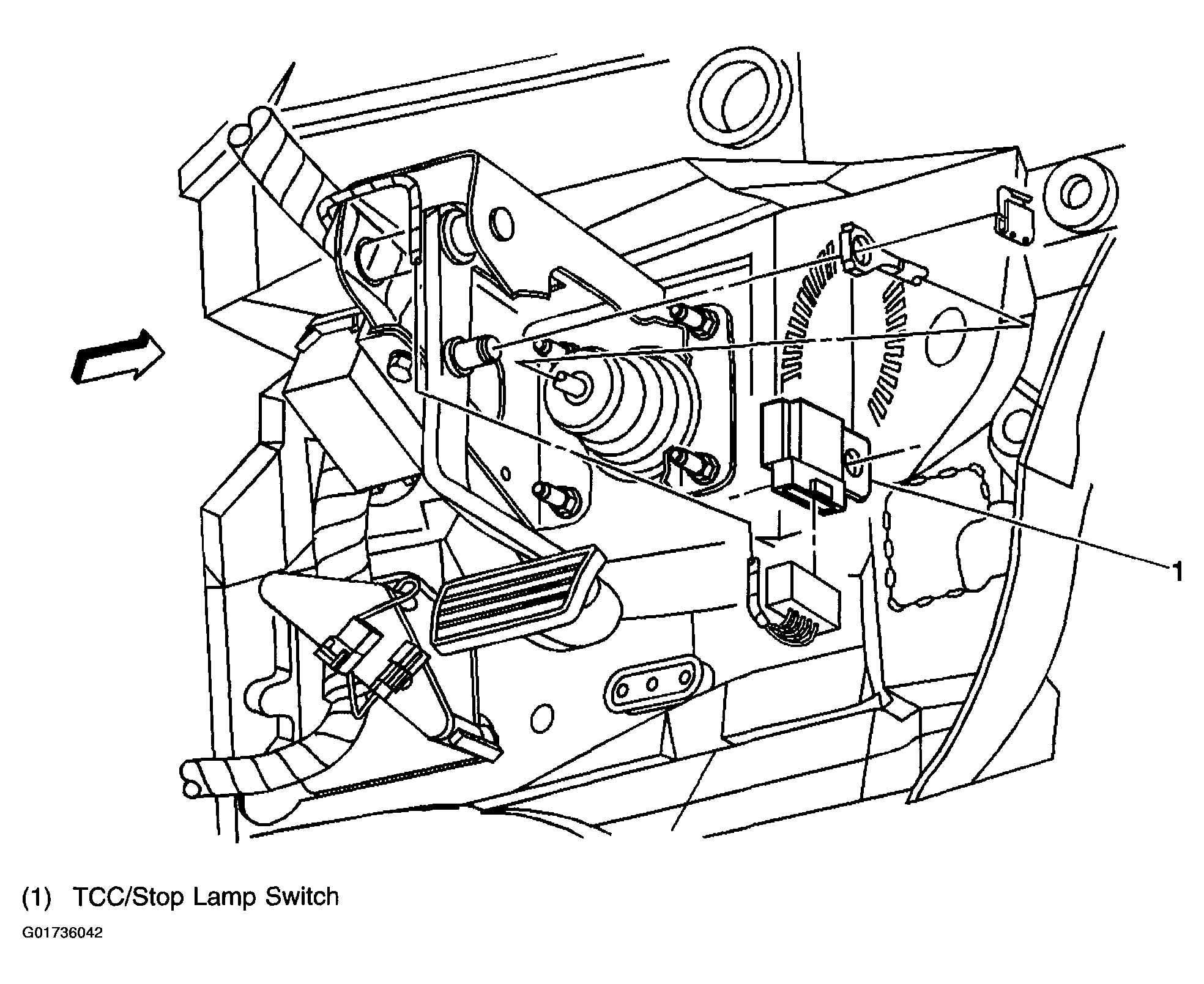

Fig 17: TCC/Stop Lamp Switch
G01736042Courtesy of GENERAL MOTORS CORP.

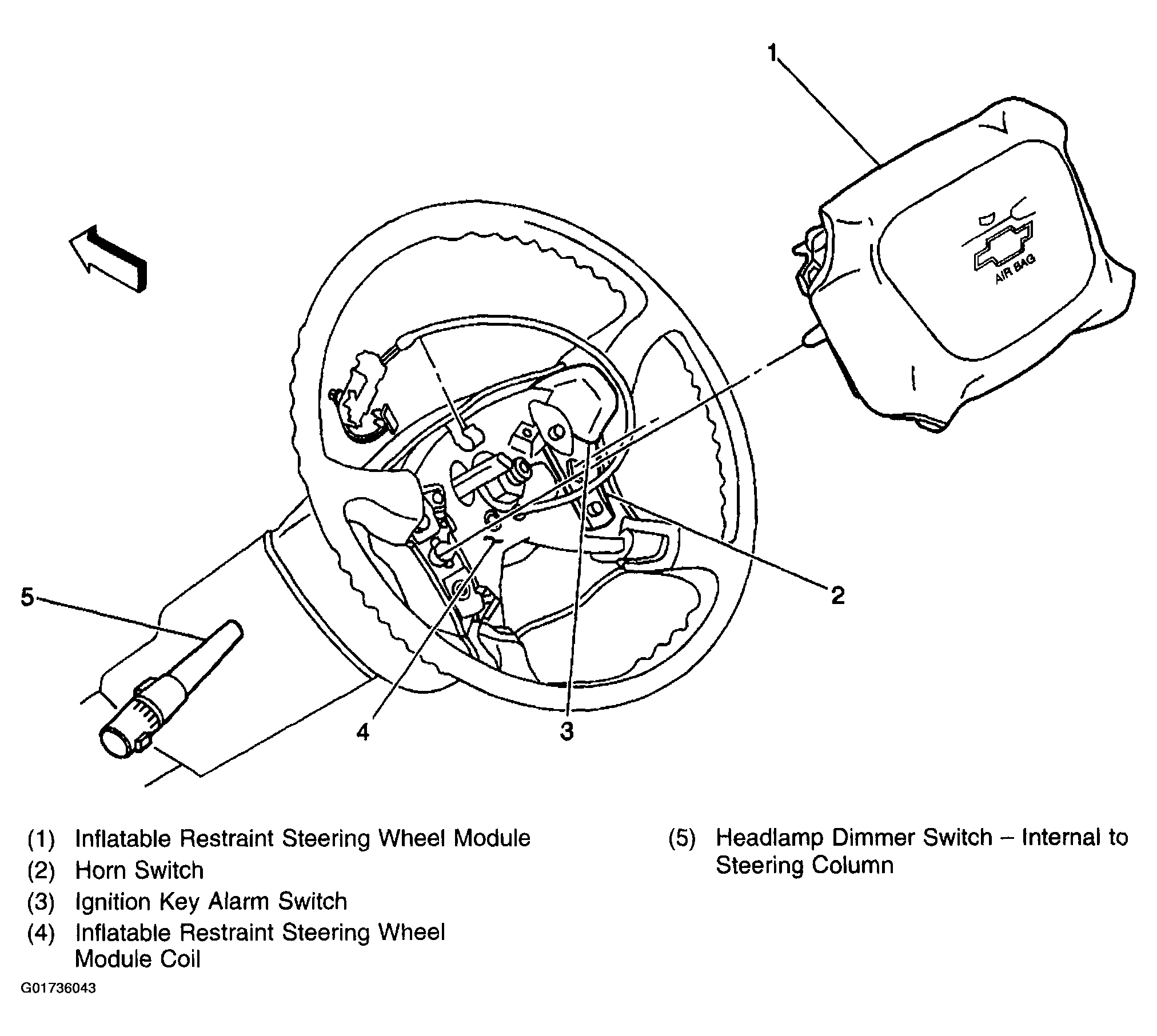

Fig 18: Multifunction Switch
G01736043Courtesy of GENERAL MOTORS CORP.

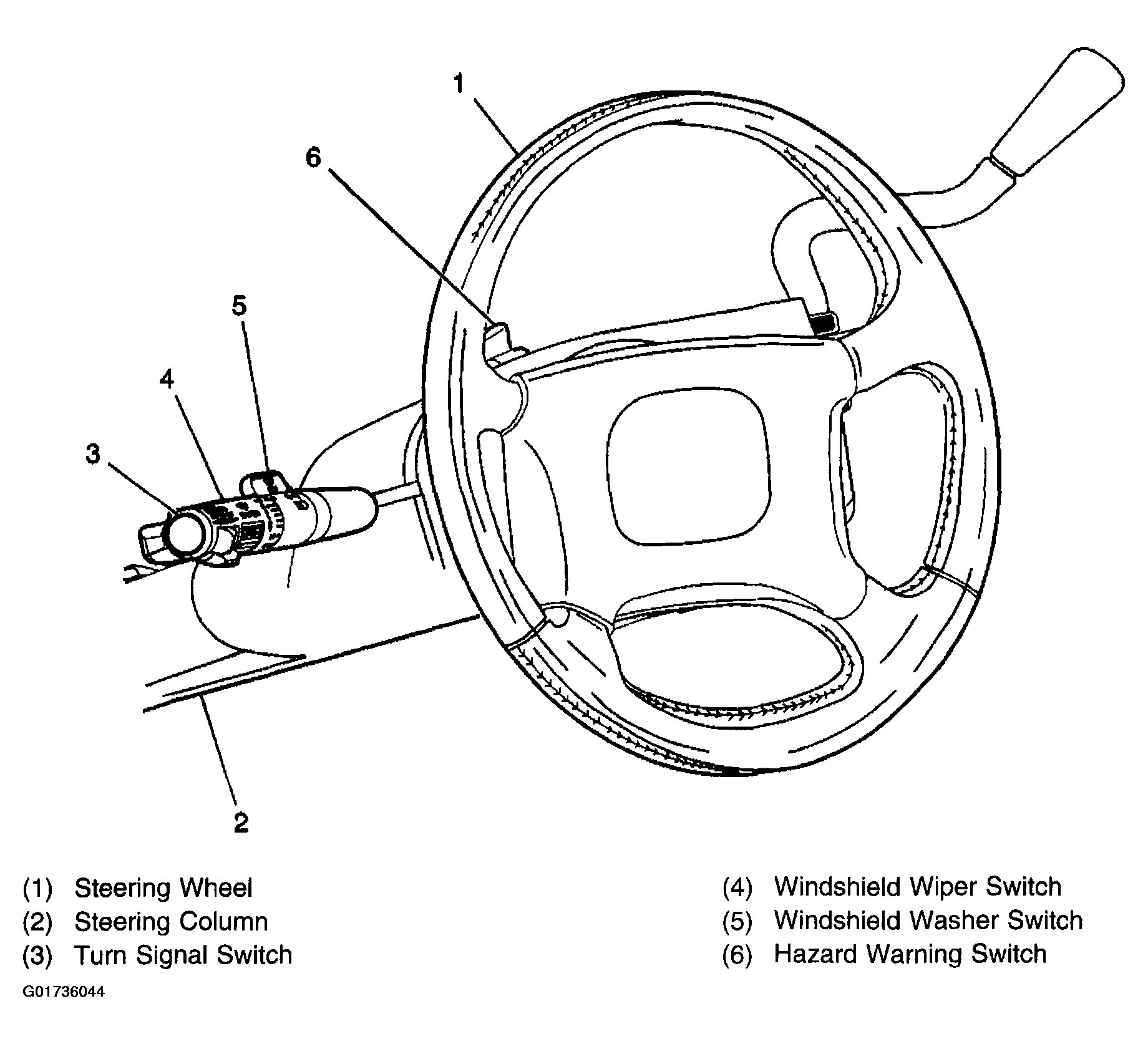

Fig 19: Multifunction Switch, Hazard Warning Switch
G01736044Courtesy of GENERAL MOTORS CORP.

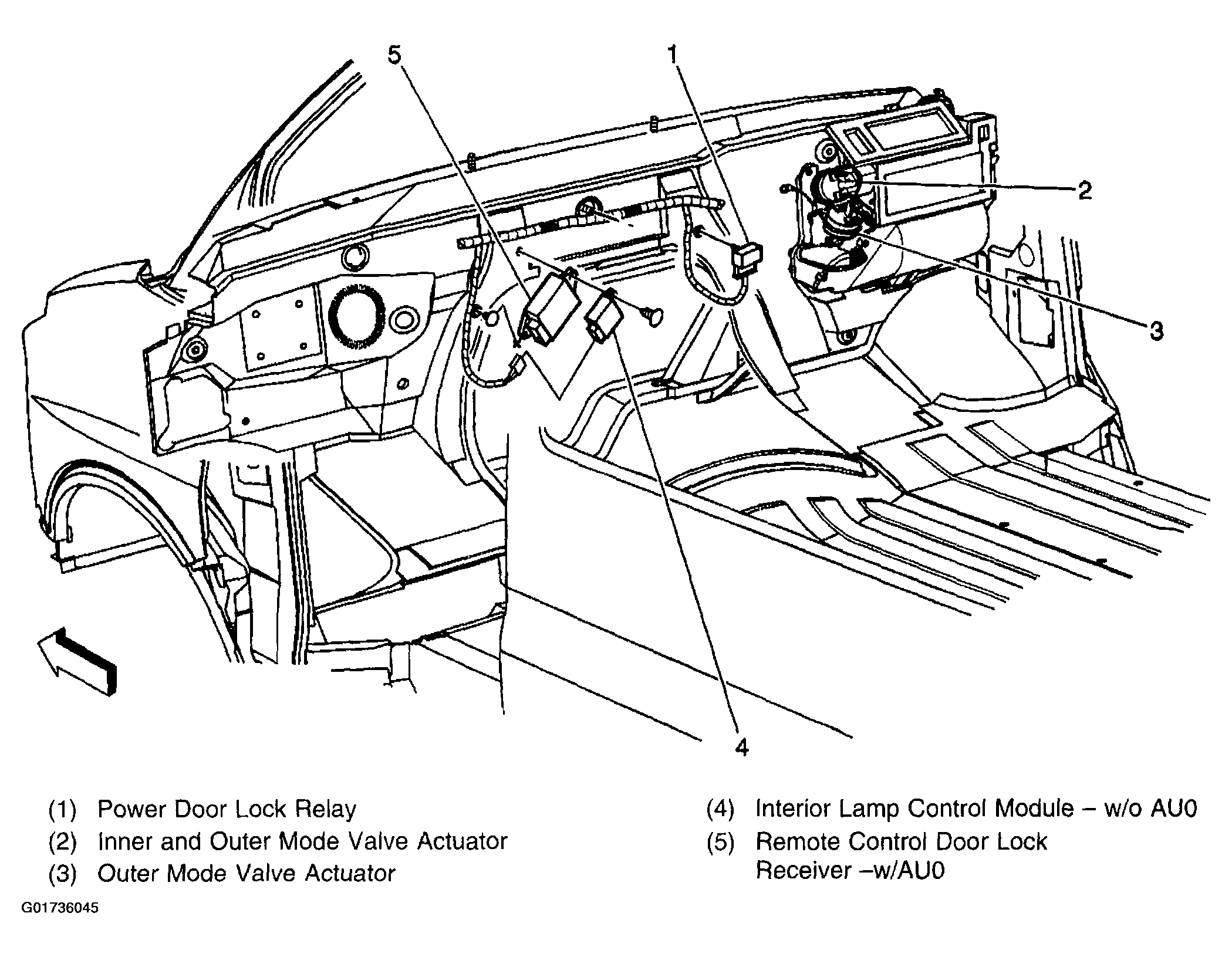

Fig 20: Interior Lamp Control Module, Remote Control Door Lock Receiver
G01736045Courtesy of GENERAL MOTORS CORP.

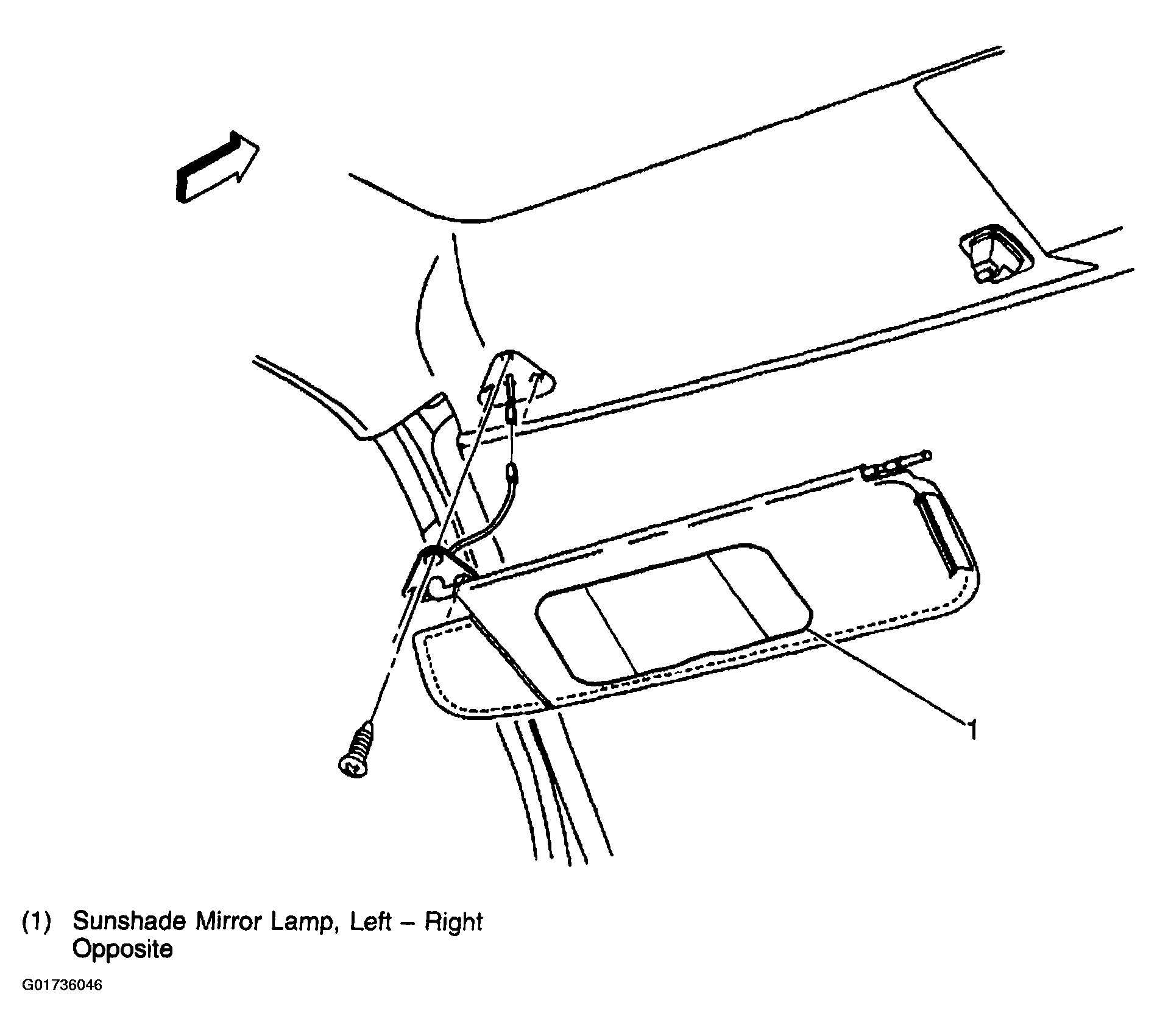

Fig 21: Sunshade Mirror Lamp
G01736046Courtesy of GENERAL MOTORS CORP.

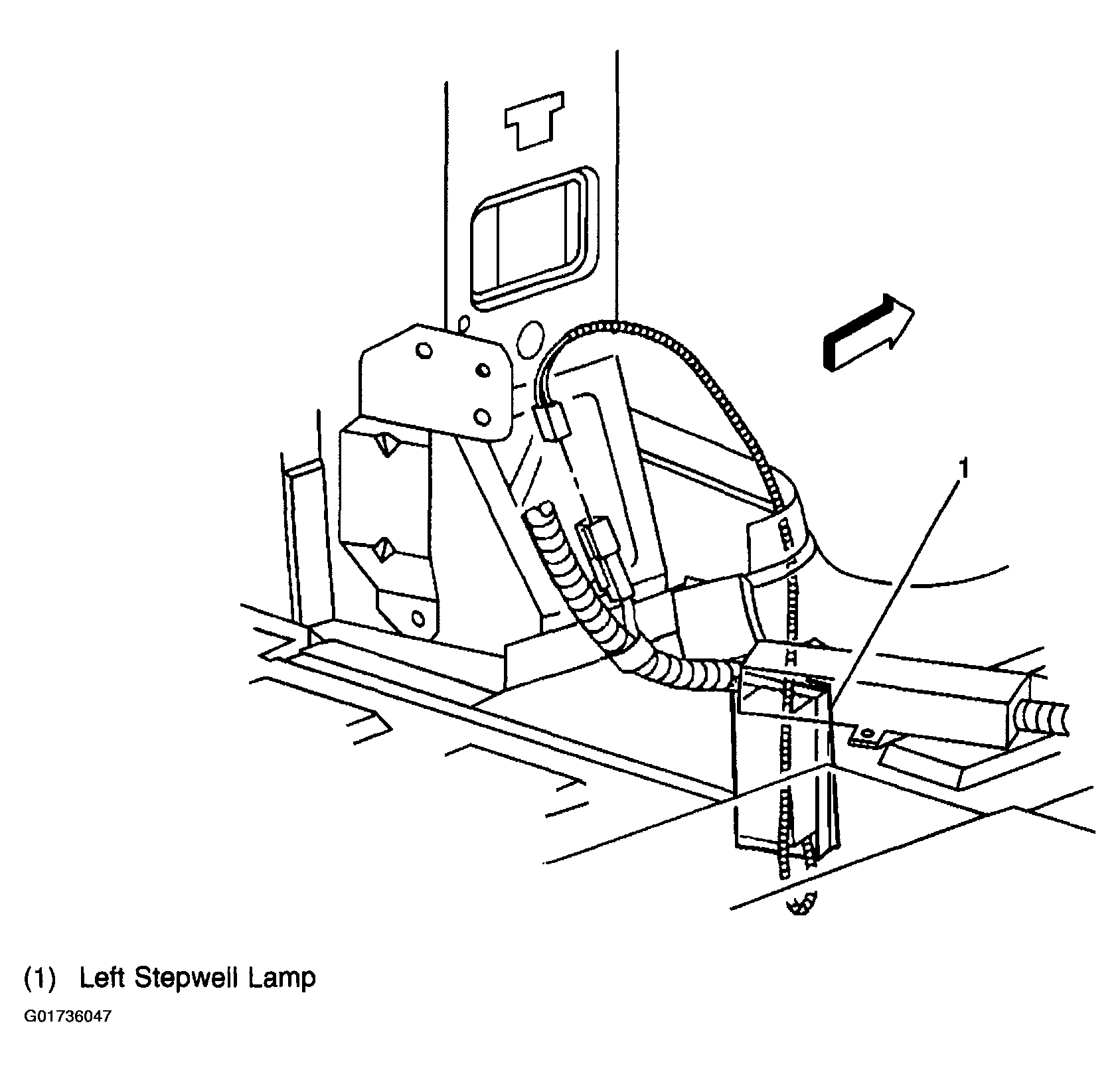

Fig 22: Left Stepwell Lamp
G01736047Courtesy of GENERAL MOTORS CORP.

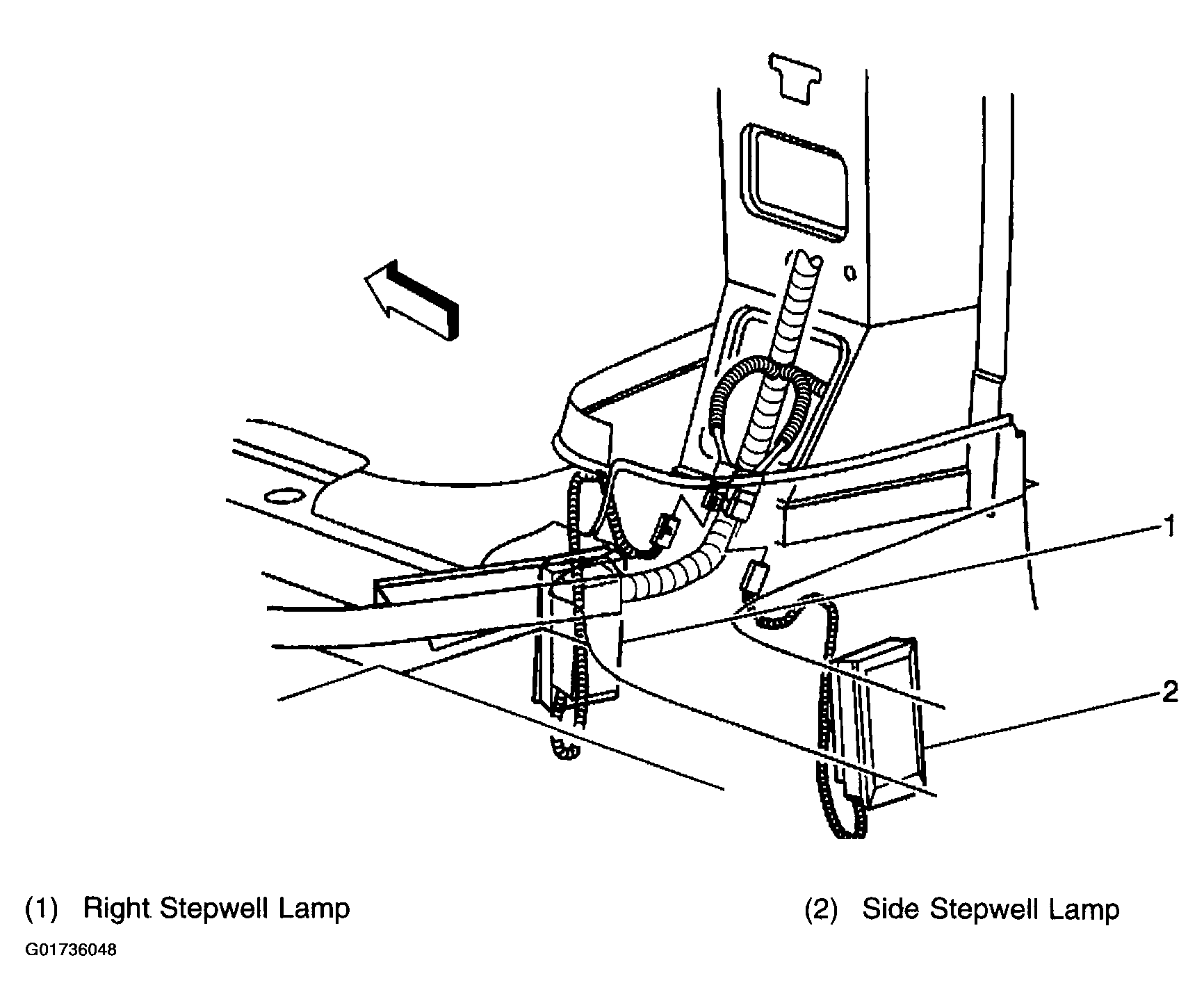

Fig 23: Right Stepwell Lamp & Side Stepwell Lamp
G01736048Courtesy of GENERAL MOTORS CORP.

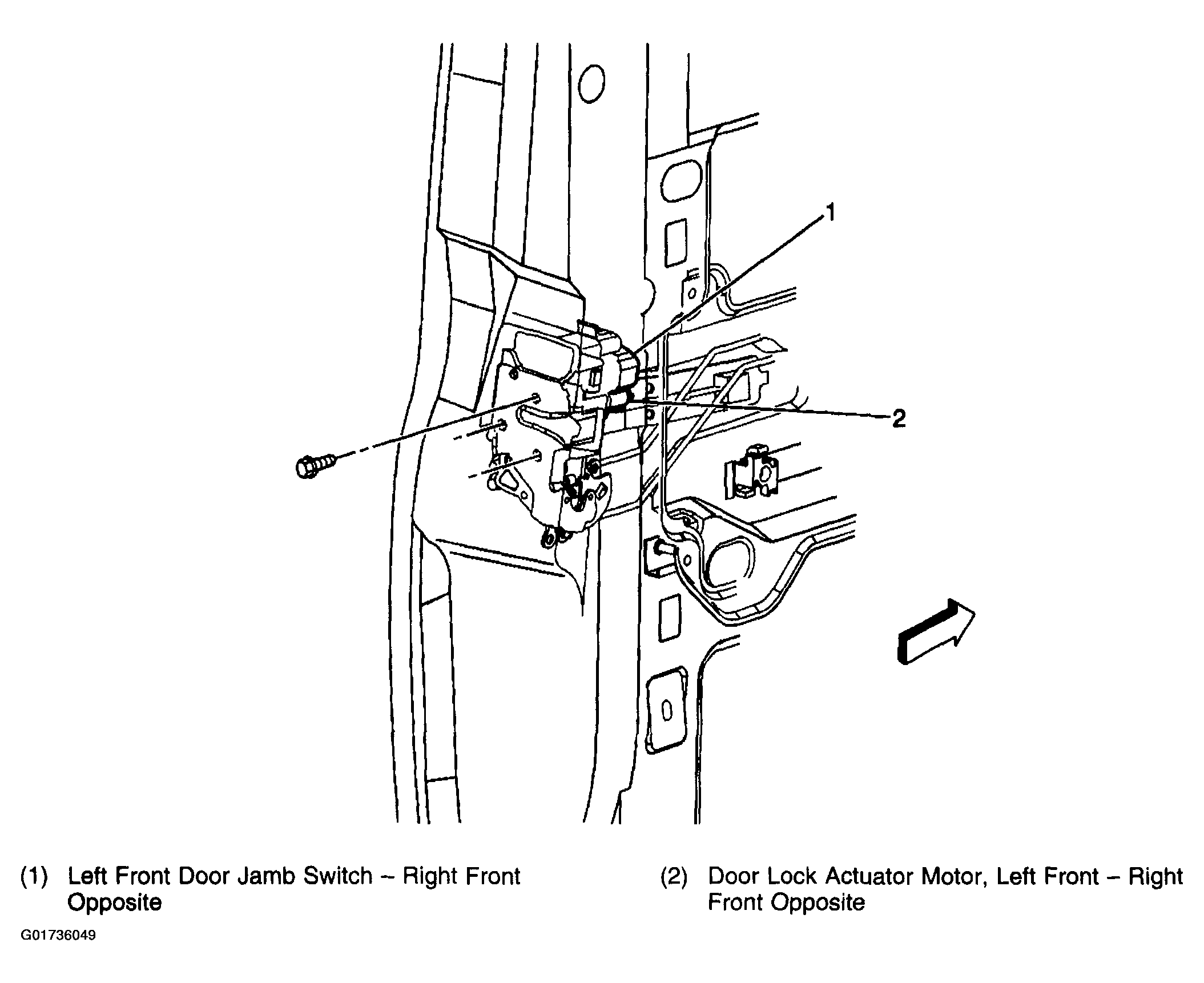

Fig 24: Front Door Jamb Switch
G01736049Courtesy of GENERAL MOTORS CORP.

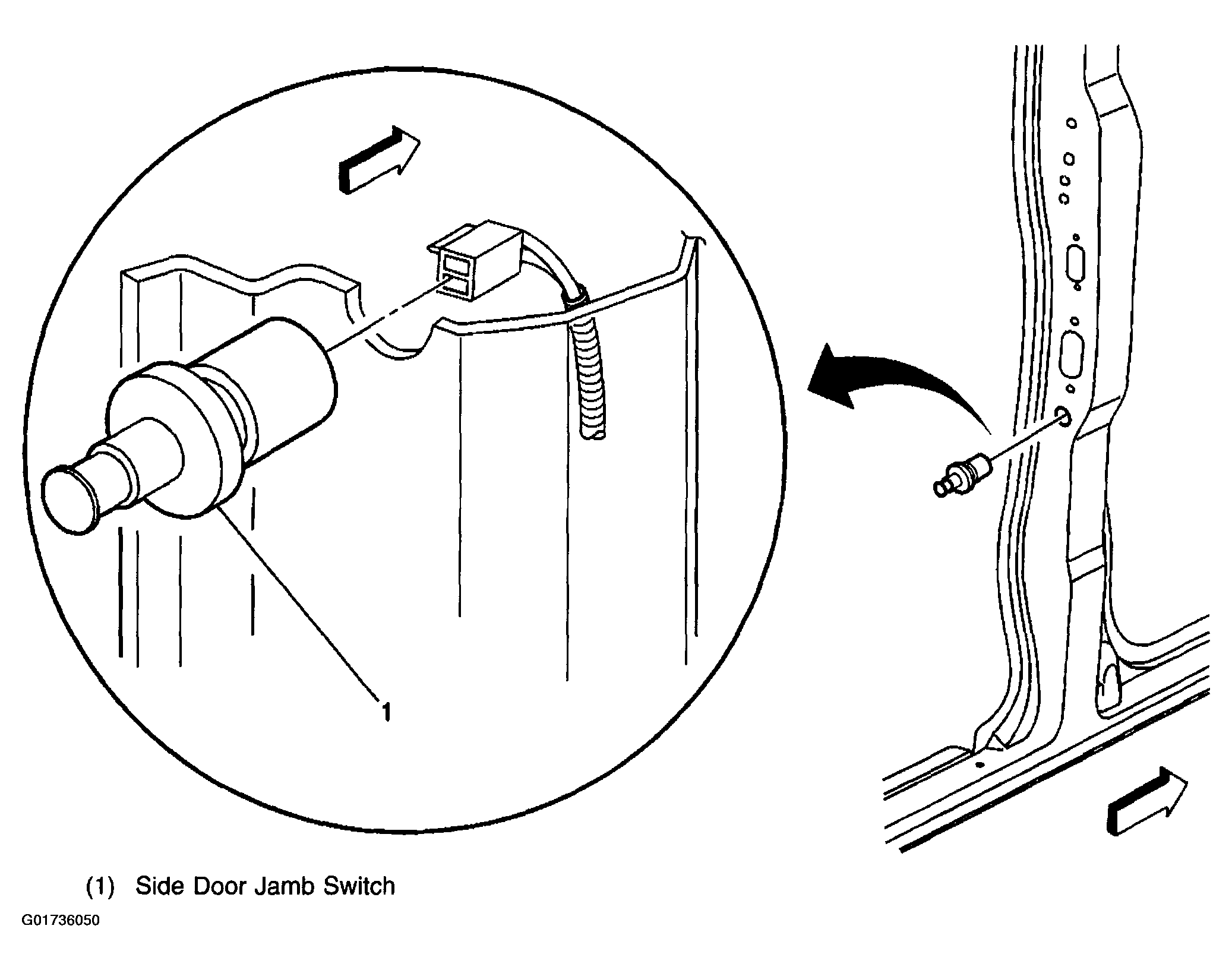

Fig 25: Side Door Jamb Switch
G01736050Courtesy of GENERAL MOTORS CORP.

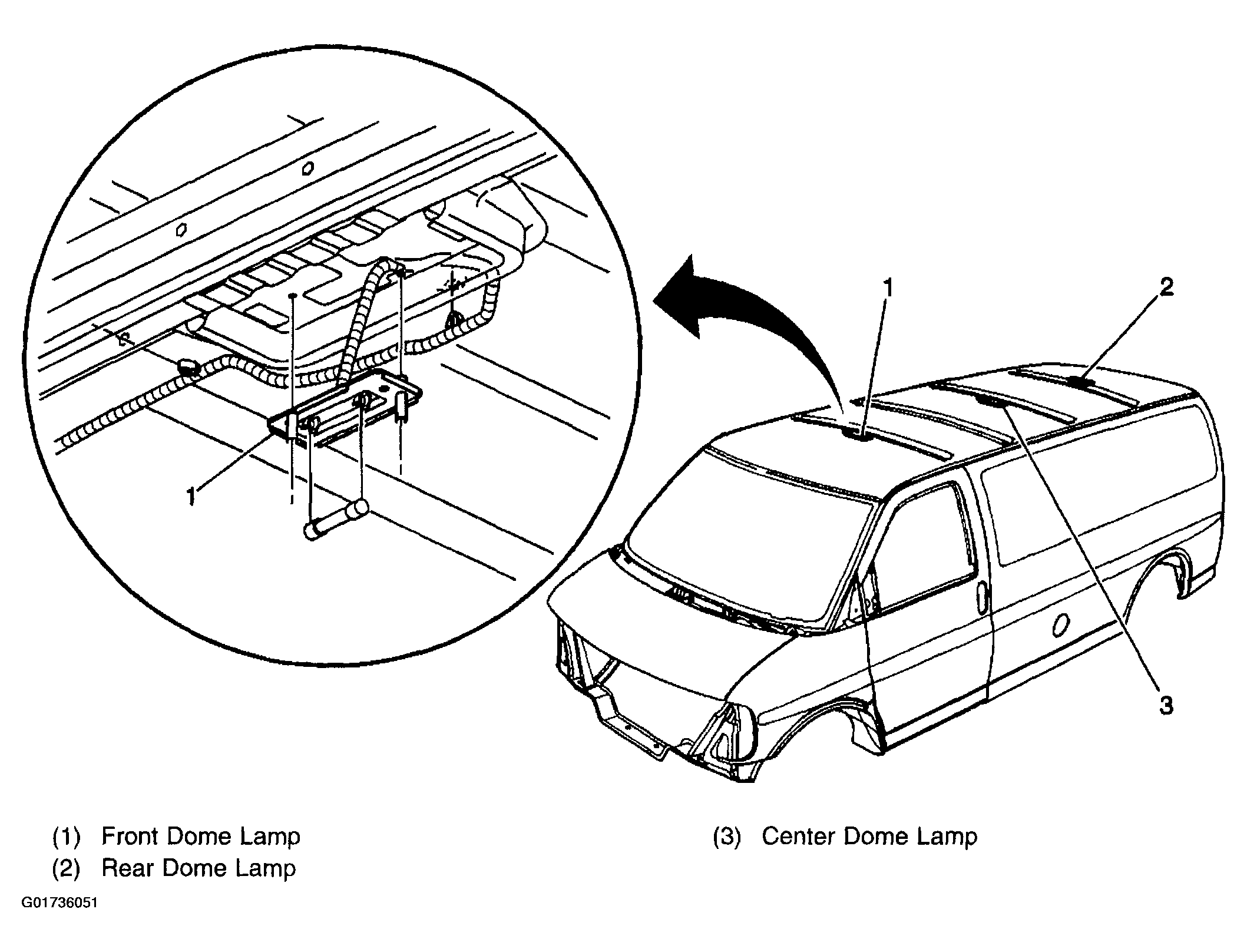

Fig 26: Dome Lamps
G01736051Courtesy of GENERAL MOTORS CORP.

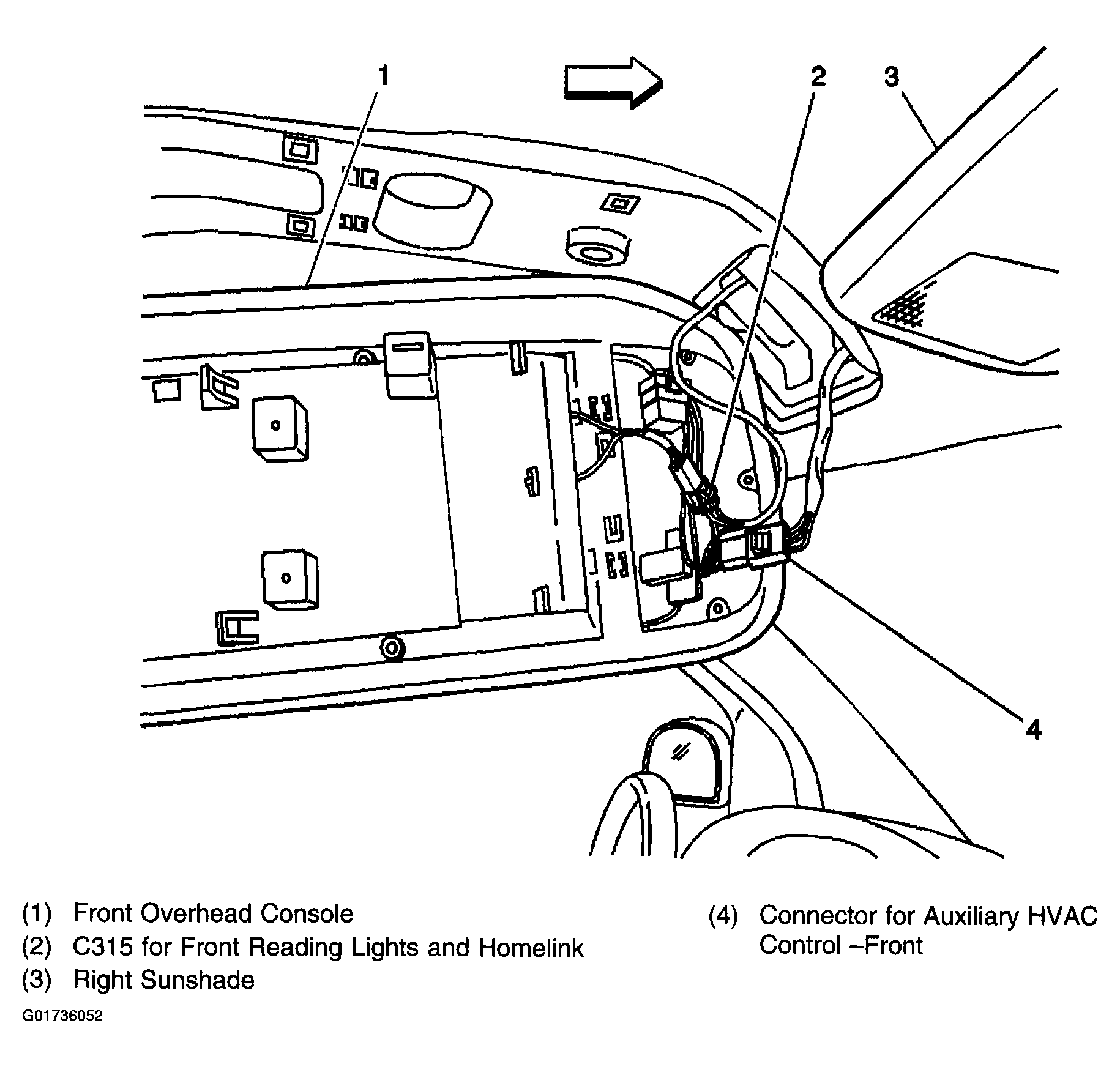

Fig 27: C315 and Front Auxiliary HVAC Control Connectors
G01736052Courtesy of GENERAL MOTORS CORP.

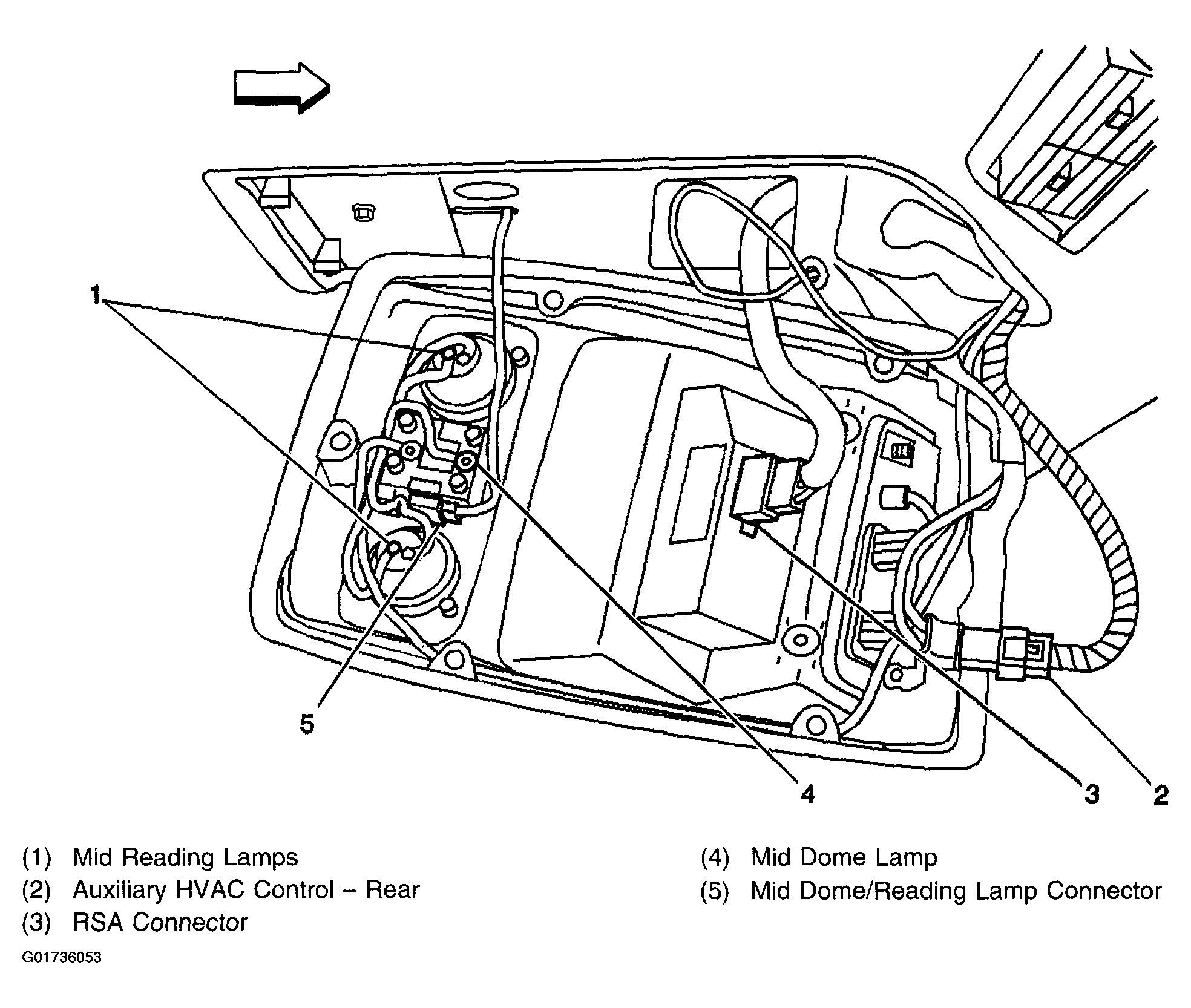

Fig 28: Mid Dome/Reading Lamps, RSA & Rear HVAC Control Connectors
G01736053Courtesy of GENERAL MOTORS CORP.

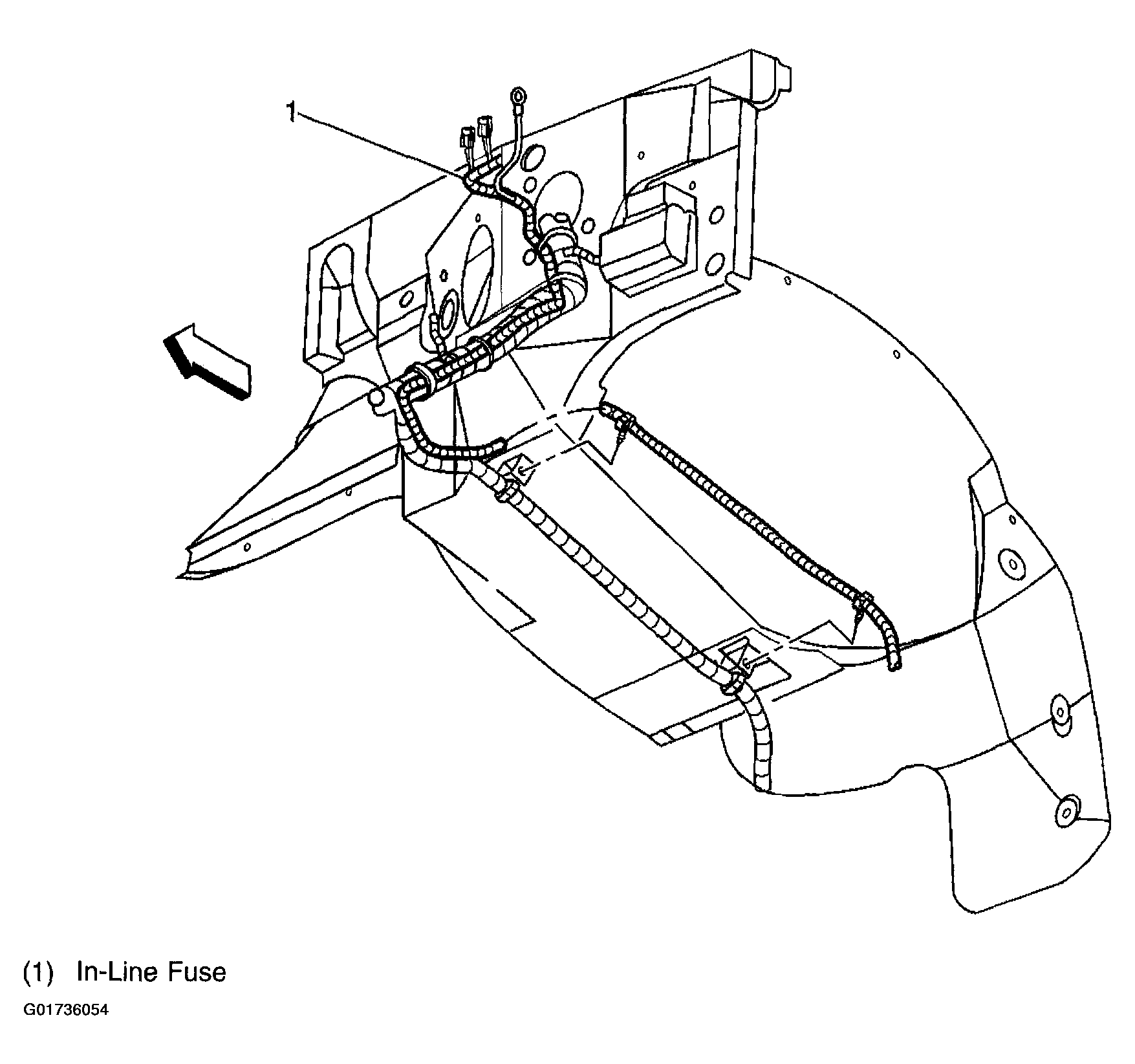

Fig 29: Rear Park Lamp In-line Fuse - Export
G01736054Courtesy of GENERAL MOTORS CORP.

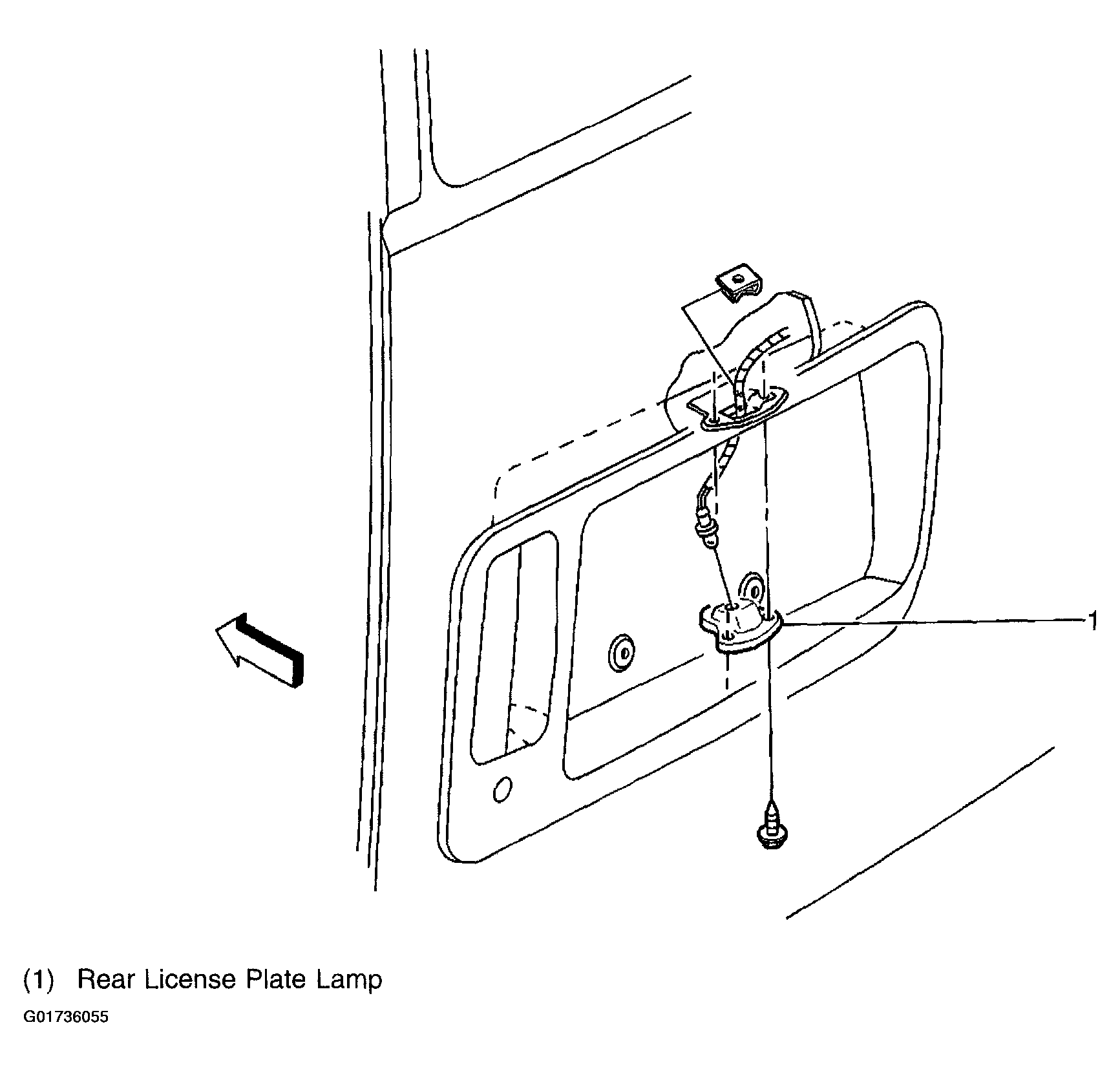

Fig 30: Rear License Plate Lamp
G01736055Courtesy of GENERAL MOTORS CORP.

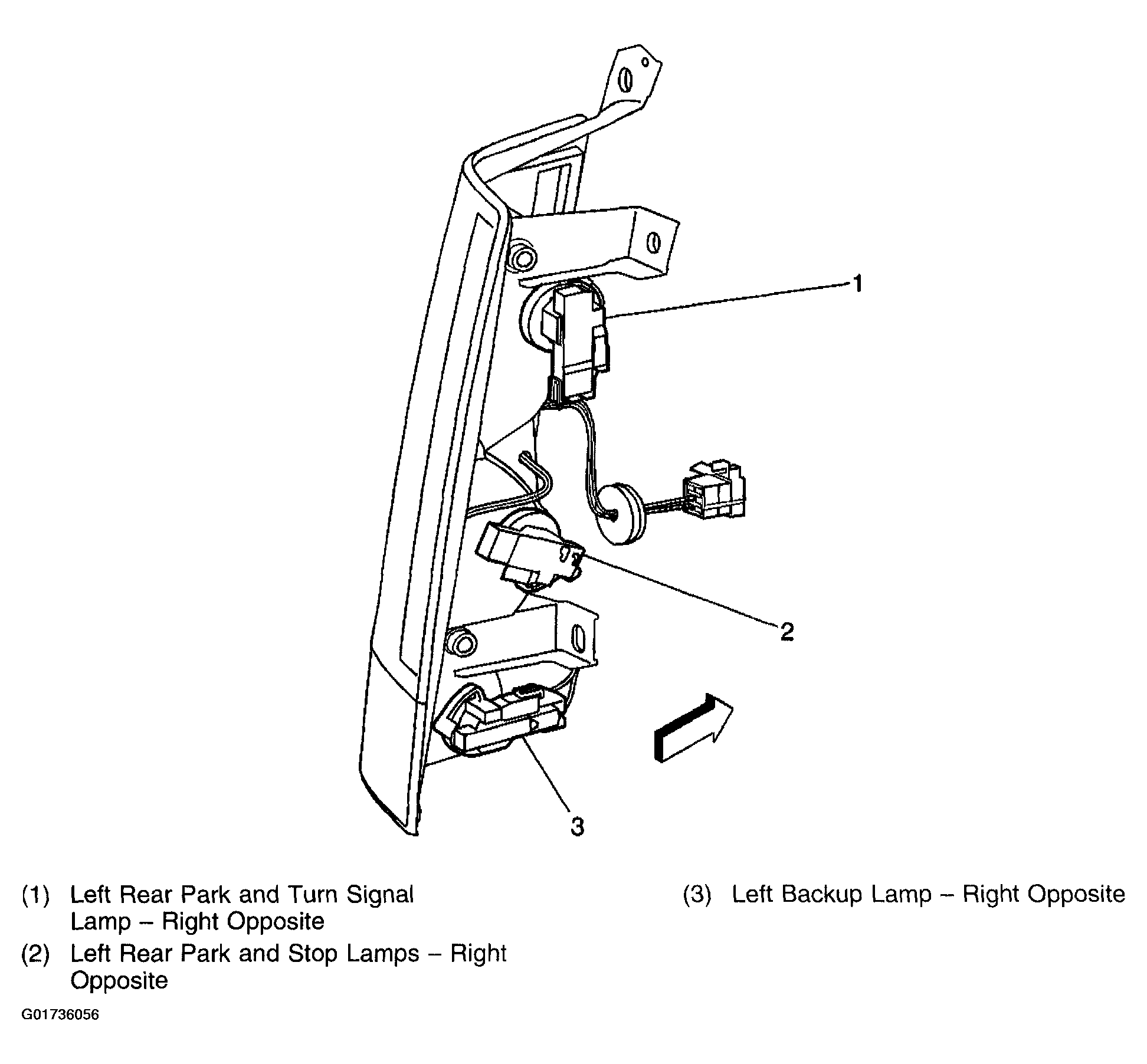

Fig 31: Rear Park & Turn Signal Lamps, Tail Lamp, Backup Lamp
G01736056Courtesy of GENERAL MOTORS CORP.

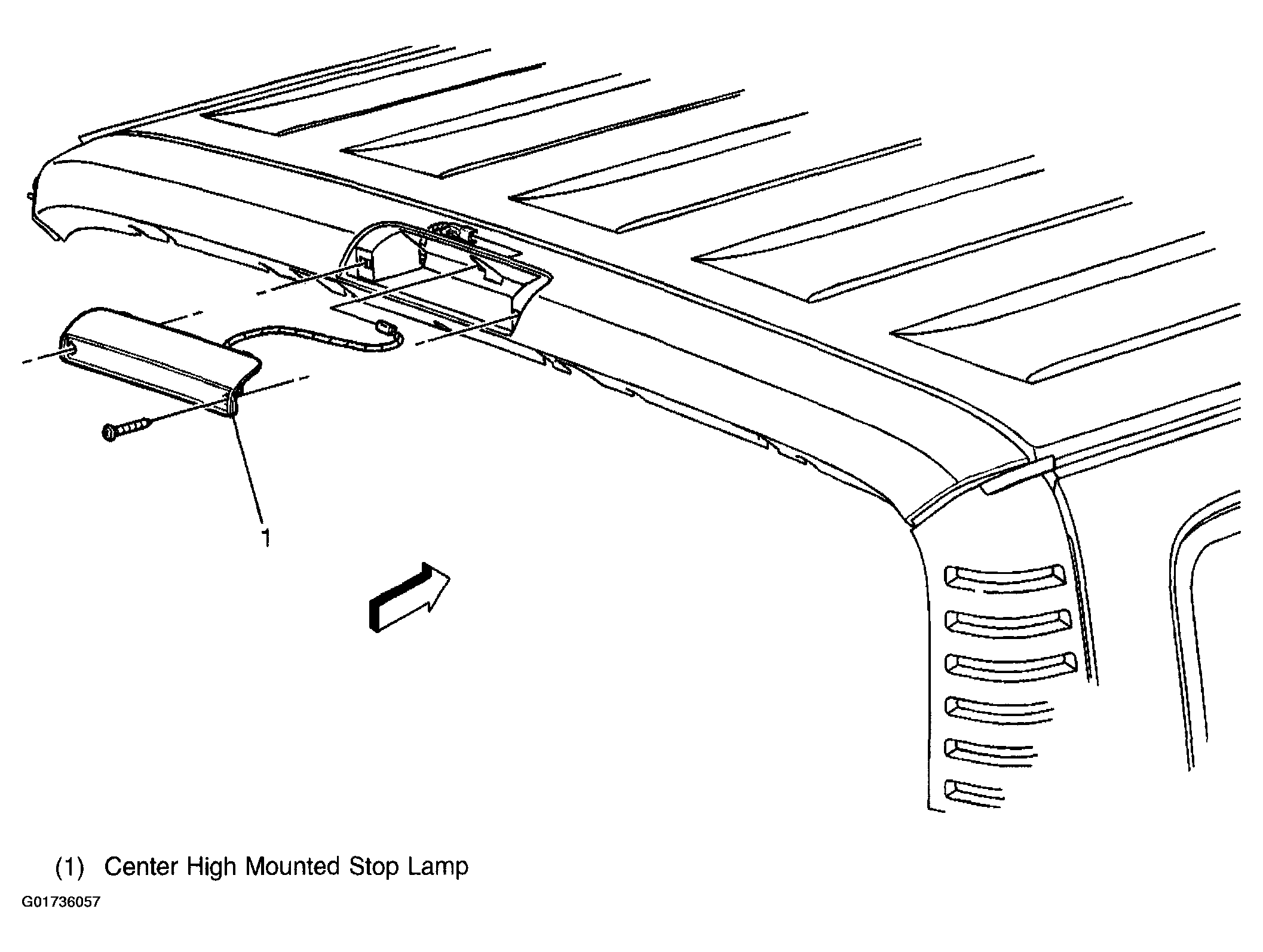

Fig 32: Center High Mounted Stop Lamp
G01736057Courtesy of GENERAL MOTORS CORP.

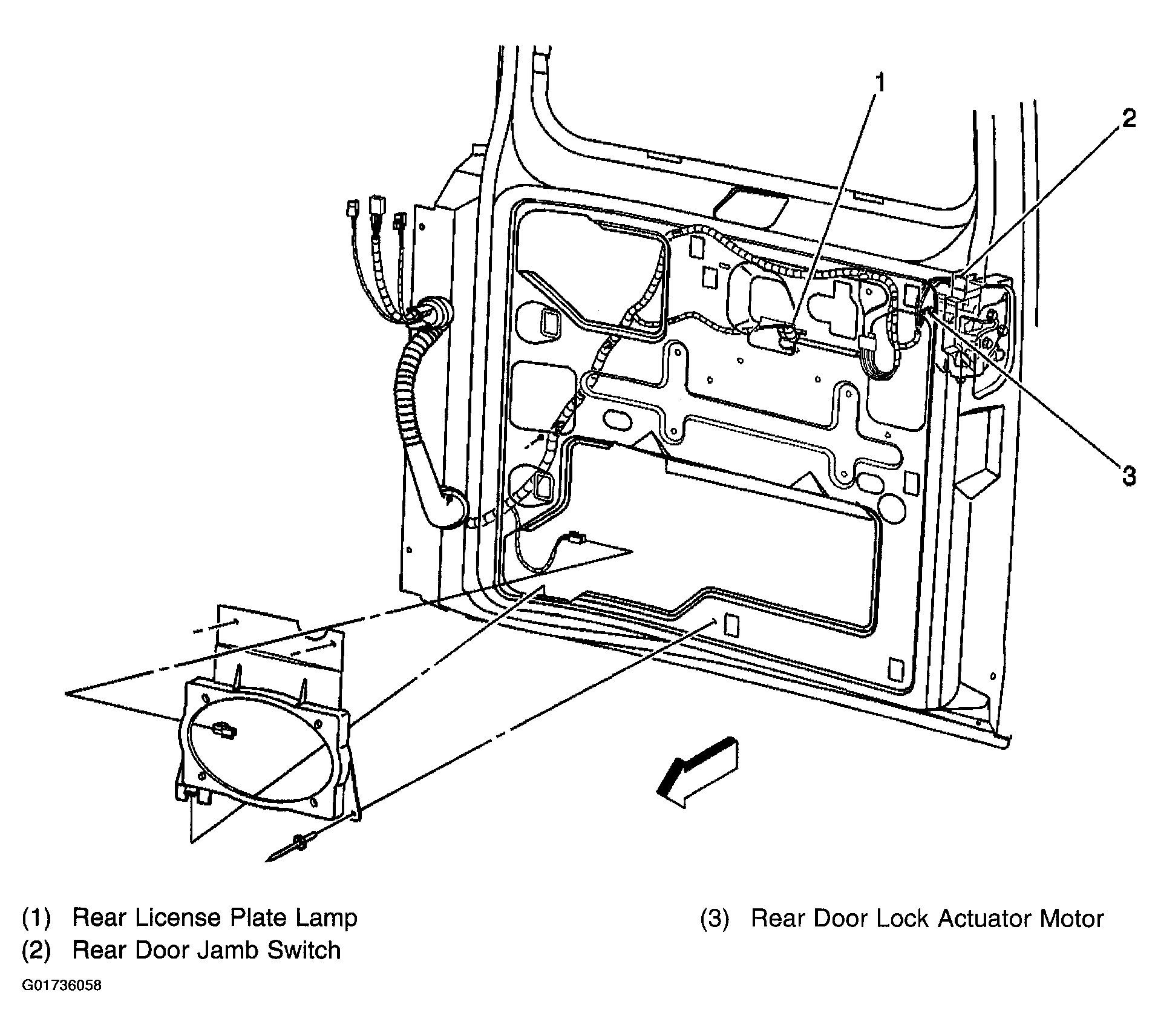

Fig 33: Rear Door Jamb Switch
G01736058Courtesy of GENERAL MOTORS CORP.

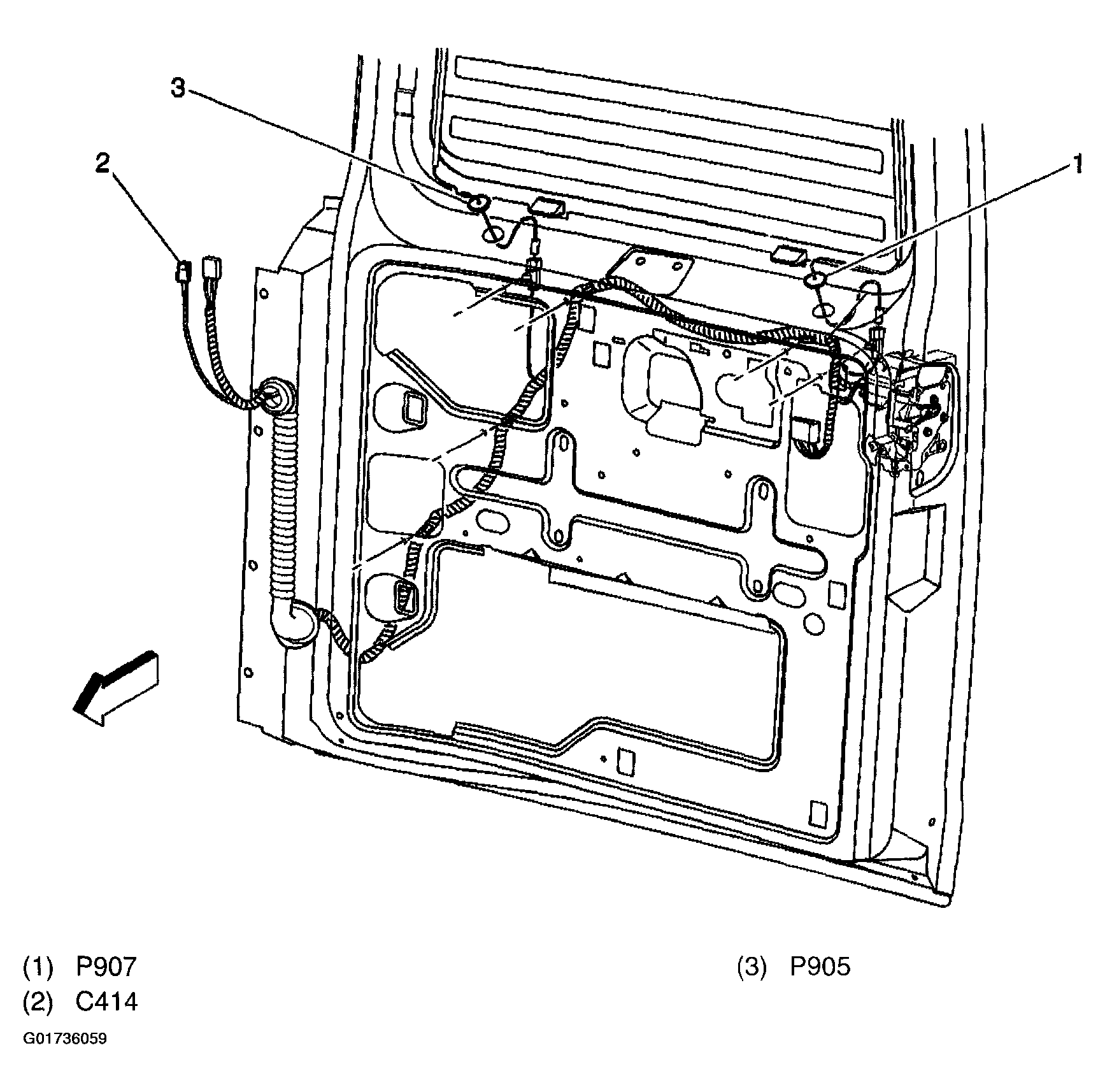

Fig 34: Right Rear Door Wiring
G01736059Courtesy of GENERAL MOTORS CORP.

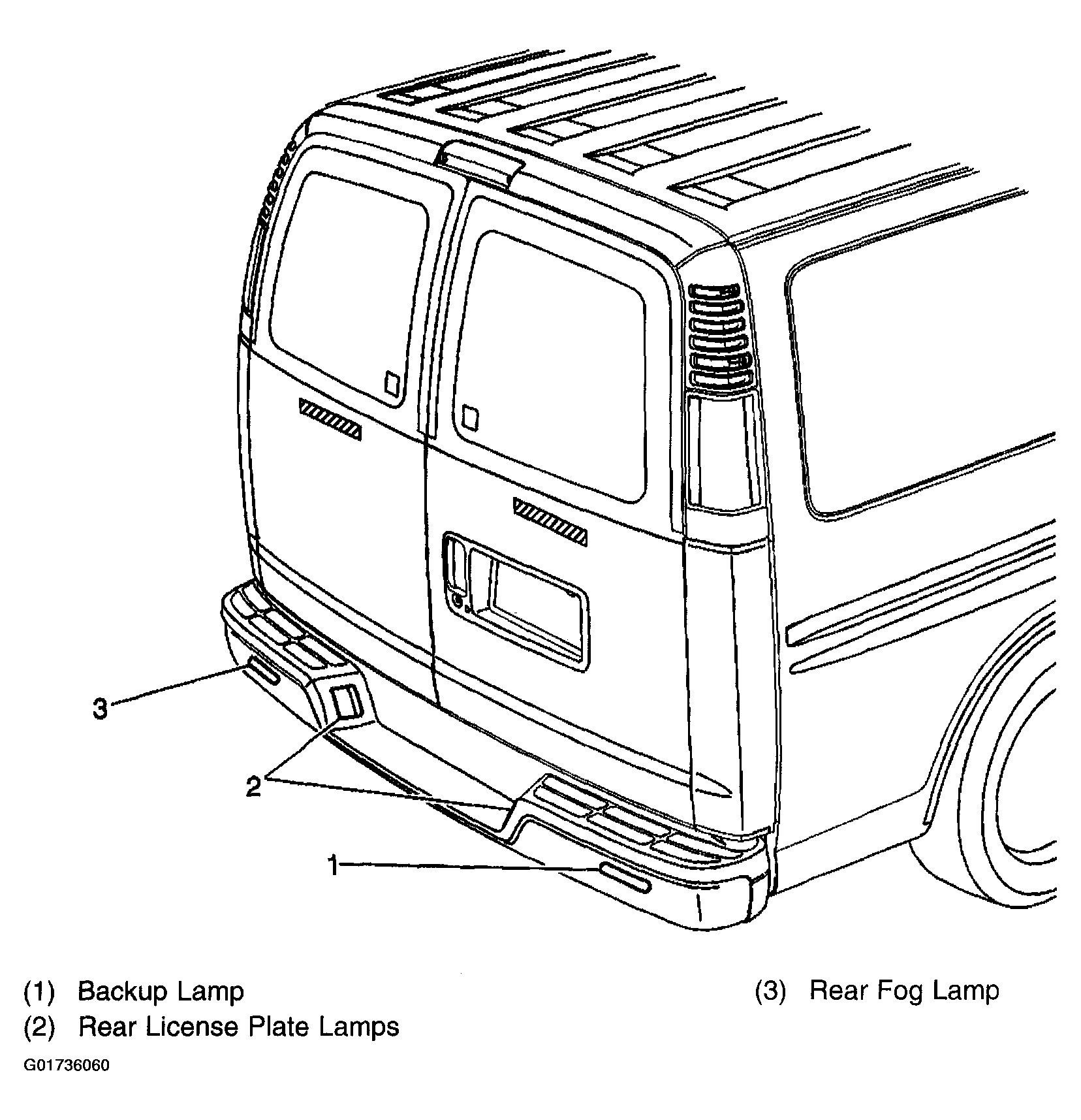

Fig 35: Backup Lamp, Rear License Plate Lamps, Rear Fog Lamp - Export
G01736060Courtesy of GENERAL MOTORS CORP.

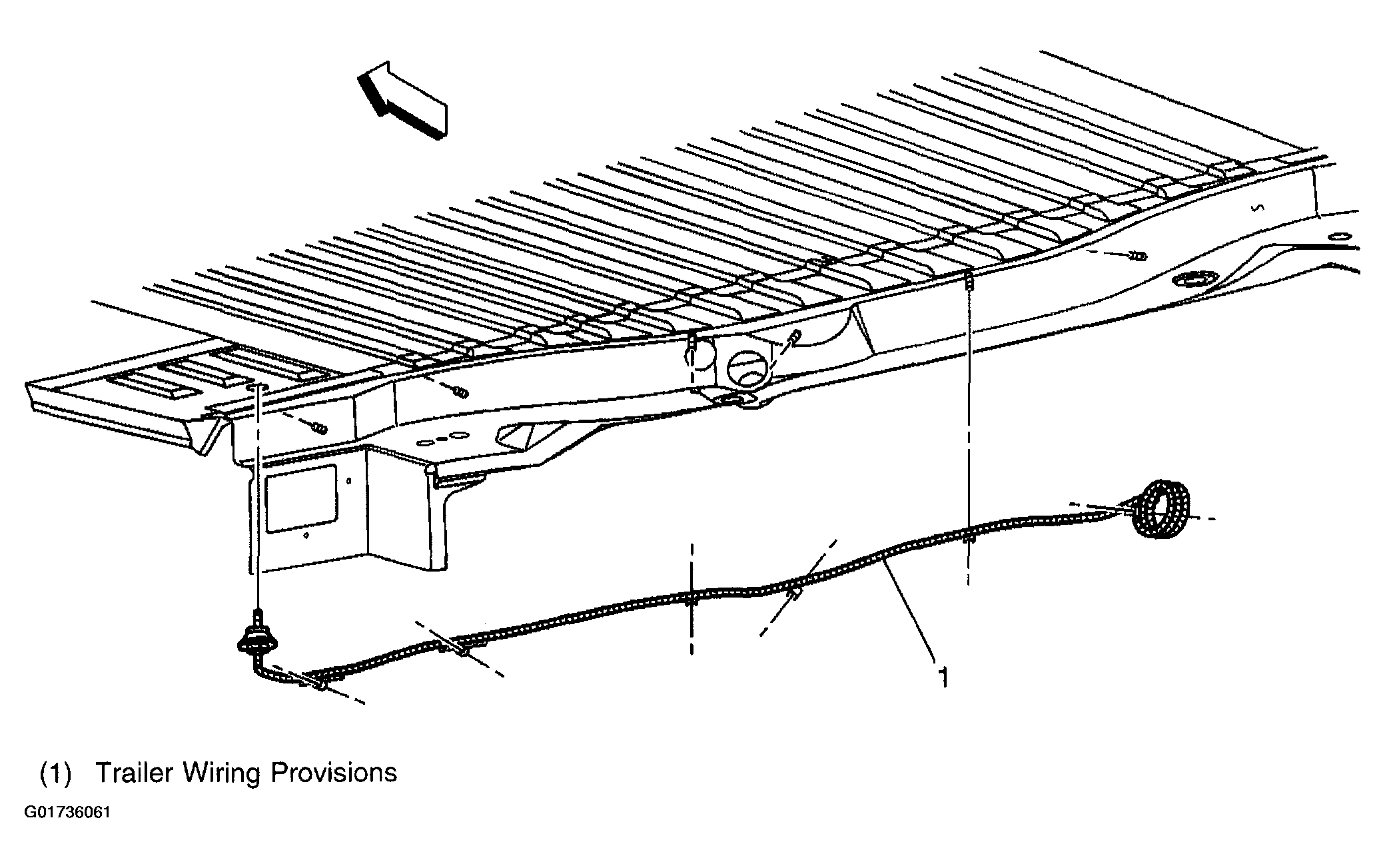

Fig 36: Trailer Wiring Provisions - Park, Turn, Stop, Backup
G01736061Courtesy of GENERAL MOTORS CORP.

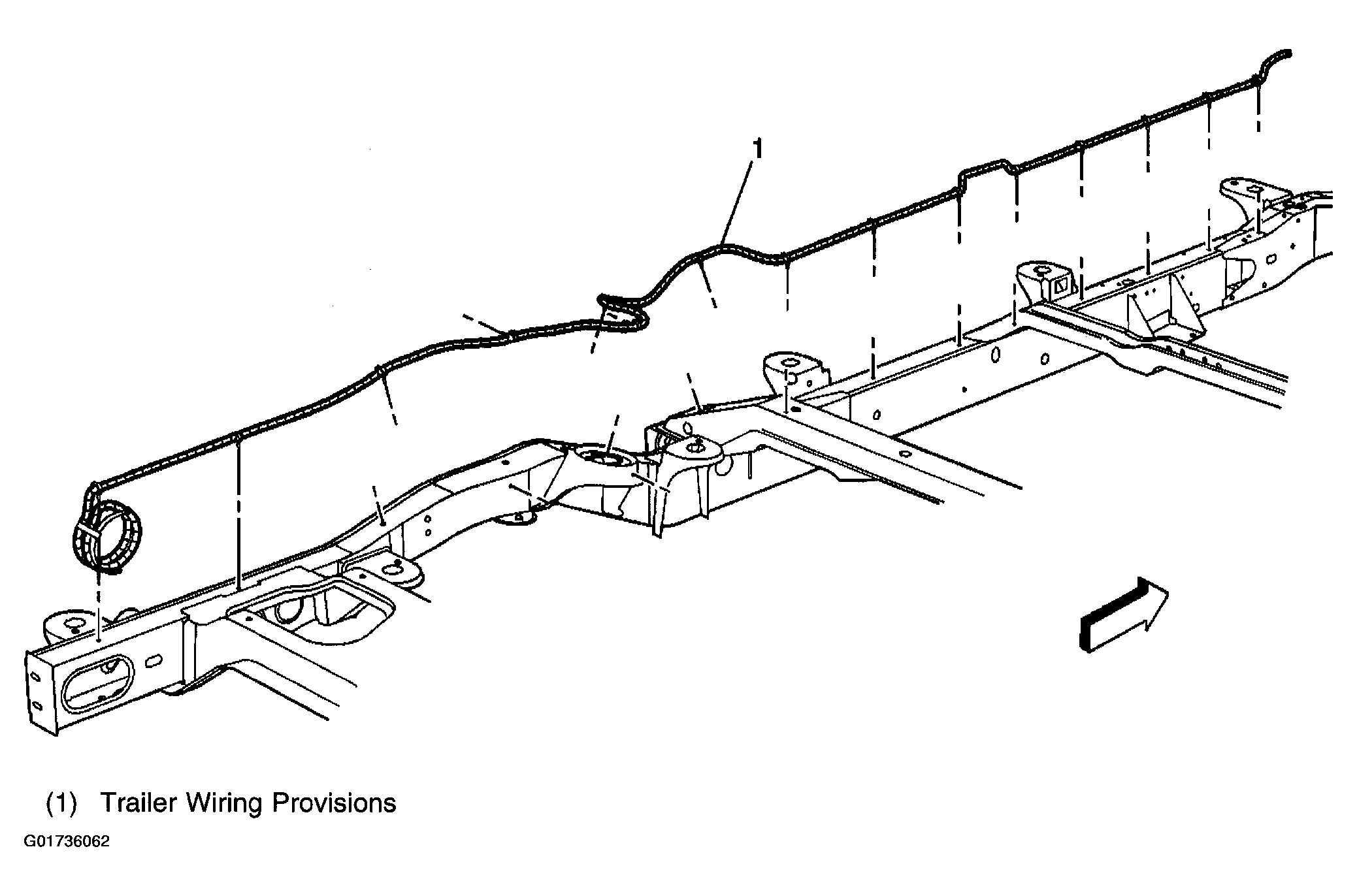

Fig 37: Trailer Wiring Provisions - Trailer Accy, Electric Brake, Ground
G01736062Courtesy of GENERAL MOTORS CORP.

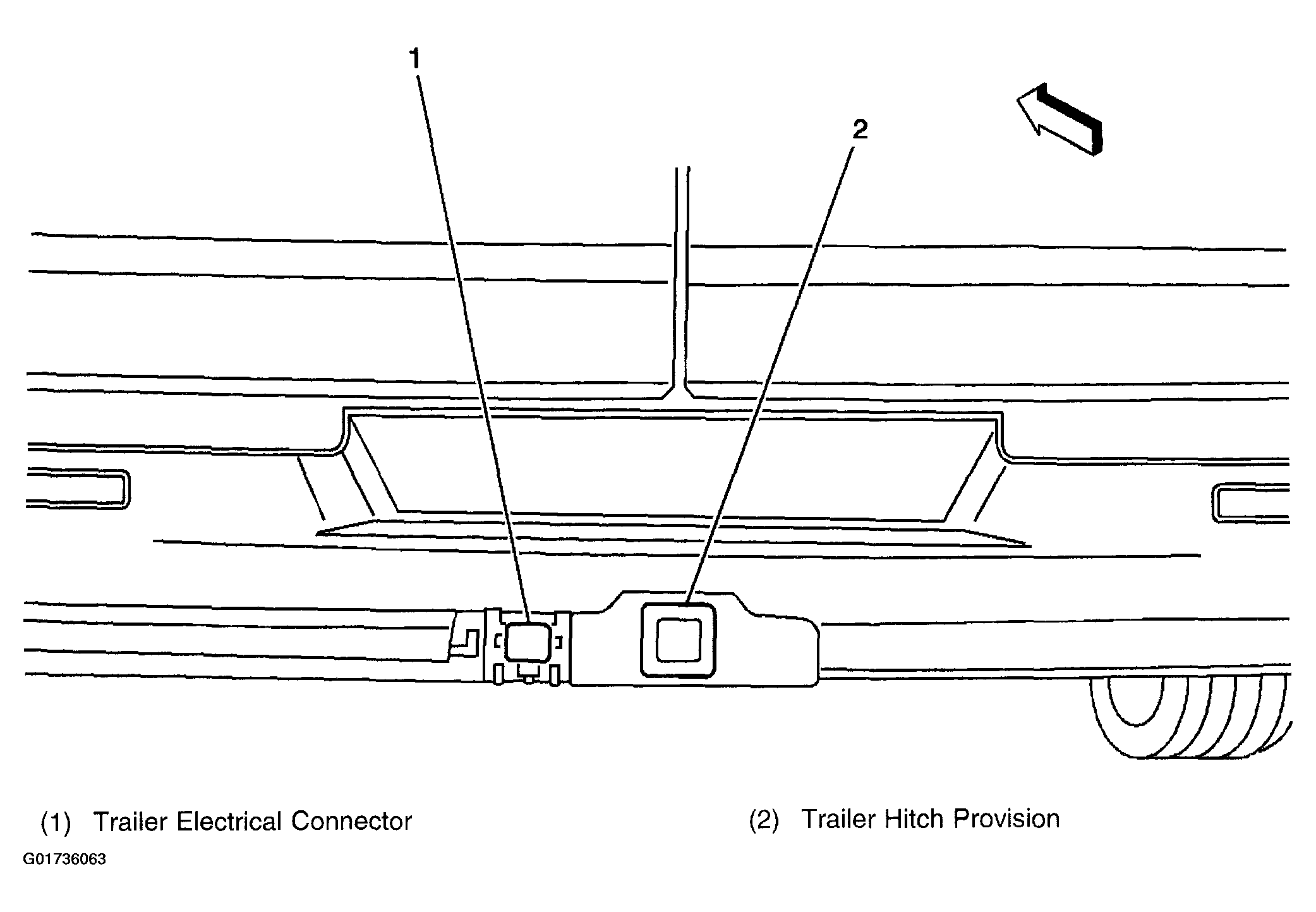

Fig 38: Trailer Connector
G01736063Courtesy of GENERAL MOTORS CORP.
