Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the yaw rate sensor electrical connector (3).
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the yaw rate sensor (2).
Tighten

Tighten the 2 yaw rate sensor mounting nuts (1) to 6 N.m (53 in lbs).
Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS

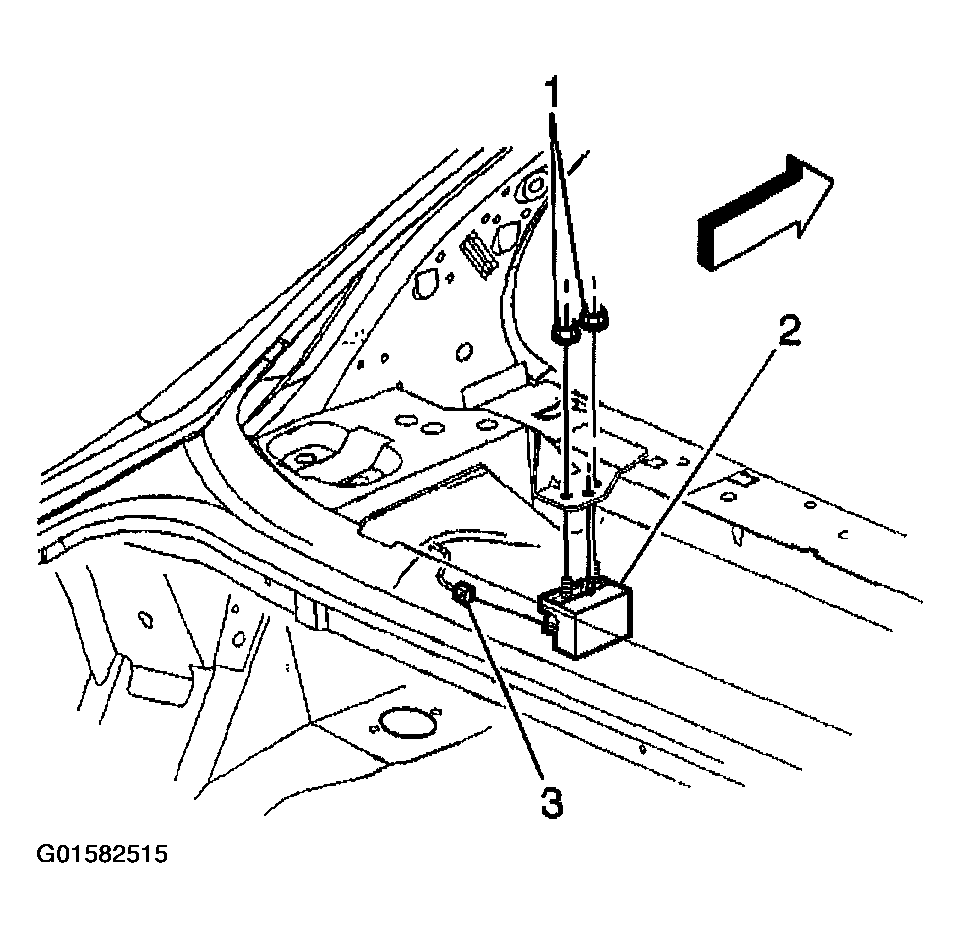

Fig 1: Installing Yaw Rate Sensor
Courtesy of GENERAL MOTORS CORP.
