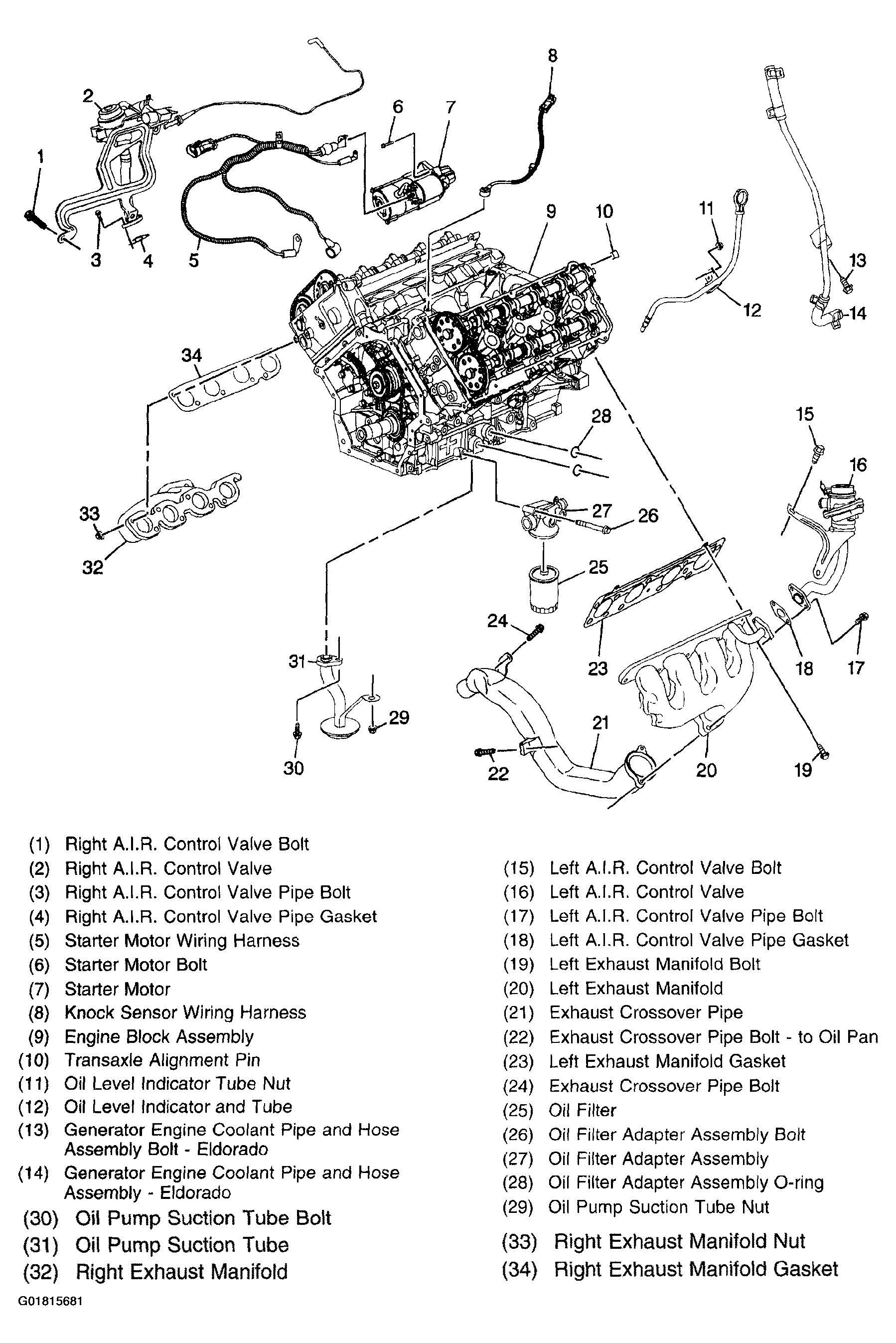

Fig 1: Engine Covers and Component Assemblies (1 of 2)
Courtesy of GENERAL MOTORS CORP.

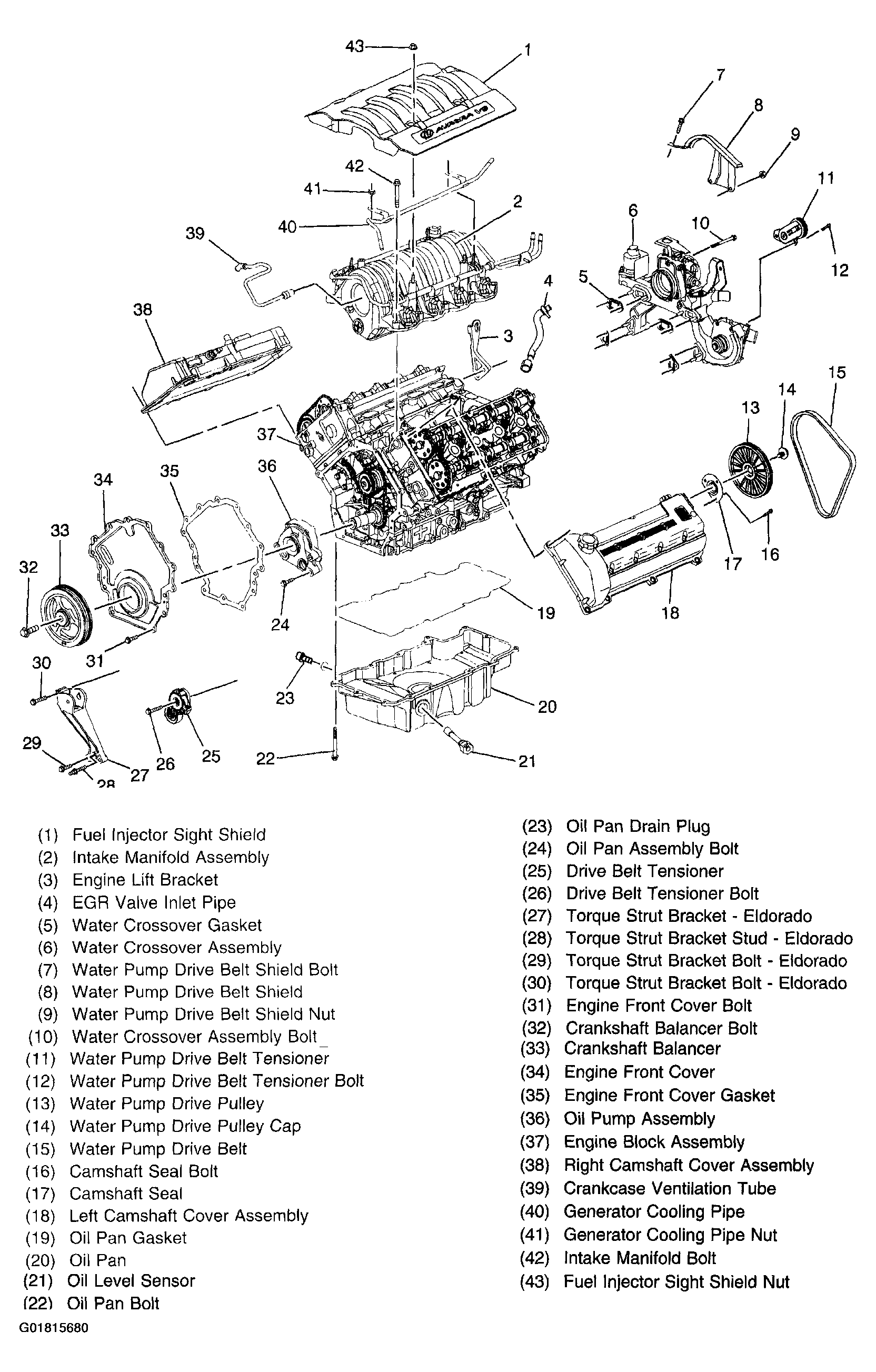

Fig 2: Engine Covers and Component Assemblies (2 of 2)
Courtesy of GENERAL MOTORS CORP.

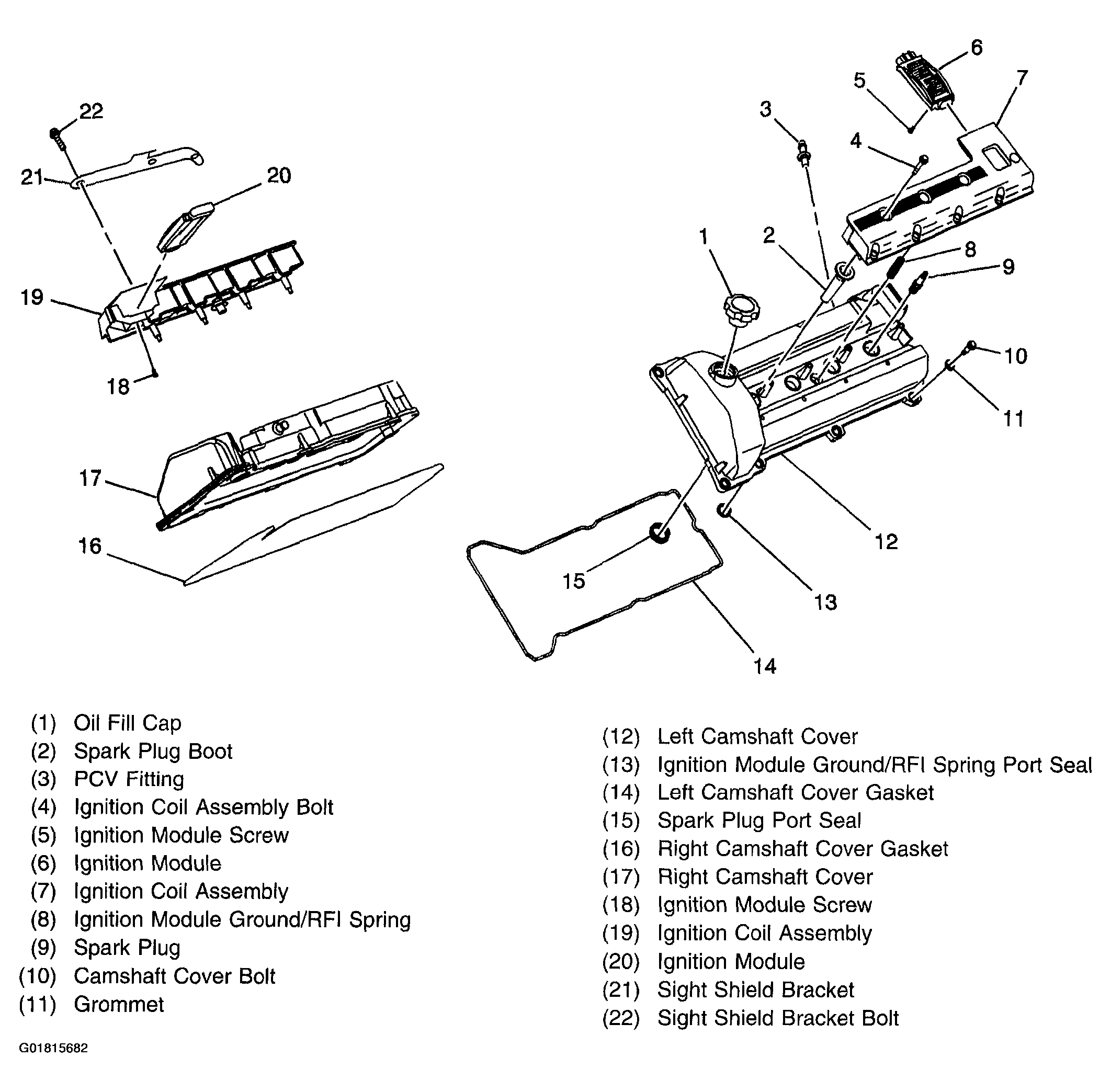

Fig 3: Camshaft Cover Assembly
Courtesy of GENERAL MOTORS CORP.

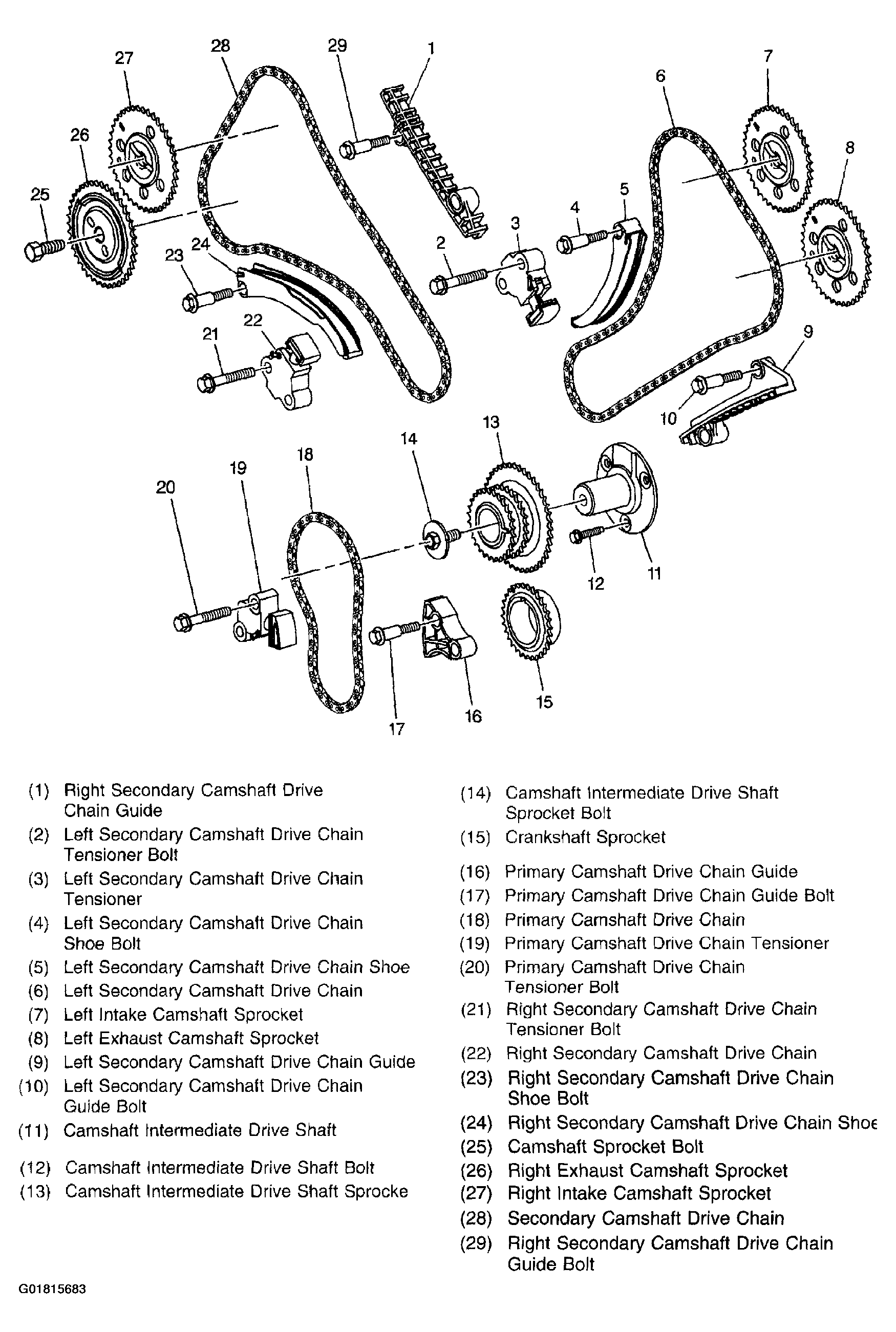

Fig 4: Camshaft Timing Components
Courtesy of GENERAL MOTORS CORP.

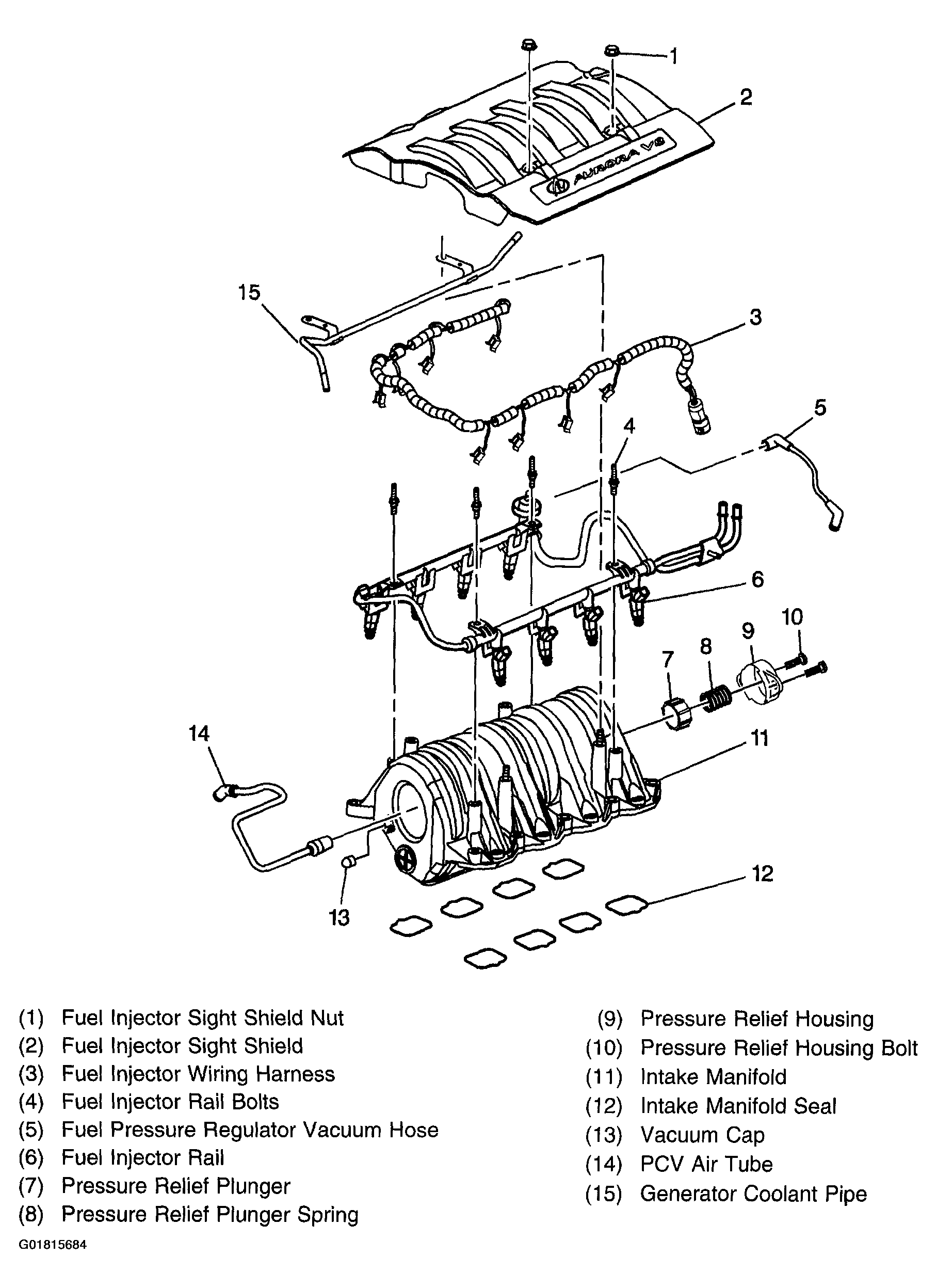

Fig 5: Intake Manifold
Courtesy of GENERAL MOTORS CORP.

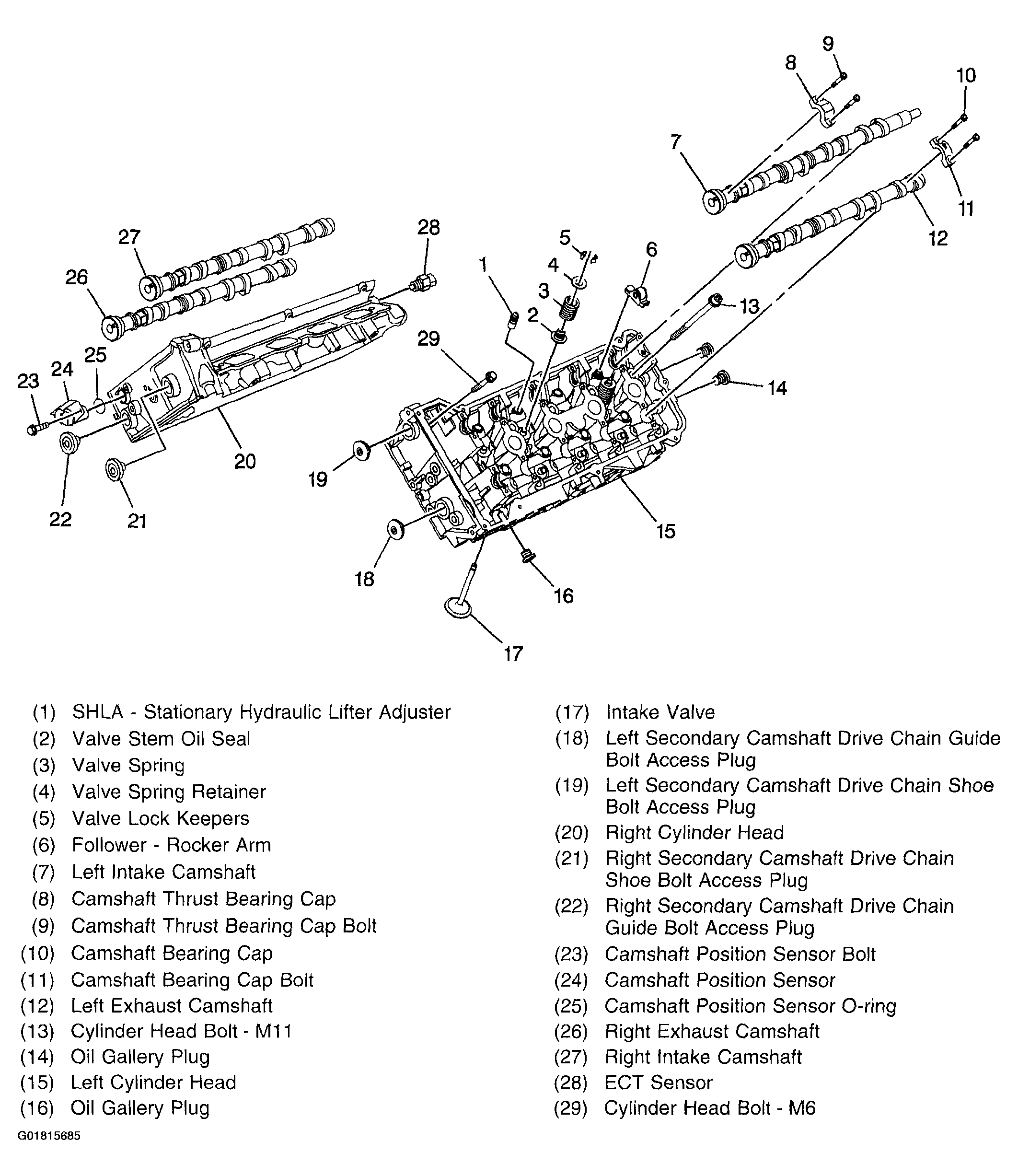

Fig 6: Cylinder Head Assemblies
Courtesy of GENERAL MOTORS CORP.

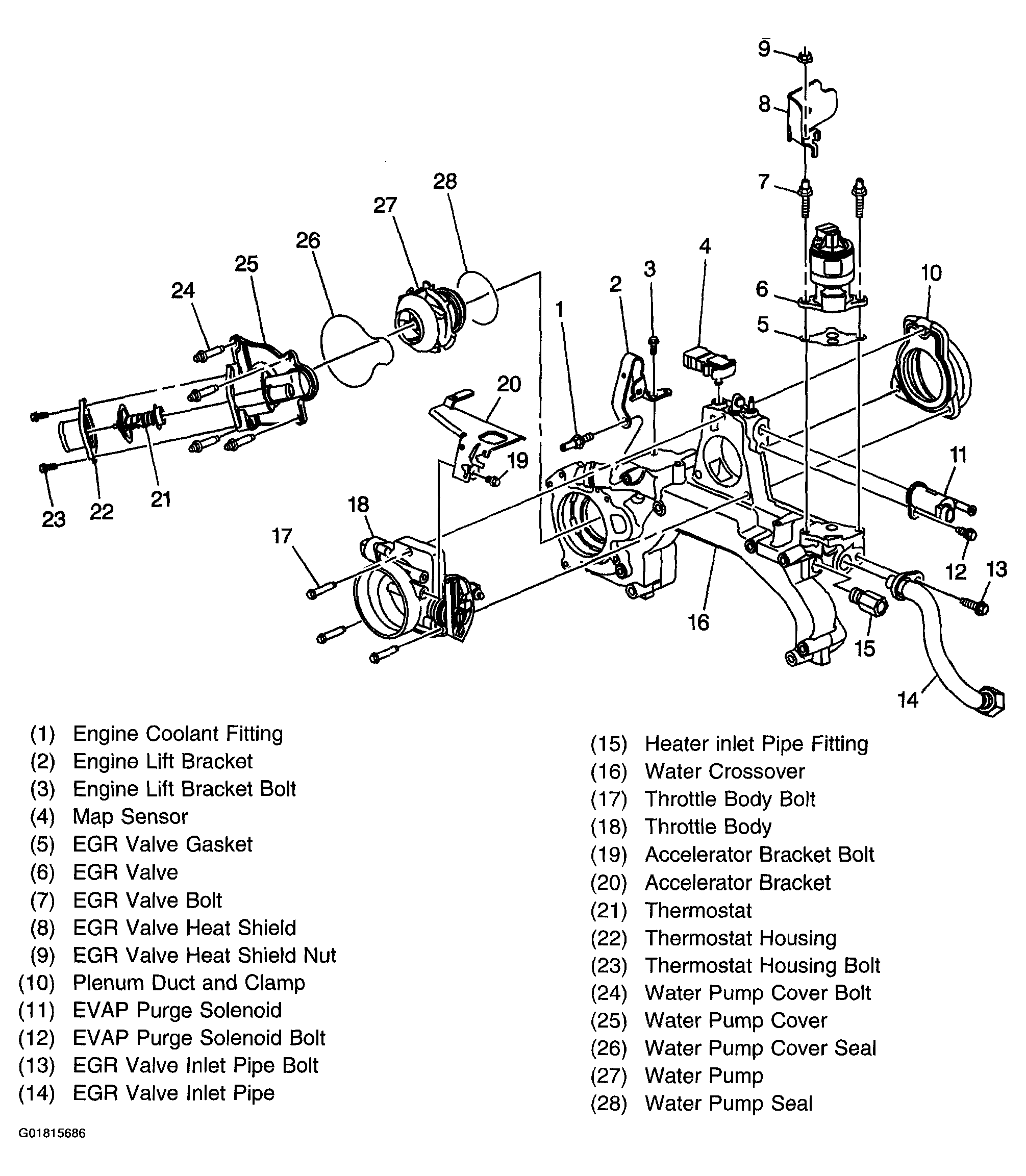

Fig 7: Water Crossover and Throttle Body Assembly
Courtesy of GENERAL MOTORS CORP.

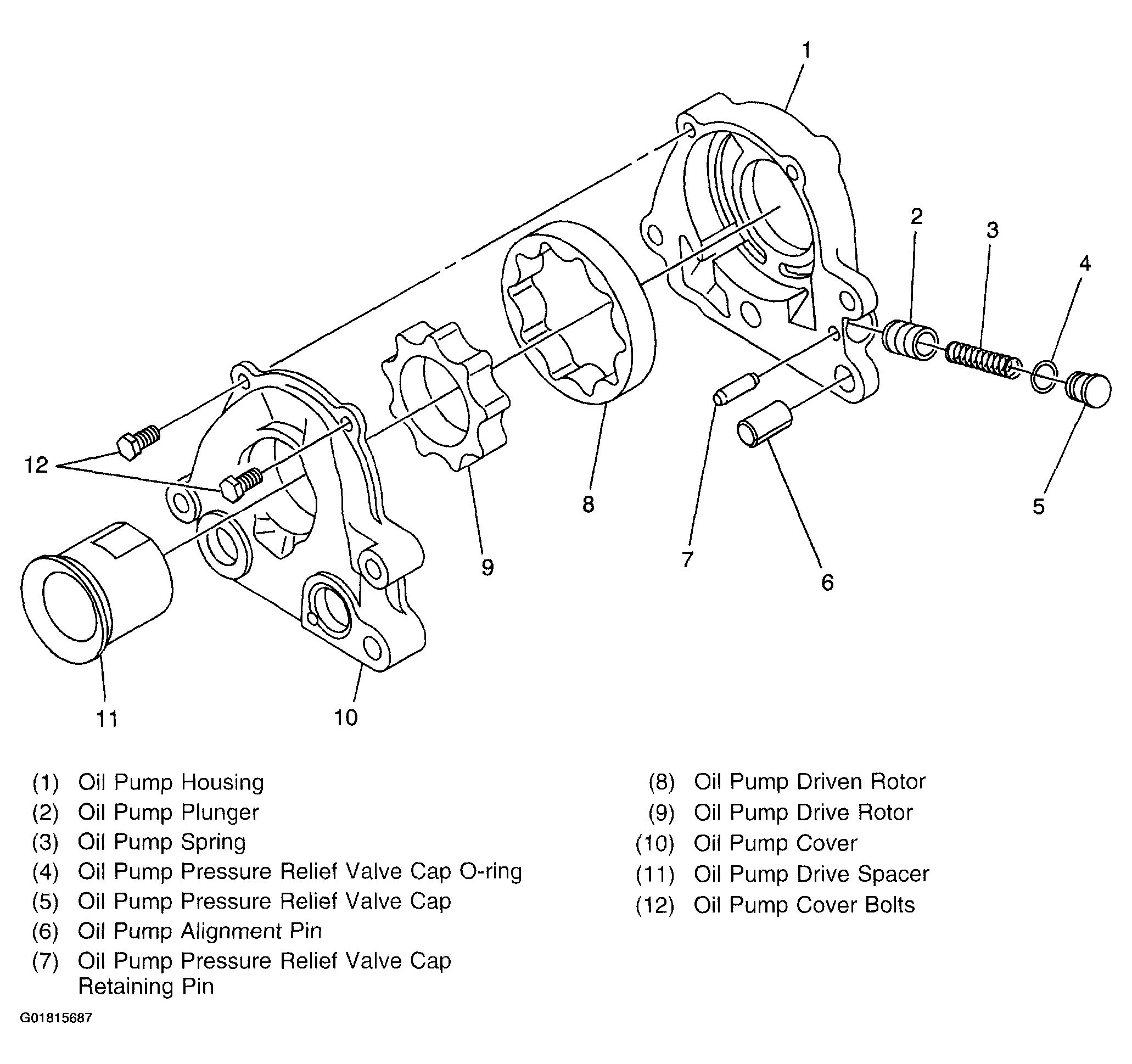

Fig 8: Oil Pump
Courtesy of GENERAL MOTORS CORP.

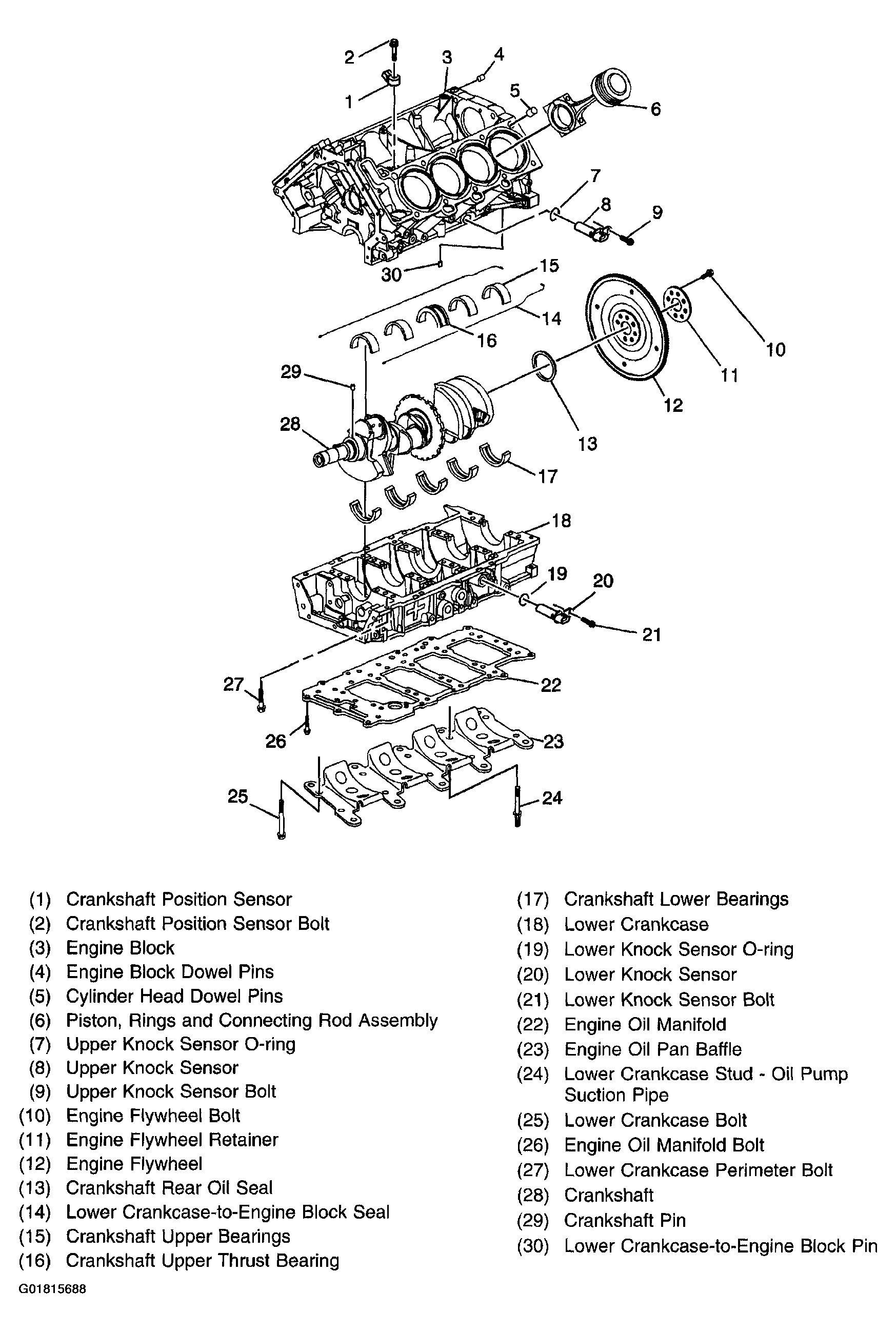

Fig 9: Engine Block Assembly
Courtesy of GENERAL MOTORS CORP.

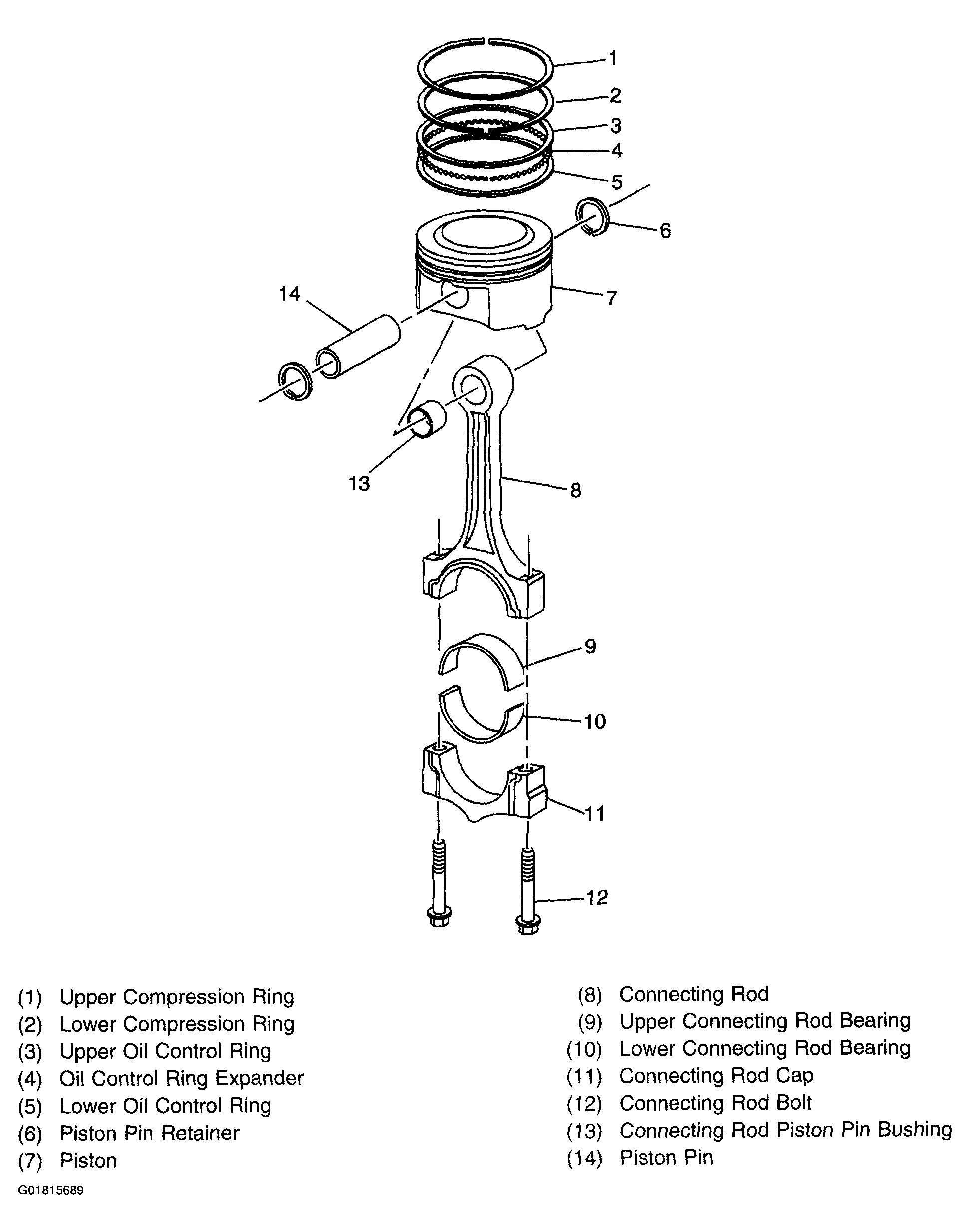

Fig 10: Piston, Rings, Bearing and Connecting Rod Assembly
