Engine Verification

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The engine verification label is placed in two locations on the right side of the engine.

The engine front cover has an engine verification label (1) and the front of the right camshaft cover has a traceability label (2).

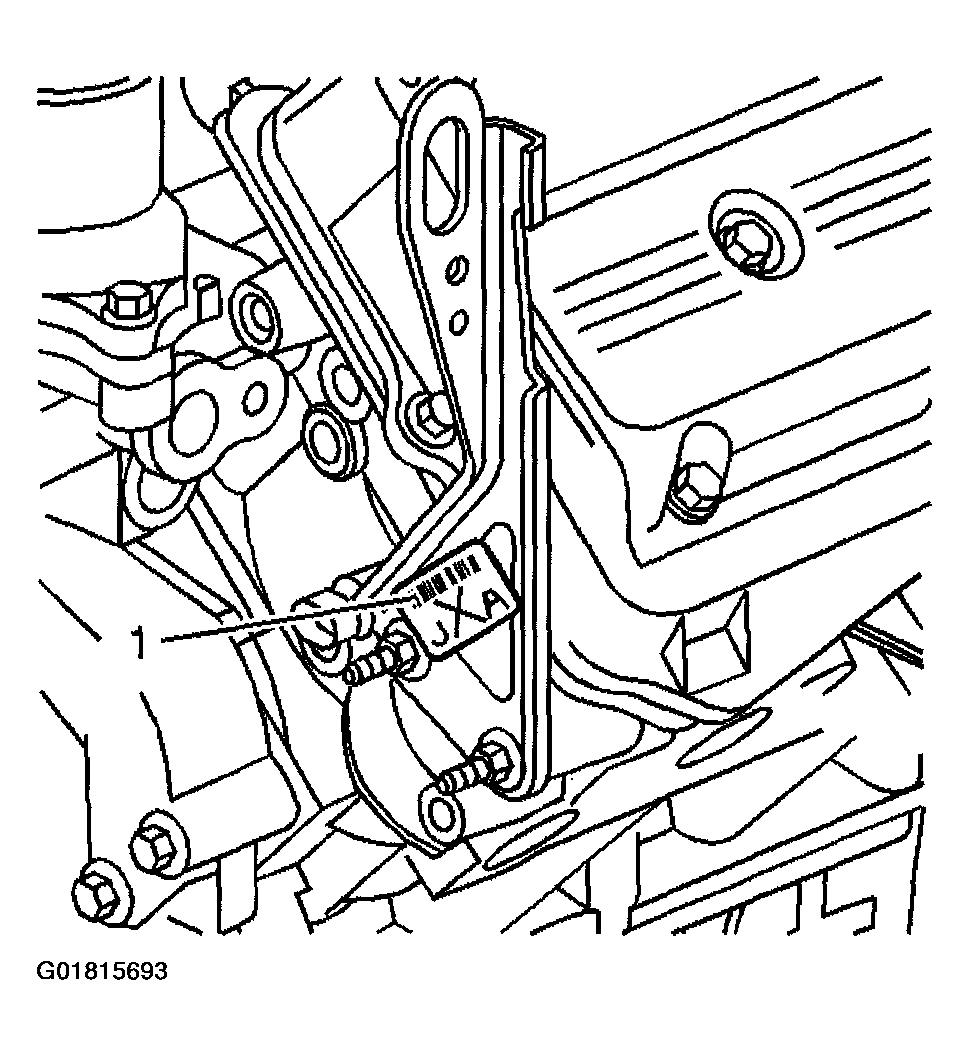

Fig 1: Locating Engine Verification Label (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

The rear of the right camshaft cover has an engine verification label (1).

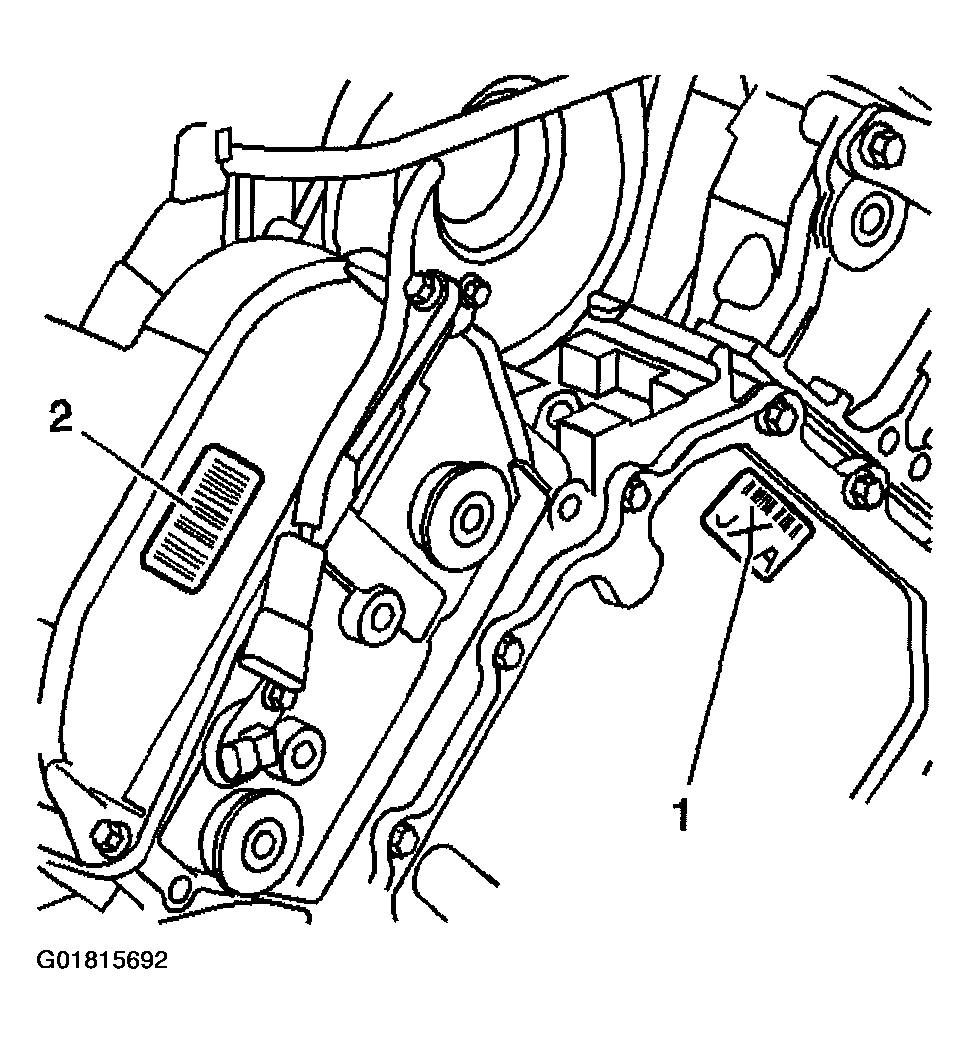

Fig 2: Locating Engine Verification Label (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
