Ignition Module Installation - Left

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Ensure the RFI/ground spring (1) and the seal (2) are in place and inspect each for serviceability.

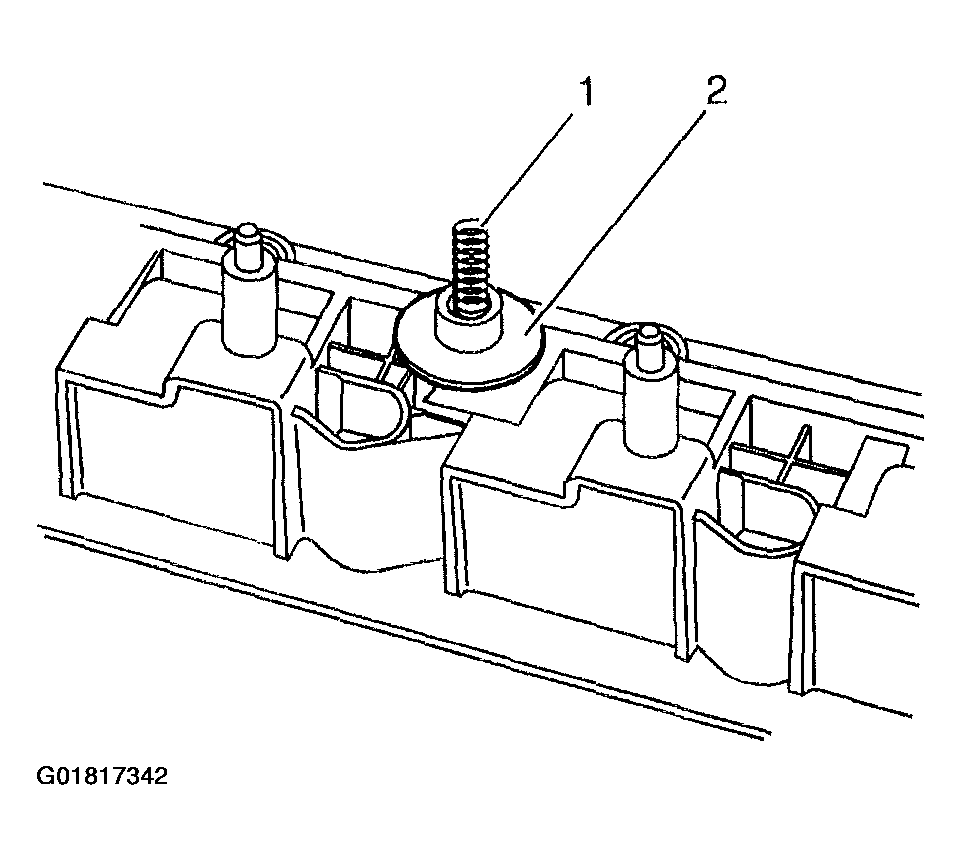

Fig 1: Identifying RFI/Ground Spring & Seal
Courtesy of GENERAL MOTORS CORP.
Install the left spark plug boots onto the ignition coil assembly.

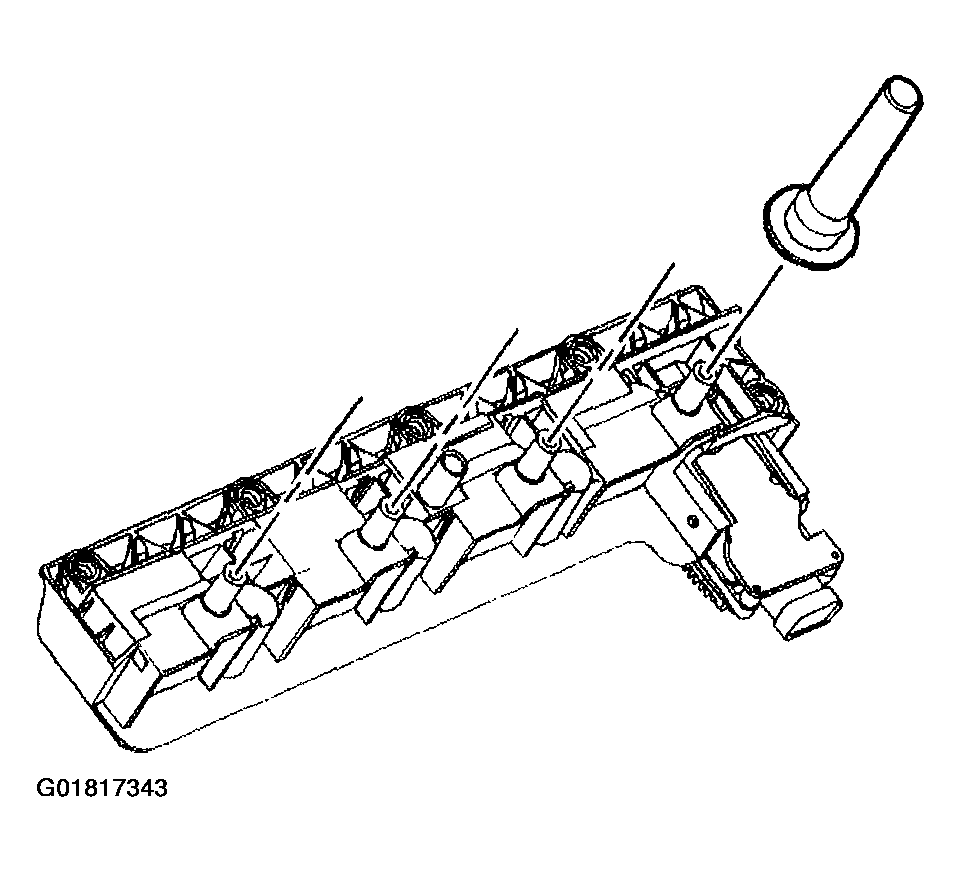

Fig 2: Installing Left Spark Plug Boots
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the left spark plugs.
Tighten

Tighten the spark plugs to 15 N.m (11 ft lbs).

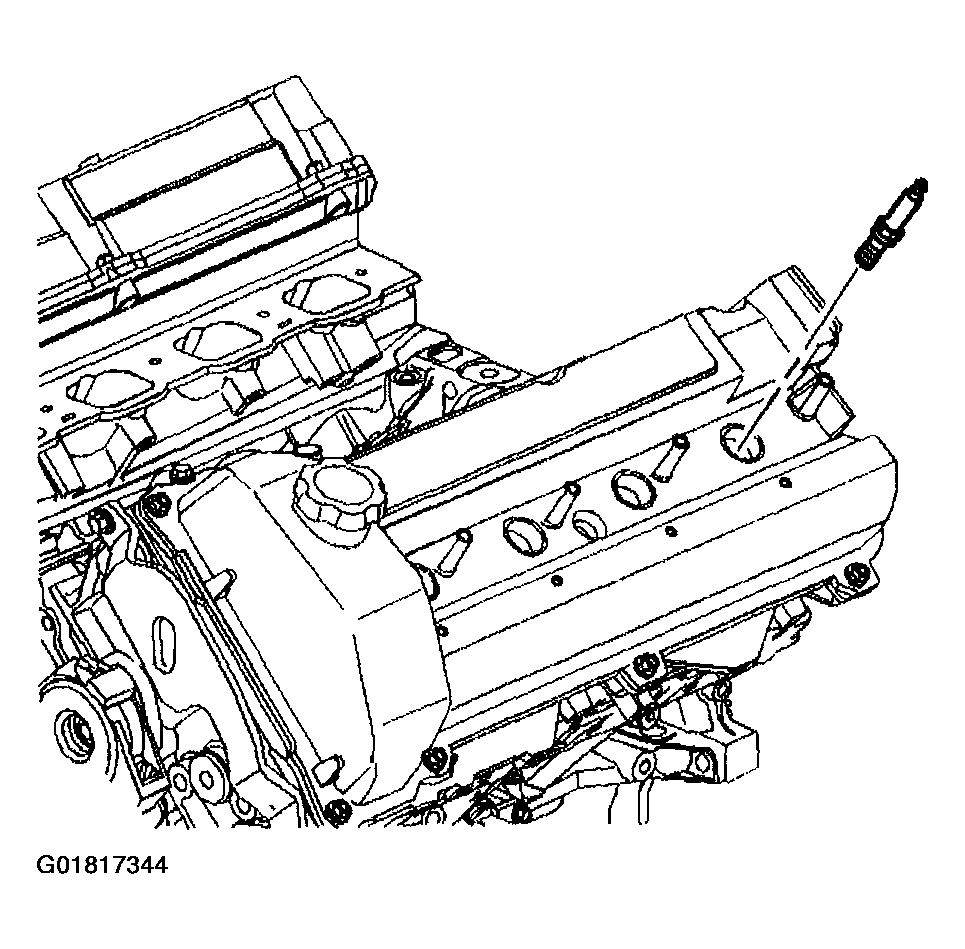

Fig 3: Installing Spark Plug
Courtesy of GENERAL MOTORS CORP.
Position the ignition coil assembly on the left camshaft cover.

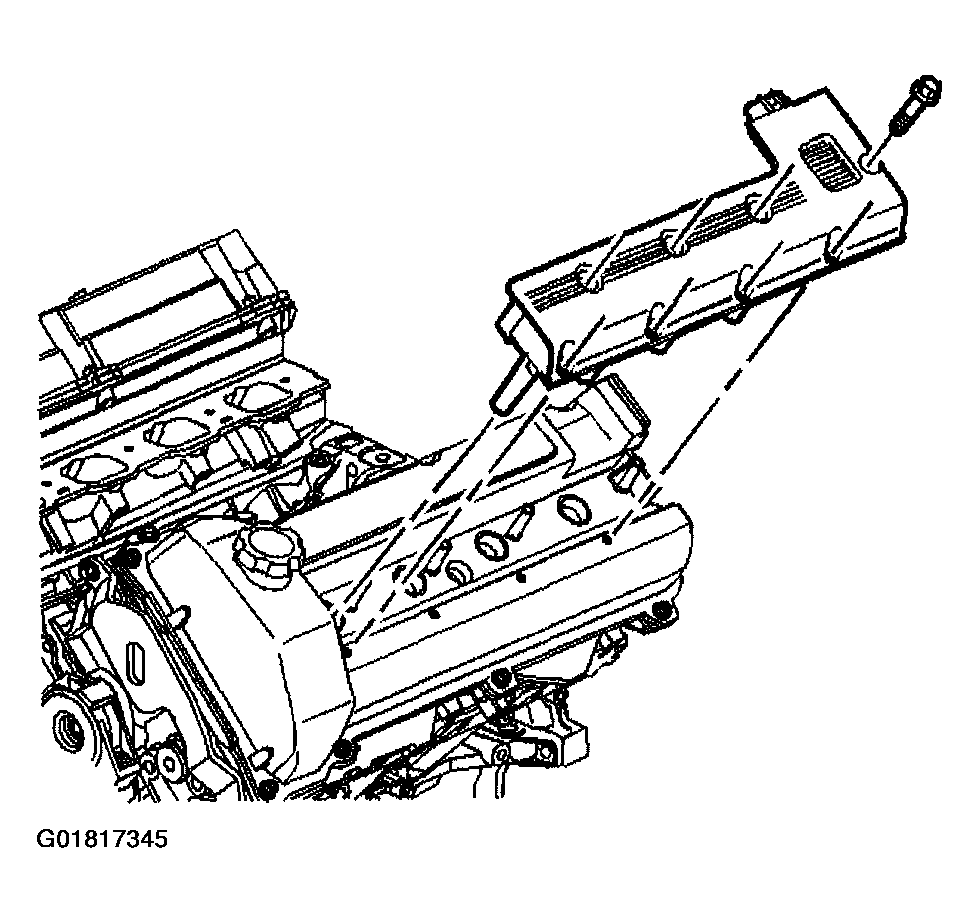

Fig 4: Installing Ignition Coil Assembly
Courtesy of GENERAL MOTORS CORP.

Important: DO NOT damage the ignition coil perimeter seal.
Install the ignition coil assembly bolts in sequence.
Tighten

Tighten the ignition coil assembly bolts to 9 N.m (80 in lbs).

Fig 5: Identifying Ignition Coil Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
