Tools Required
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
J 42385-2000 Thread Insert Kit

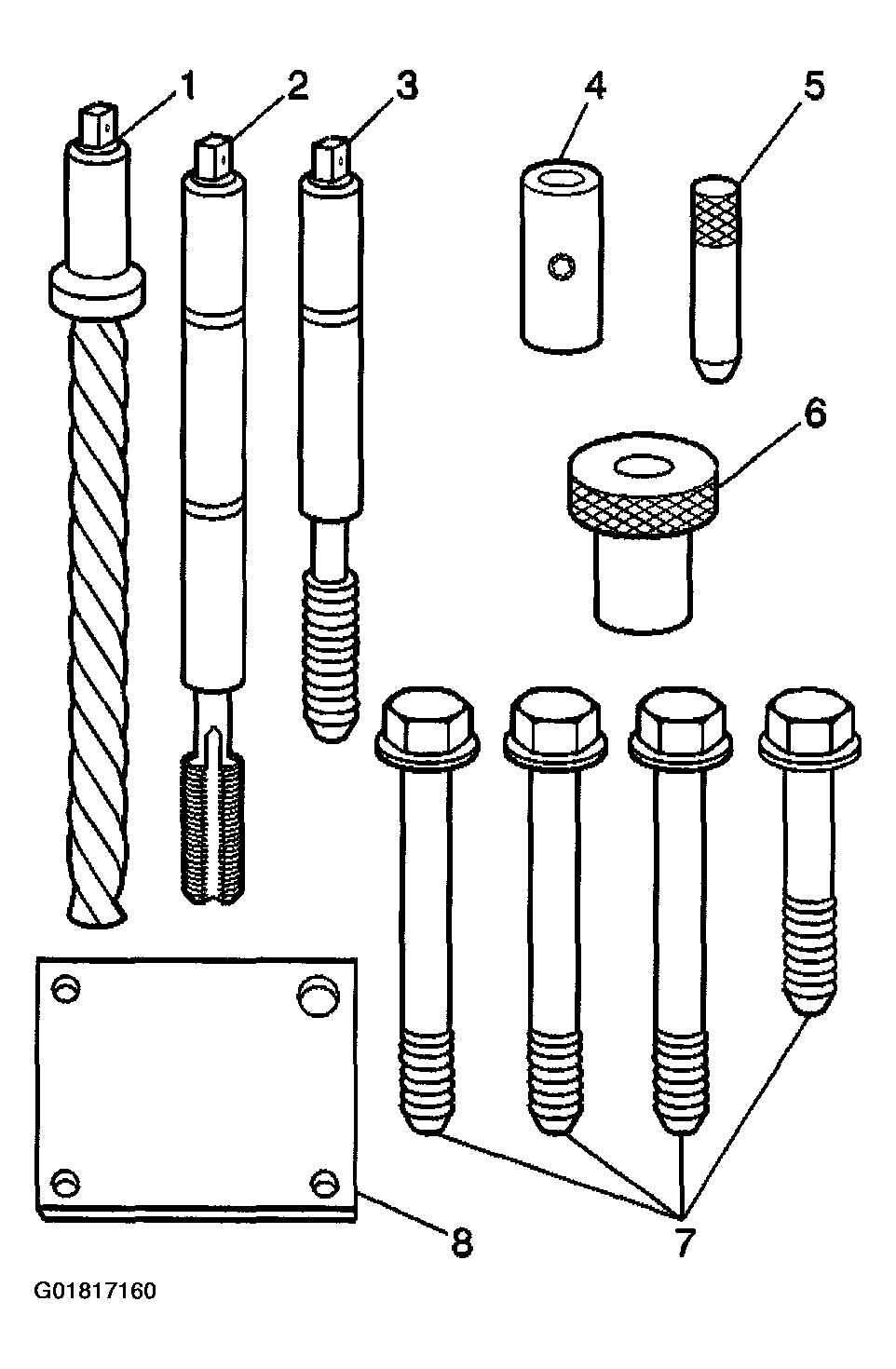

The cylinder head bolt hole thread repair kit J 42385-2000 components consist of the following:
- Drill (1) J 42385-2006
- Tap (2) J 42385-2007
- Installation driver (3) J 42385-2008
- Stop collar (4) for inboard holes J 42385-2017
- Alignment pin (5) J 42385-303
- Bushing (6) J 42385-302
- Bolts (7) J 42385-503 & 604
- Fixture plate (8) J 42385-301
