Thread Repair Specifications

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

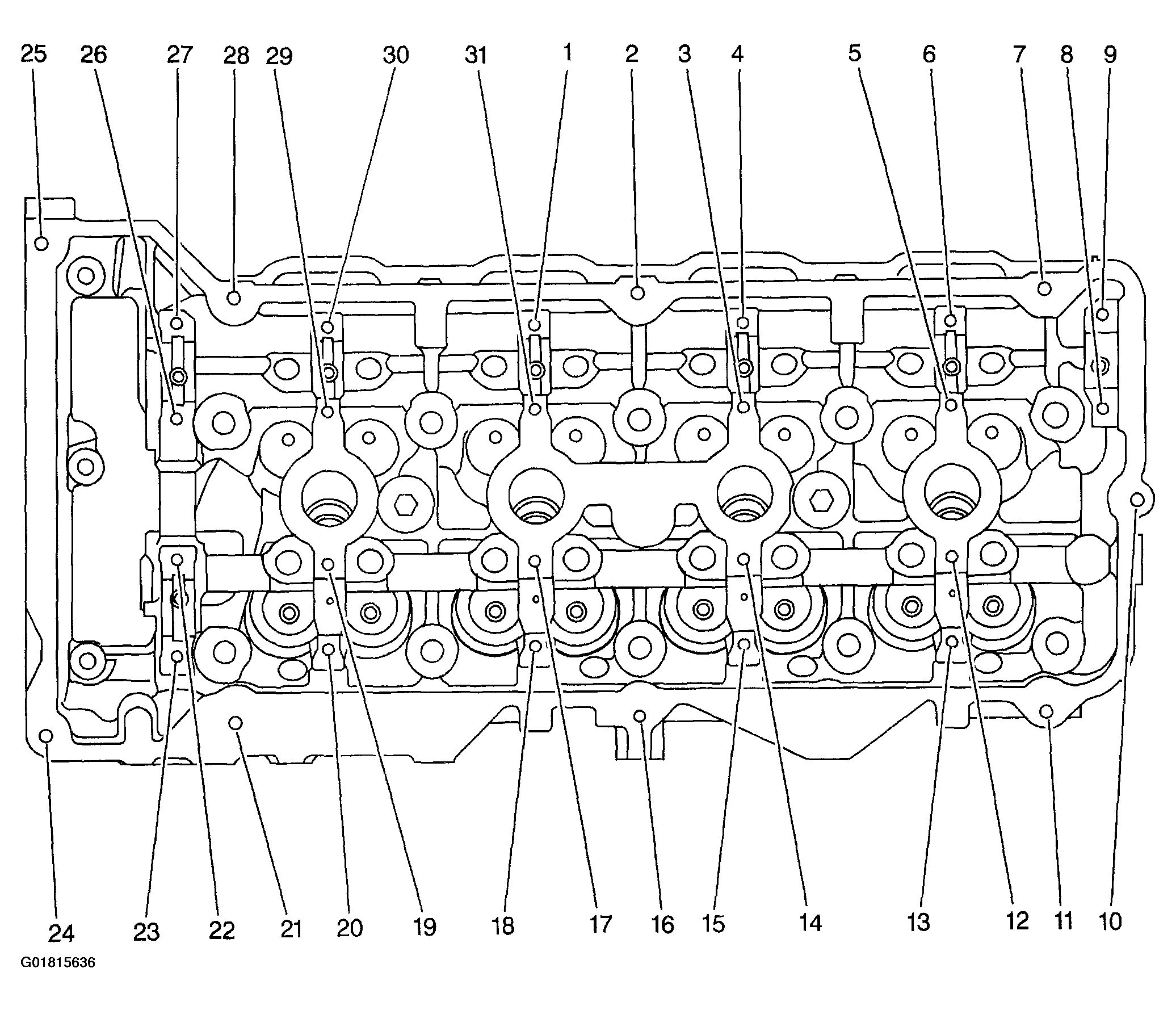

Fig 1: Left Cylinder Head Camshaft Cover Face

G01815636

Courtesy of GENERAL MOTORS CORP.

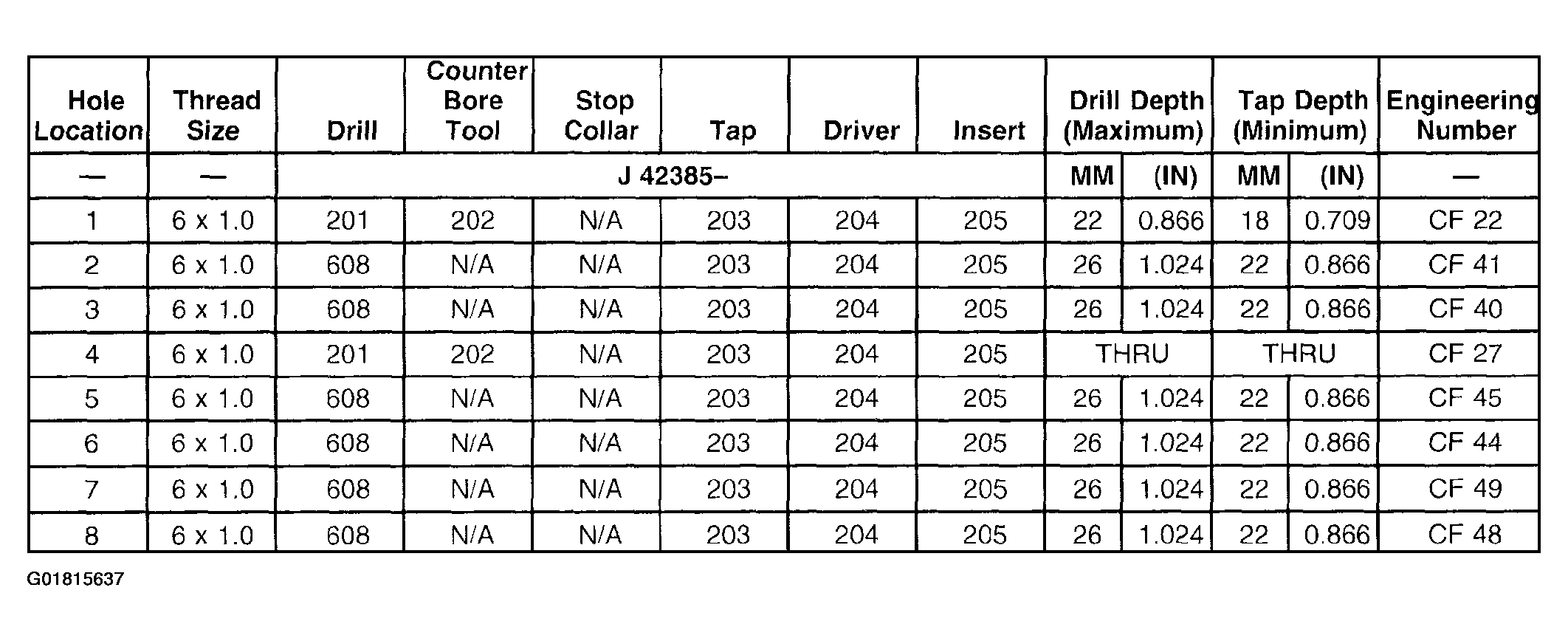

Fig 2: Left Cylinder Head Camshaft Cover Face Legend (1 Of 2)

G01815637

Courtesy of GENERAL MOTORS CORP.

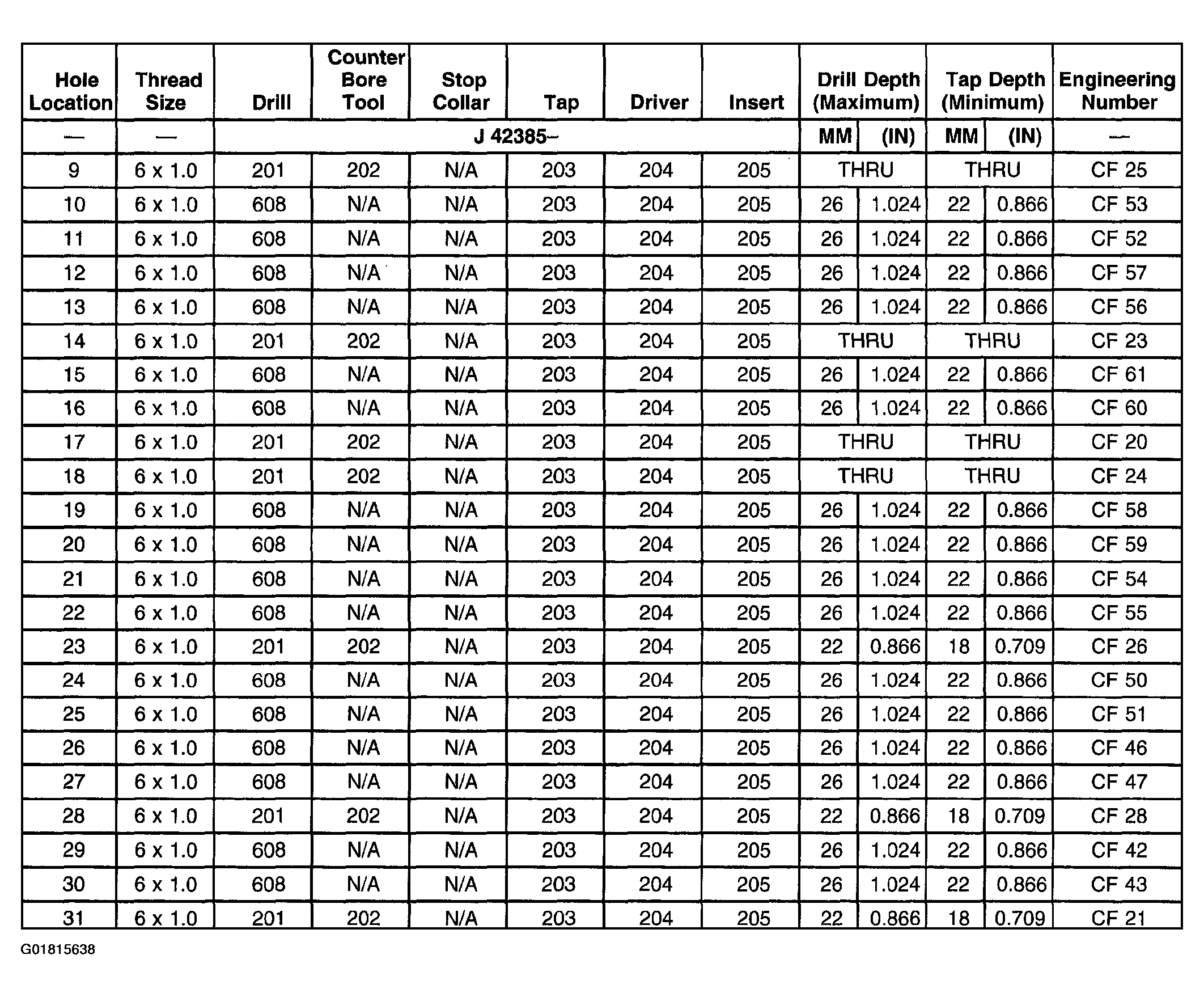

Fig 3: Left Cylinder Head Camshaft Cover Face Legend (2 Of 2)

G01815638

Courtesy of GENERAL MOTORS CORP.

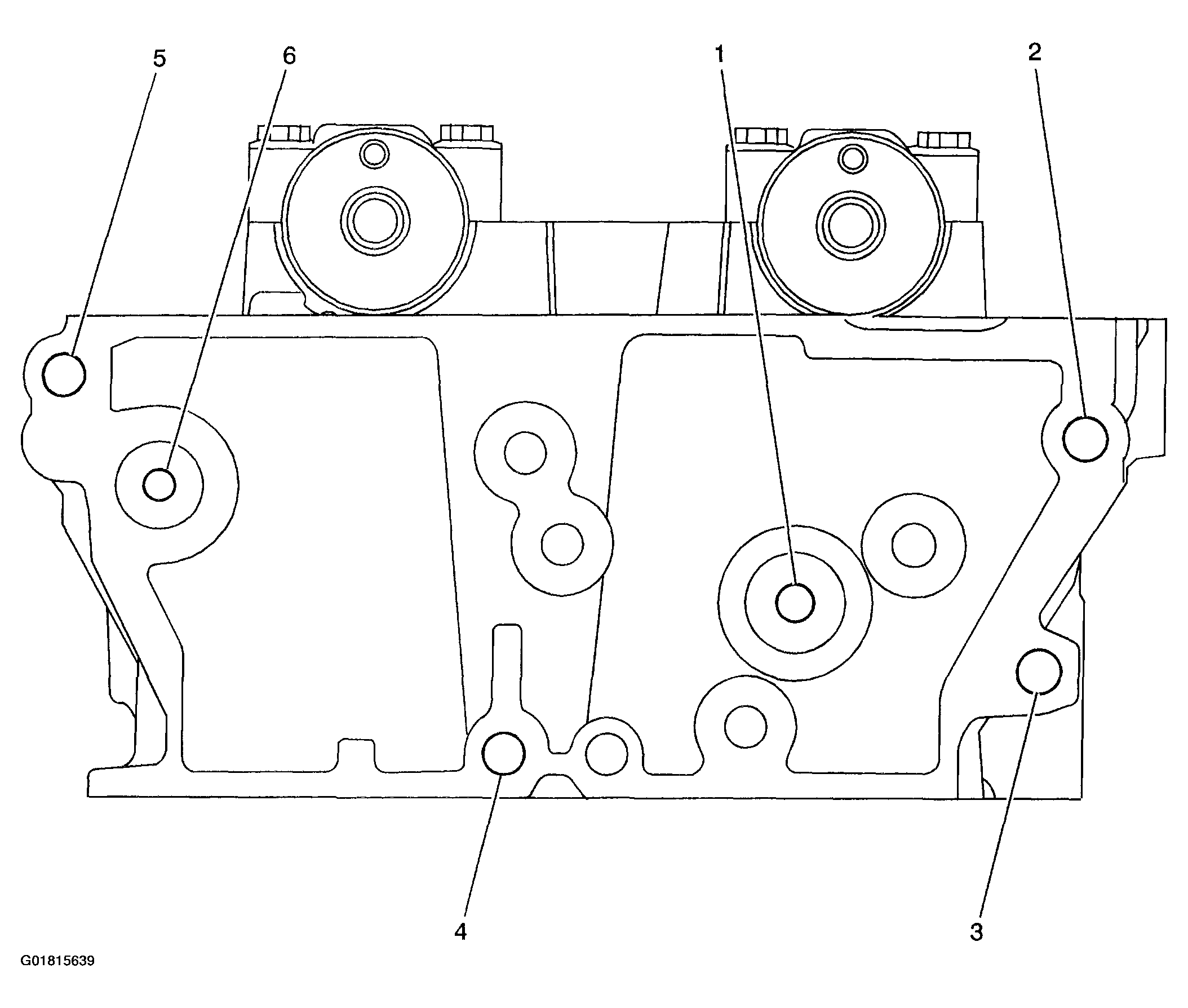

Fig 4: Left Cylinder Head Front Face

G01815639

Courtesy of GENERAL MOTORS CORP.

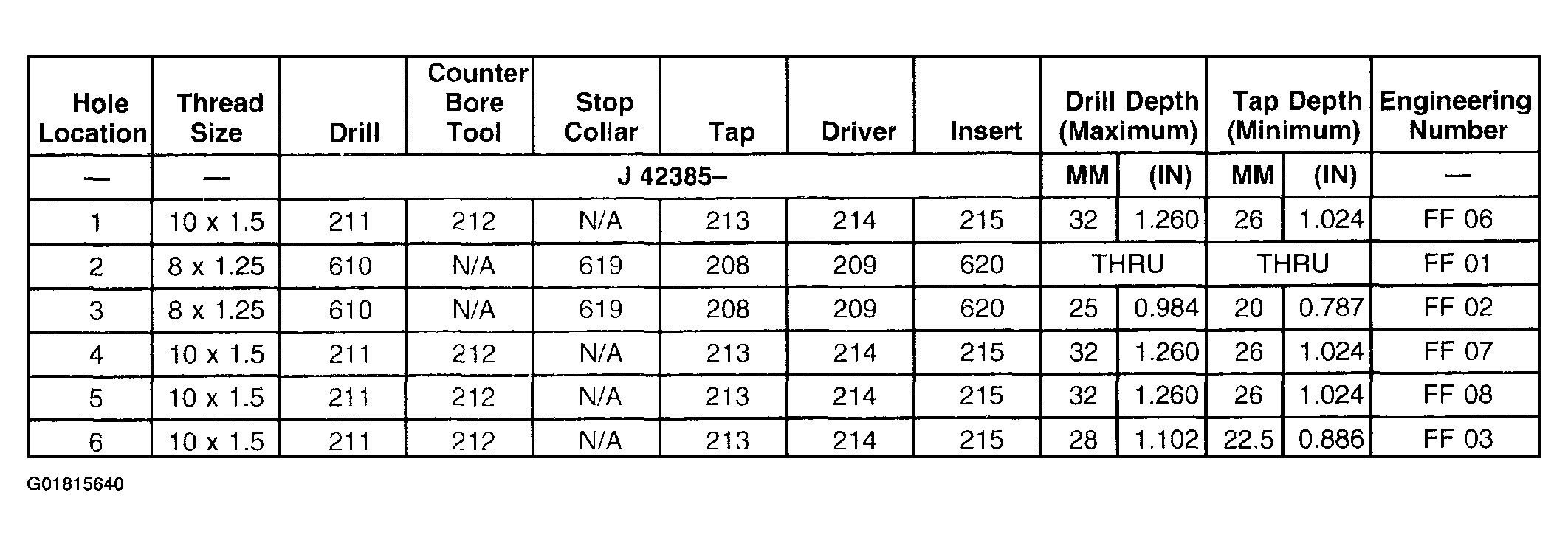

Fig 5: Left Cylinder Head Front Face Legend

G01815640

Courtesy of GENERAL MOTORS CORP.

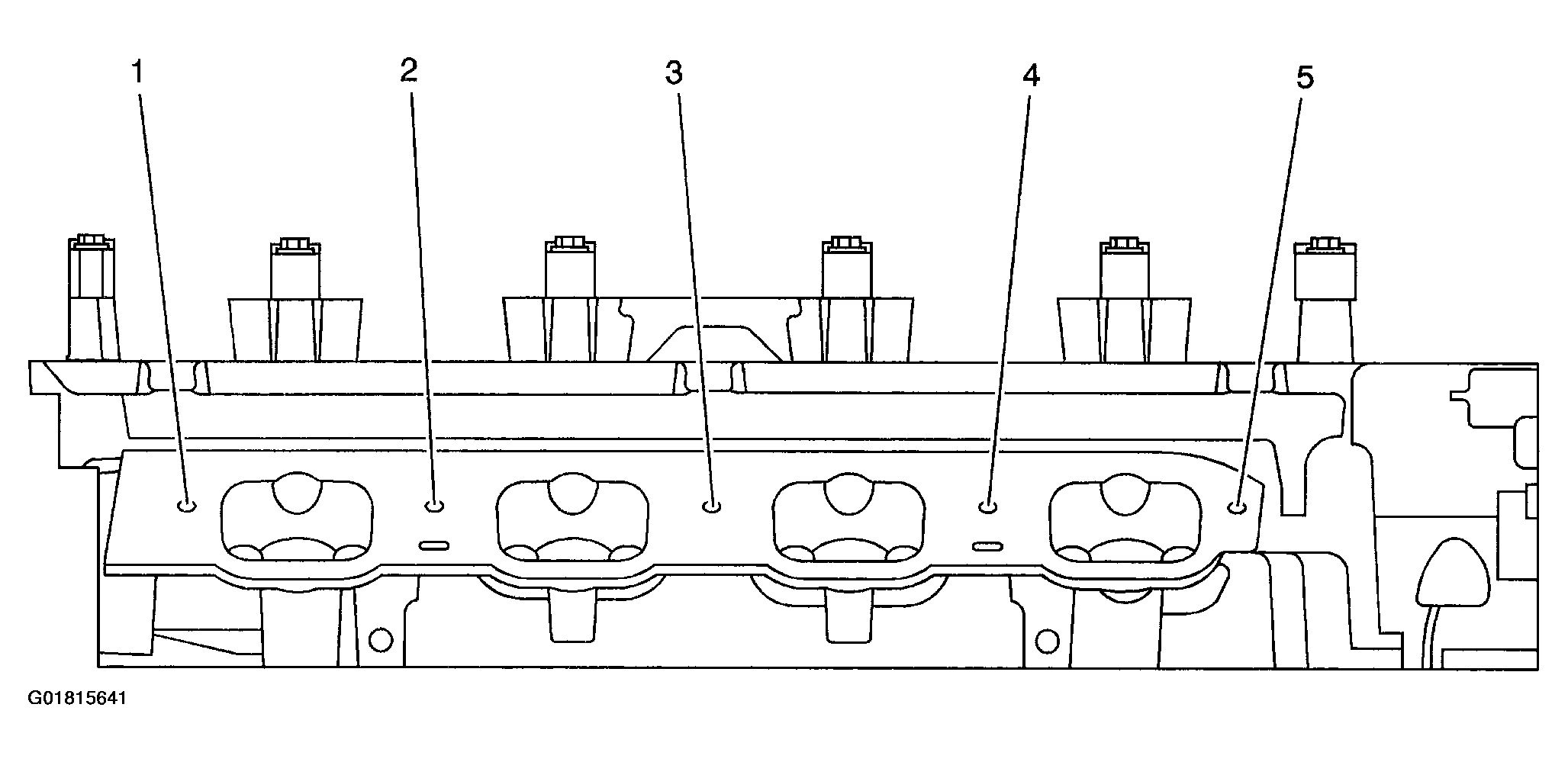

Fig 6: Left Cylinder Head Intake Face

G01815641

Courtesy of GENERAL MOTORS CORP.

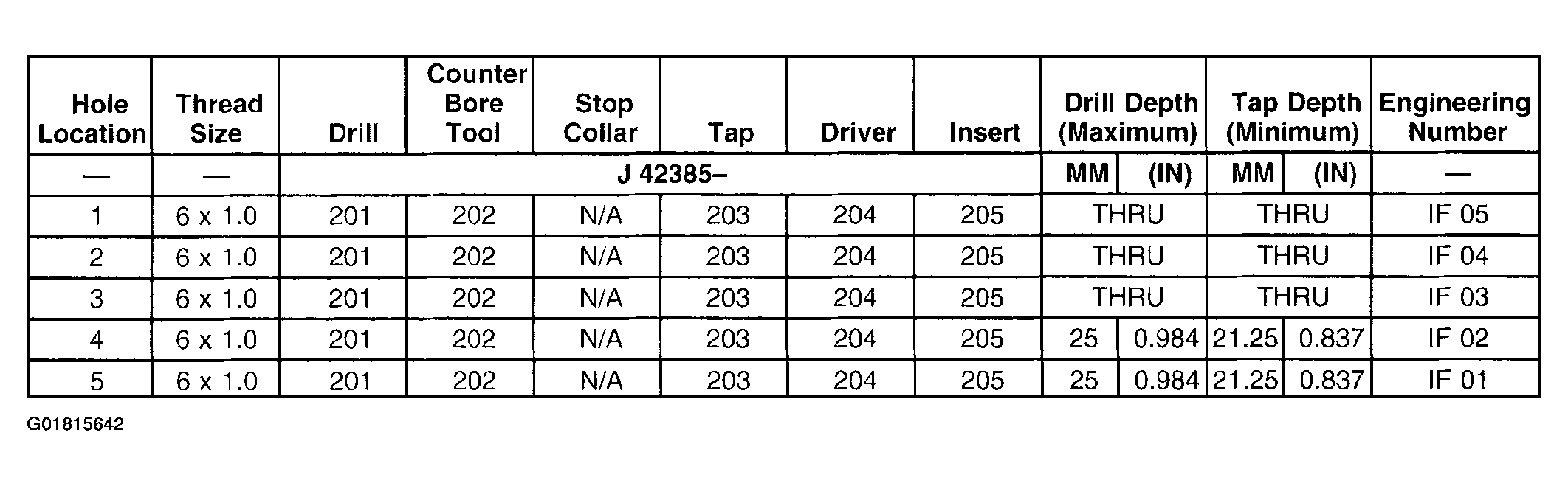

Fig 7: Left Cylinder Head Intake Face Legend

G01815642

Courtesy of GENERAL MOTORS CORP.

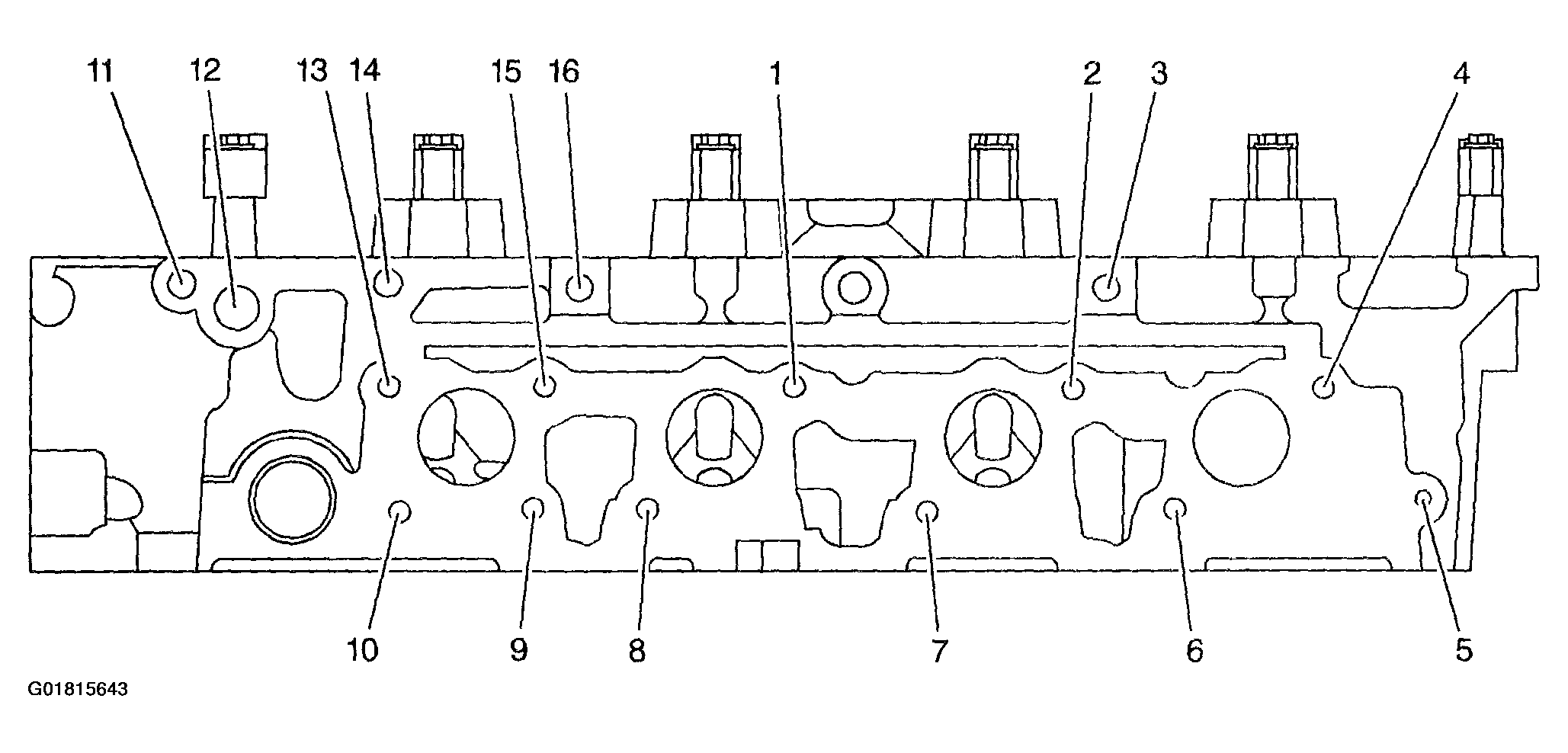

Fig 8: Left Cylinder Head Exhaust Face

G01815643

Courtesy of GENERAL MOTORS CORP.

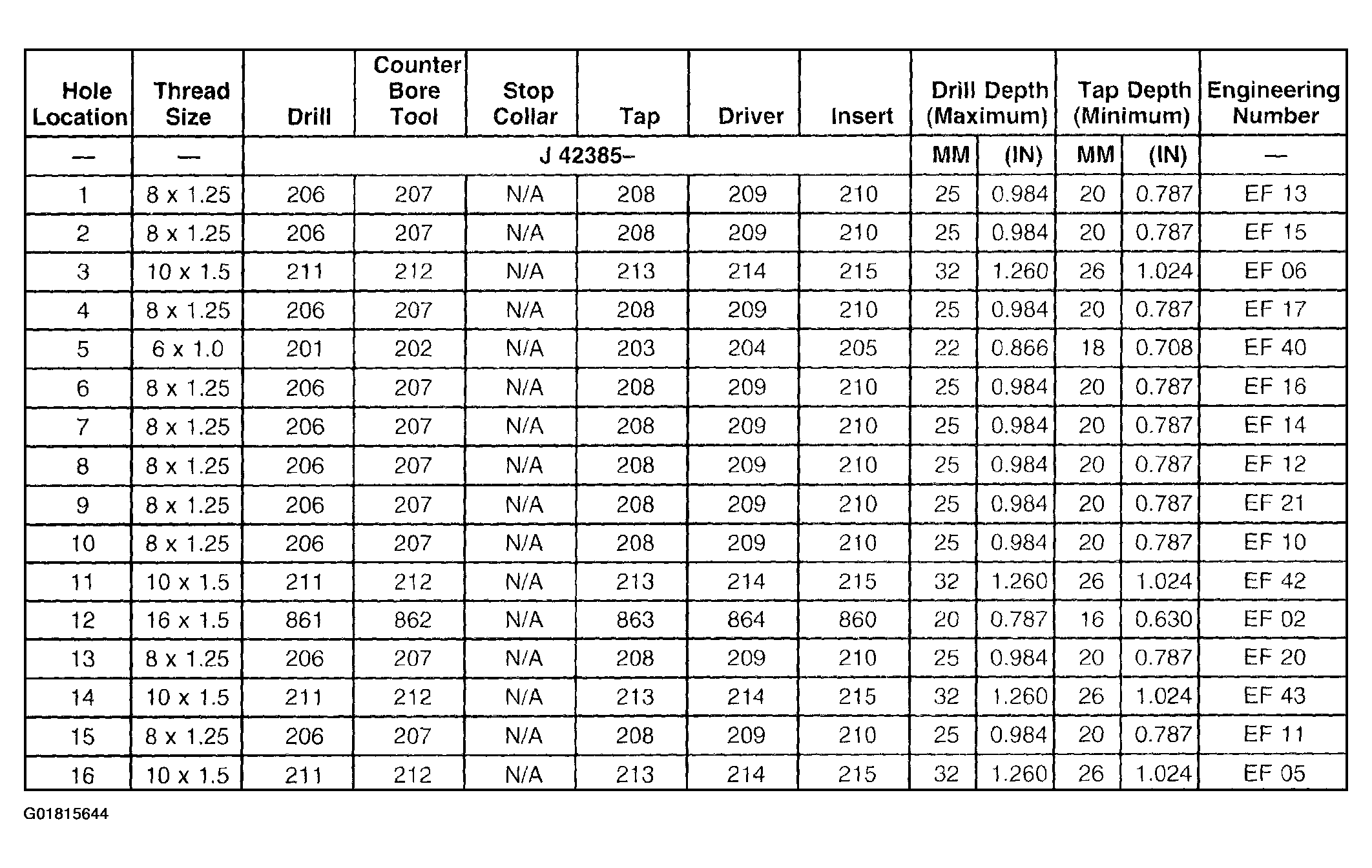

Fig 9: Left Cylinder Head Exhaust Face Legend

G01815644

Courtesy of GENERAL MOTORS CORP.

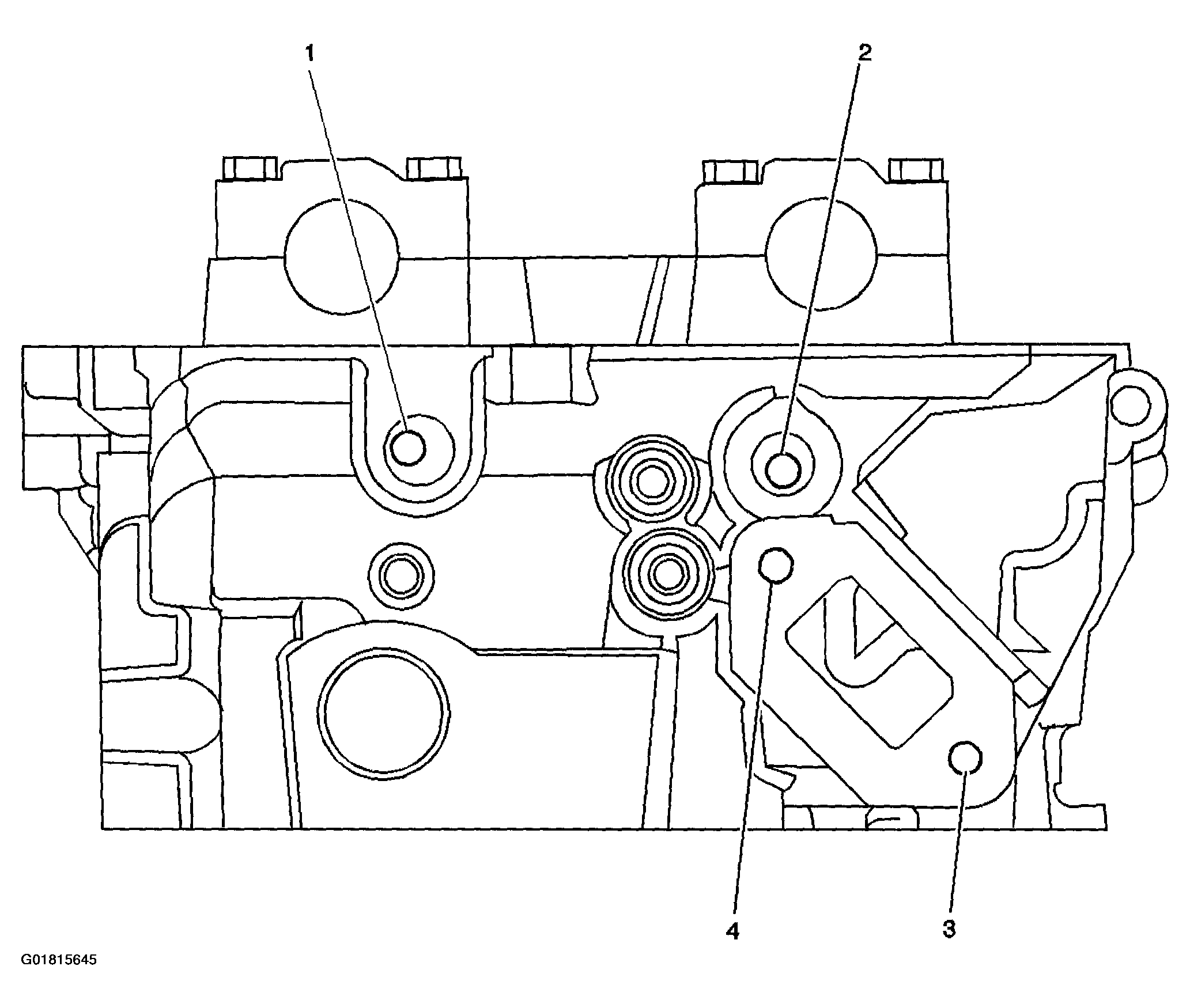

Fig 10: Left Cylinder Head Rear Face

G01815645

Courtesy of GENERAL MOTORS CORP.

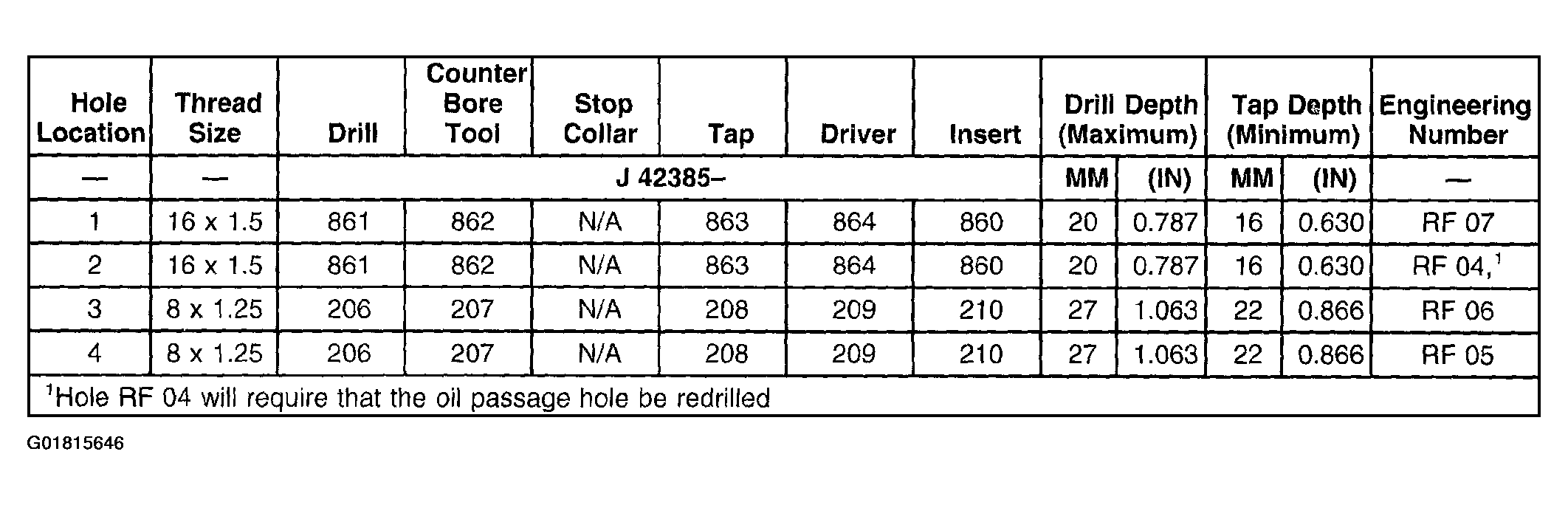

Fig 11: Left Cylinder Head Rear Face Legend

G01815646

Courtesy of GENERAL MOTORS CORP.

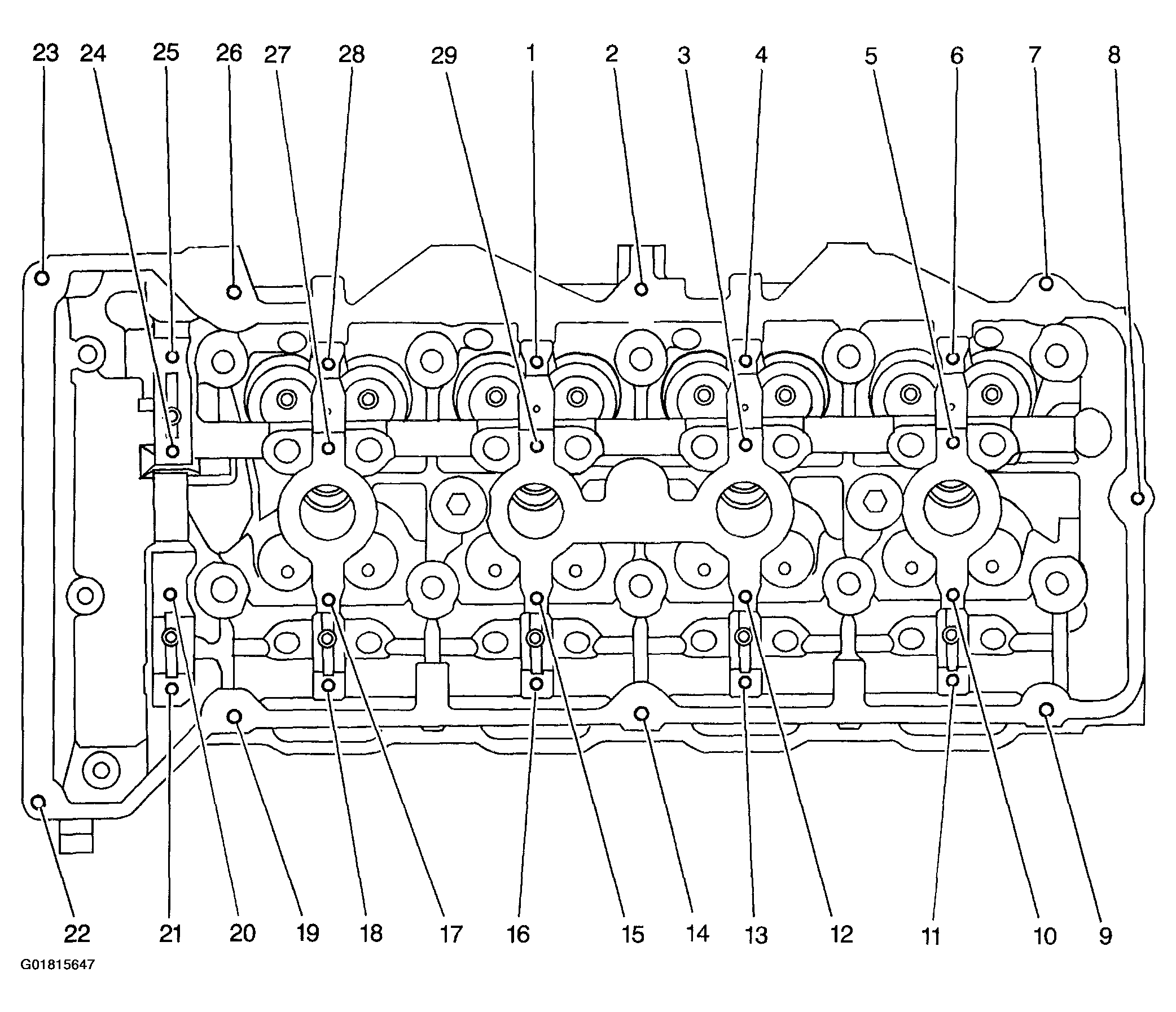

Fig 12: Right Cylinder Head Camshaft Cover Face

G01815647

Courtesy of GENERAL MOTORS CORP.

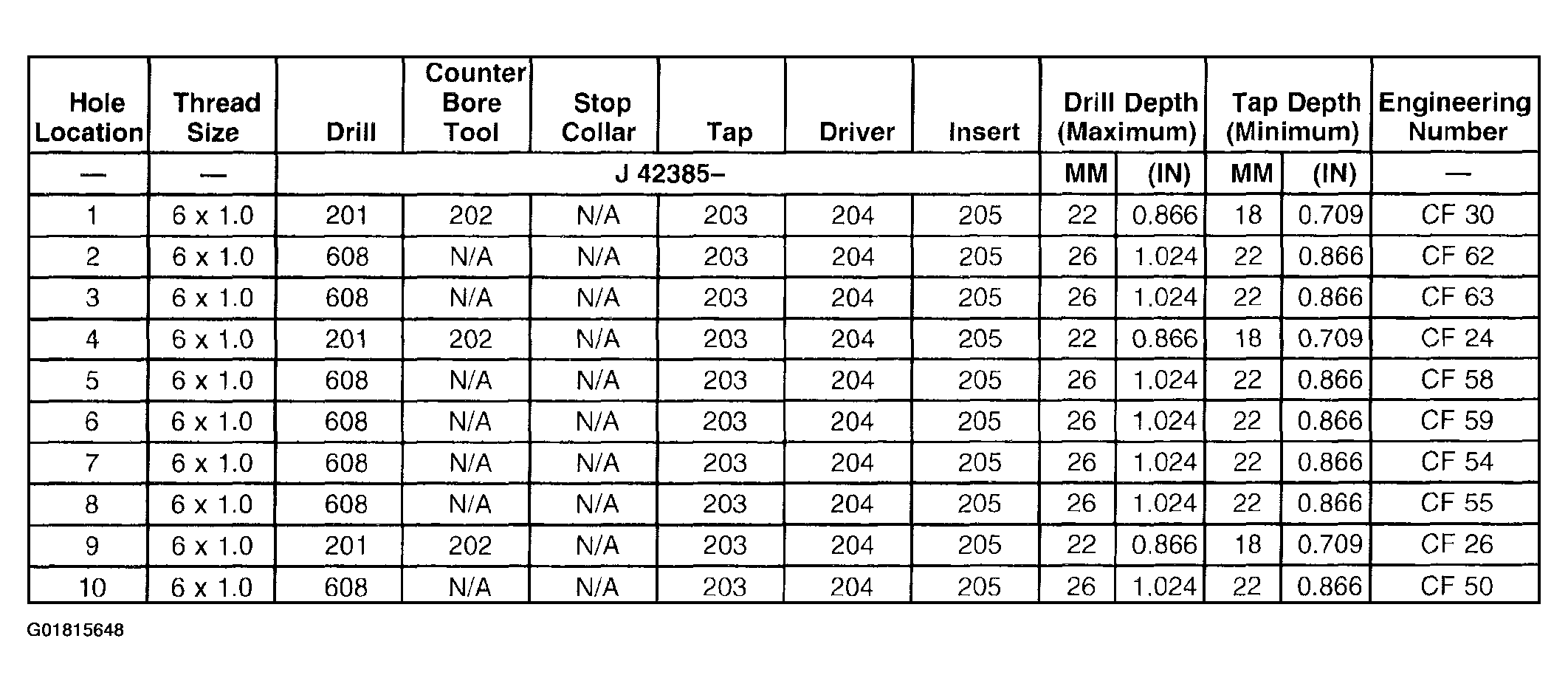

Fig 13: Right Cylinder Head Camshaft Cover Face Legend (1 Of 2)

G01815648

Courtesy of GENERAL MOTORS CORP.

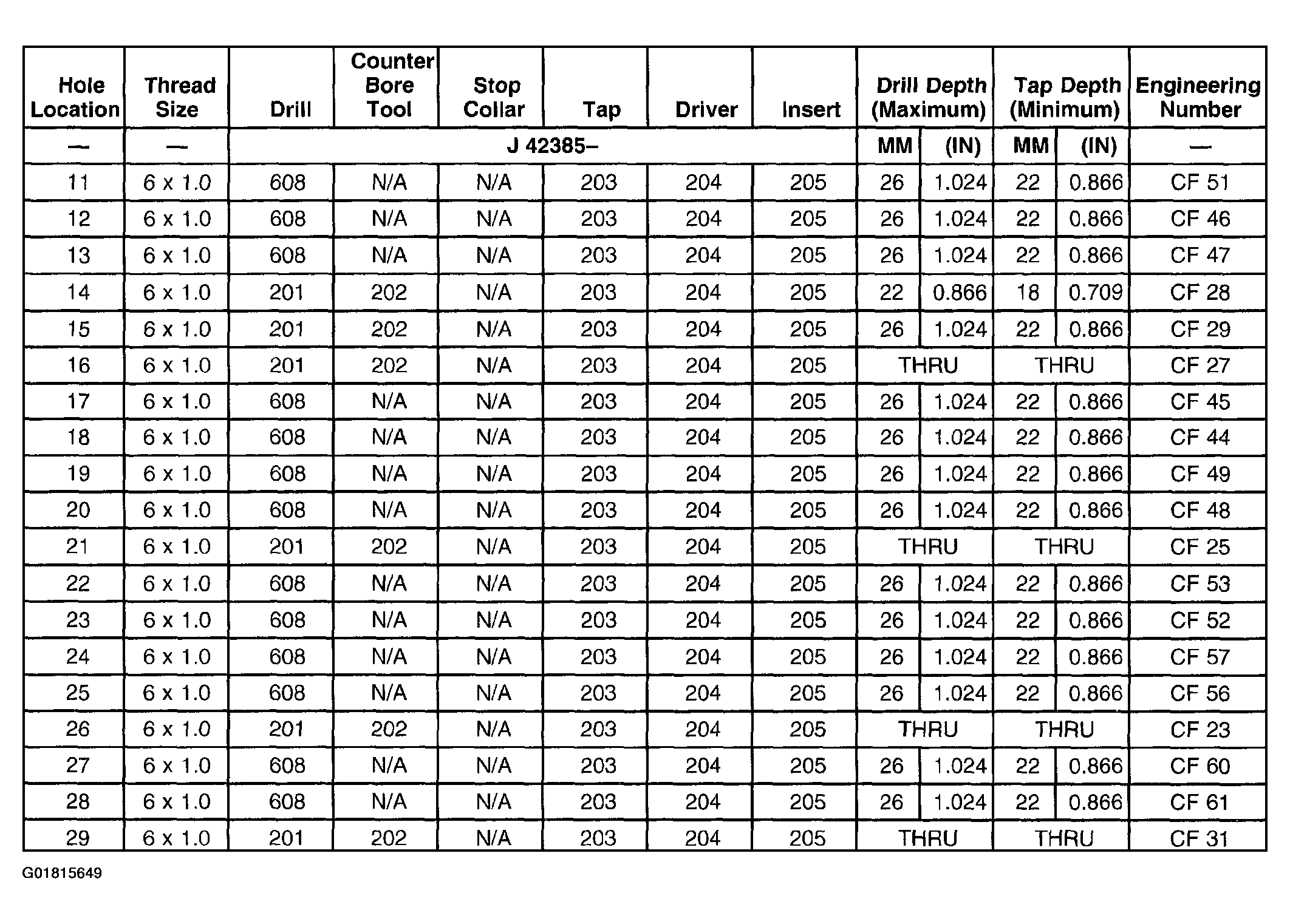

Fig 14: Right Cylinder Head Camshaft Cover Face Legend (2 Of 2)

G01815649

Courtesy of GENERAL MOTORS CORP.

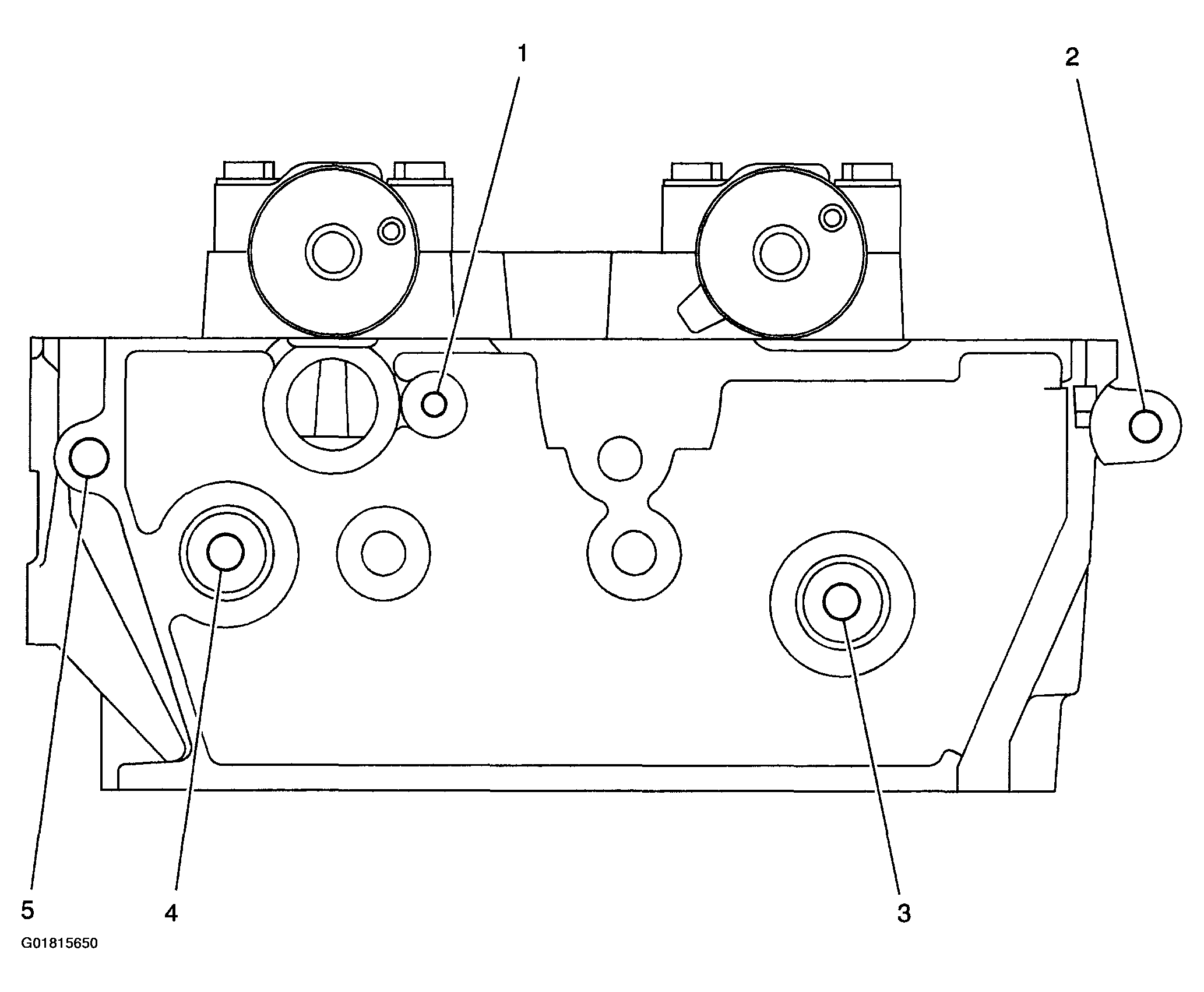

Fig 15: Right Cylinder Head Front Face

G01815650

Courtesy of GENERAL MOTORS CORP.

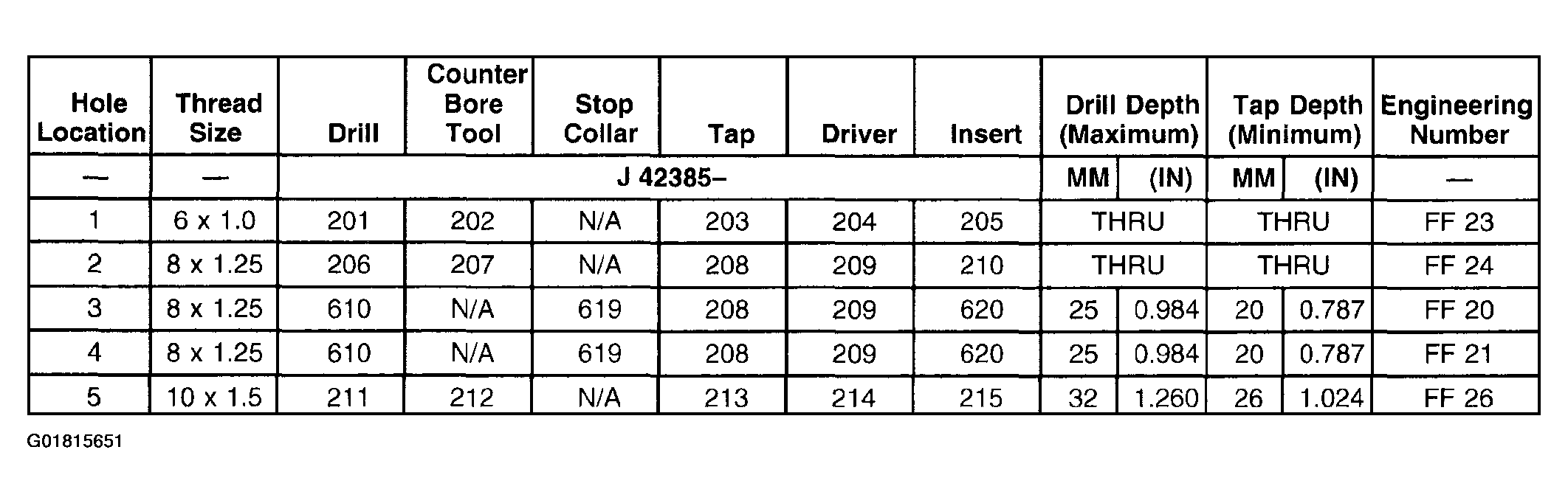

Fig 16: Right Cylinder Head Front Face Legend

G01815651

Courtesy of GENERAL MOTORS CORP.

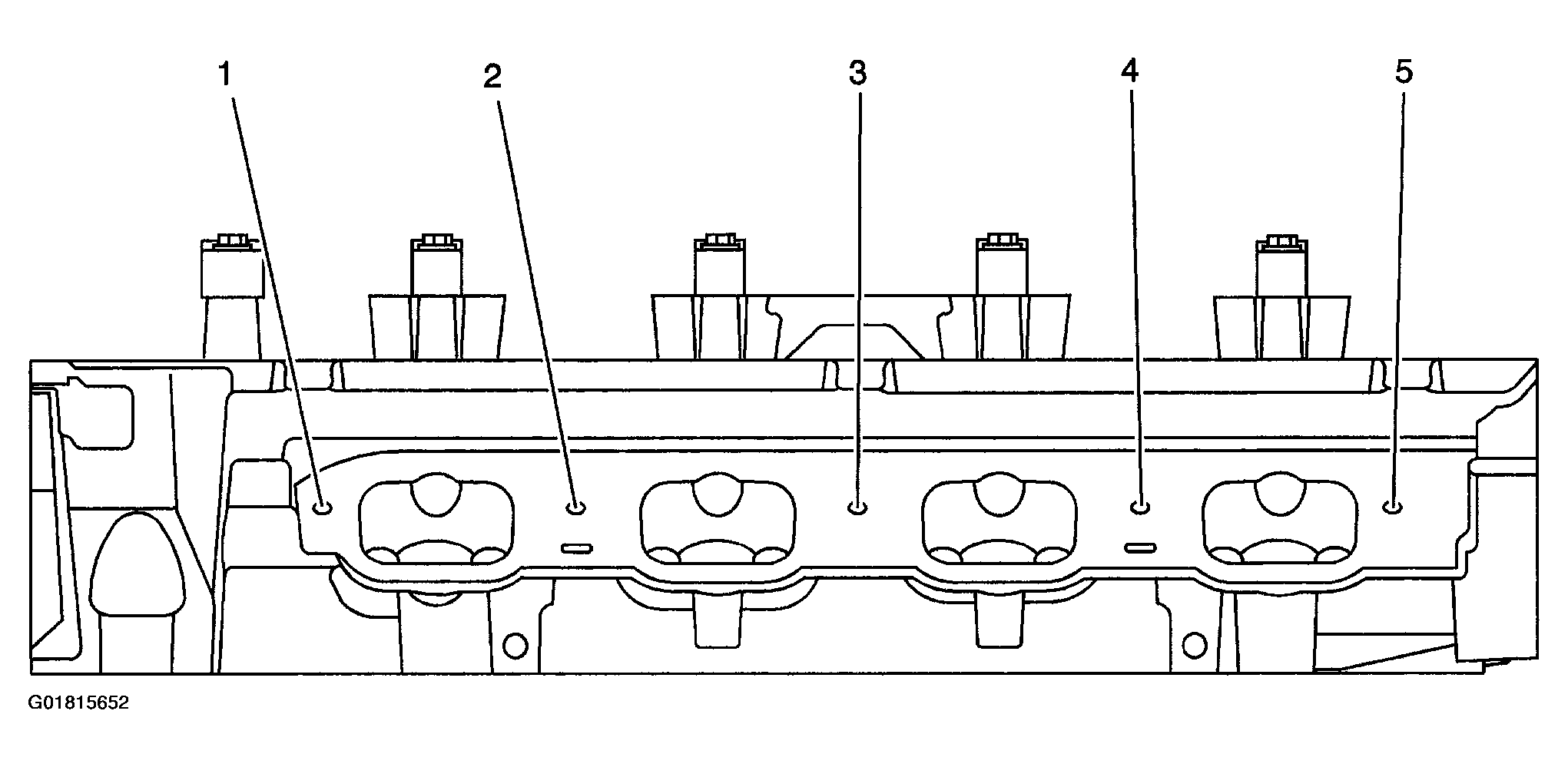

Fig 17: Right Cylinder Head Intake Face

G01815652

Courtesy of GENERAL MOTORS CORP.

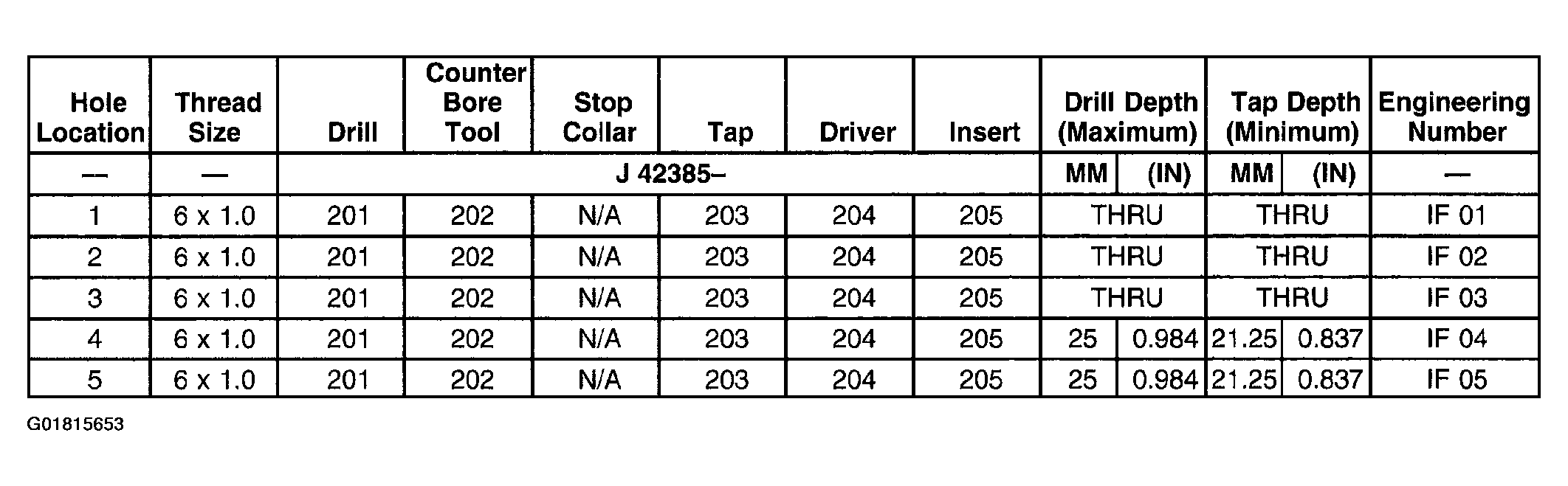

Fig 18: Right Cylinder Head Intake Face Legend

G01815653

Courtesy of GENERAL MOTORS CORP.

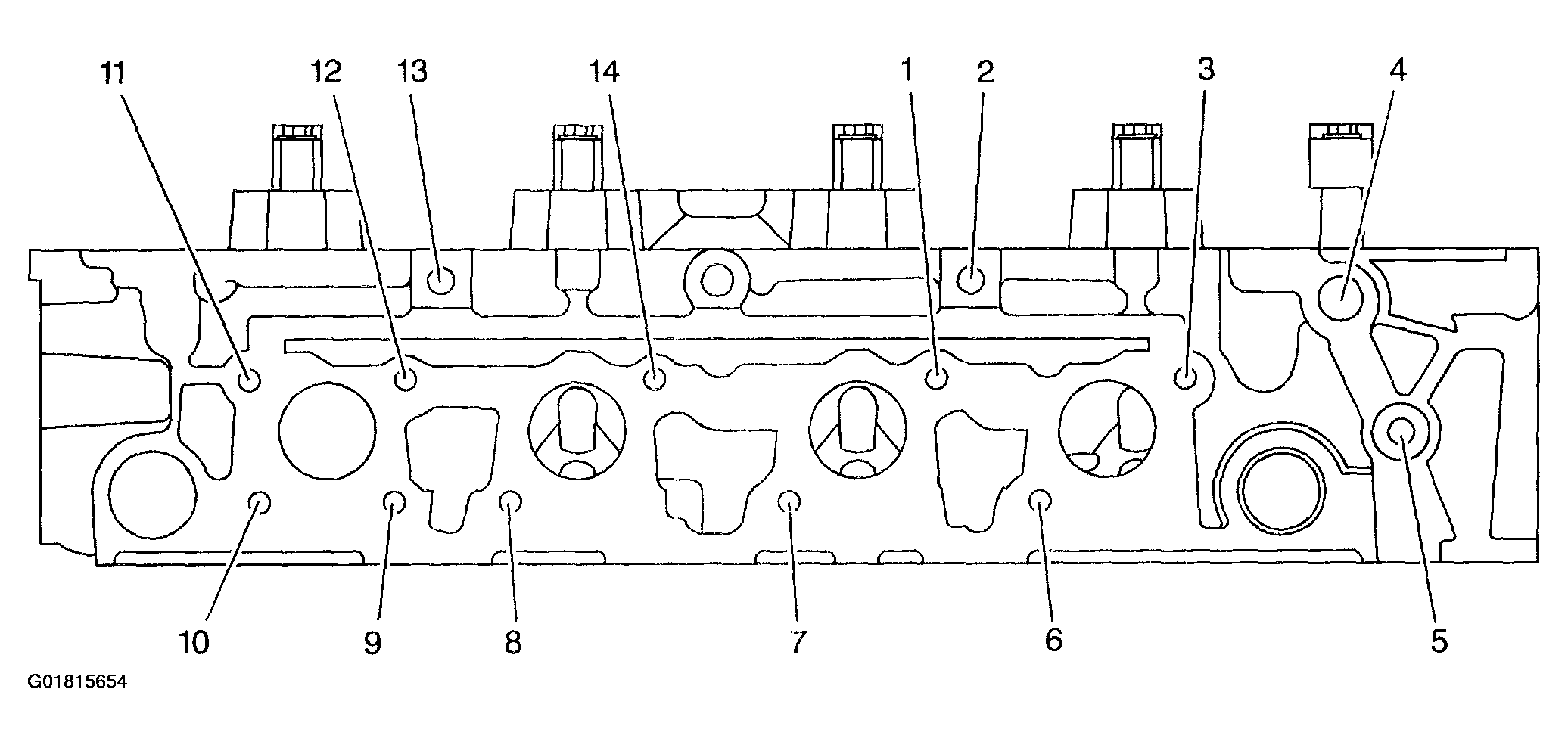

Fig 19: Right Cylinder Head Exhaust Face

G01815654

Courtesy of GENERAL MOTORS CORP.

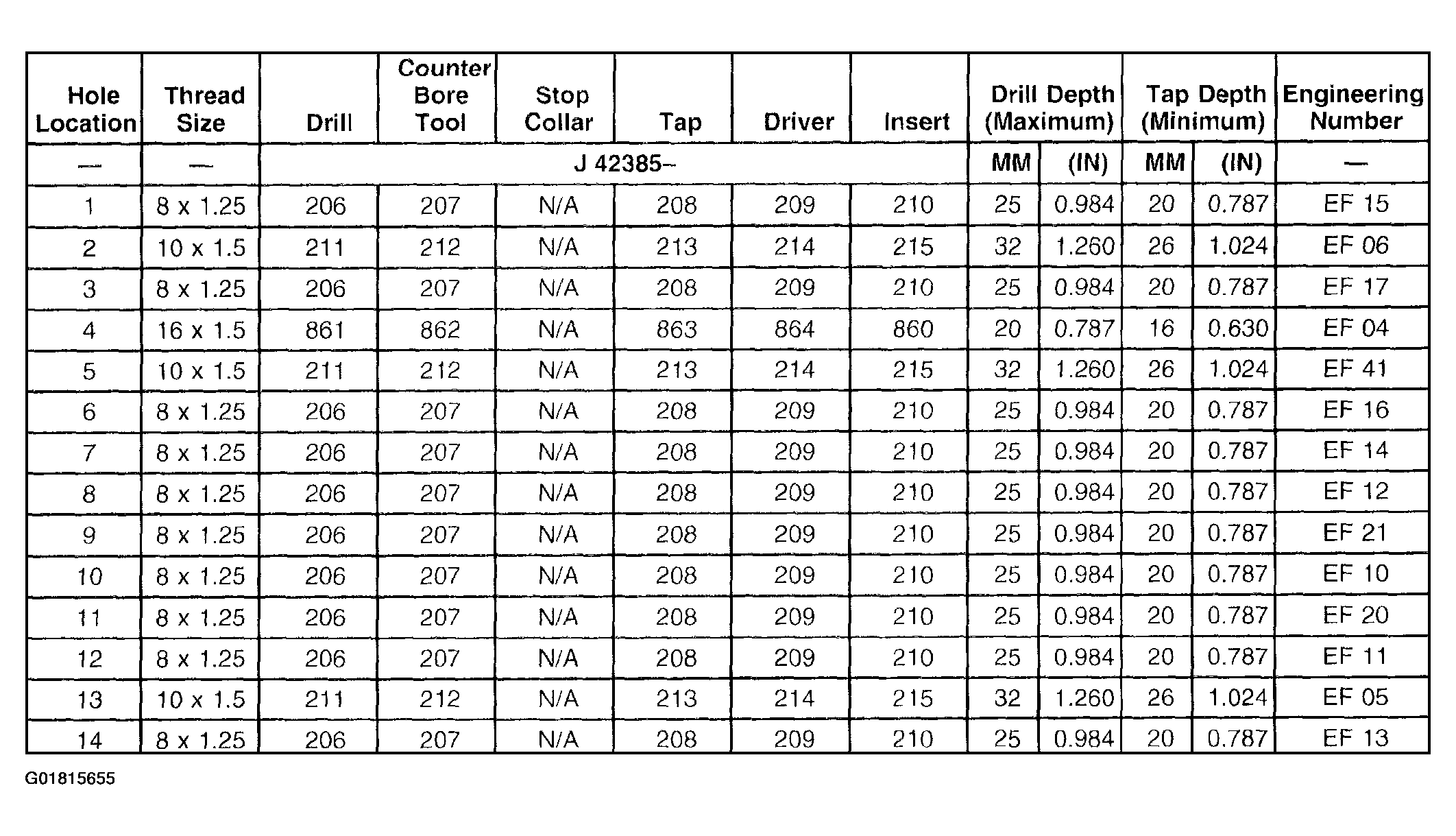

Fig 20: Right Cylinder Head Exhaust Face Legend

G01815655

Courtesy of GENERAL MOTORS CORP.

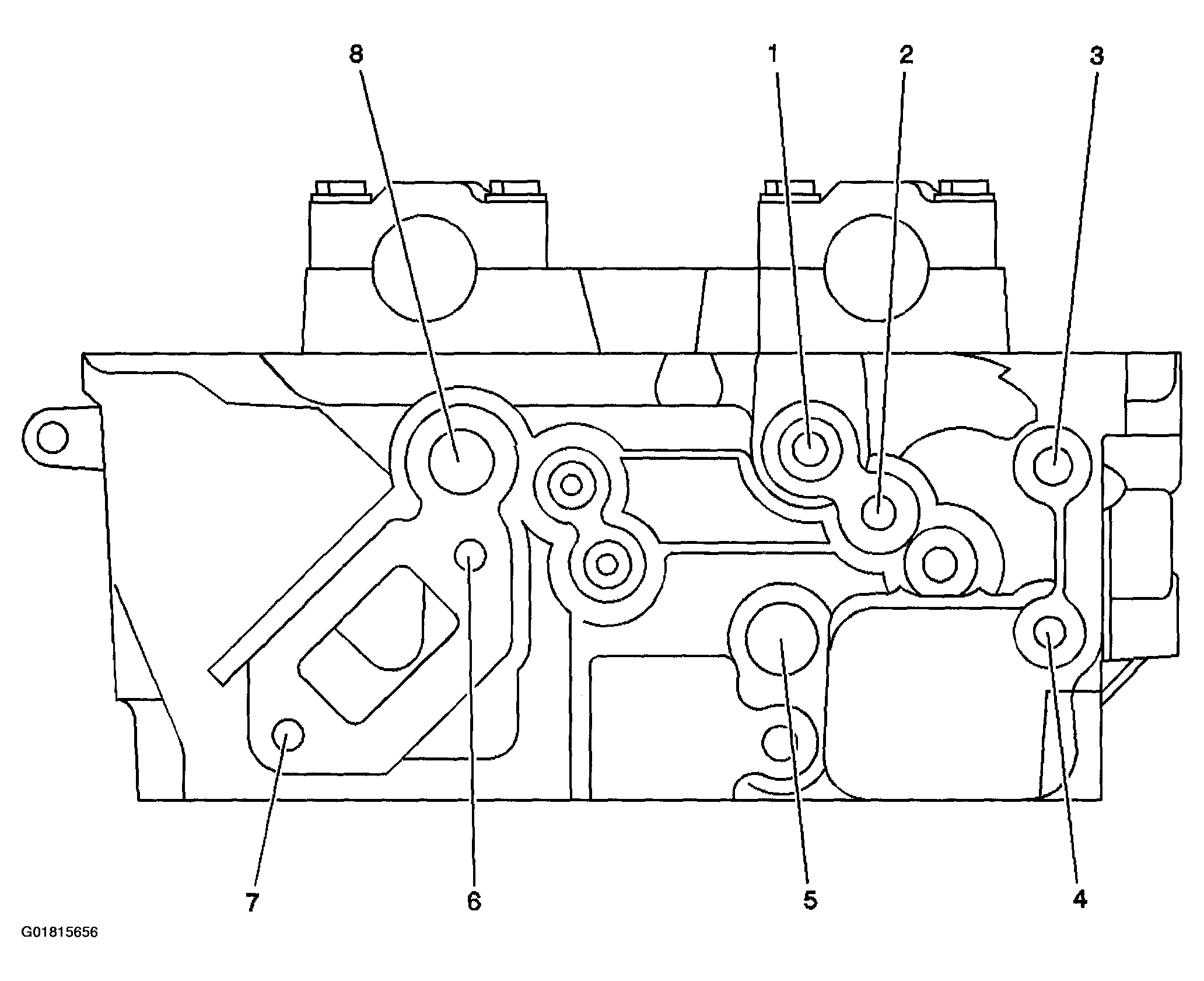

Fig 21: Right Cylinder Head Rear Face

G01815656

Courtesy of GENERAL MOTORS CORP.

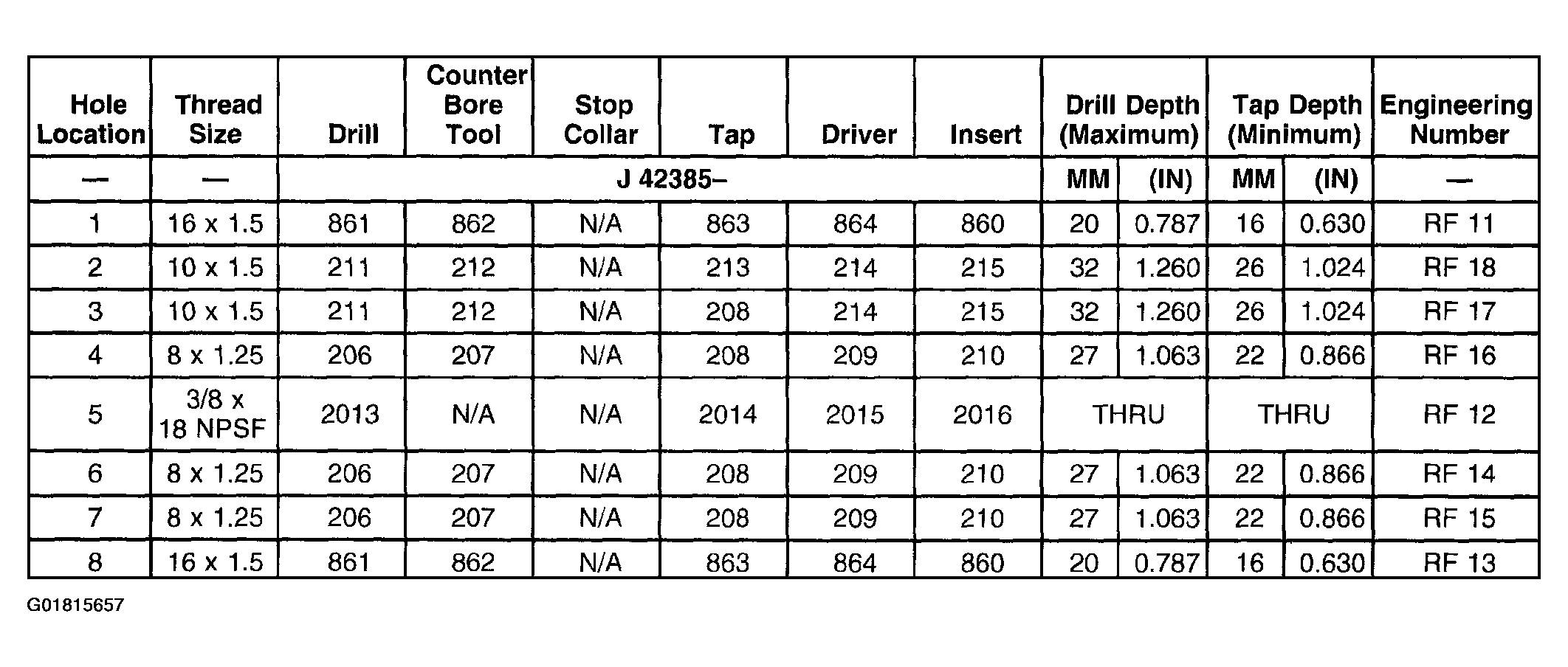

Fig 22: Right Cylinder Head Rear Face Legend

G01815657

Courtesy of GENERAL MOTORS CORP.

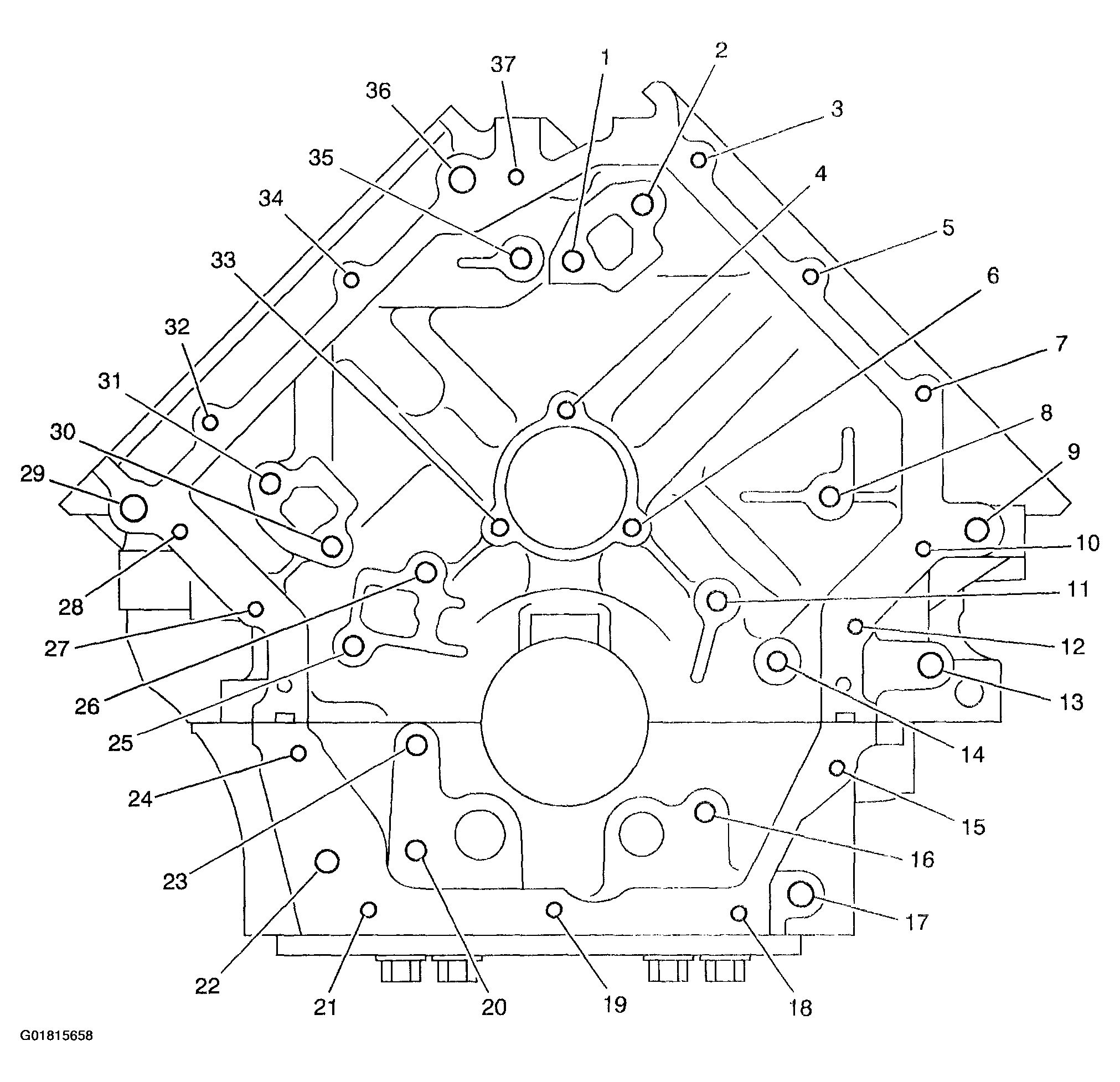

Fig 23: Engine Block Front

G01815658

Courtesy of GENERAL MOTORS CORP.

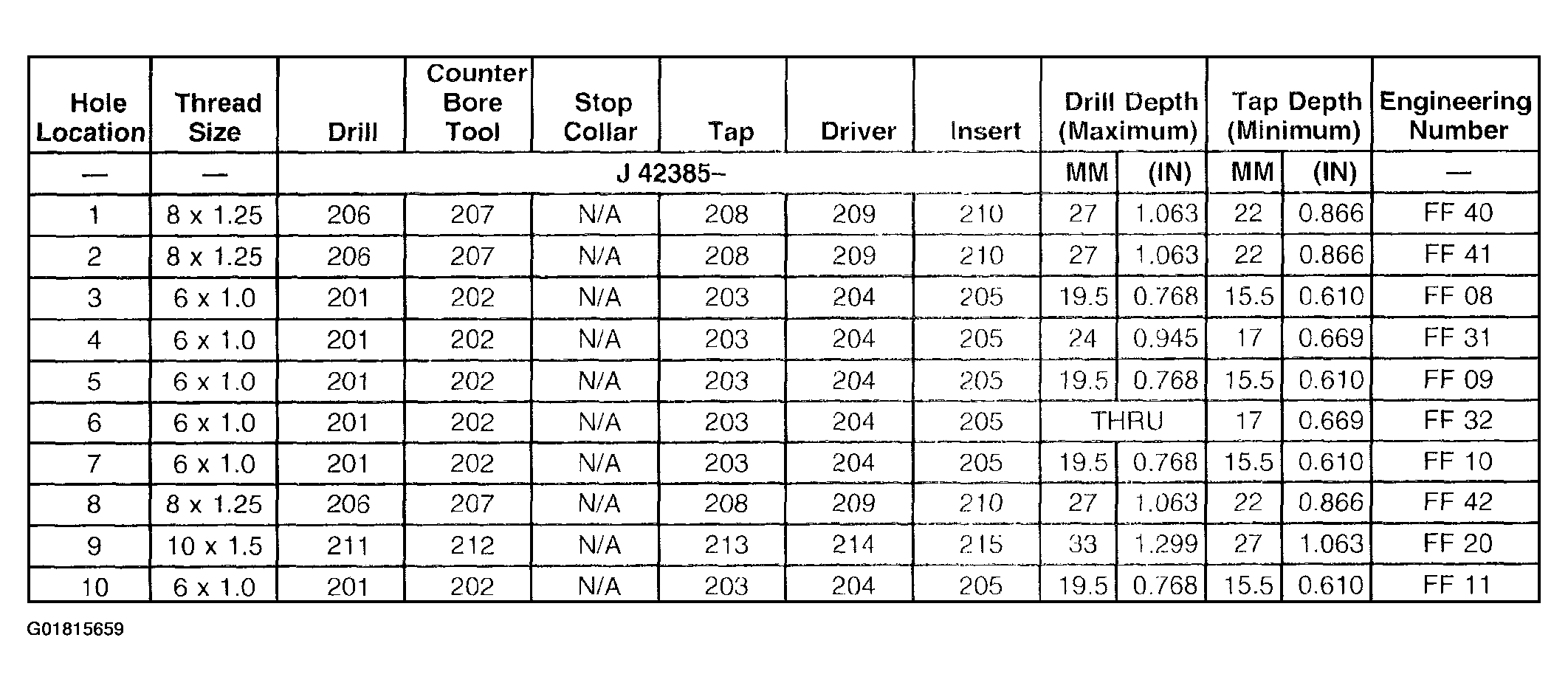

Fig 24: Engine Block Front Legend (1 Of 2)

G01815659

Courtesy of GENERAL MOTORS CORP.

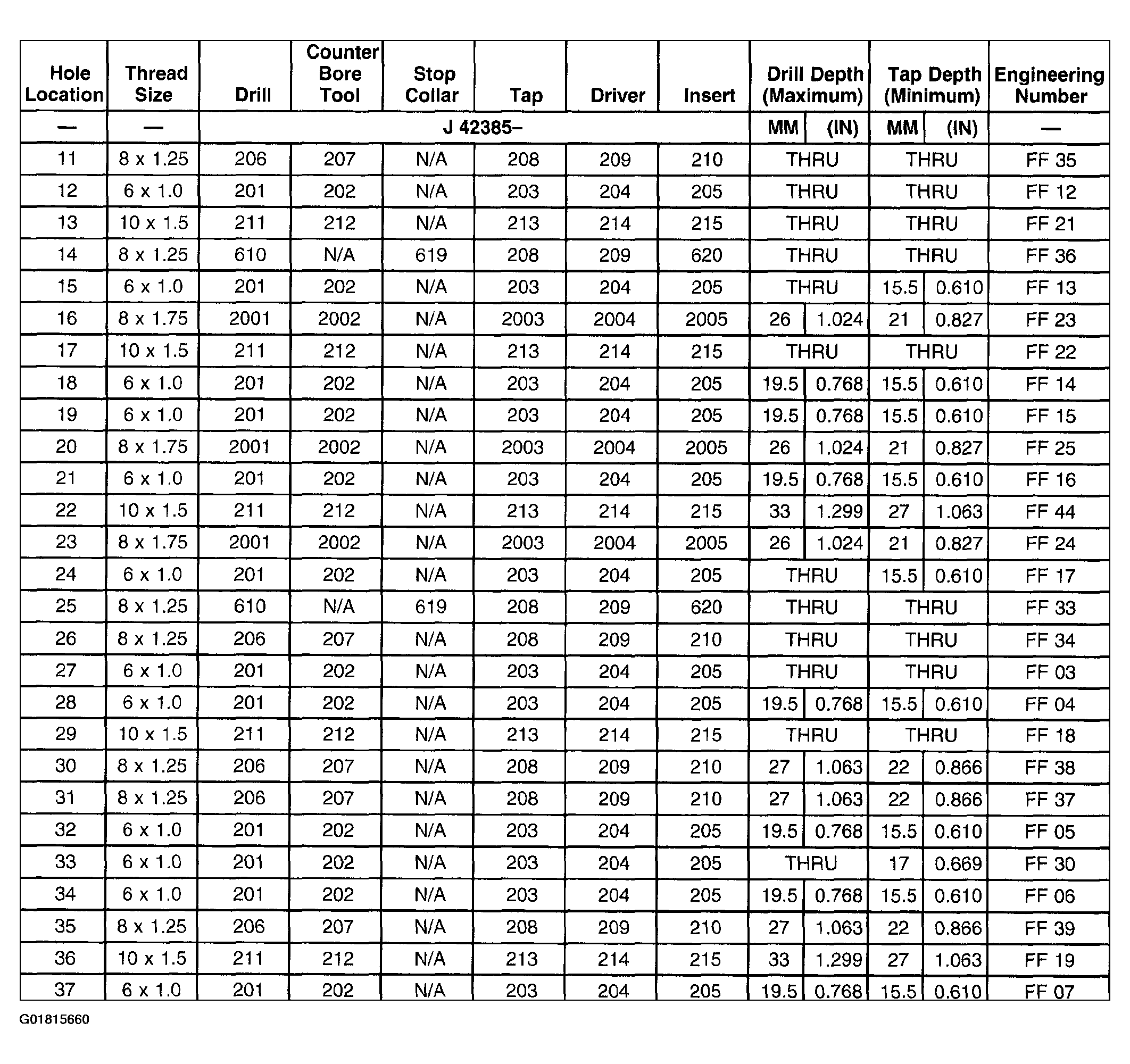

Fig 25: Engine Block Front Legend (2 Of 2)

G01815660

Courtesy of GENERAL MOTORS CORP.

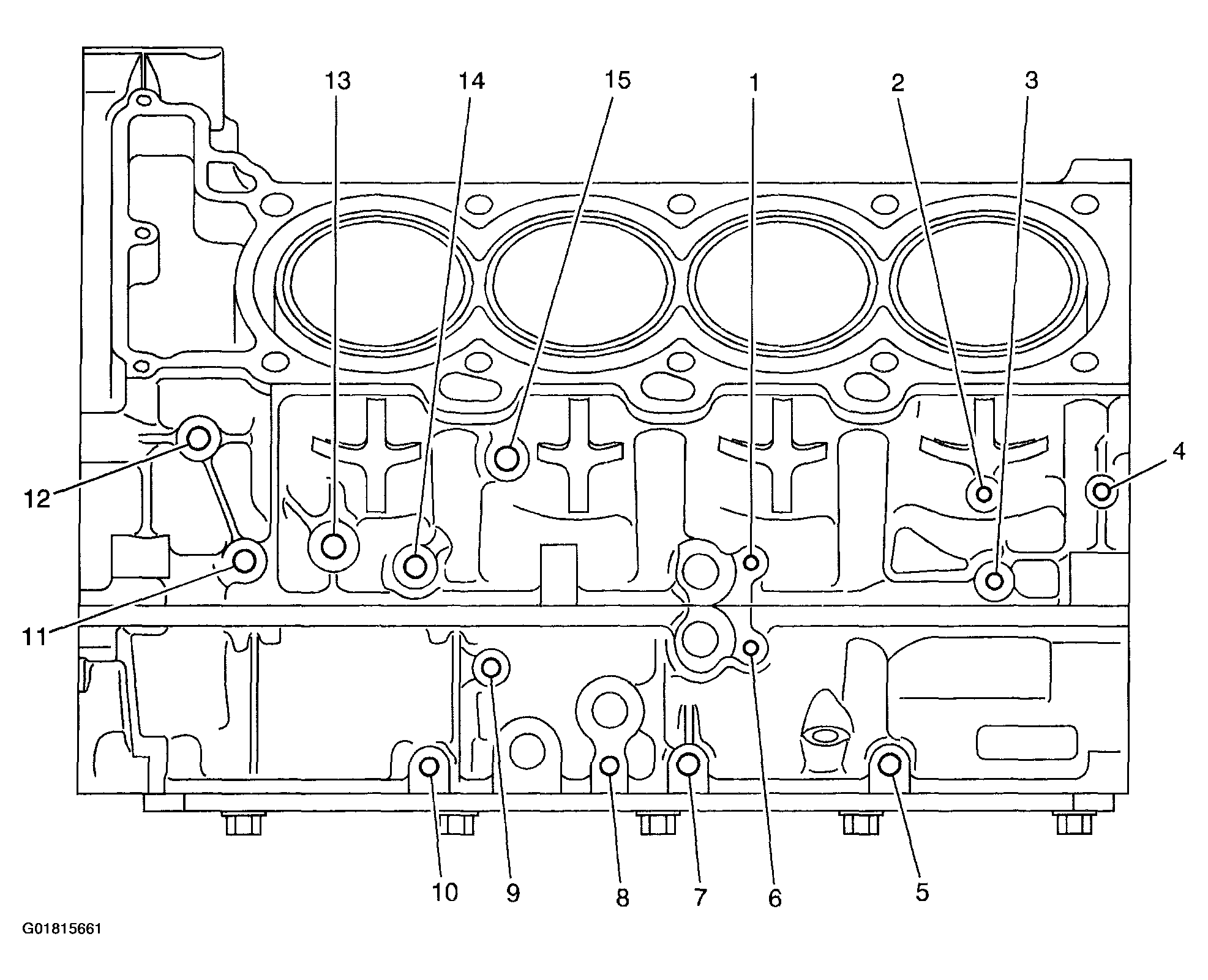

Fig 26: Engine Block Left Side

G01815661

Courtesy of GENERAL MOTORS CORP.

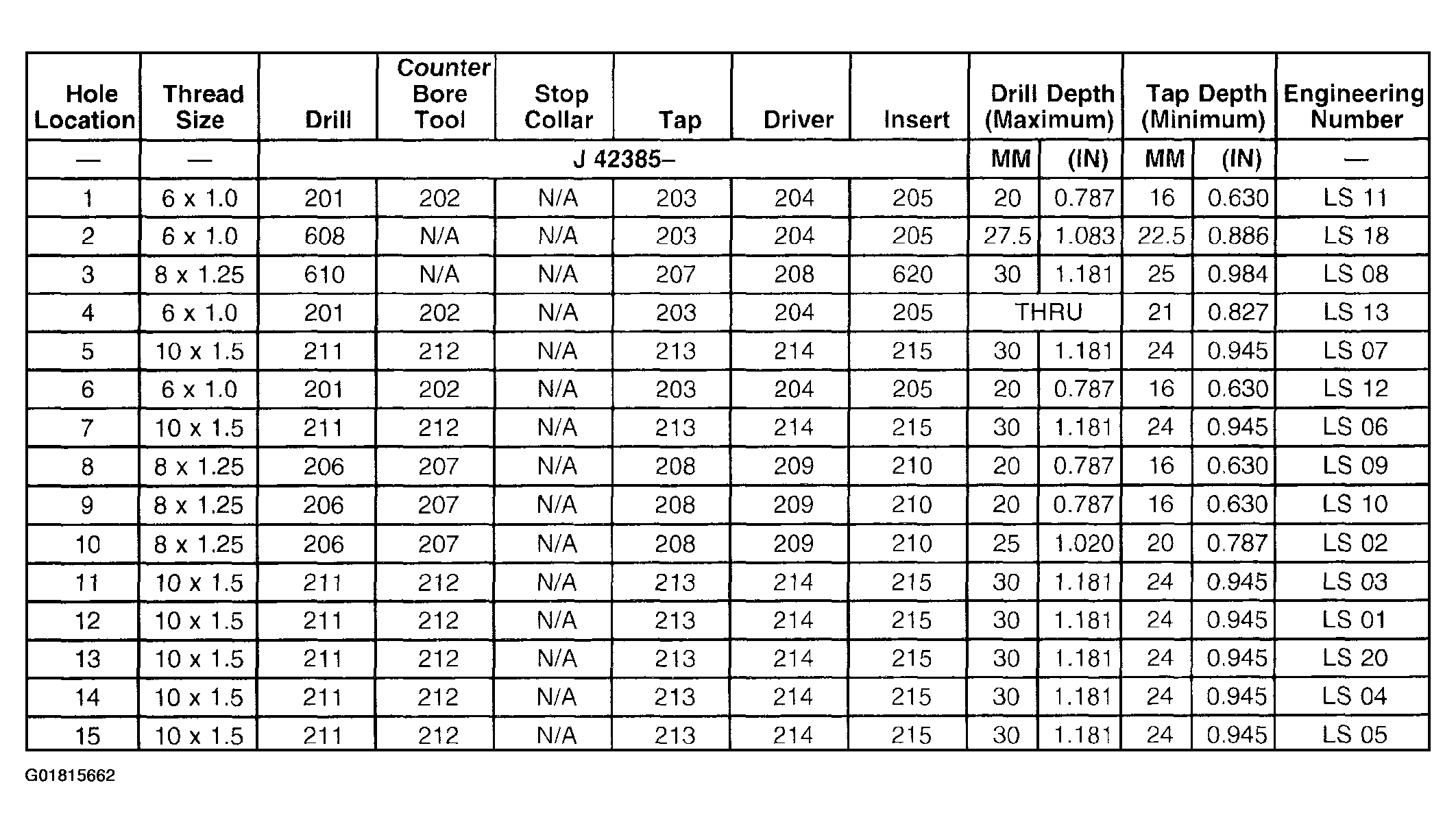

Fig 27: Engine Block Left Side Legend

G01815662

Courtesy of GENERAL MOTORS CORP.

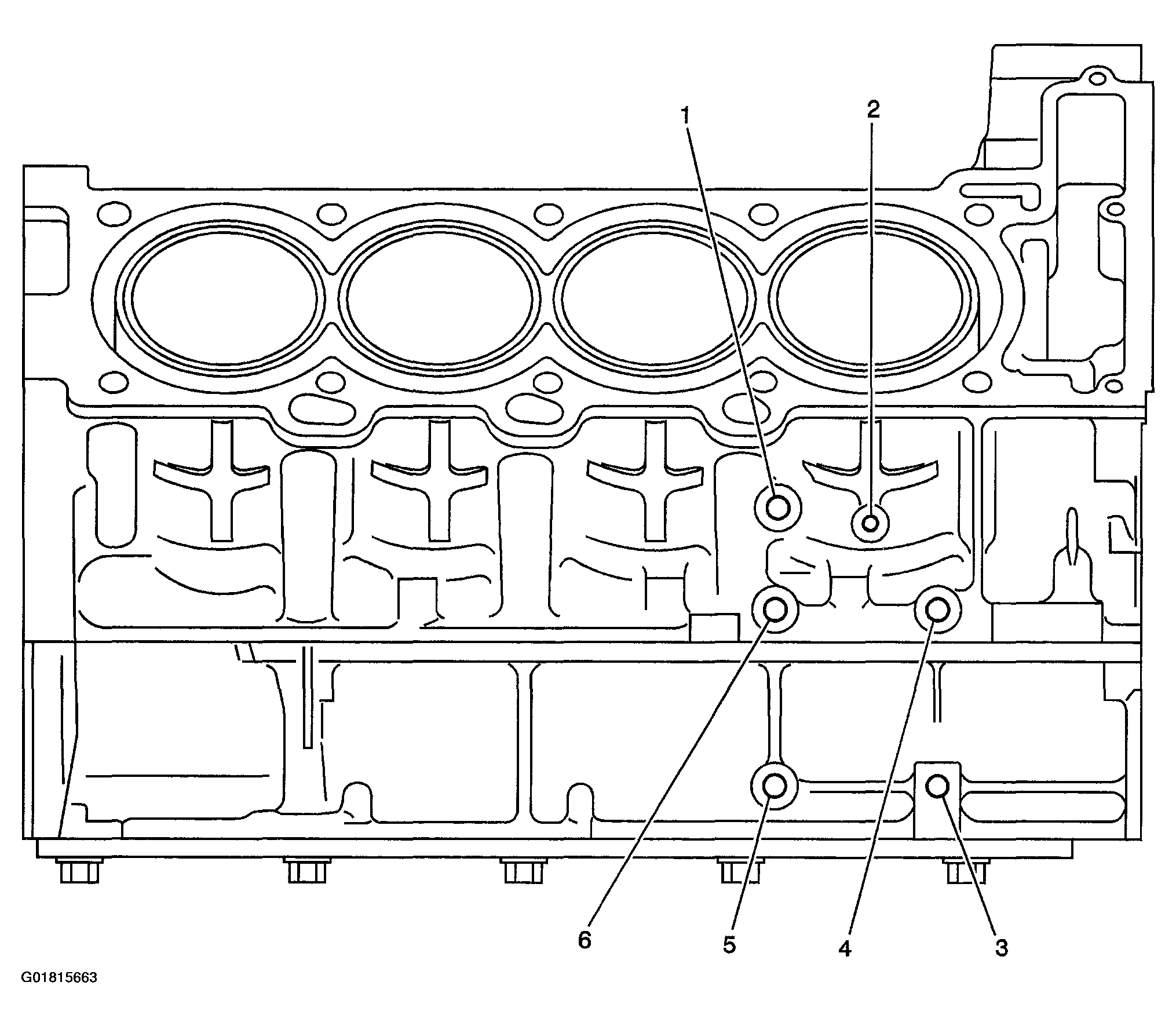

Fig 28: Engine Block Right Side

G01815663

Courtesy of GENERAL MOTORS CORP.

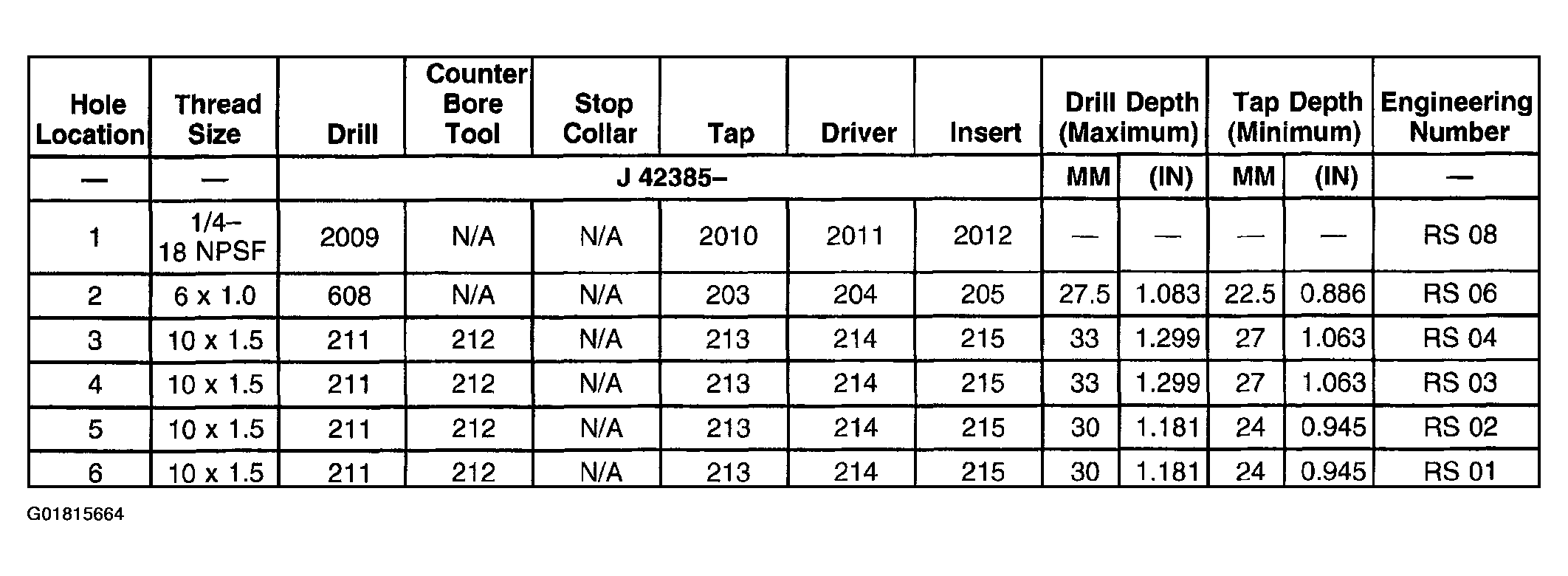

Fig 29: Engine Block Right Side Legend

G01815664

Courtesy of GENERAL MOTORS CORP.

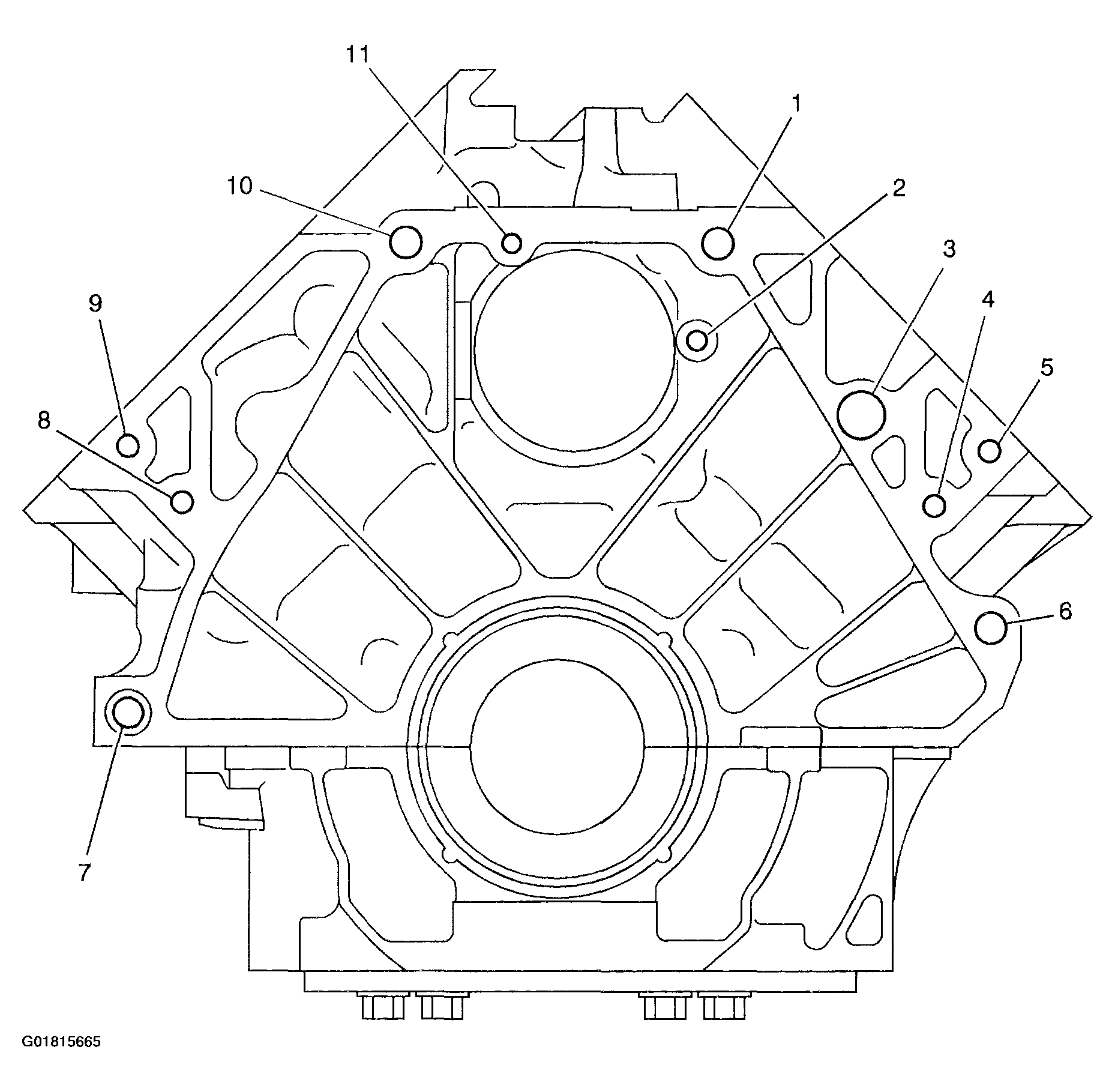

Fig 30: Engine Block Rear

G01815665

Courtesy of GENERAL MOTORS CORP.

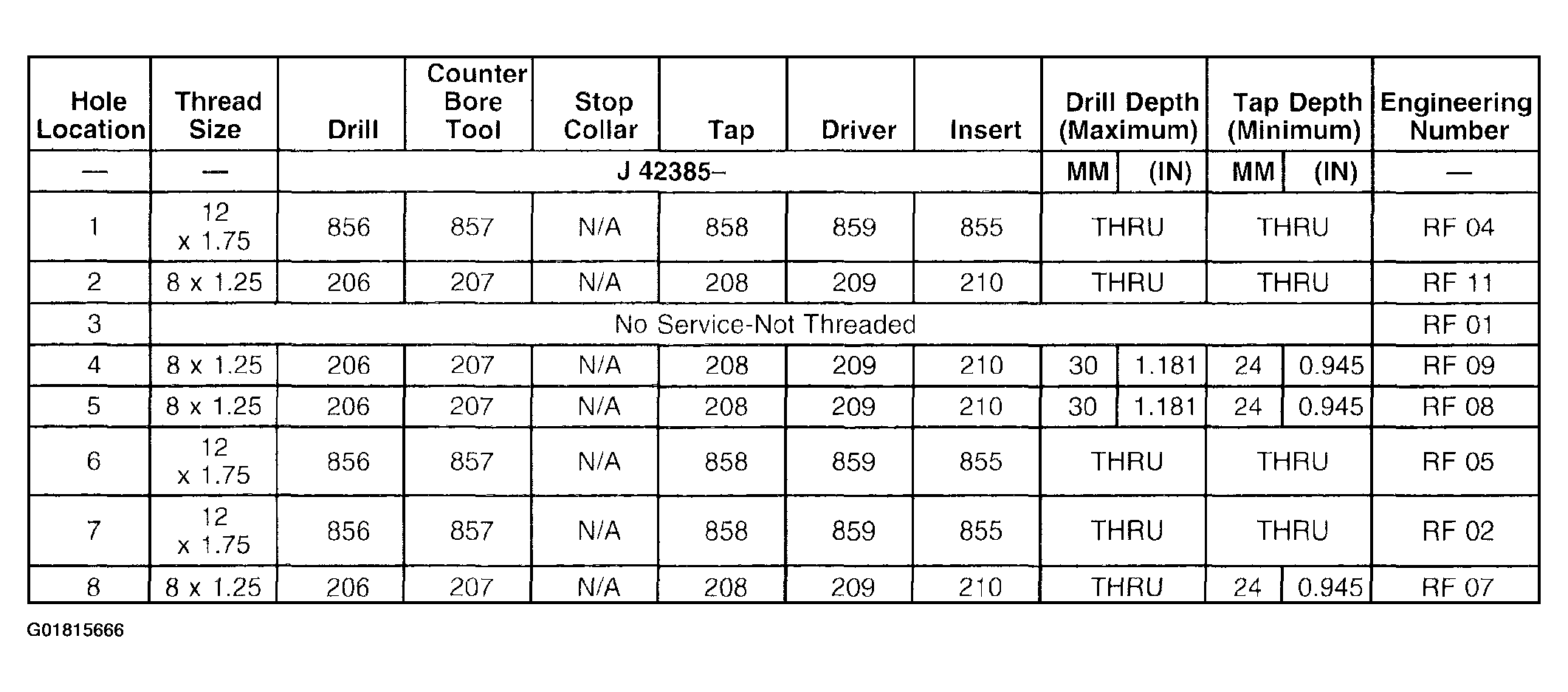

Fig 31: Engine Block Rear Legend (1 Of 2)

G01815666

Courtesy of GENERAL MOTORS CORP.

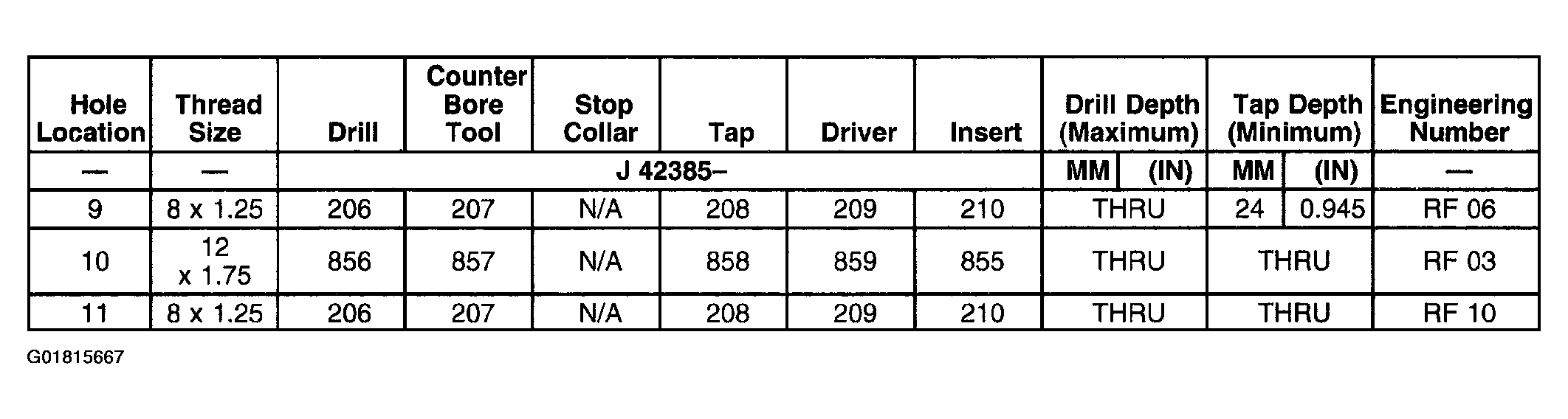

Fig 32: Engine Block Rear Legend (2 Of 2)

G01815667

Courtesy of GENERAL MOTORS CORP.

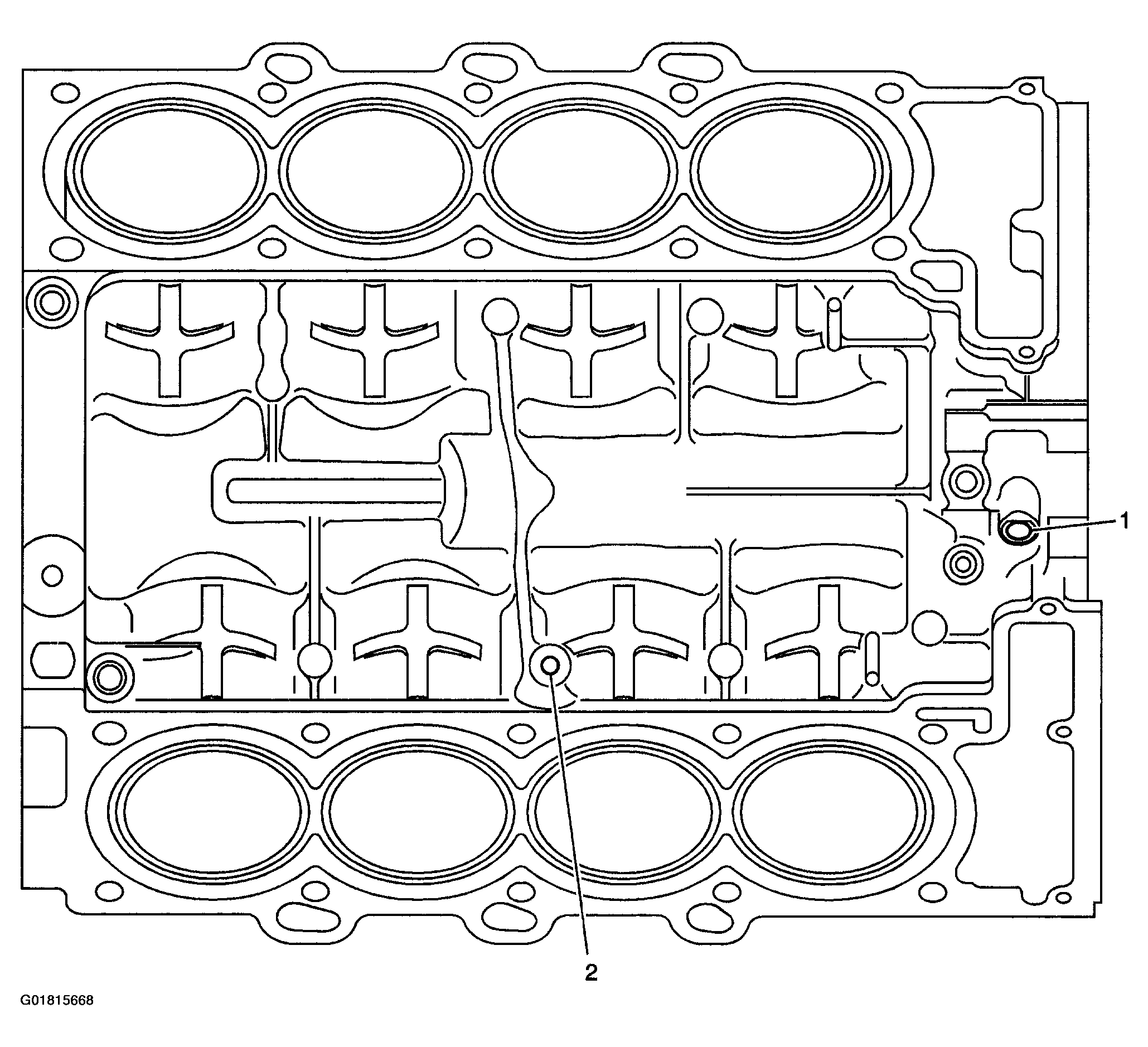

Fig 33: Engine Block Top

G01815668

Courtesy of GENERAL MOTORS CORP.

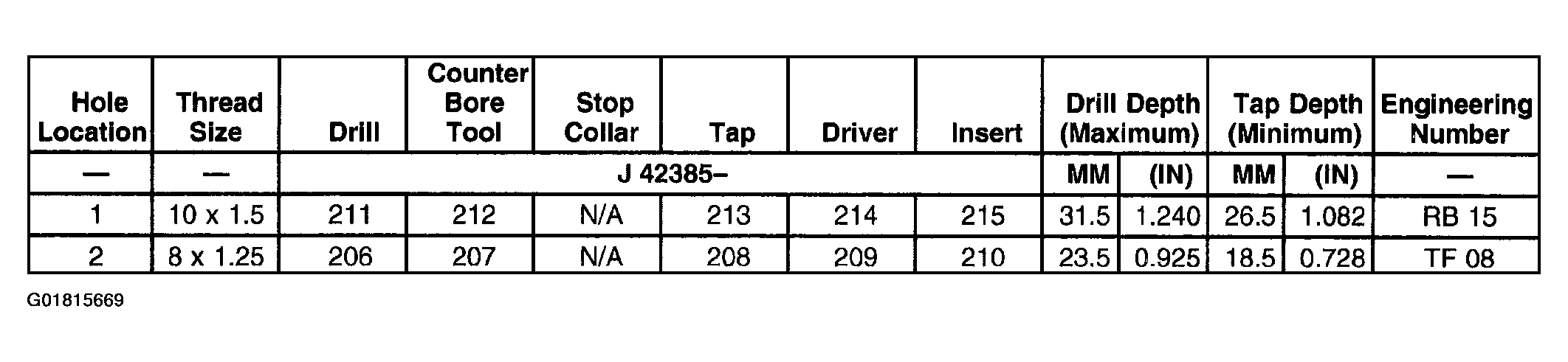

Fig 34: Engine Block Top Legend

G01815669

Courtesy of GENERAL MOTORS CORP.

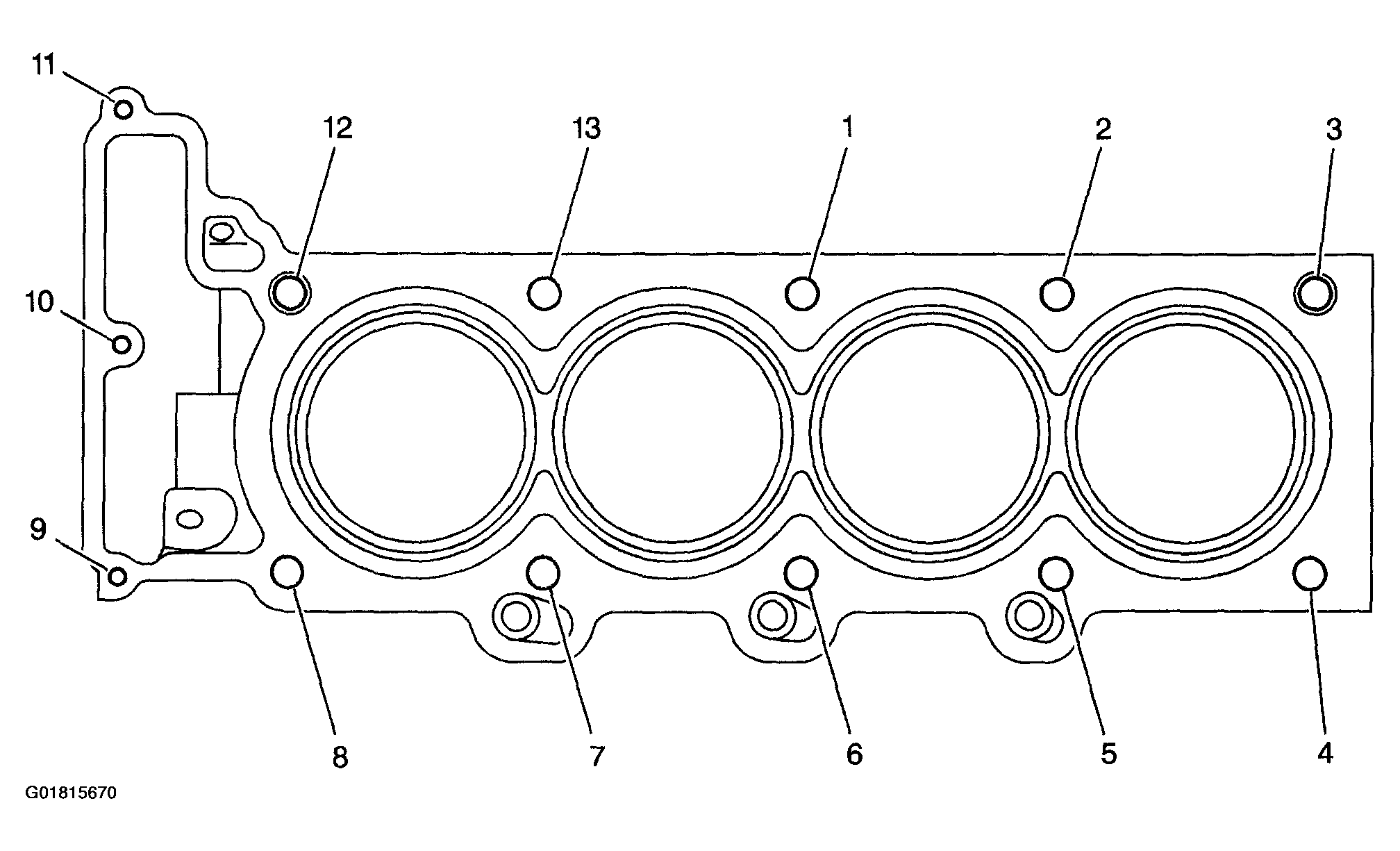

Fig 35: Engine Block Left Deck Face

G01815670

Courtesy of GENERAL MOTORS CORP.

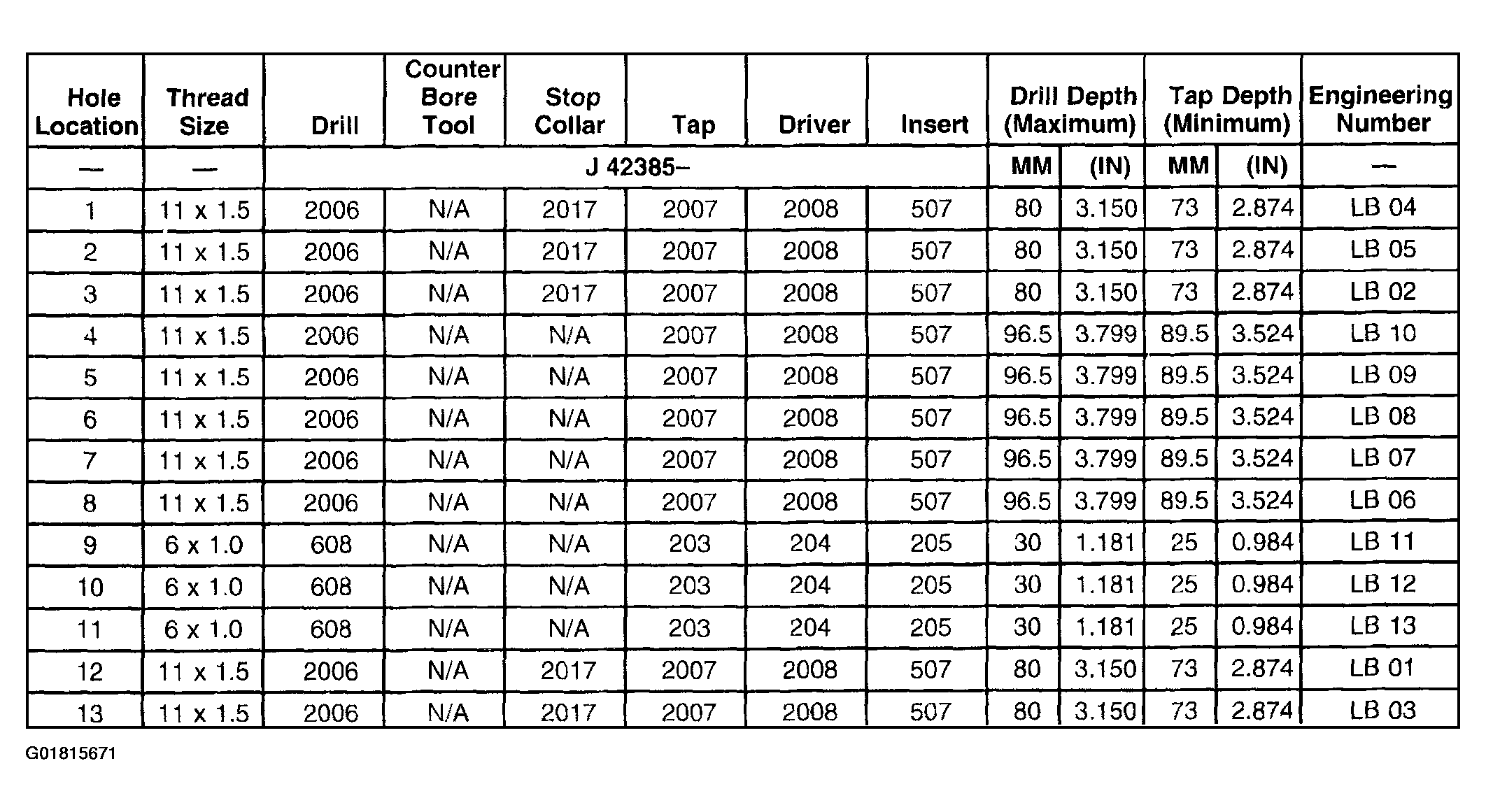

Fig 36: Engine Block Left Deck Face Legend

G01815671

Courtesy of GENERAL MOTORS CORP.

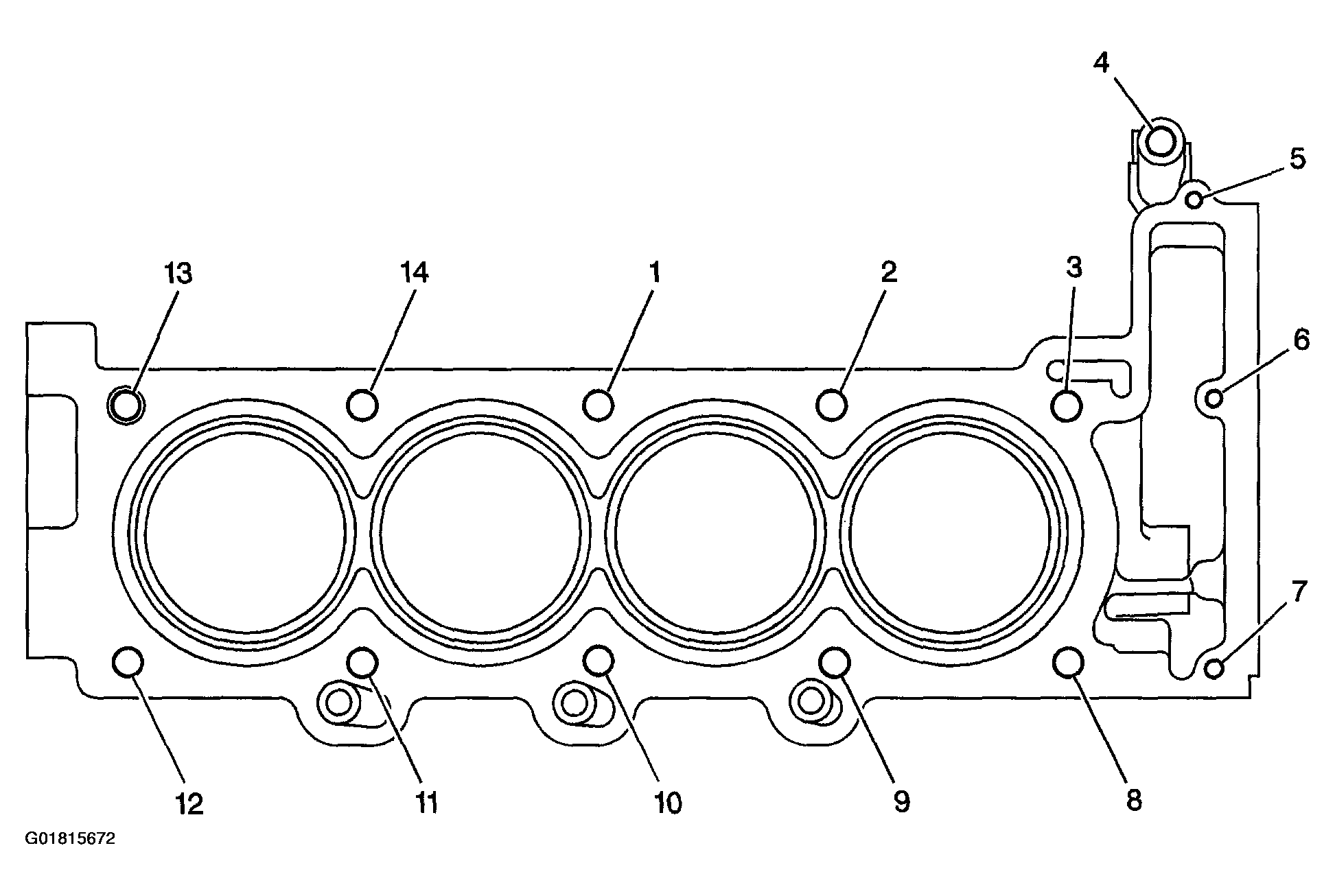

Fig 37: Engine Block Right Deck Face

G01815672

Courtesy of GENERAL MOTORS CORP.

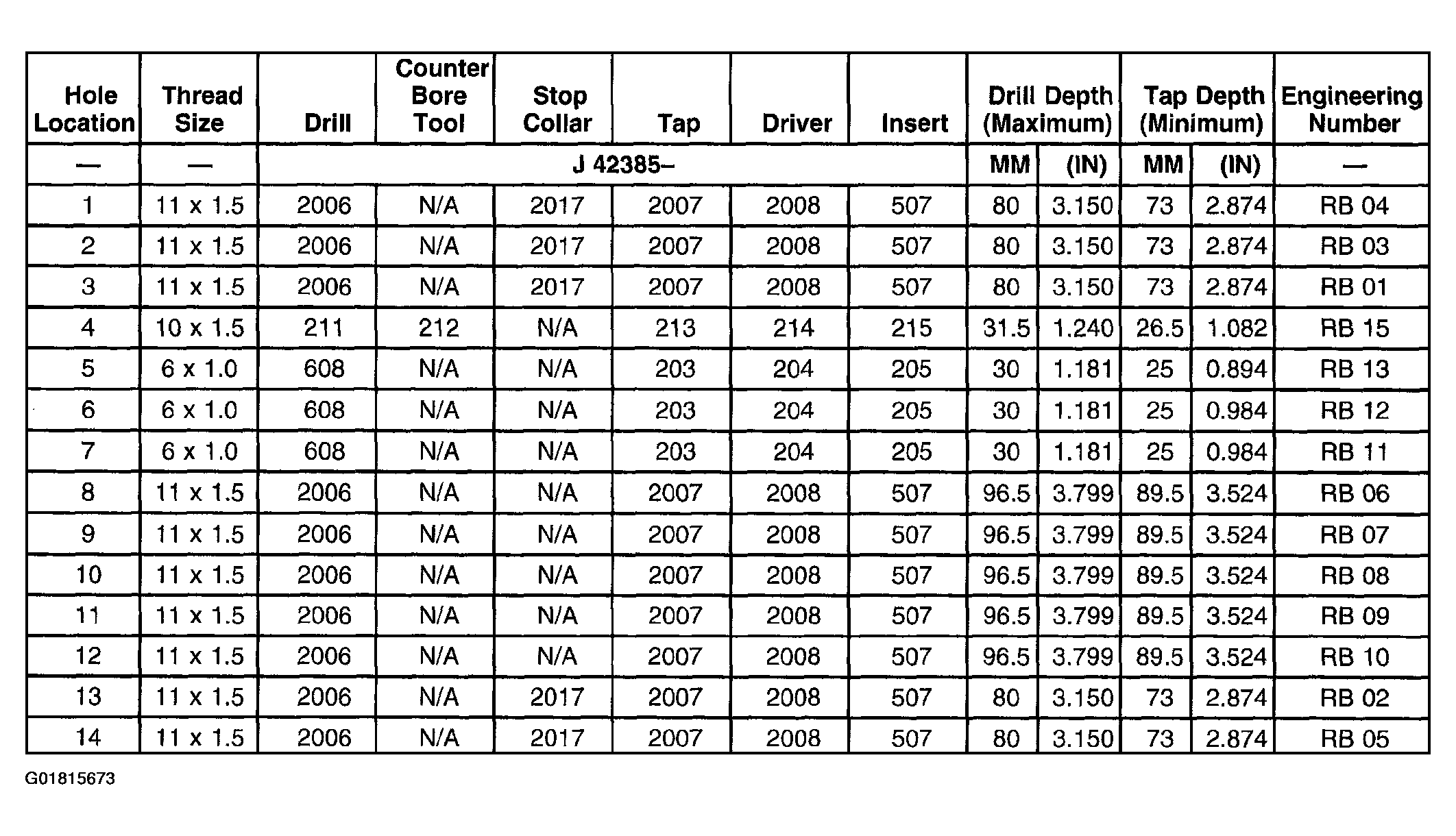

Fig 38: Engine Block Right Deck Face Legend

G01815673

Courtesy of GENERAL MOTORS CORP.

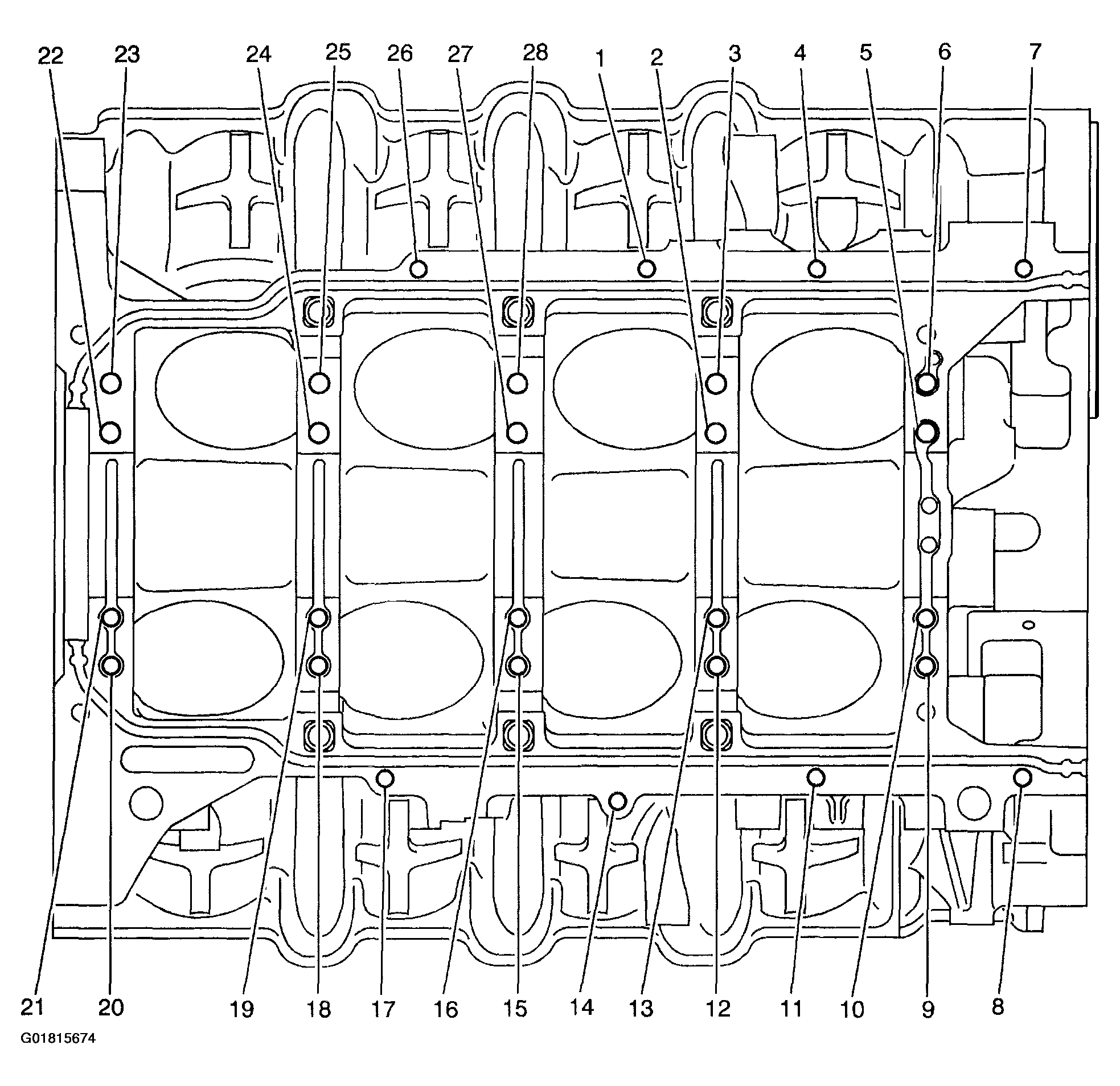

Fig 39: Engine Block Lower Face

G01815674

Courtesy of GENERAL MOTORS CORP.

Fig 40: Engine Block Lower Face Legend (1 Of 2)

G01815675

Courtesy of GENERAL MOTORS CORP.

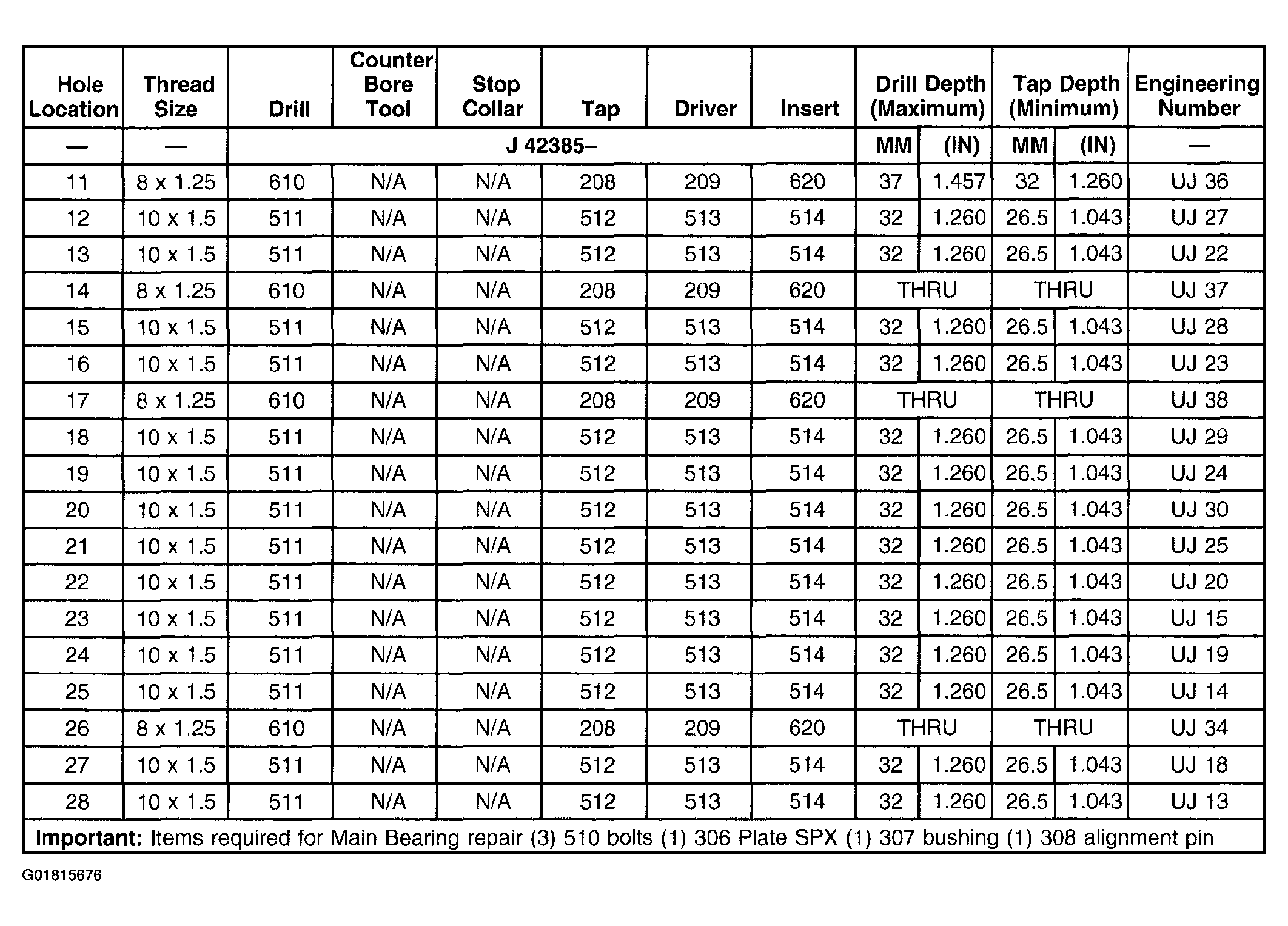

Fig 41: Engine Block Lower Face Legend (2 Of 2)

G01815676

Courtesy of GENERAL MOTORS CORP.

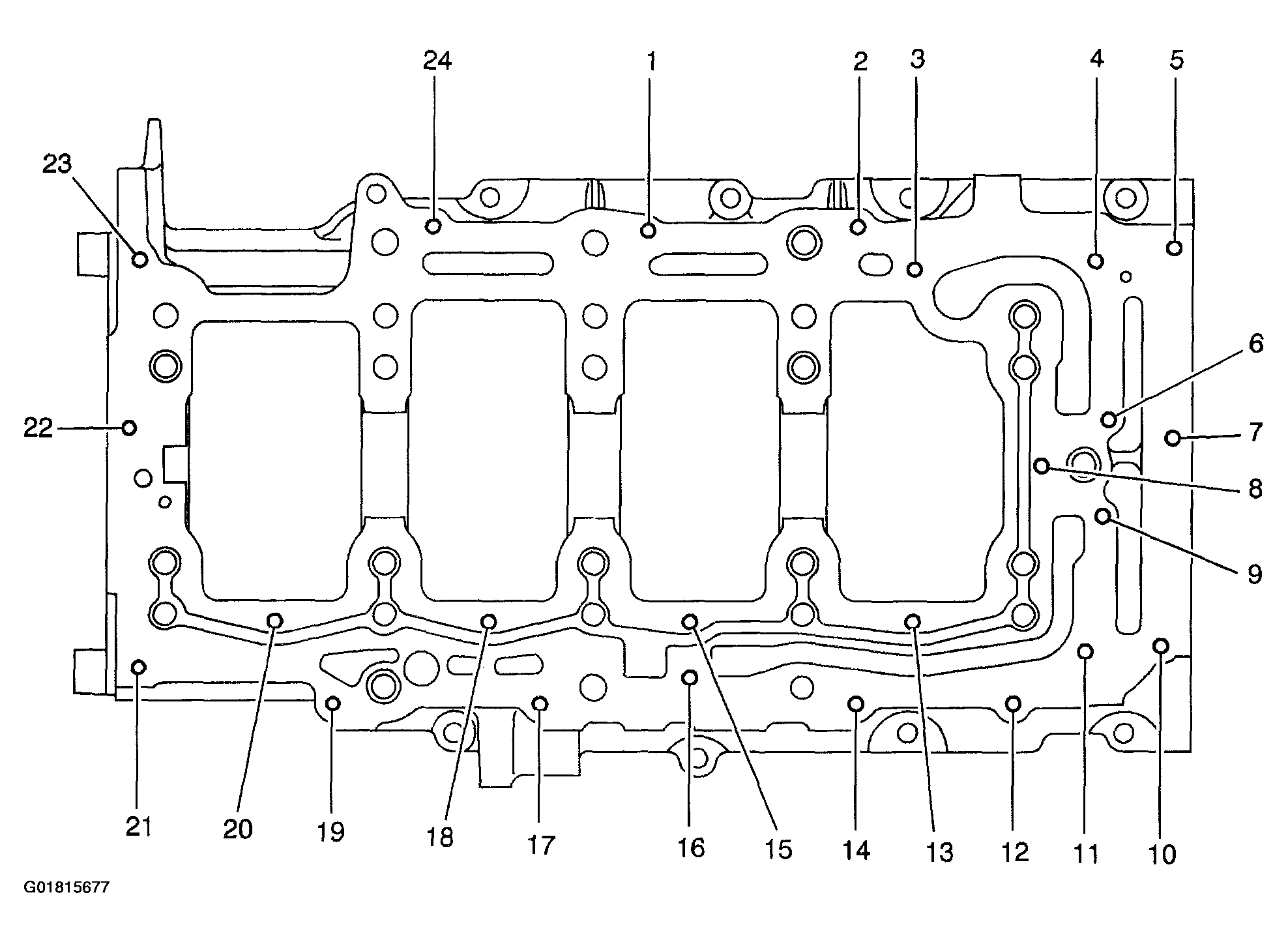

Fig 42: Lower Crankcase Pan Face

G01815677

Courtesy of GENERAL MOTORS CORP.

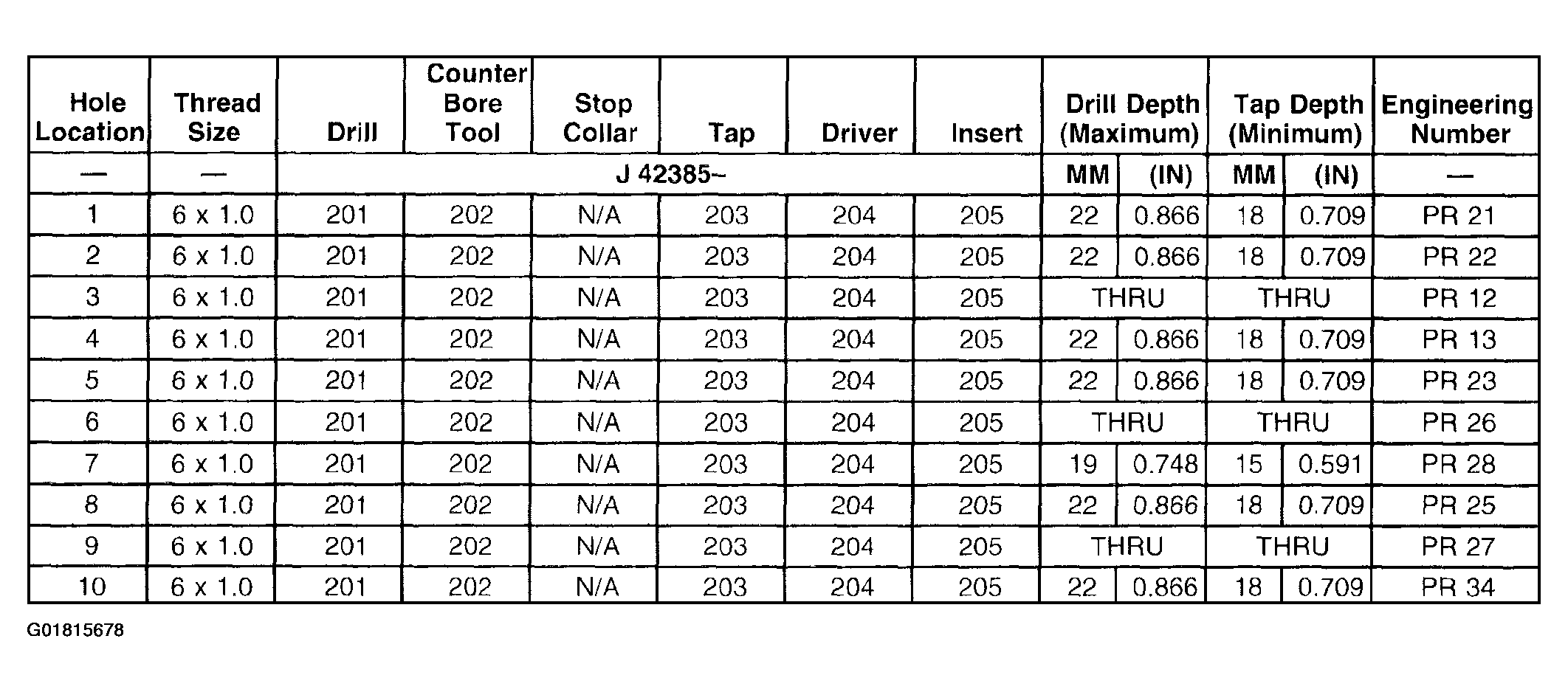

Fig 43: Lower Crankcase Pan Face legend (1 Of 2)

G01815678

Courtesy of GENERAL MOTORS CORP.

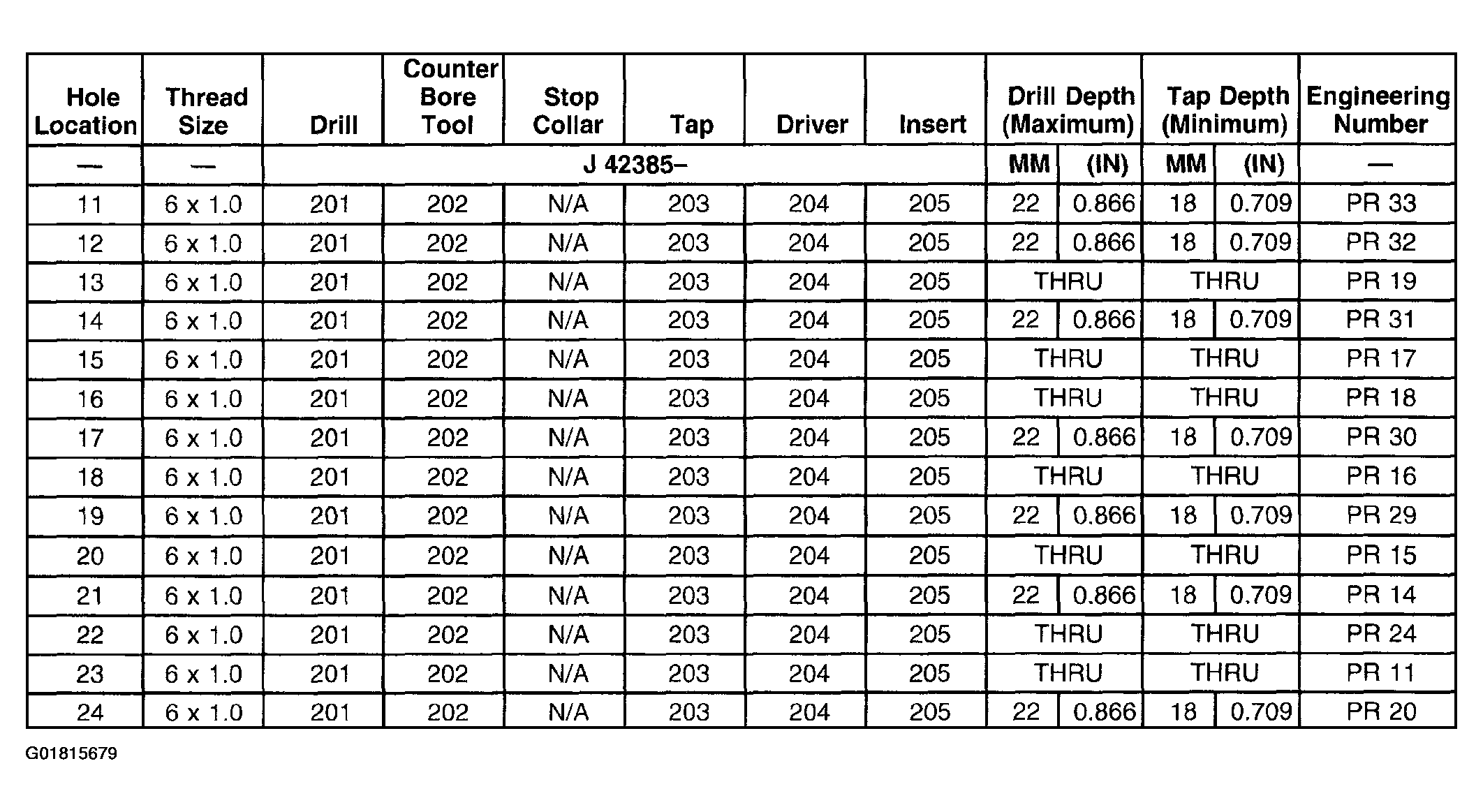

Fig 44: Lower Crankcase Pan Face legend (2 Of 2)

G01815679

Courtesy of GENERAL MOTORS CORP.
