Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the battery retainer and bolt.

    Tighten

    Tighten the battery retainer bolt to 17 N.m (13 lb ft).

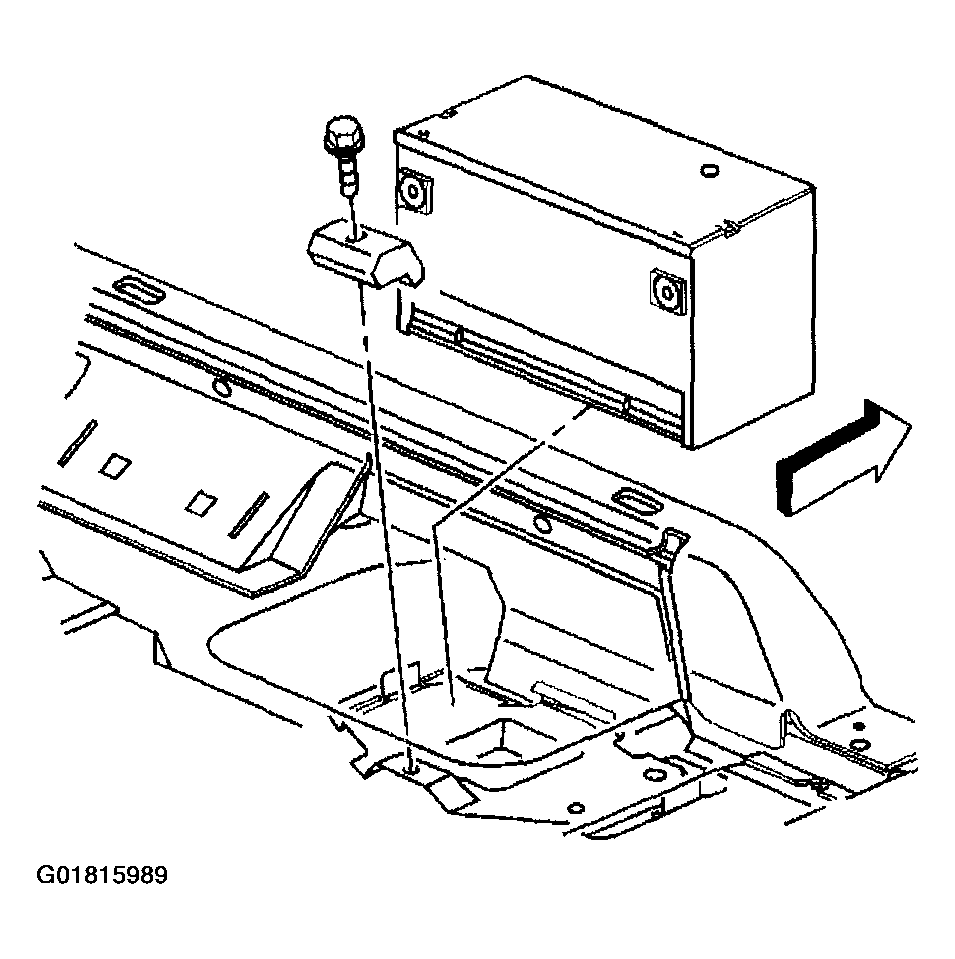

    Fig 1: Installing Battery
    G01815989Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure the vent tube (1) is properly routed through the floor pan grommet.

  3. Install the battery vent tube (1) to the battery.

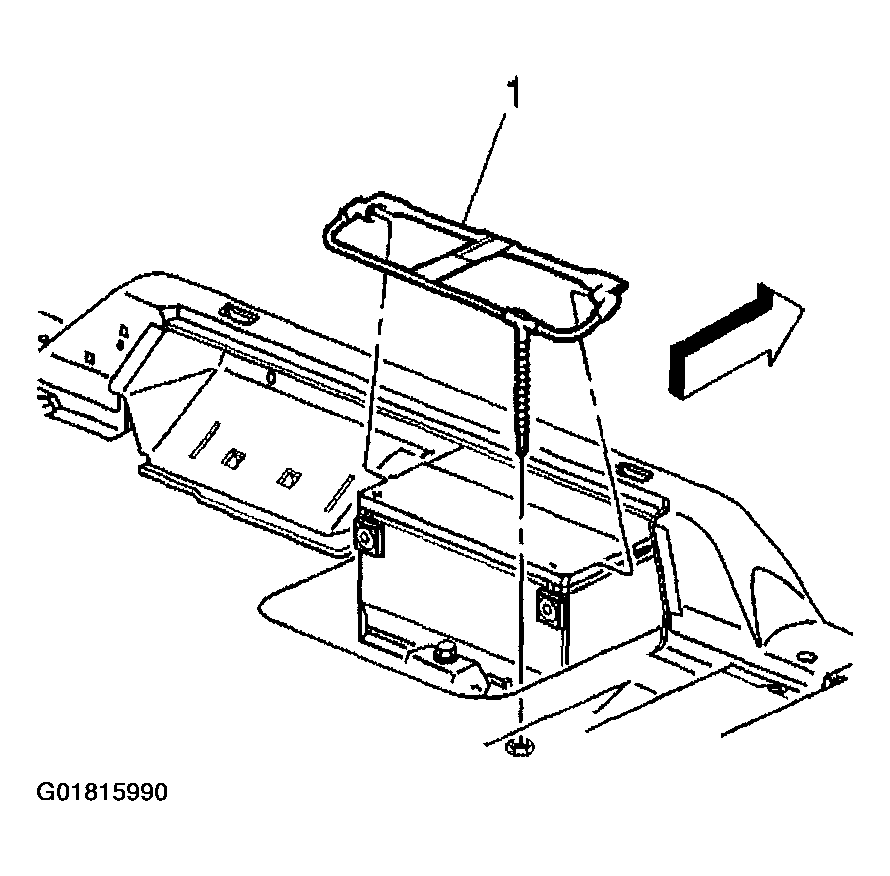

    Fig 2: Installing Battery Vent Tube
    G01815990Courtesy of GENERAL MOTORS CORP.
  4. Connect the battery positive cable (1) to the battery.

    Tighten

    Tighten the battery cable bolt to 17 N.m (13 lb ft).

  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure  .

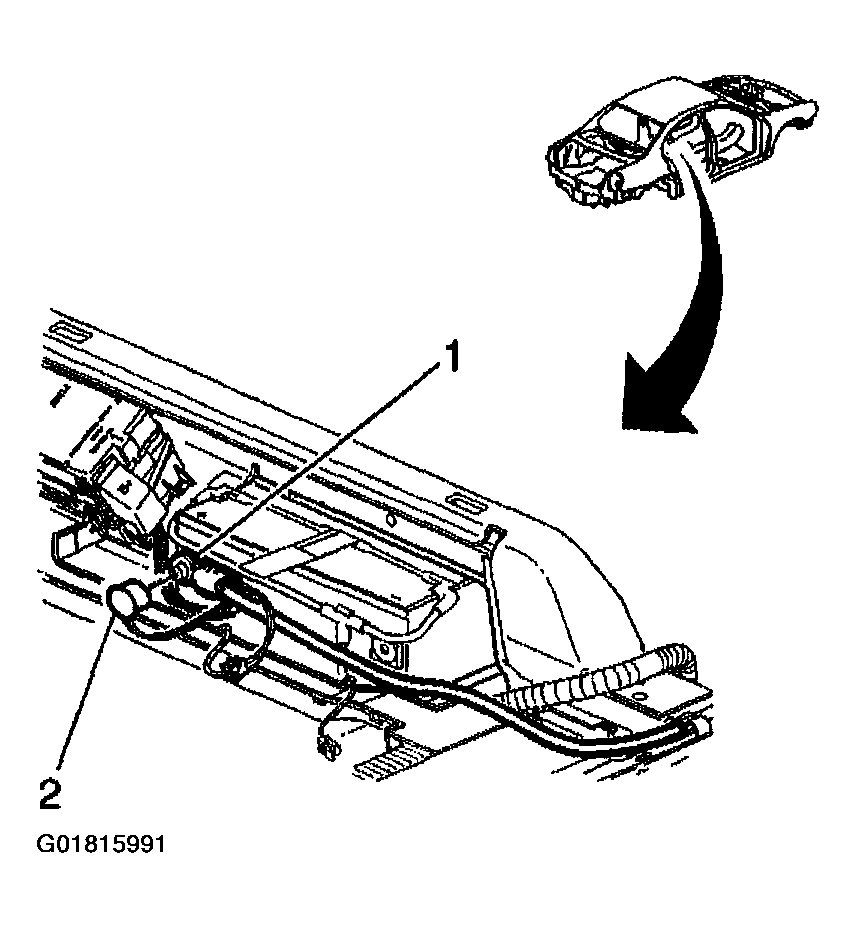

    Fig 3: Locating Battery Negative Cable
    G01815991Courtesy of GENERAL MOTORS CORP.
