Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not use or attempt to repair a damaged cooling fan assembly. Replace damaged fans with new assemblies. An unbalanced cooling fan could fly apart causing personal injury and property damage.
    Fig 1: View Of Fan Clutch & Fan Blade
    GM367006Courtesy of GENERAL MOTORS CORP.
  1. Install the fan clutch bolts.
  2. Install the fan clutch onto the fan blade, if necessary.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the fan clutch bolts.

    Tighten:  Tighten the bolts to 23 N.m (17 lb ft).

    4. Fig 2: View Of Fan Assembly Removed
    GM367004Courtesy of GENERAL MOTORS CORP.
  4. Install the fan blade.

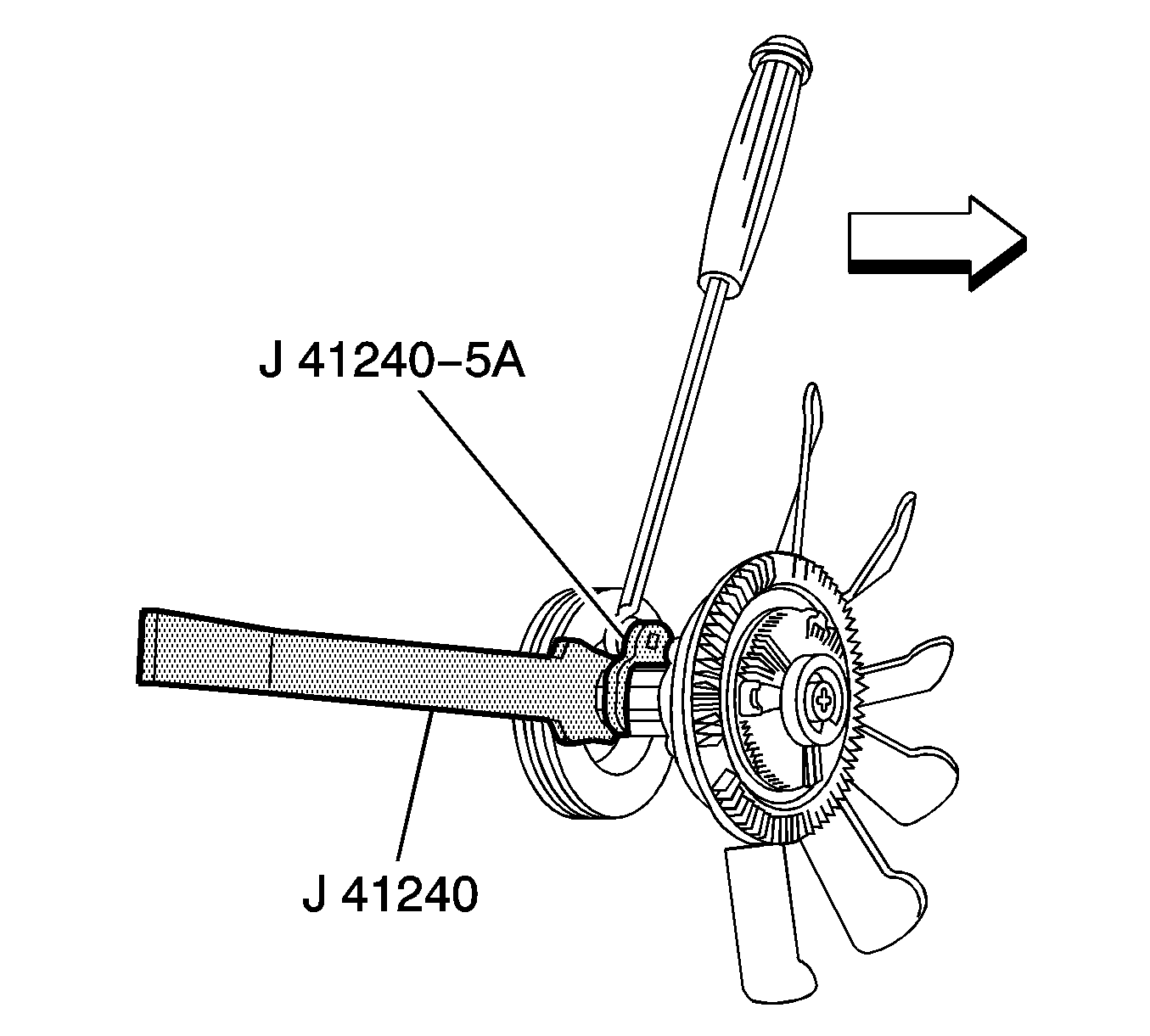

    5. Fig 3: Using Special Tools For Fan Clutch
    GM362333Courtesy of GENERAL MOTORS CORP.
  5. Install the J 46406  and the J 41240-5A  to the fan clutch.

    Tighten:  Tighten the fan clutch nut clockwise to 56 N.m (41 lb ft).

  6. Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - Upper (W/O M74)  or FAN SHROUD REPLACEMENT - Upper (W/M74) .
