Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument panel (IP) bezel.
Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the instrument panel (IP) assembly (3).
Disconnect the harness connector from the traction control switch.

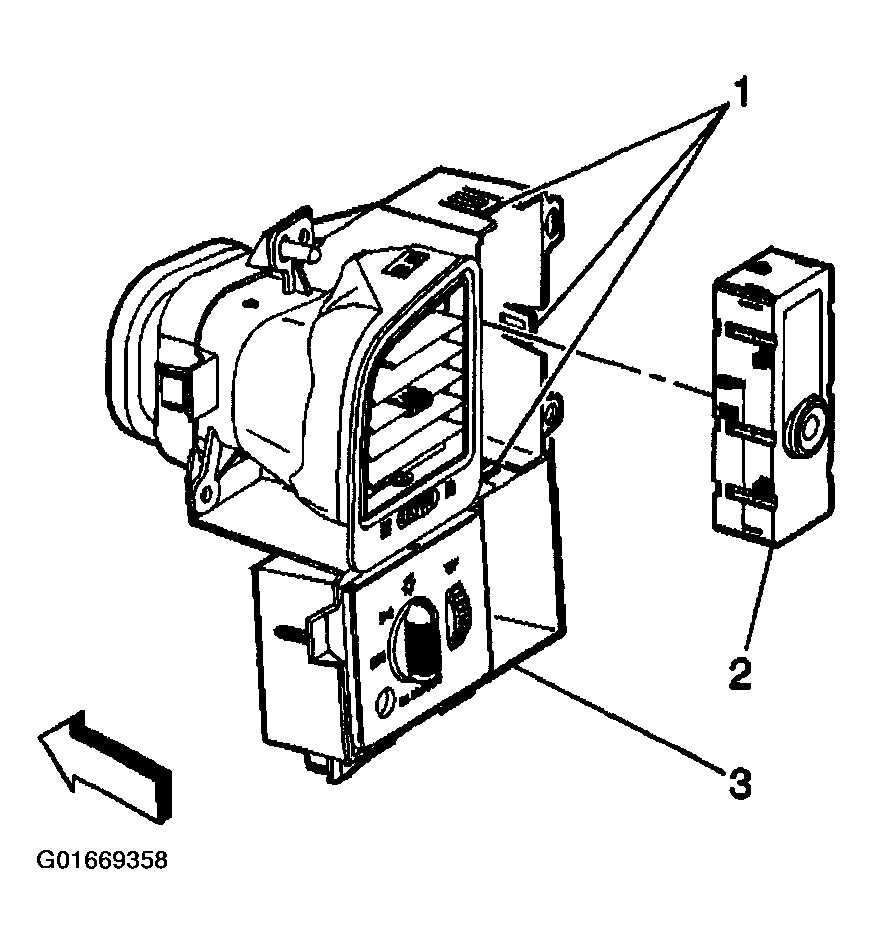

Fig 1: Traction Control Switch
Courtesy of GENERAL MOTORS CORP.
