Cruise Control Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

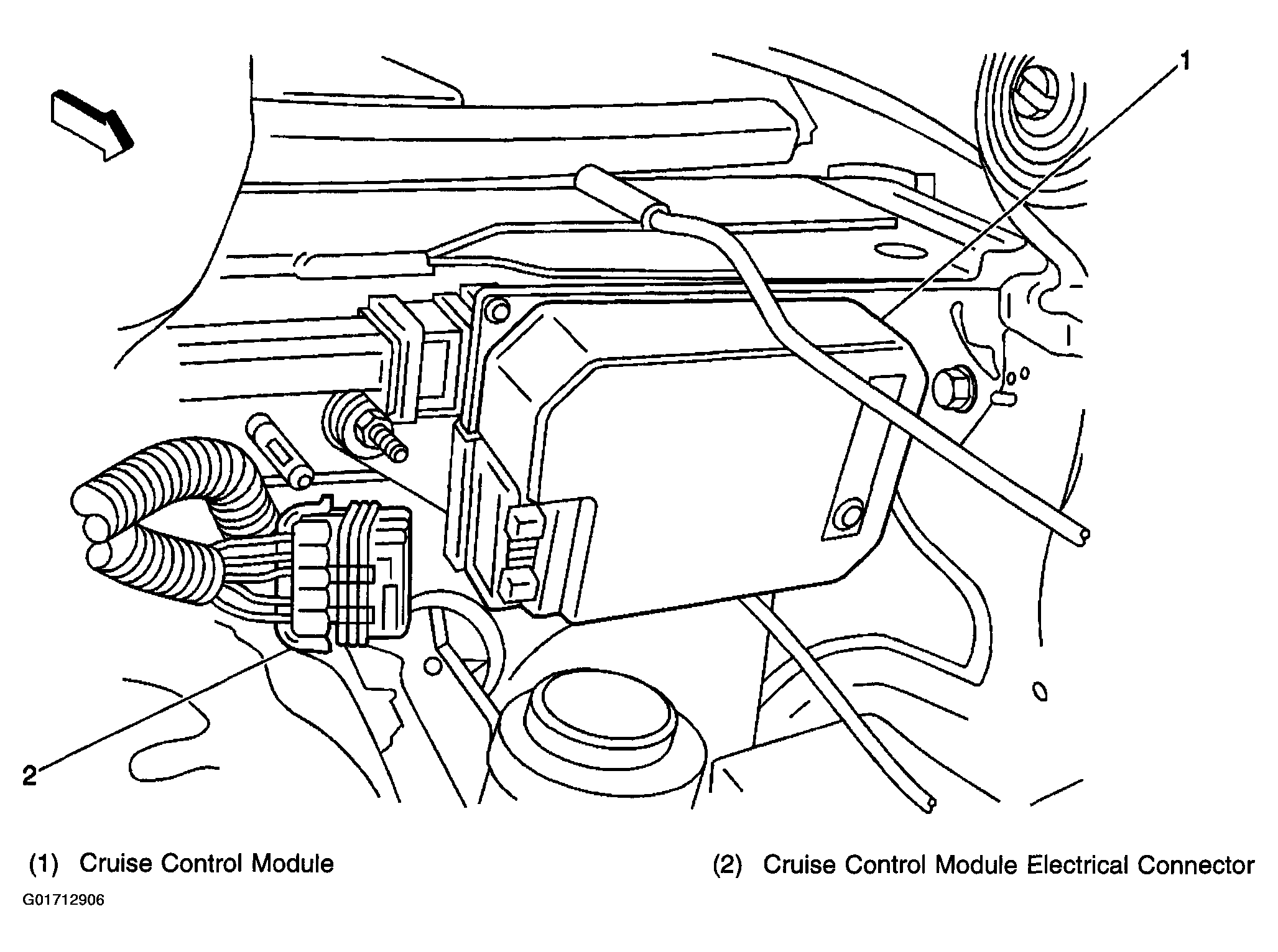

Fig 1: Locating Cruise Control Module (CCM)

Courtesy of GENERAL MOTORS CORP.

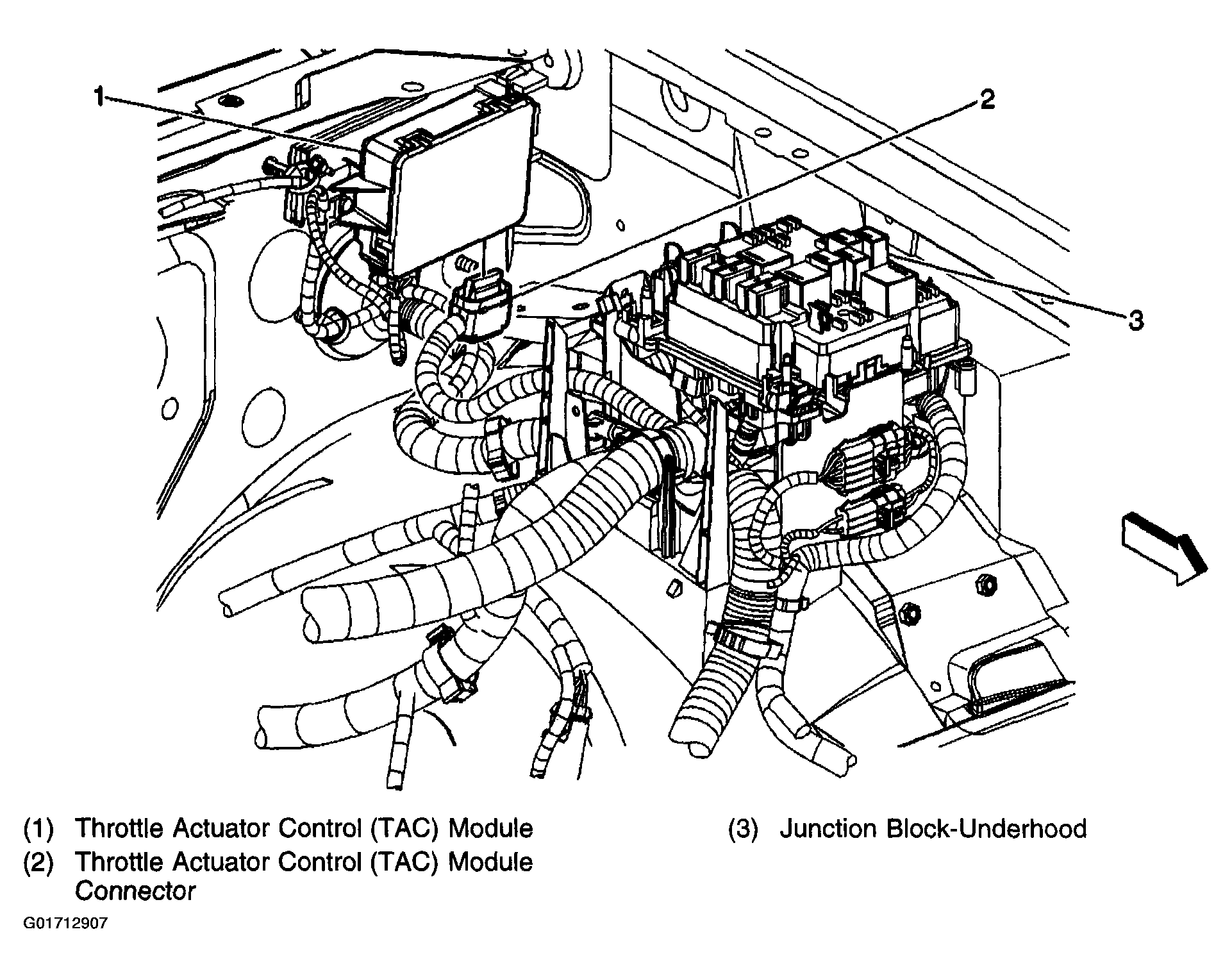

Fig 2: Locating Throttle Actuator Control (TAC) Module & Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

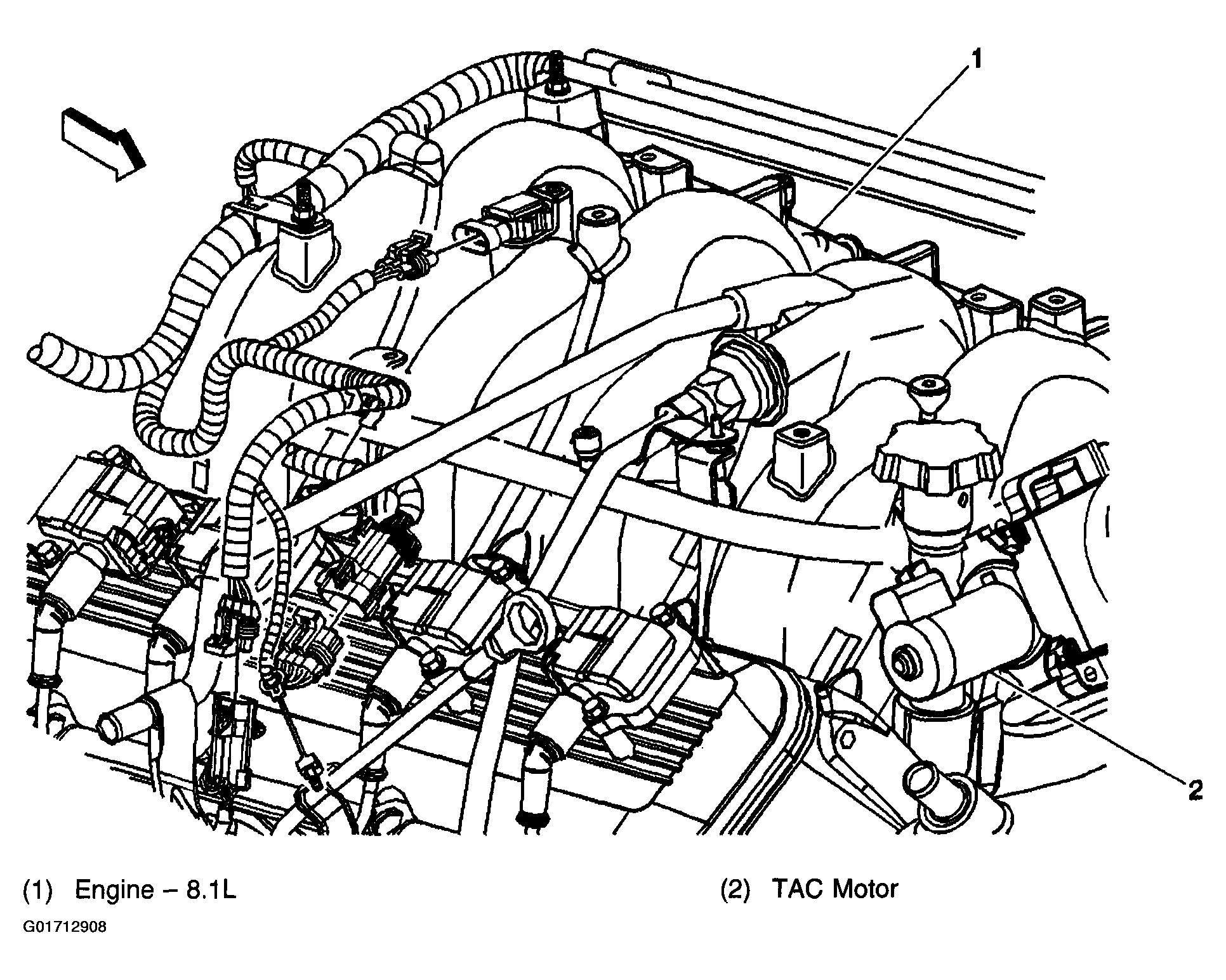

Fig 3: Locating Throttle Actuator Control (TAC) Motor (8.1L)

Courtesy of GENERAL MOTORS CORP.
