Power Door Systems Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

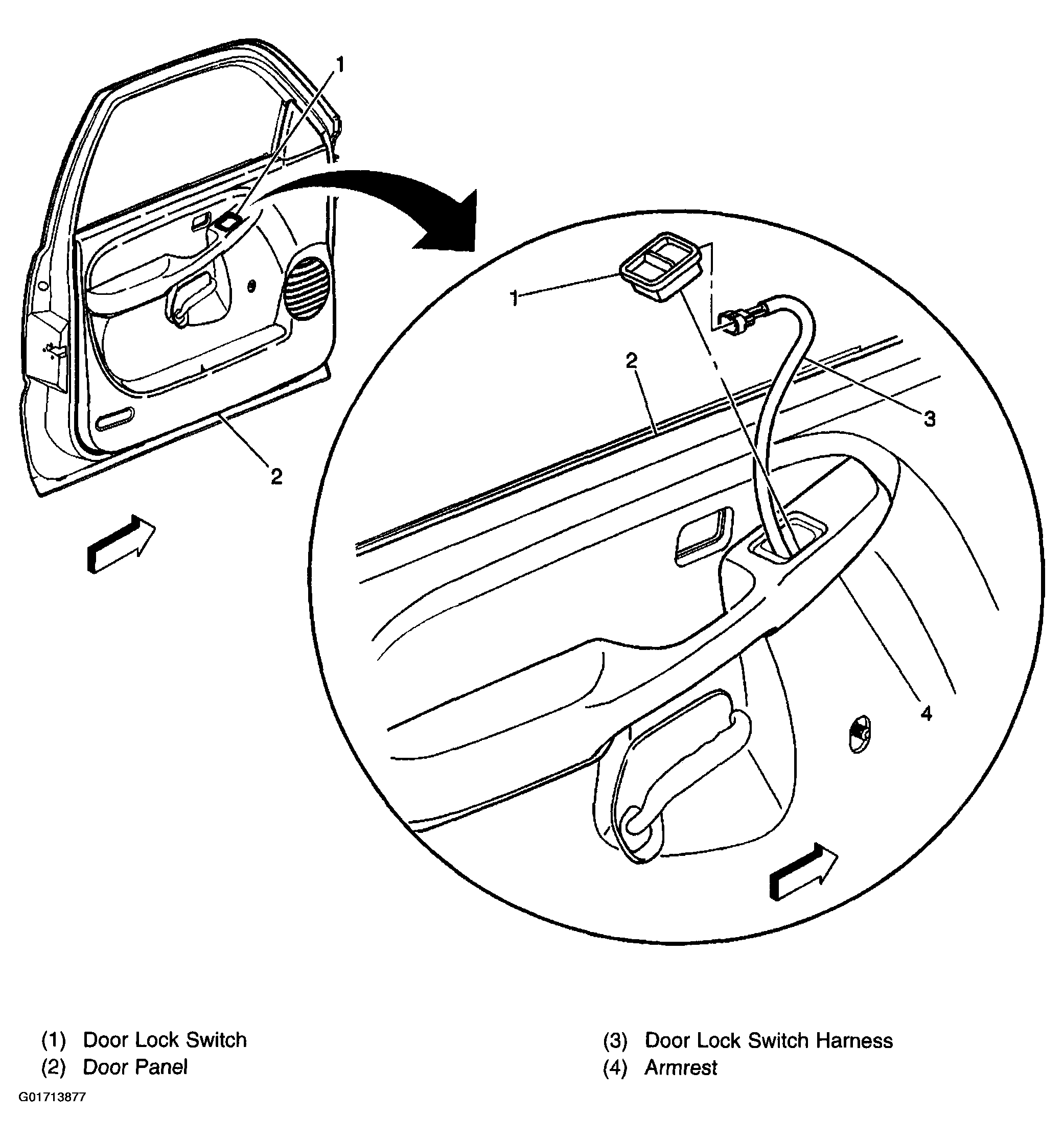

Fig 1: Locating Door Lock Switch (Without Power Windows)

Courtesy of GENERAL MOTORS CORP.

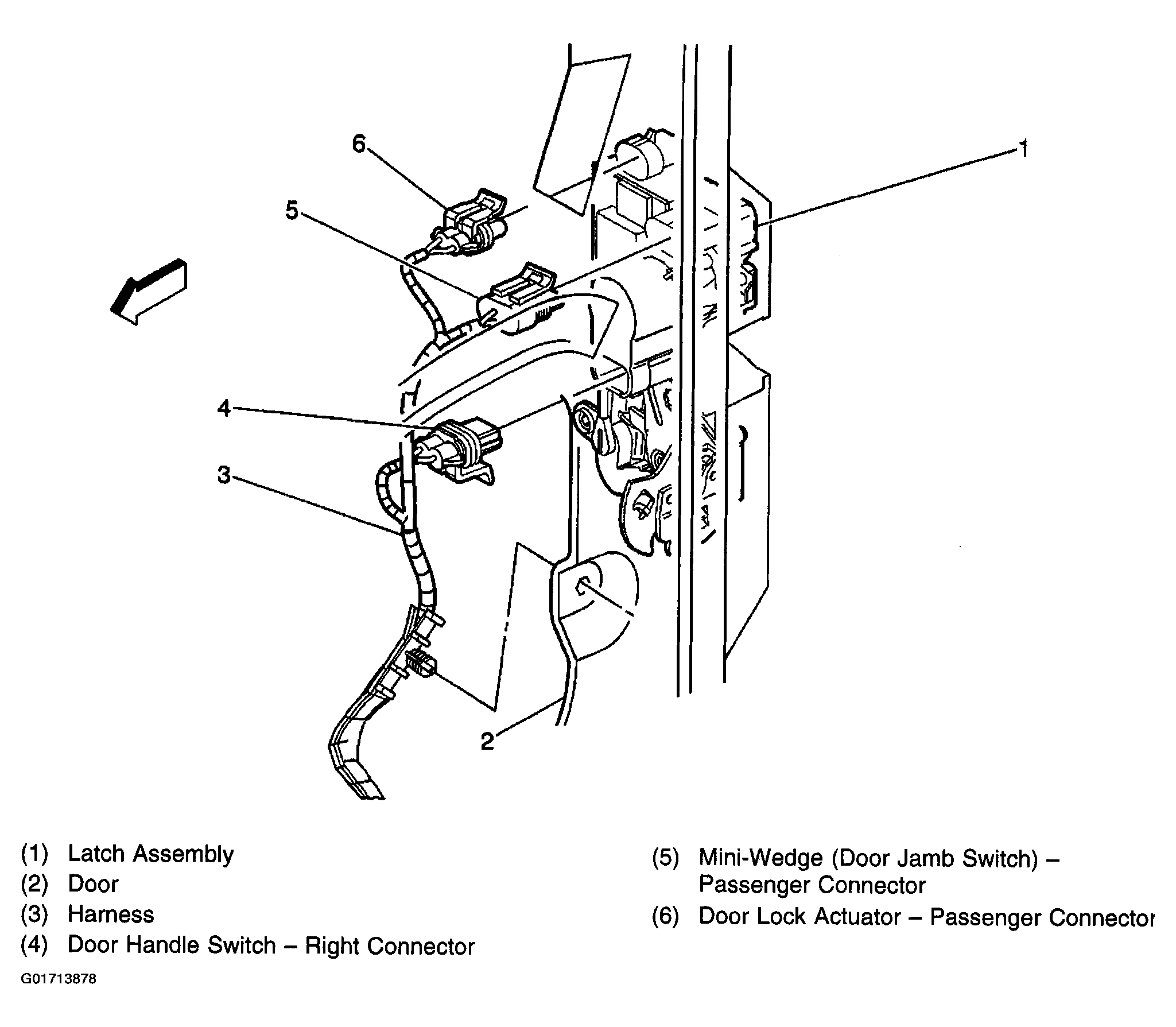

Fig 2: Locating Door Latch Assembly - Passenger Side (Driver Side Similar)

Courtesy of GENERAL MOTORS CORP.

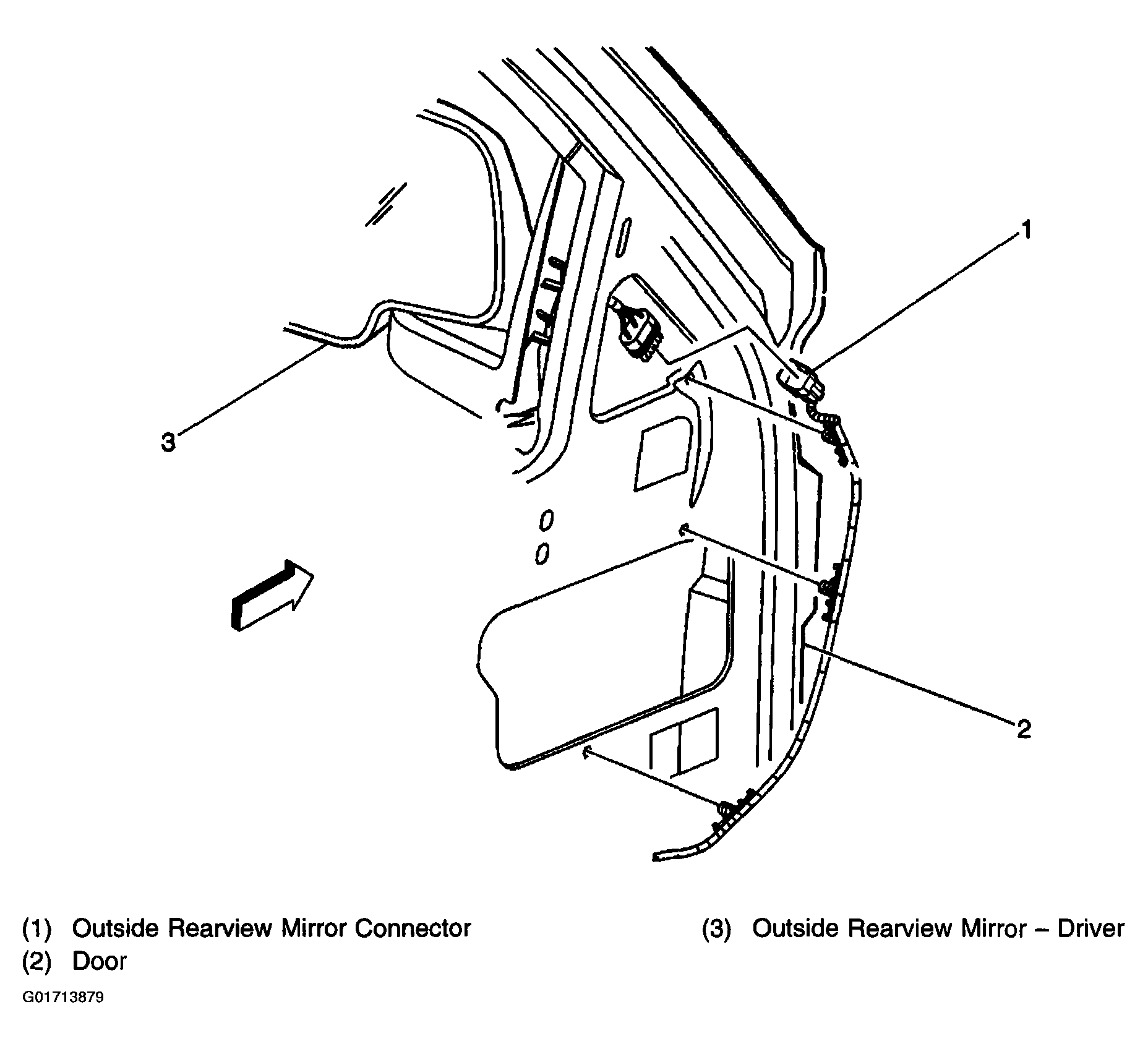

Fig 3: Locating Outside Rearview Mirror - Driver Side (Passenger Side Is Opposite)

Courtesy of GENERAL MOTORS CORP.

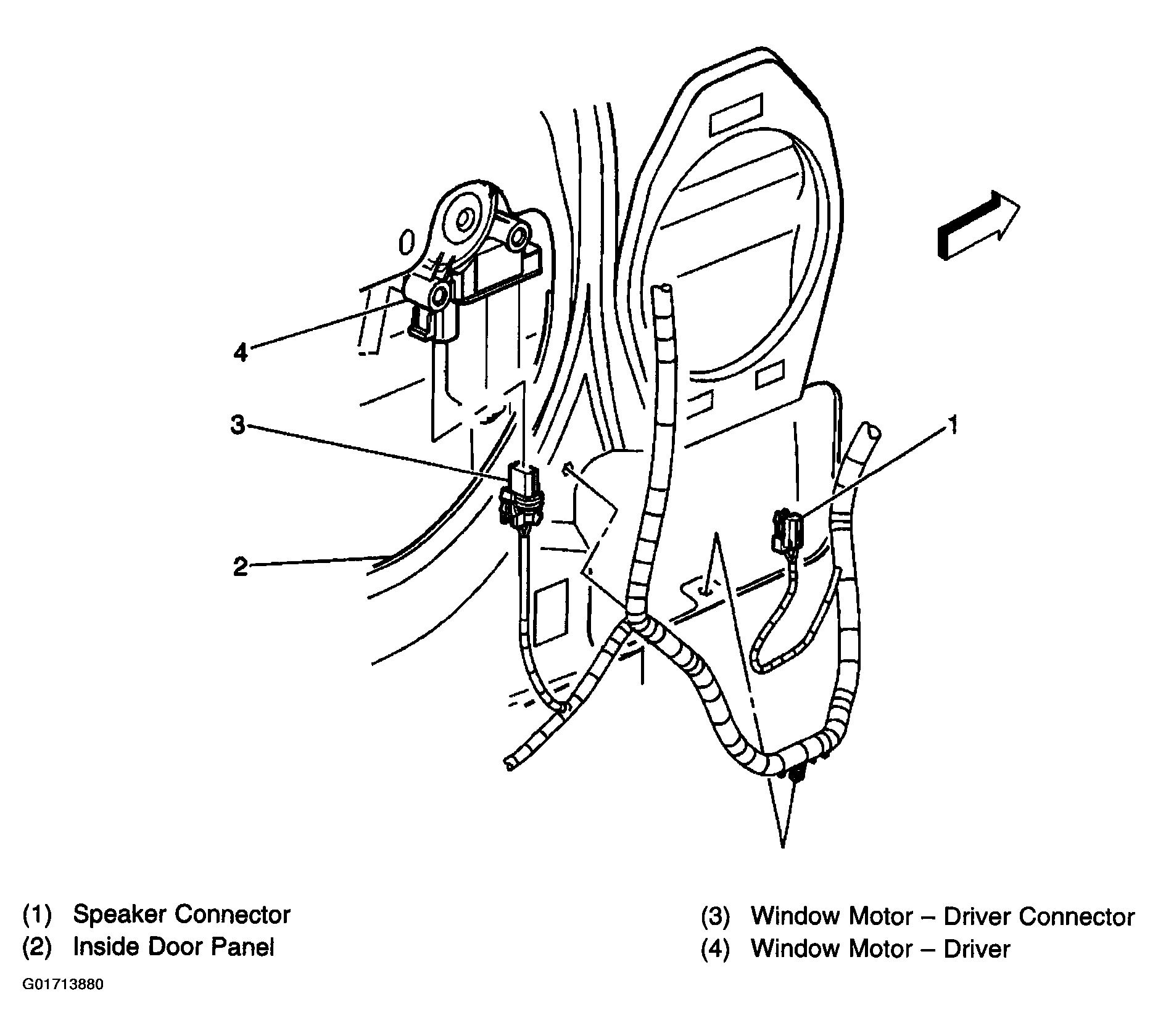

Fig 4: Locating Window Motor - Driver Side (Passenger Side Is Opposite)

Courtesy of GENERAL MOTORS CORP.

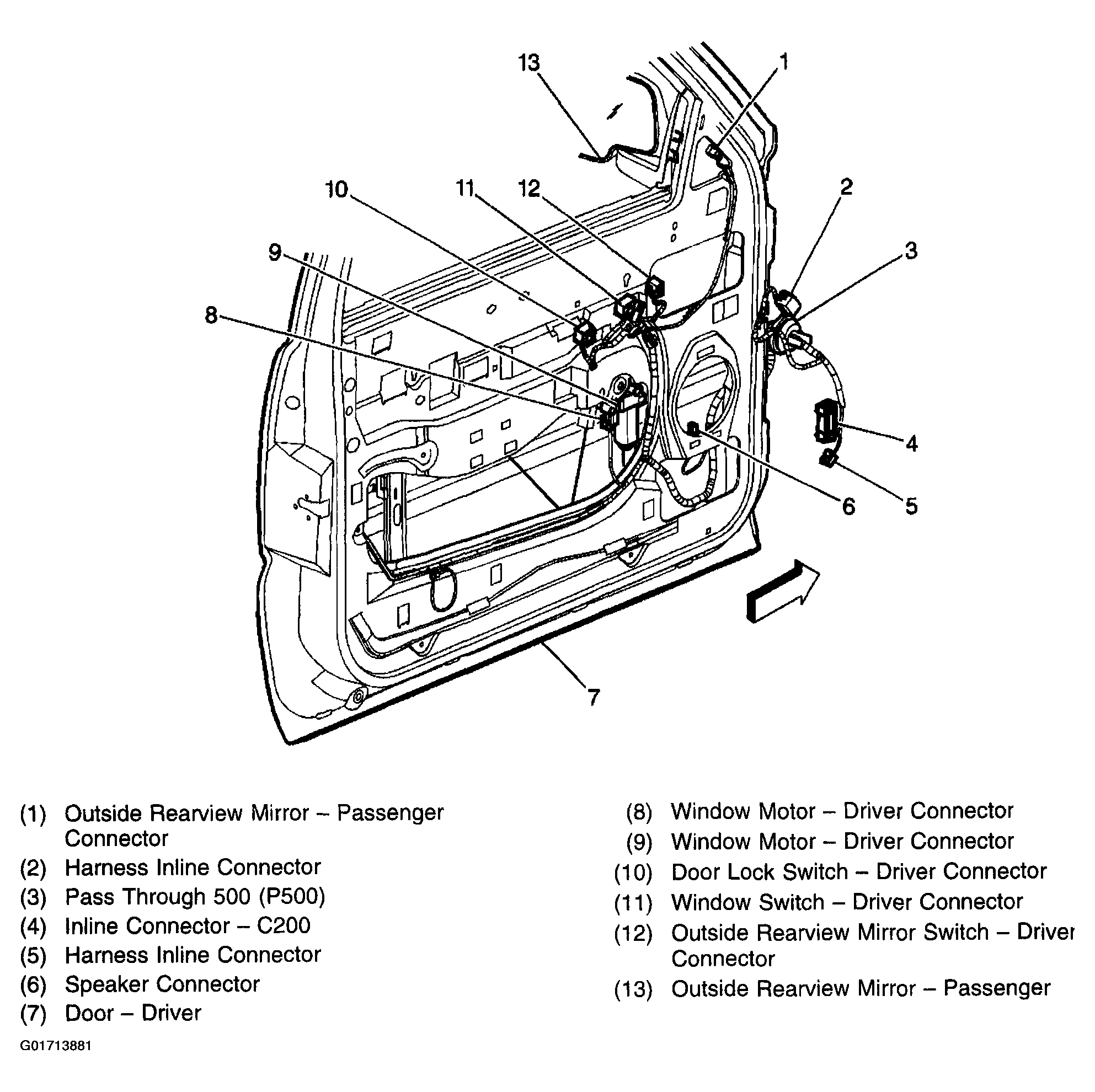

Fig 5: Locating Left Door Components (Right Door Similar)

Courtesy of GENERAL MOTORS CORP.

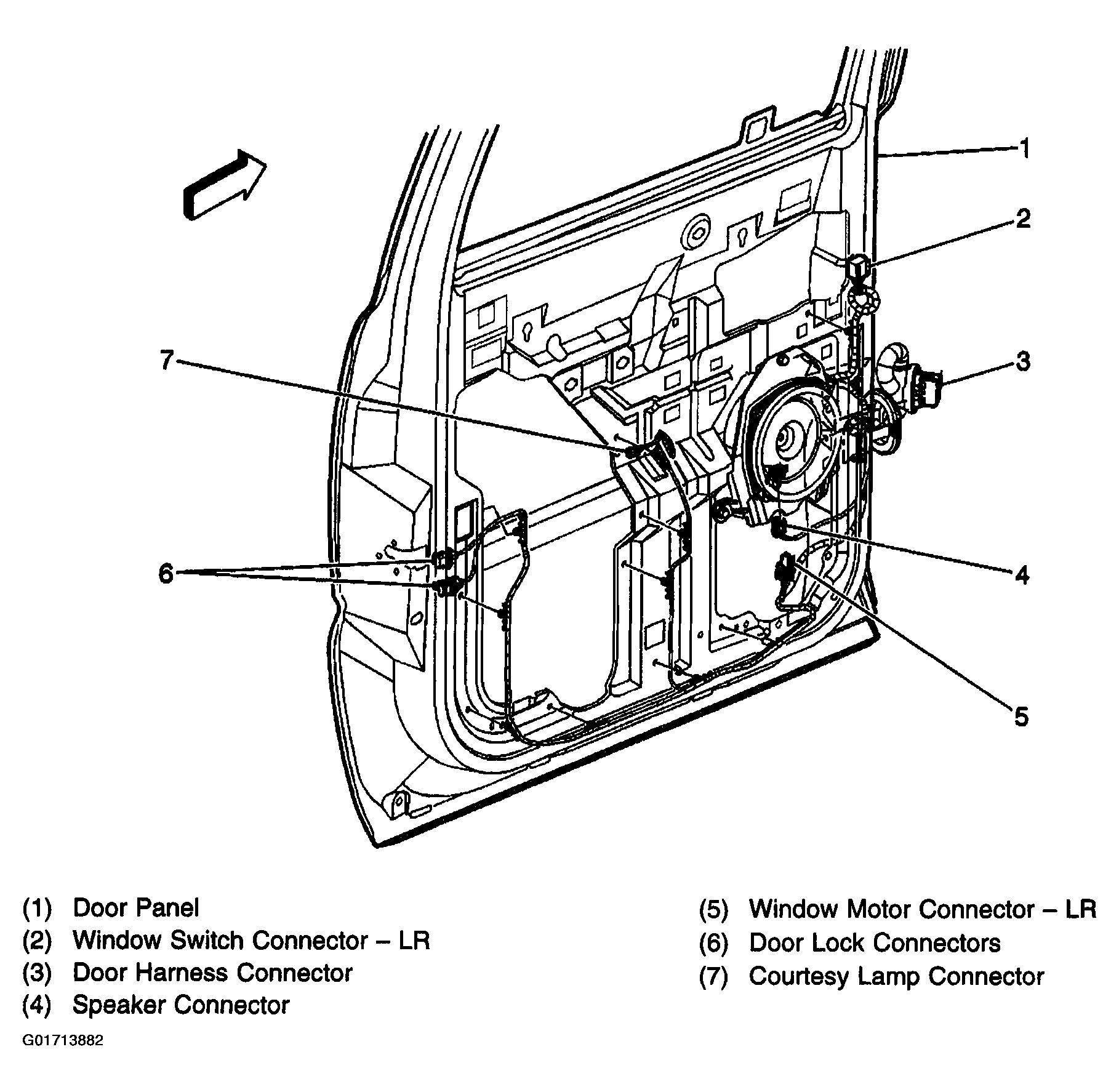

Fig 6: Locating Left Rear Door Components (Right Rear Door Similar)

Courtesy of GENERAL MOTORS CORP.
