Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Remove the seat cushion. Refer to Seat Cushion Frame Replacement - Front .
  3. Disconnect the harness connectors (2).
  4. Remove the memory module retaining screws (1).

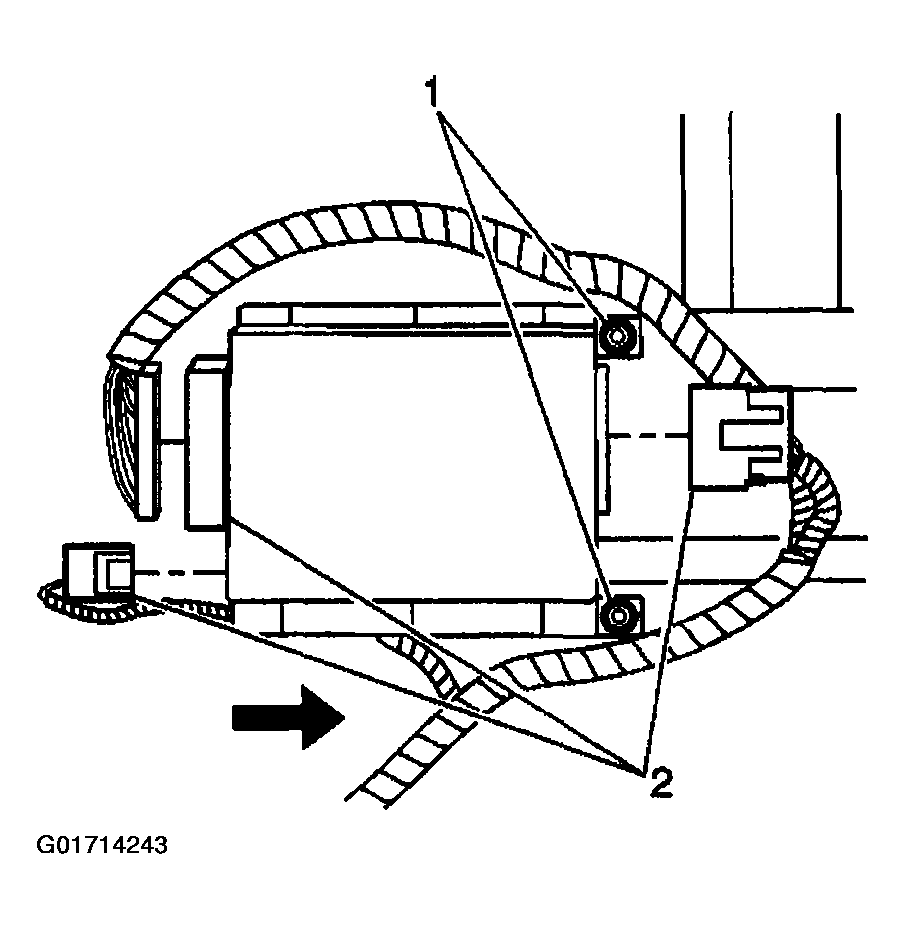

    Fig 1: Locating Memory Module Assembly
    G01714243Courtesy of GENERAL MOTORS CORP.
  5. Slide the module out.
  6. Remove the module from the vehicle.

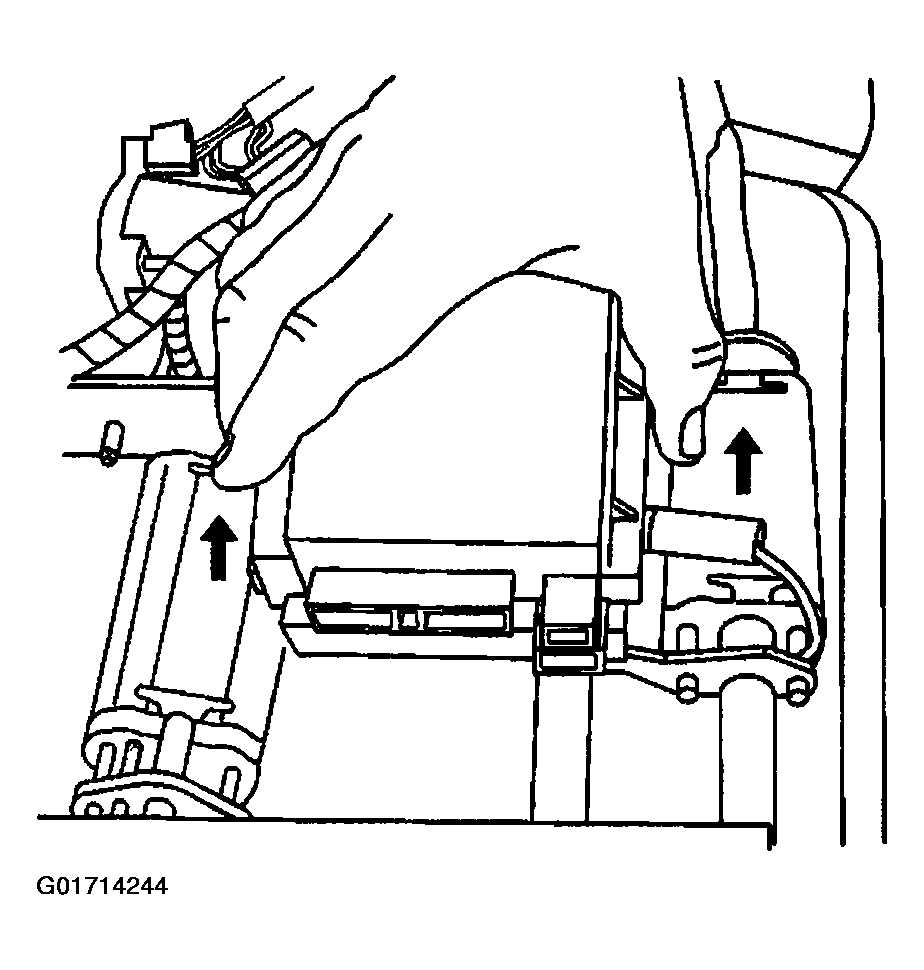

    Fig 2: Removing Memory Module Assembly
    G01714244Courtesy of GENERAL MOTORS CORP.
