WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

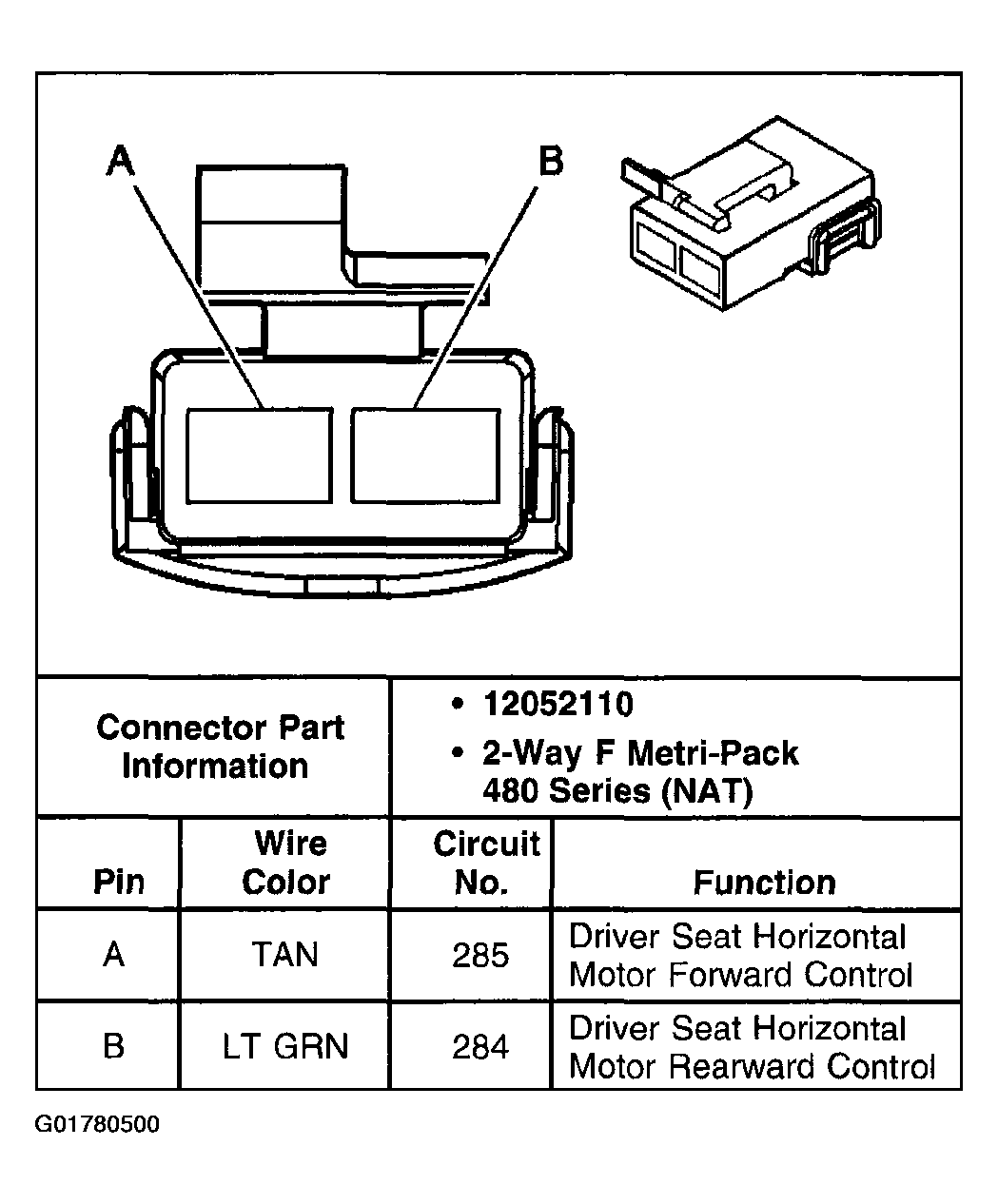

Fig 1: Horizontal Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

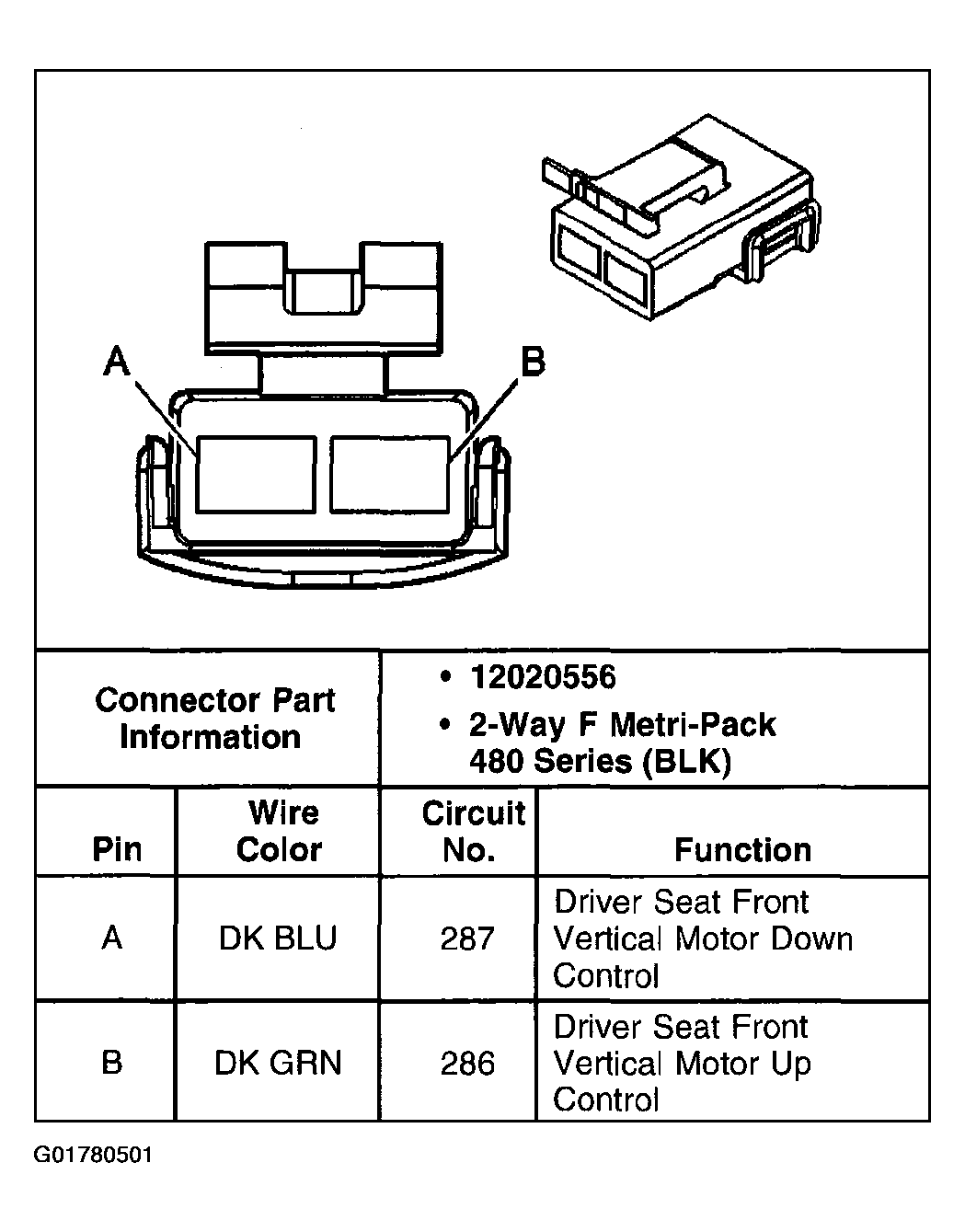

Fig 2: Front Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

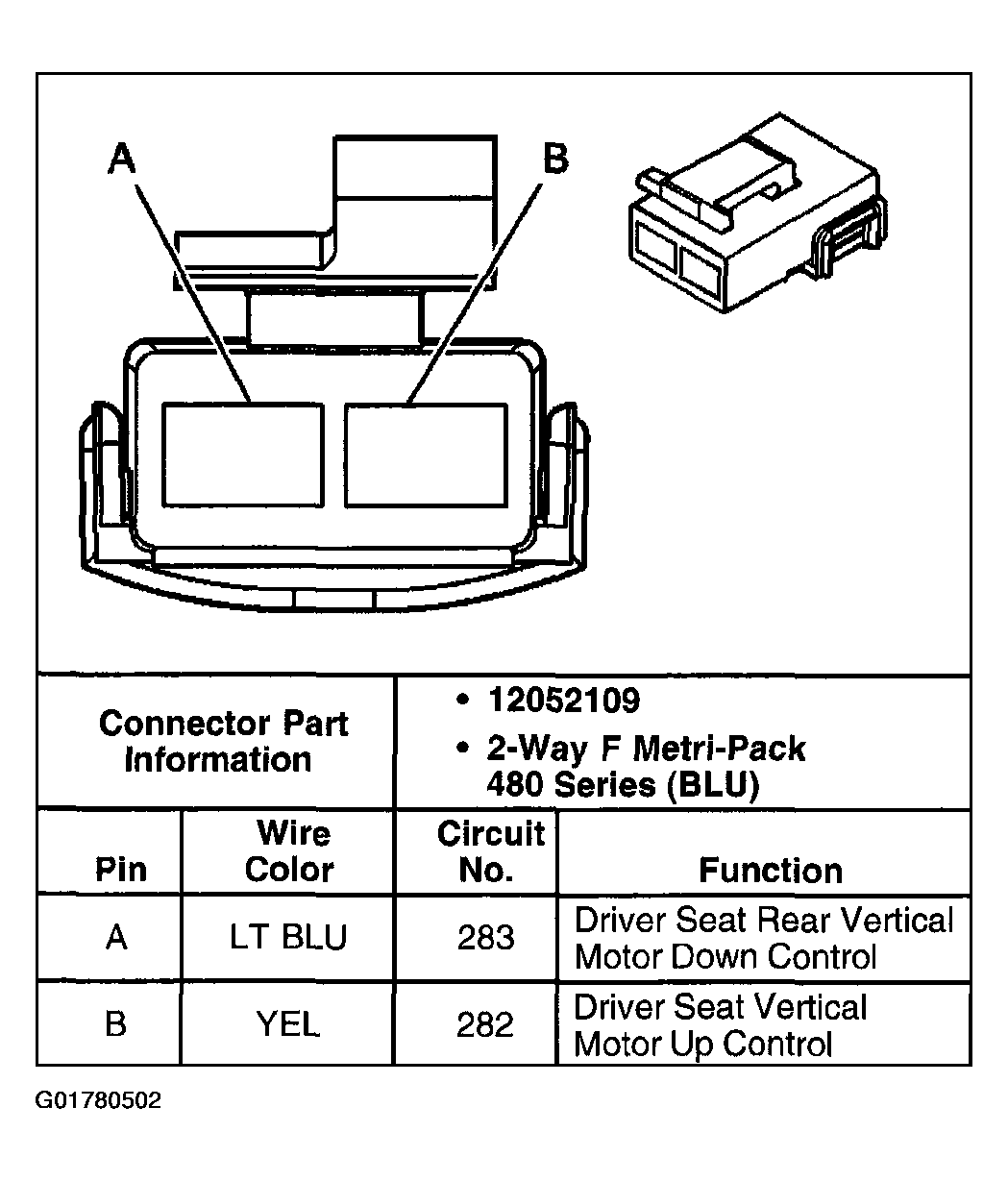

Fig 3: Rear Vertical Motor Connector End View
Courtesy of GENERAL MOTORS CORP.

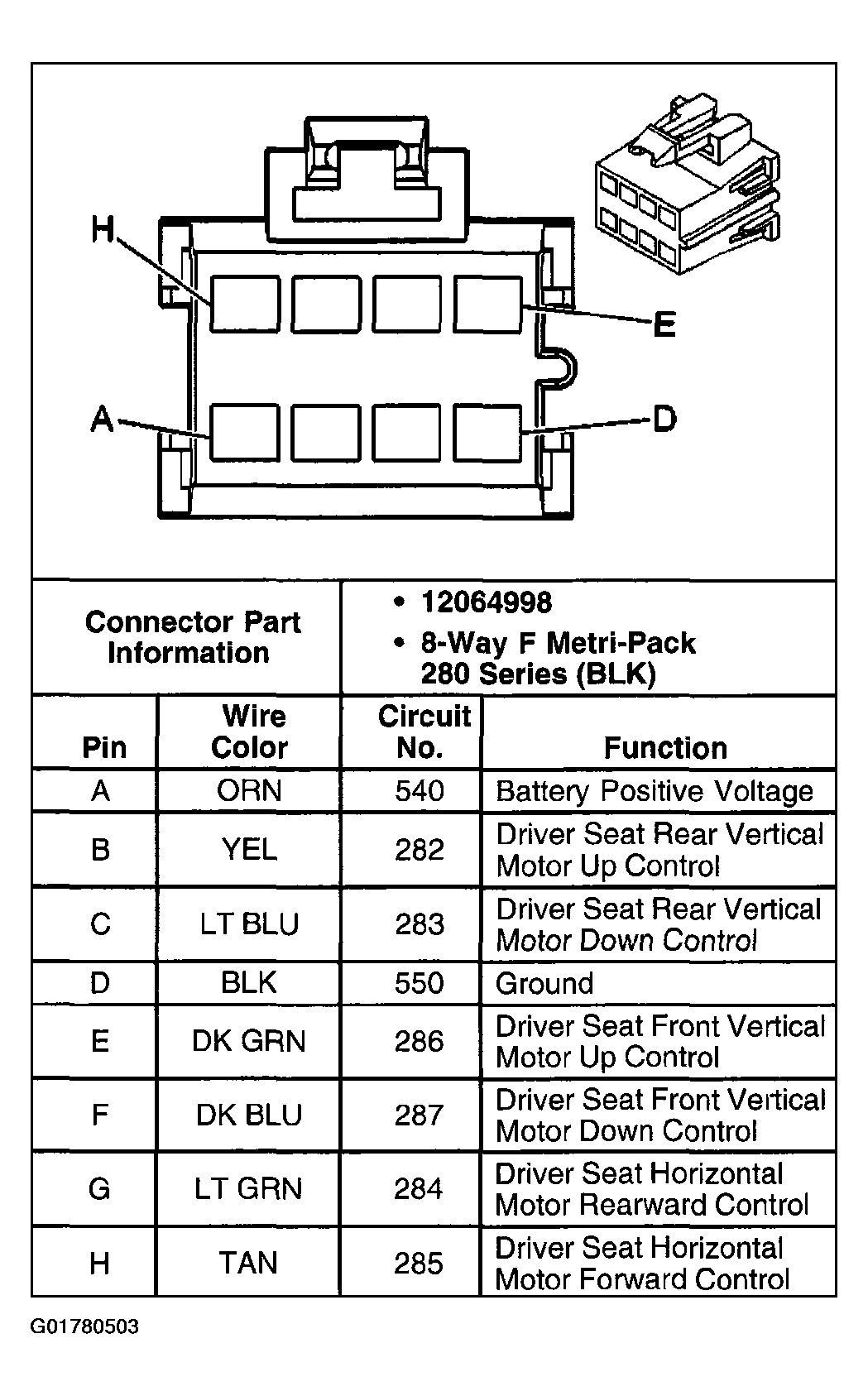

Fig 4: Seat Adjuster Switch-Driver Connector End View
