WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

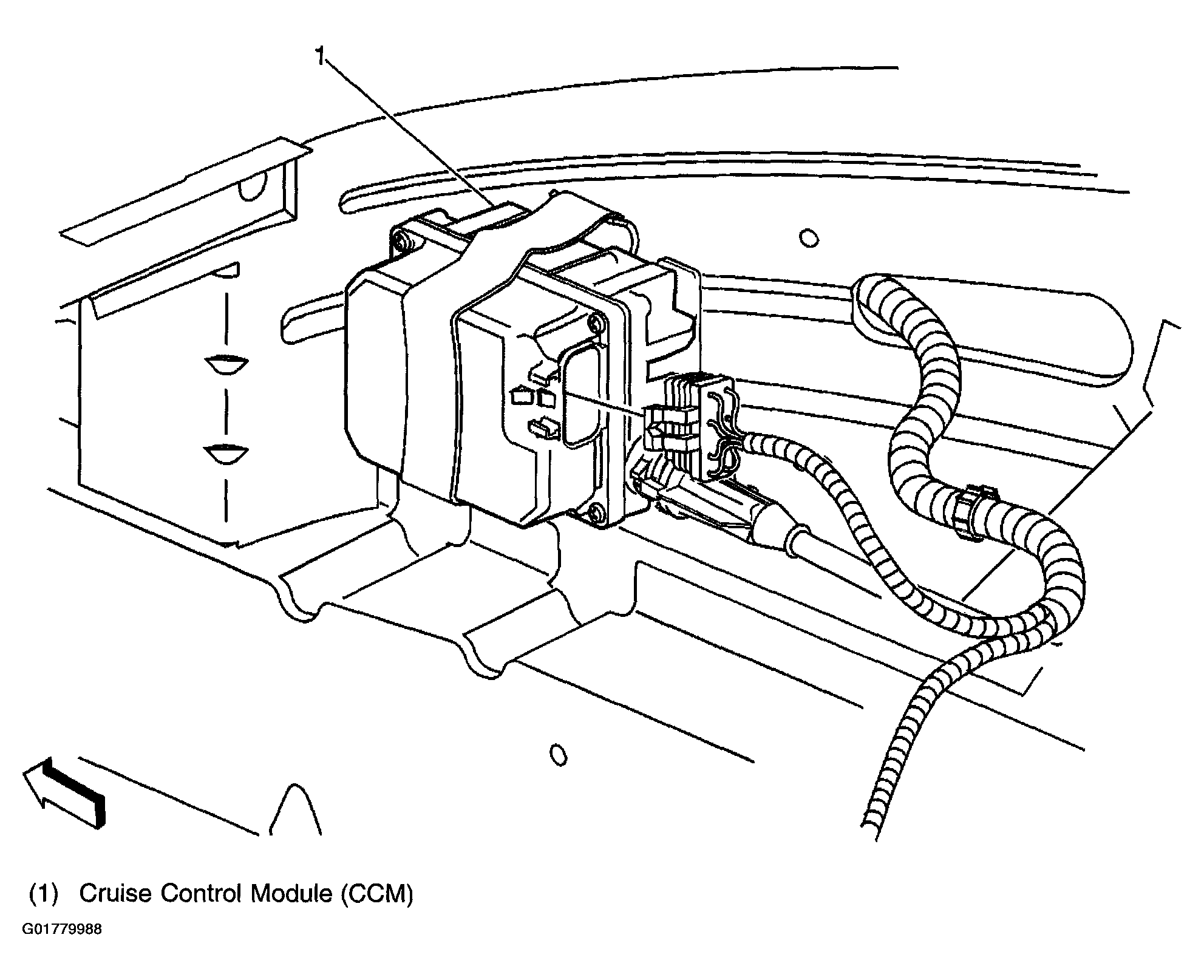

Fig 1: Identifying Right Side Of Engine Compartment Component View
Courtesy of GENERAL MOTORS CORP.

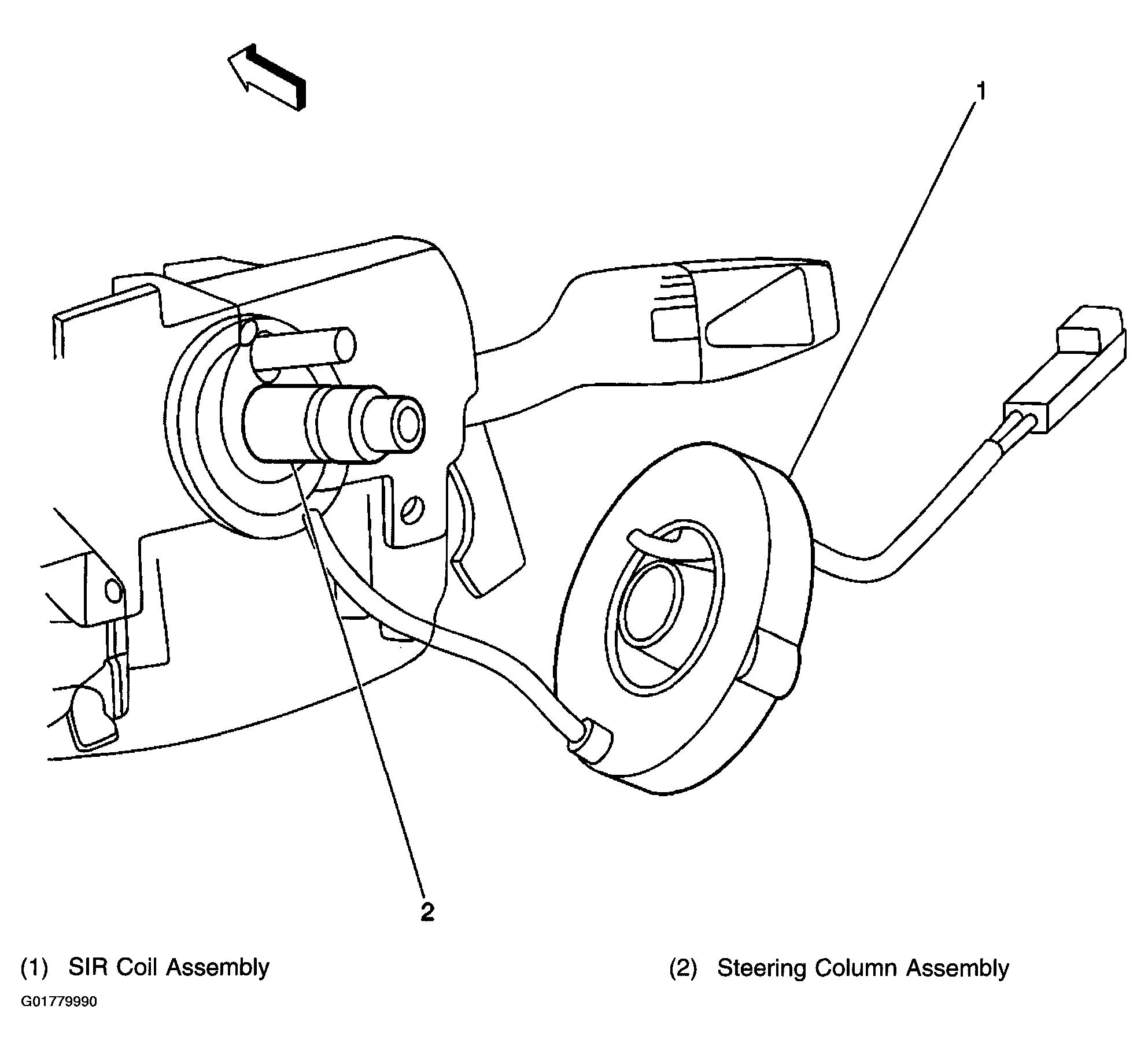

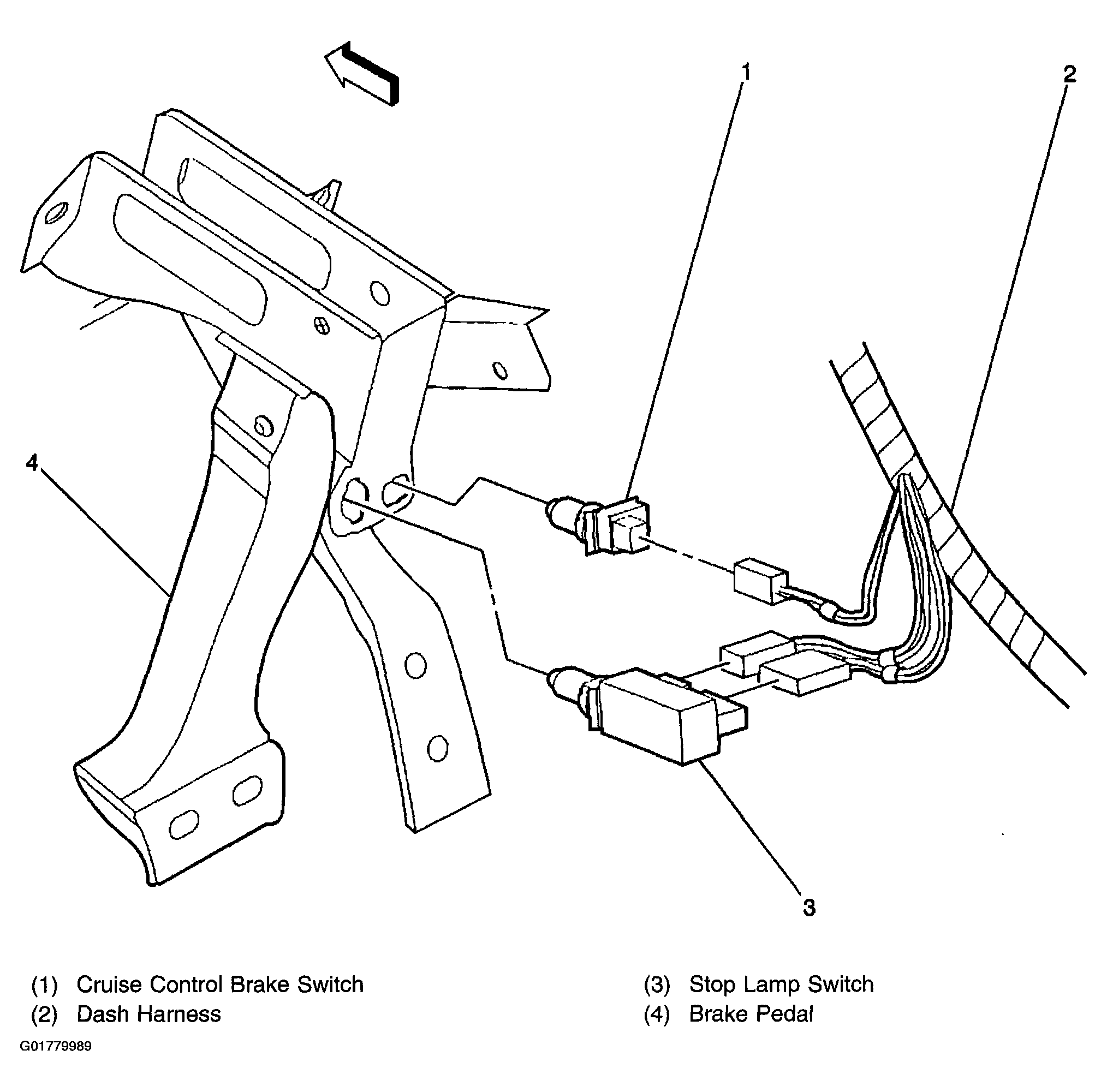

Fig 2: Identifying Below Left Side Of IP, Near Steering Column Component View
