Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable (3) to the retaining clips (1).

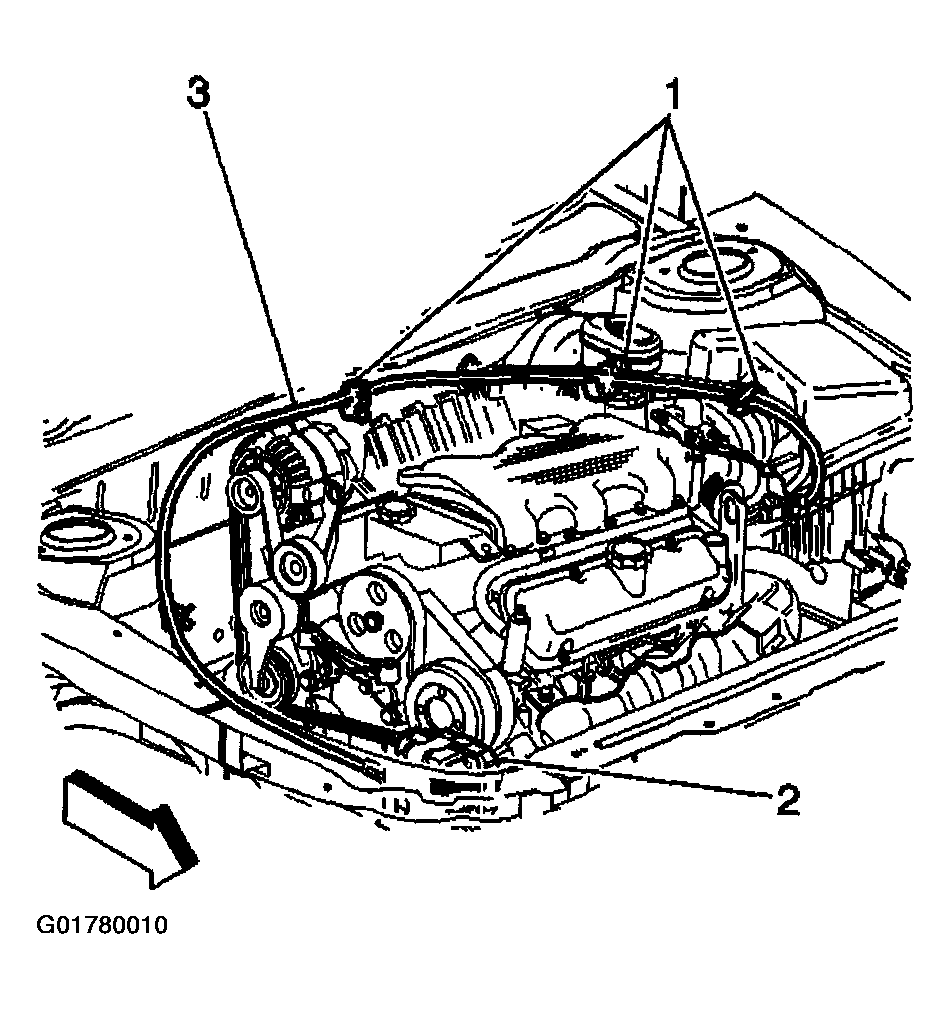

    Fig 1: Installing Cruise Control Cable
    G01780010Courtesy of GENERAL MOTORS CORP.
  2. Install the cable to the ribbon.

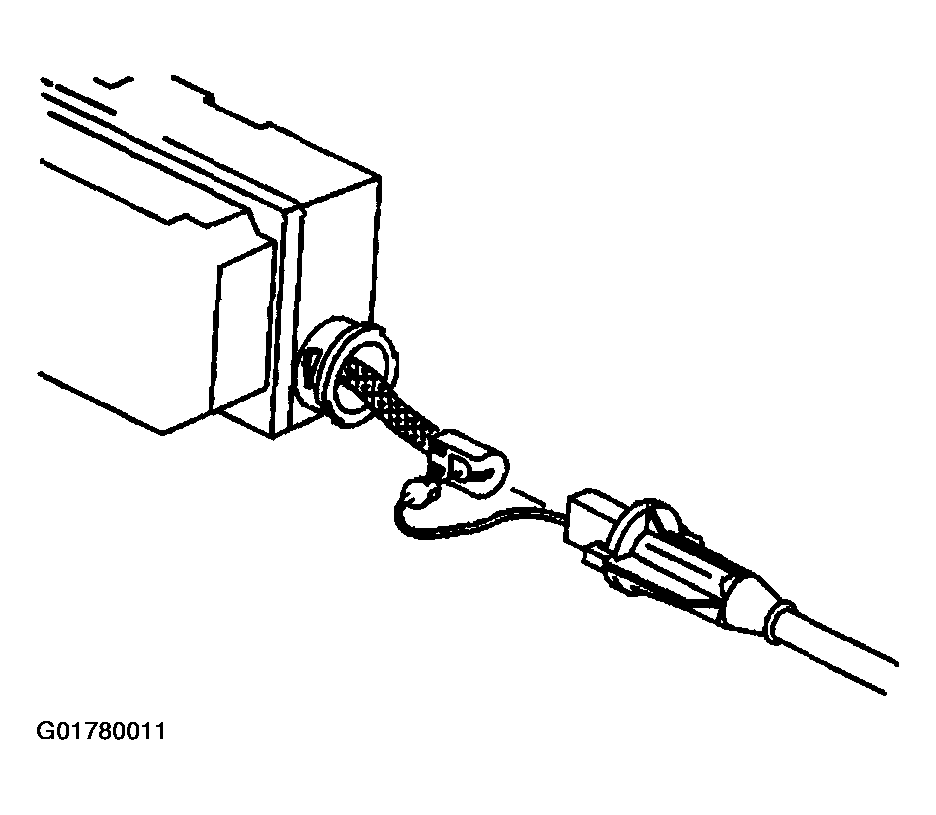

    Fig 2: Installing Cruise Control To Ribbon
    G01780011Courtesy of GENERAL MOTORS CORP.

    Important  : Ensure that the ribbon does not become twisted when connecting the cable to the module.

  3. Connect the cable assembly to the module by turning the cable assembly 1/4 turn clockwise.

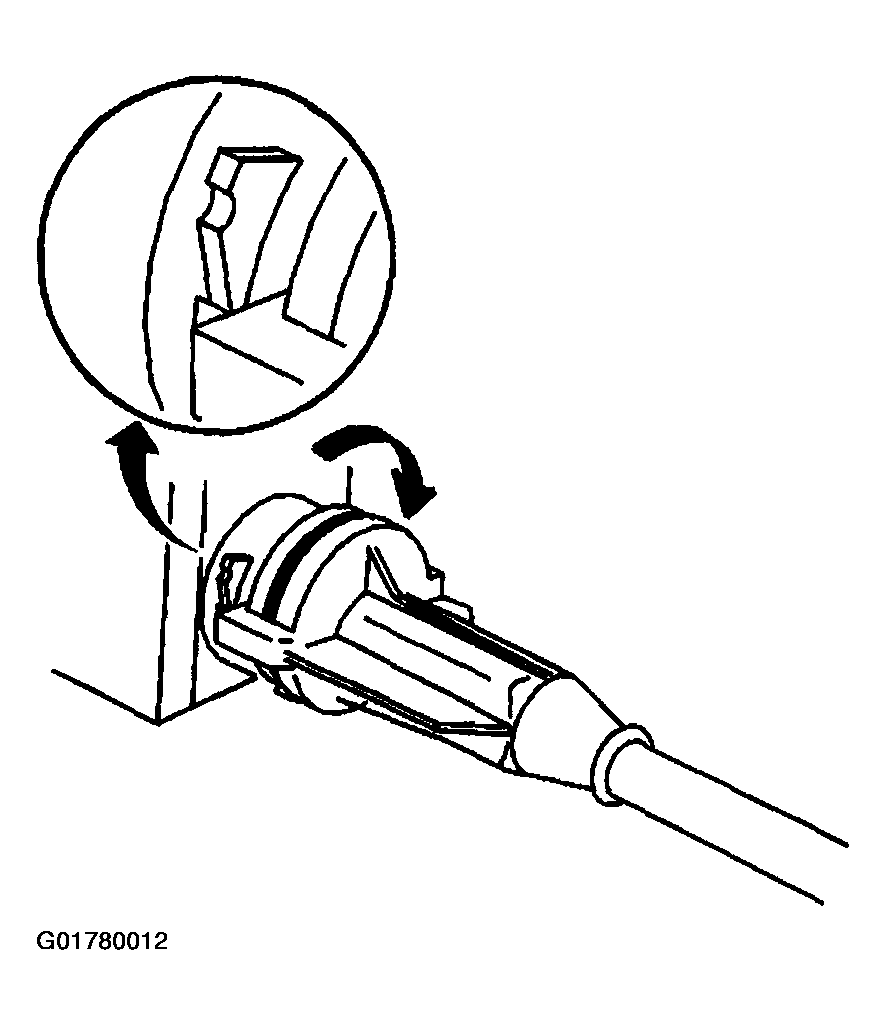

    Fig 3: Connecting Cruise Control Cable Assembly To Module
    G01780012Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable tab (5) to the throttle body cam (6).
  5. Align the cruise control cable fitting (4) to the throttle body bracket (1). Snap the fitting into place. Ensure that the fitting is retained.
  6. Close the hood.

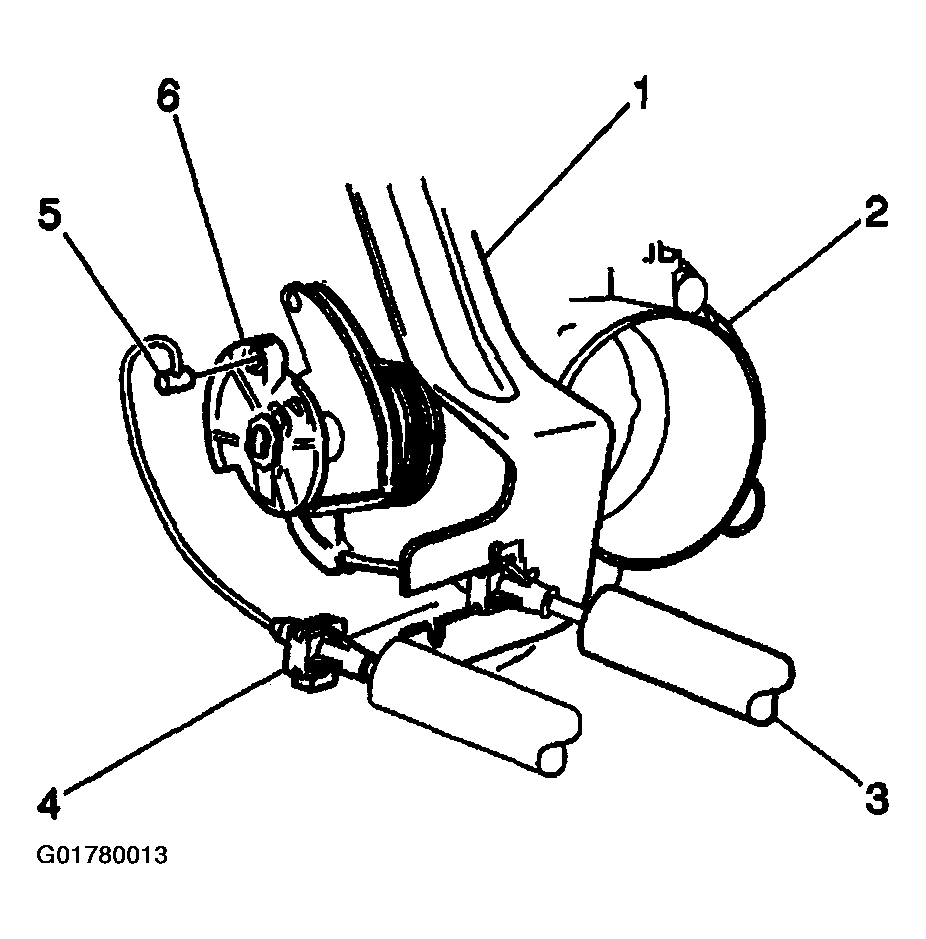

    Fig 4: Connecting Cruise Control Cable
    G01780013Courtesy of GENERAL MOTORS CORP.
