Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.

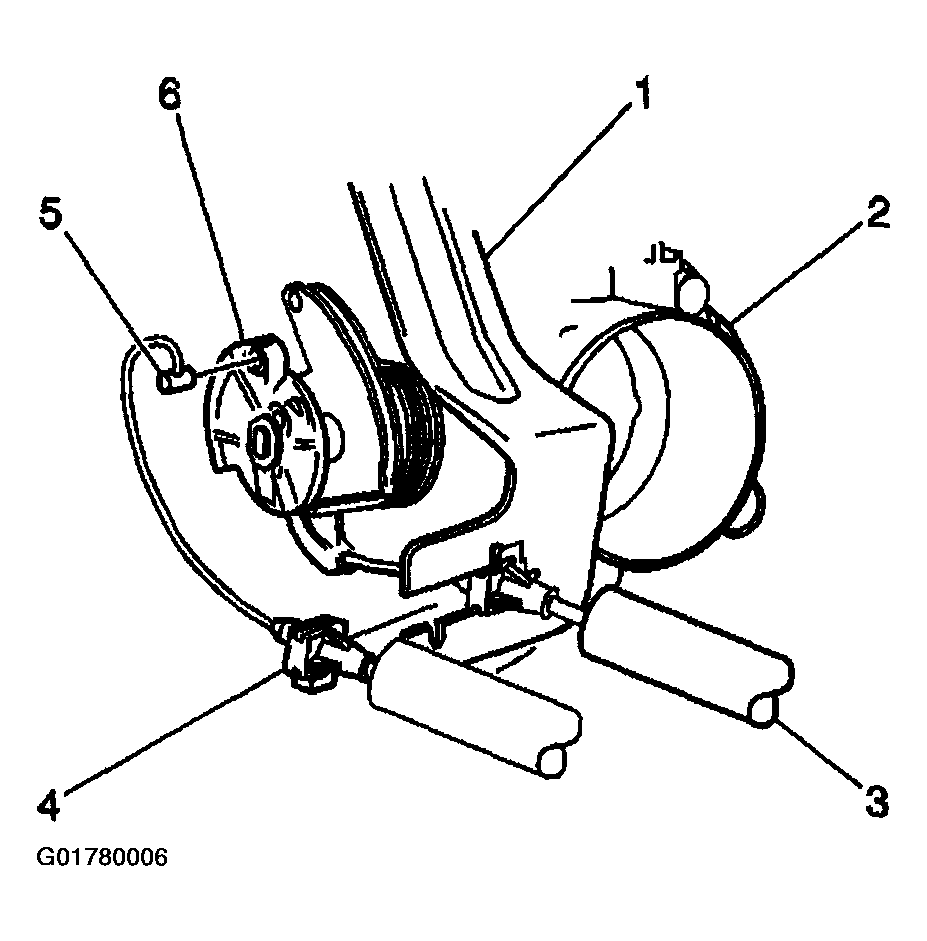

Disconnect the cruise control cable tab (5) from the throttle body cam (6). Rotate the throttle to 1A open throttle in order to release the tab (5).
In order to release the cable (4), push the locating fitting inward and pull the unit free from the throttle bracket (1).

Fig 1: Releasing Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.

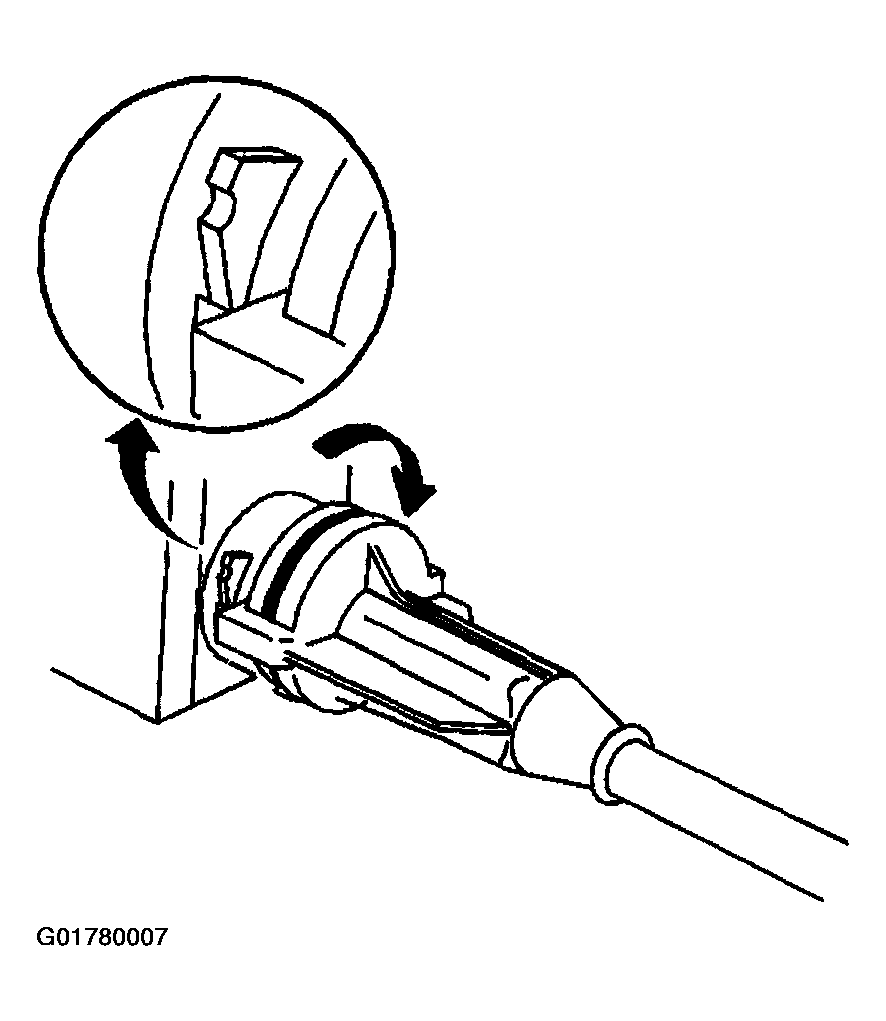

Remove the cable assembly from the module by turning the cable assembly 1/4 turn counterclockwise.

Fig 2: Removing Cruise Control Assembly From Module
Courtesy of GENERAL MOTORS CORP.

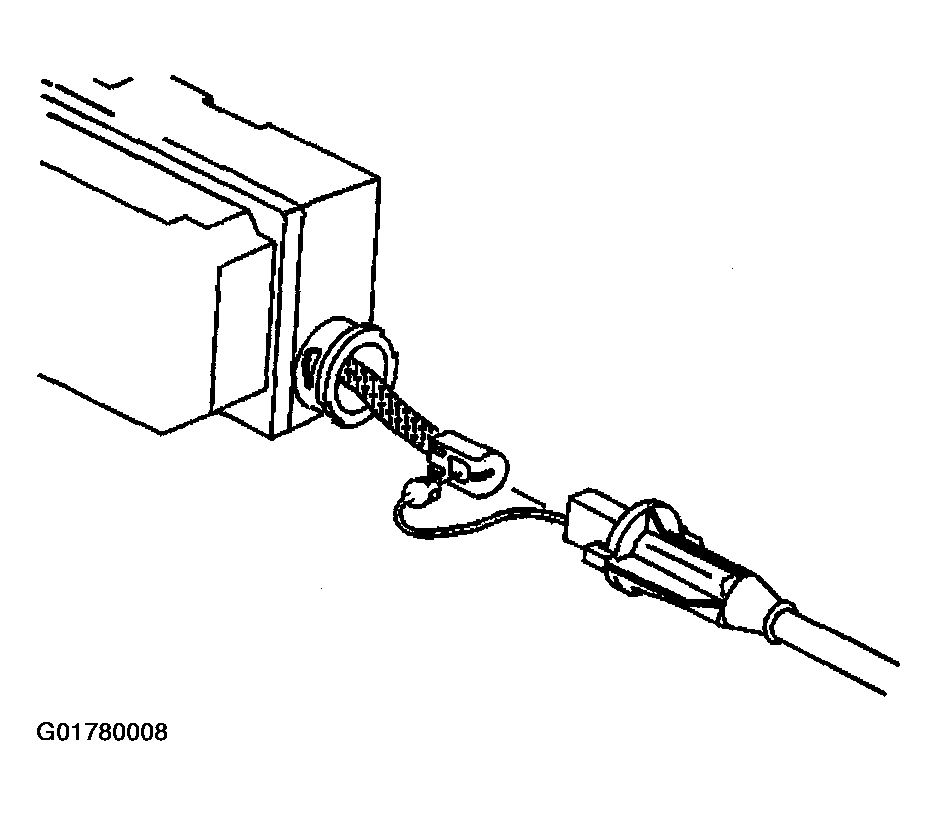

Remove the cable from the ribbon.

Fig 3: Removing Cruise Control From Ribbon
Courtesy of GENERAL MOTORS CORP.

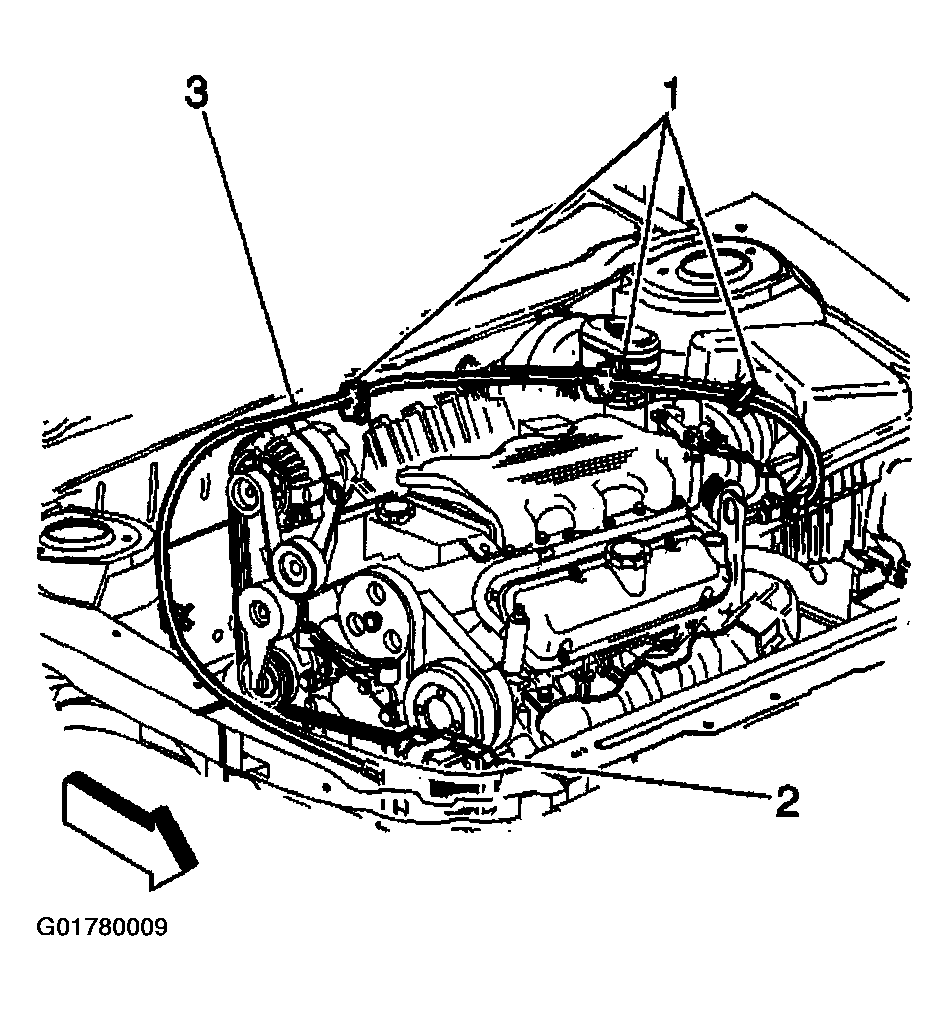

Remove the cable (3) from this retaining clips (1).

Fig 4: Removing Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
