Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the module assembly to the mounting bracket.
  2. Connect the electrical connector to the module.

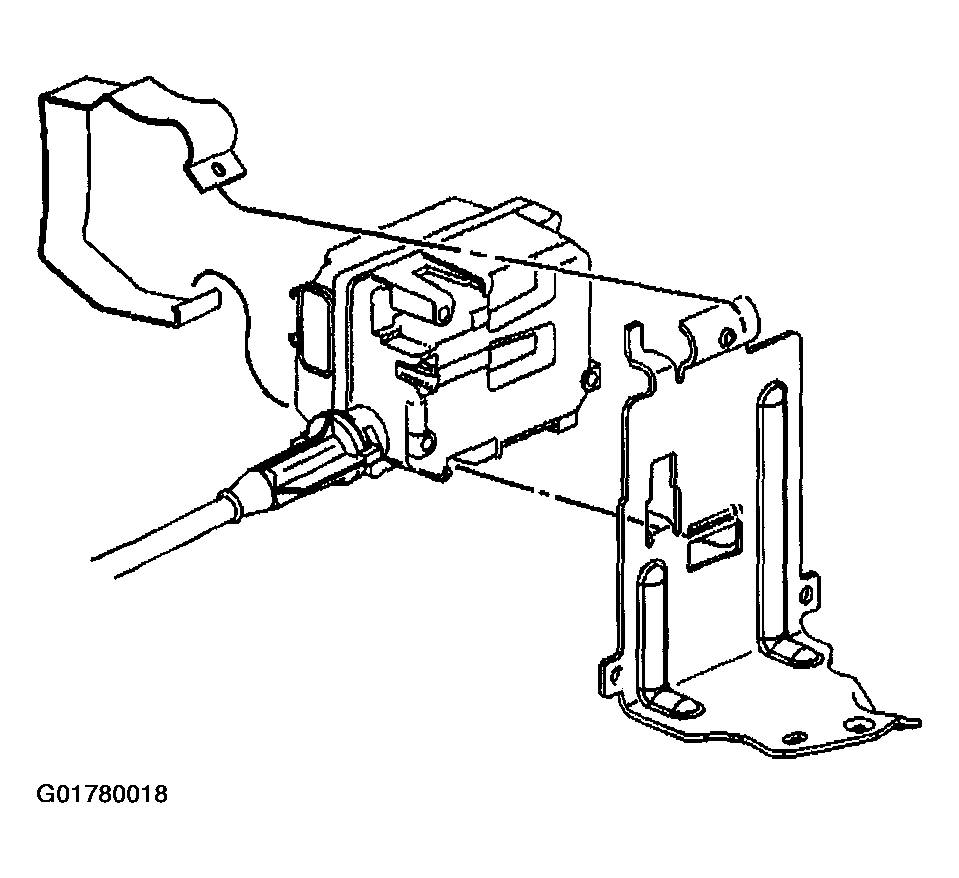

    Fig 1: Installing Cruise Control Module
    G01780018Courtesy of GENERAL MOTORS CORP.
  3. Connect the cruise control cable to the module ribbon.

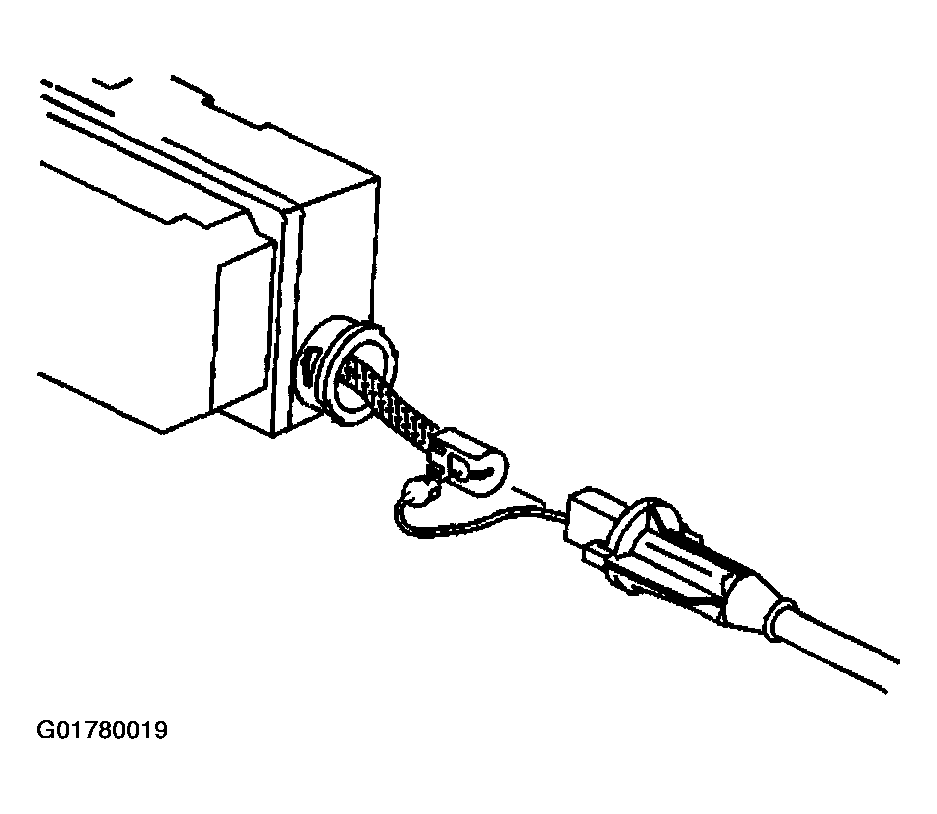

    Fig 2: Connecting Cruise Control Cable To Ribbon
    G01780019Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable to the module assembly by turning the cable assembly 1/4 turn clockwise.

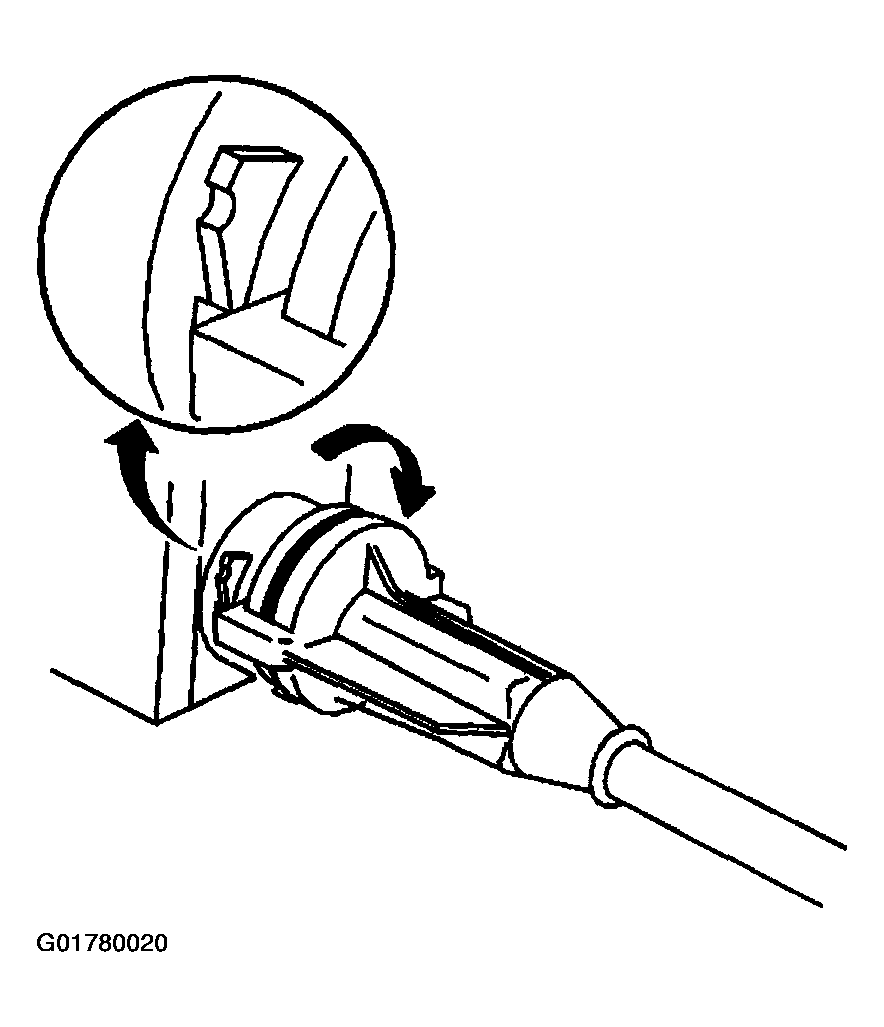

    Fig 3: Installing Cruise Control Cable To Module
    G01780020Courtesy of GENERAL MOTORS CORP.
  5. Install the cruise control cable tab (5) to the throttle body cam (6).
  6. Align the cruise control cable fitting to the throttle body bracket (1). Snap the fitting into place. Ensure that the fitting is retained.
  7. Close the hood.
  8. Perform A Diagnostic System Check. Refer to Diagnostic System Check - Cruise Control .

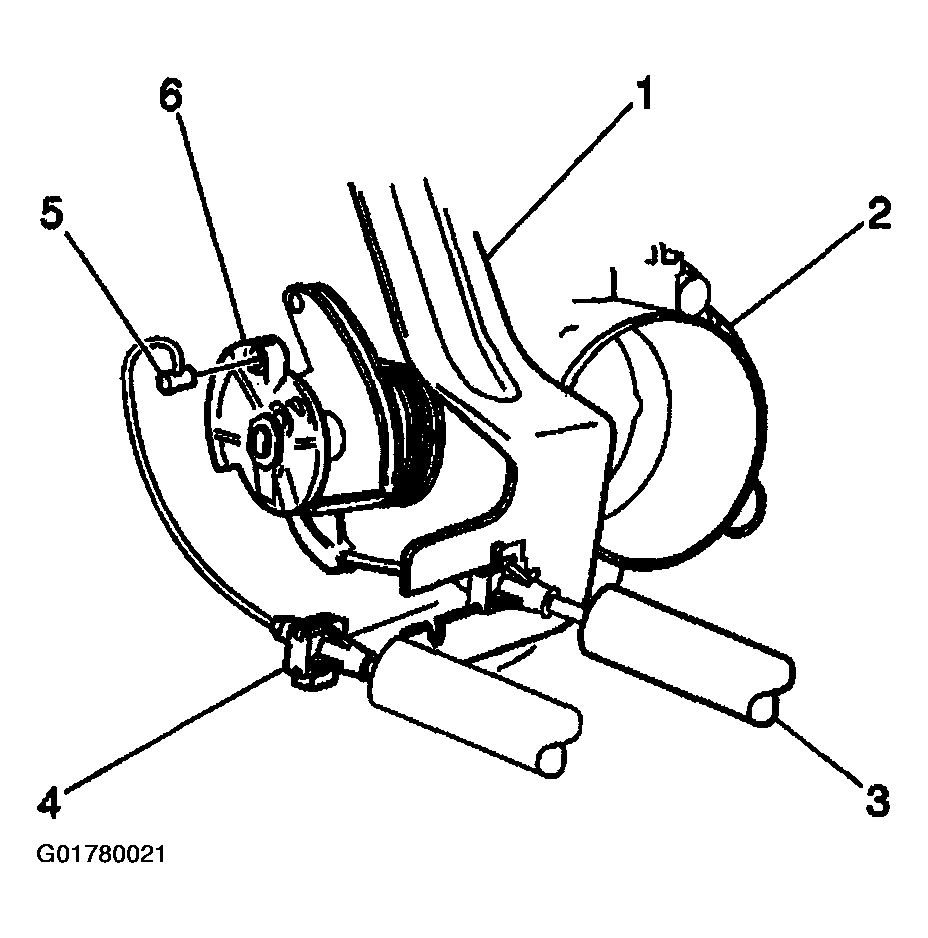

    Fig 4: Connecting Cruise Control Cable
    G01780021Courtesy of GENERAL MOTORS CORP.
