Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood.
Disconnect the cruise control cable tab (5) from the throttle body cam (6). Rotate the cam (6) to 1/4 open throttle in order to release the tab (5).
In order to release the cable (4), push the locating fitting inward and pull the unit free from he throttle bracket (1).

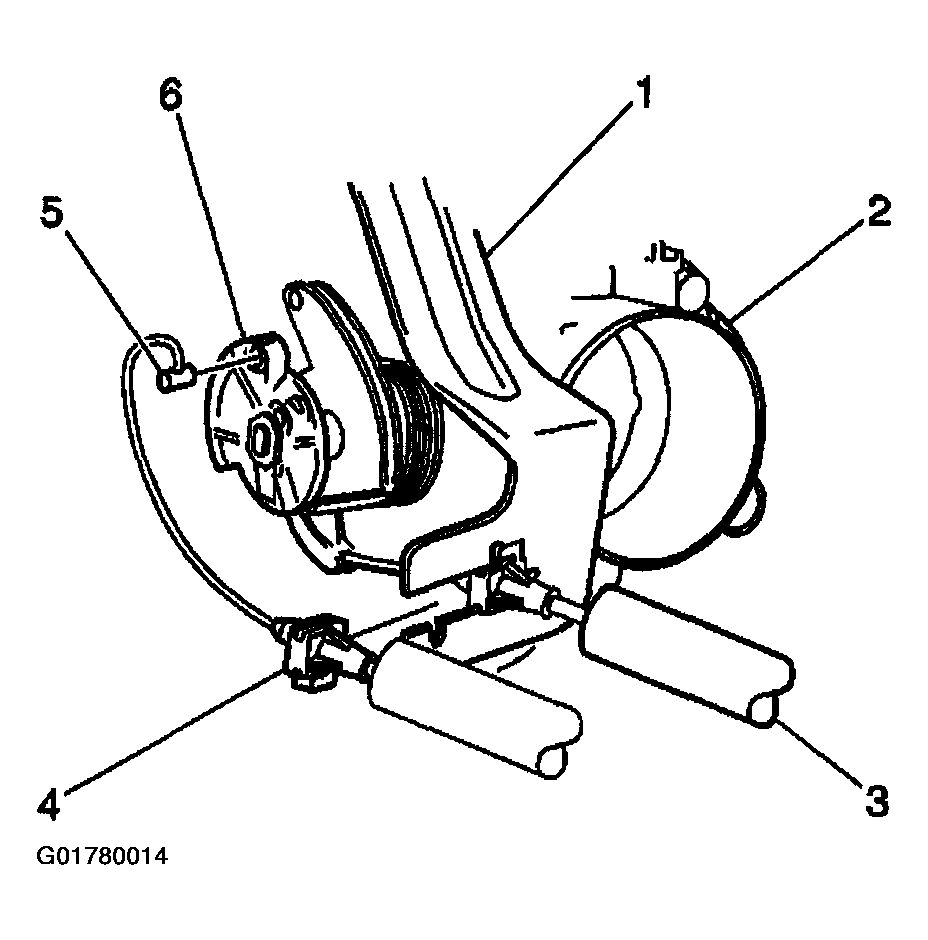

Fig 1: Disconnecting Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the module by turning the cable assembly 1/4 turn counterclockwise.

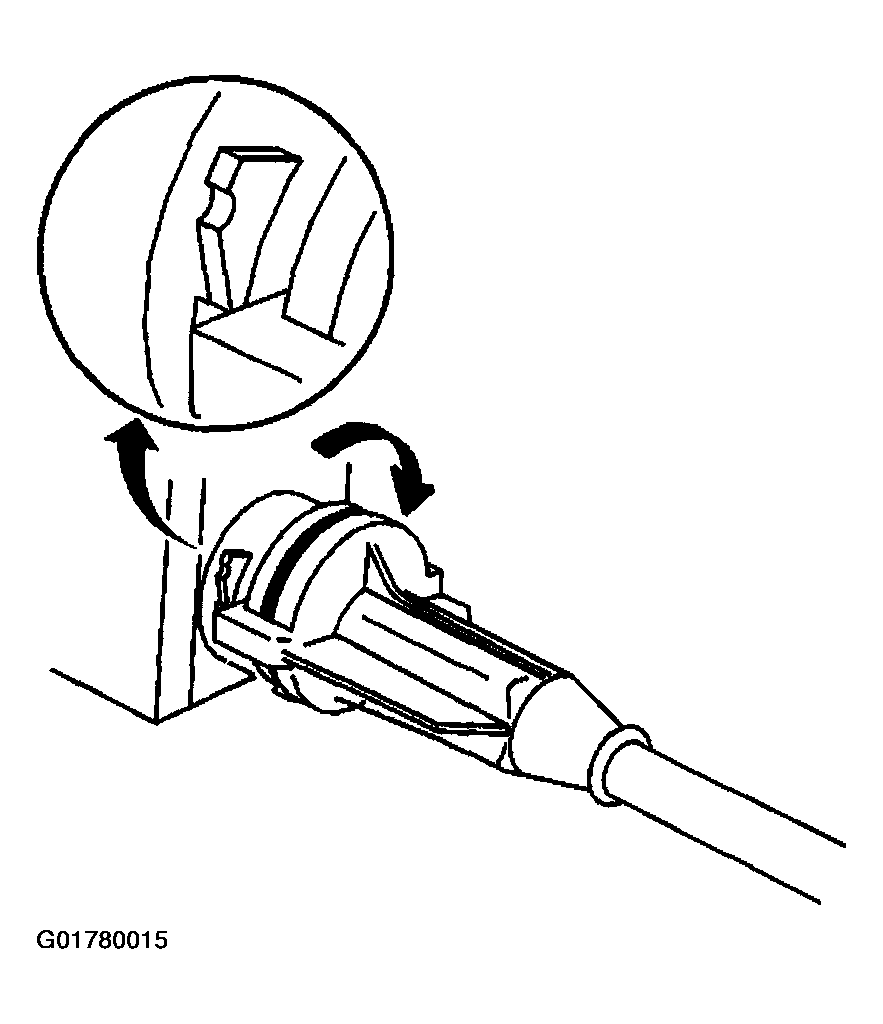

Fig 2: Removing Cruise Control Cable From Module
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the ribbon.

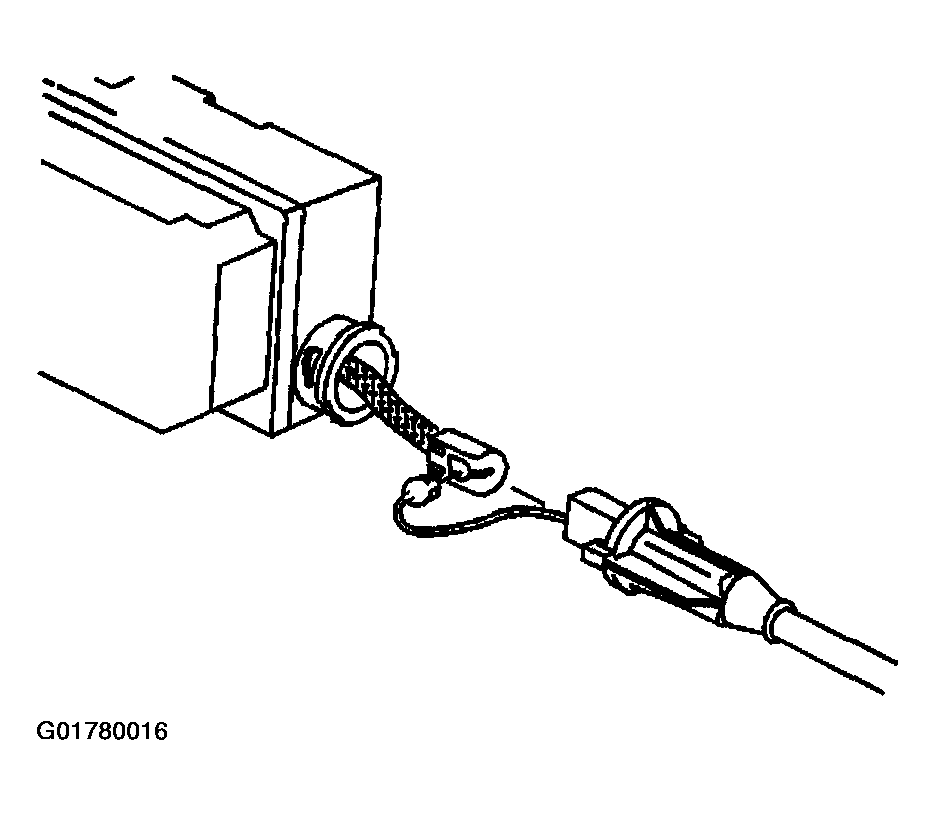

Fig 3: Removing Cruise Control Cable From Ribbon
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from the module assembly.
Unclip the hinged retaining strap from the bracket at the top of the module.
Remove the module from the mounting bracket.

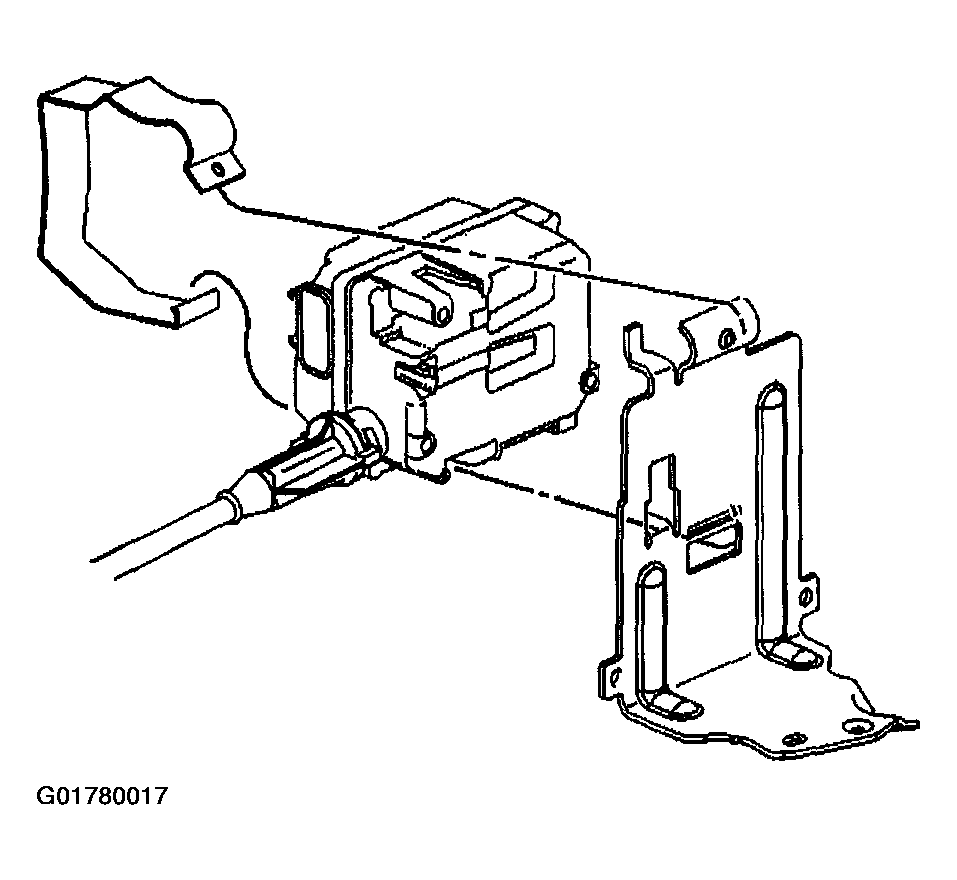

Fig 4: Removing Cruise Control Module
Courtesy of GENERAL MOTORS CORP.
