A/C Compressor Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Discharge the refrigerant. REFRIGERANT CHARGING .
- Remove the splash shield.
- Remove the A/C drive belt. See DRIVE BELT REPLACEMENT .
- Detach the two wiring harness clamps.
- Disconnect the cooler hose (LO) and cooler hose (HI). Do not allow remaining compressor oil in the refrigerant line to spill. See REFRIGERANT LINE REMOVAL NOTE . See REFRIGERANT LINE INSTALLATION NOTE .CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Remove the compressor protector.

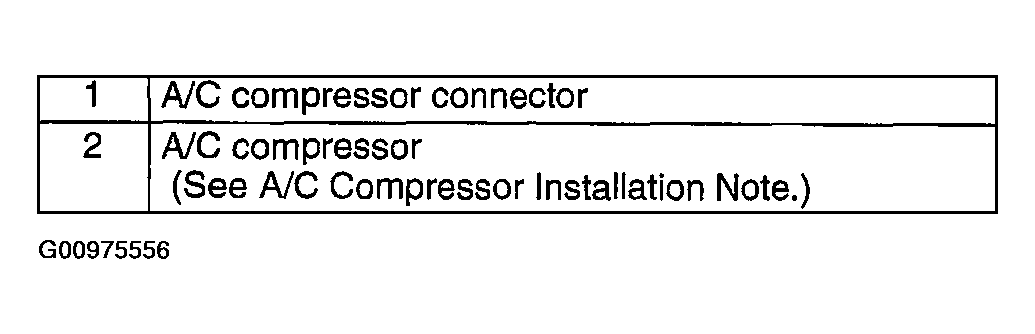

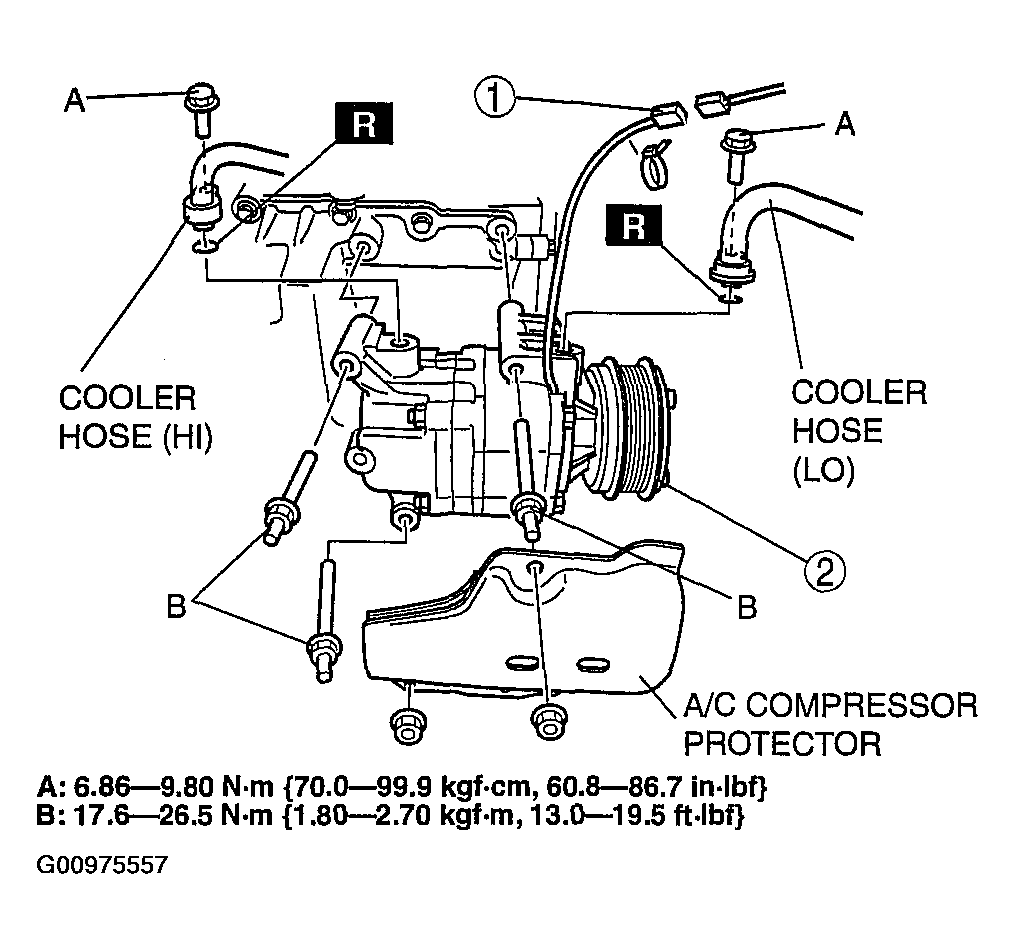

- Remove in the order indicated in the figure. Do not allow remaining compressor oil in the A/C compressor to spill.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunction could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. REFRIGERANT SYSTEM PERFORMANCE TEST .
