A/C Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.
    CAUTION:
    • If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

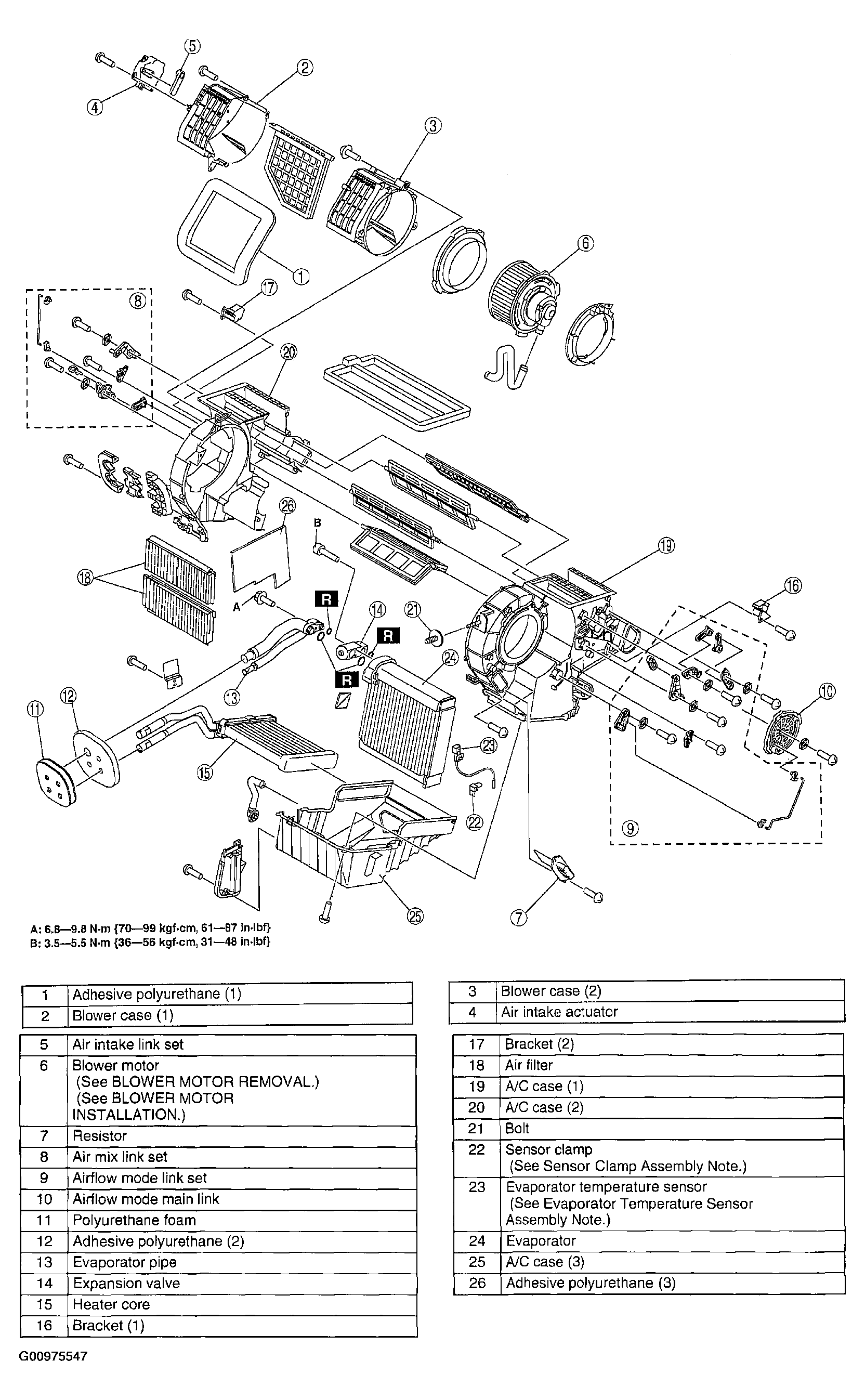

      • Fig 1: A/C Unit With Torque Specifications
      G00975547Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
