A/C Unit Installation Nut Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten it to the right so that it is flush to the contact surface.

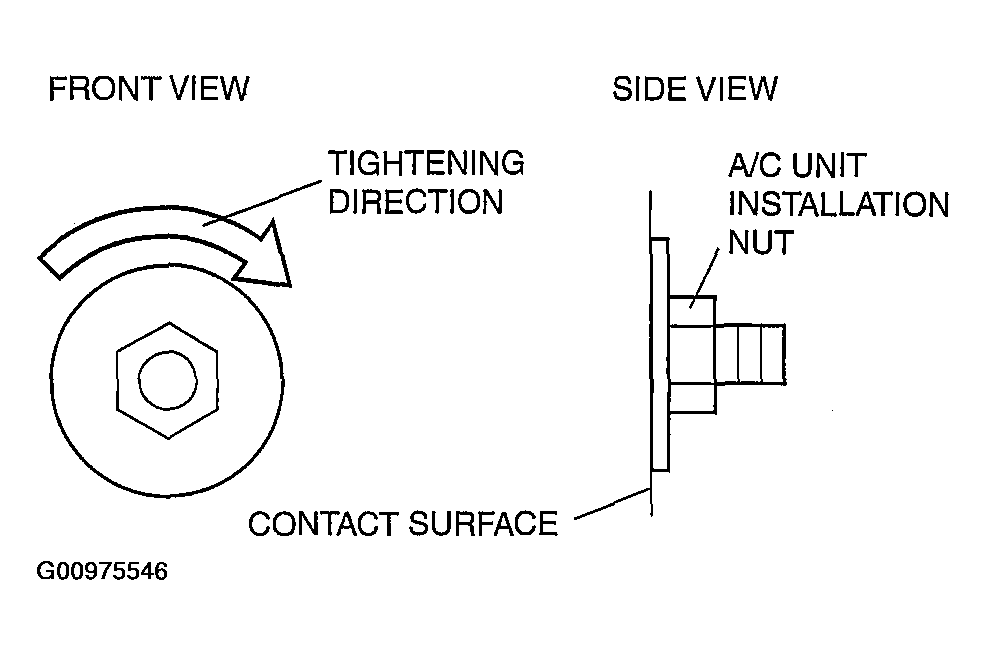

    Fig 1: Installing A/C Unit Installation Nut
    G00975546Courtesy of MAZDA MOTORS CORP.
