Airflow Mode Main Link Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Apply only the specified grease to links. Otherwise abnormal noise or improper operation may result.

Push and hold each airflow mode sub link in the direction of the arrow.

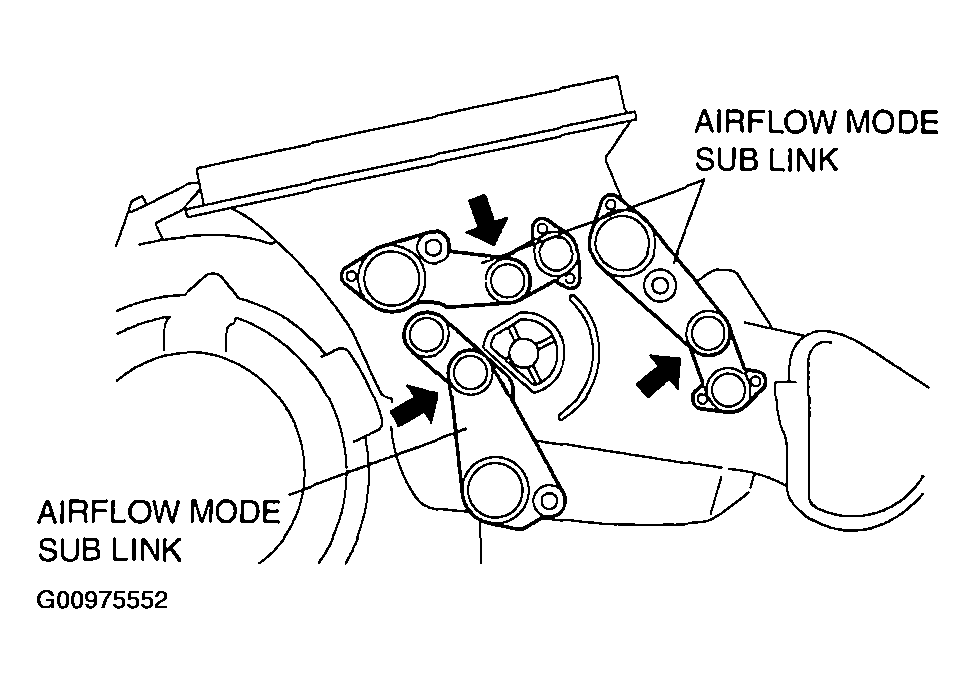

Fig 1: Locating Airflow Mode Sub Link
Courtesy of MAZDA MOTORS CORP.
Set the airflow mode main link to the A/C unit as shown in the figure.
Press the airflow mode main link lightly to the A/C unit it in the direction shown by the arrow, then set the projections of each airflow mode sub link into the grooves of the airflow mode main link.
Rotate airflow mode main link and verify that each mode is accessed properly.

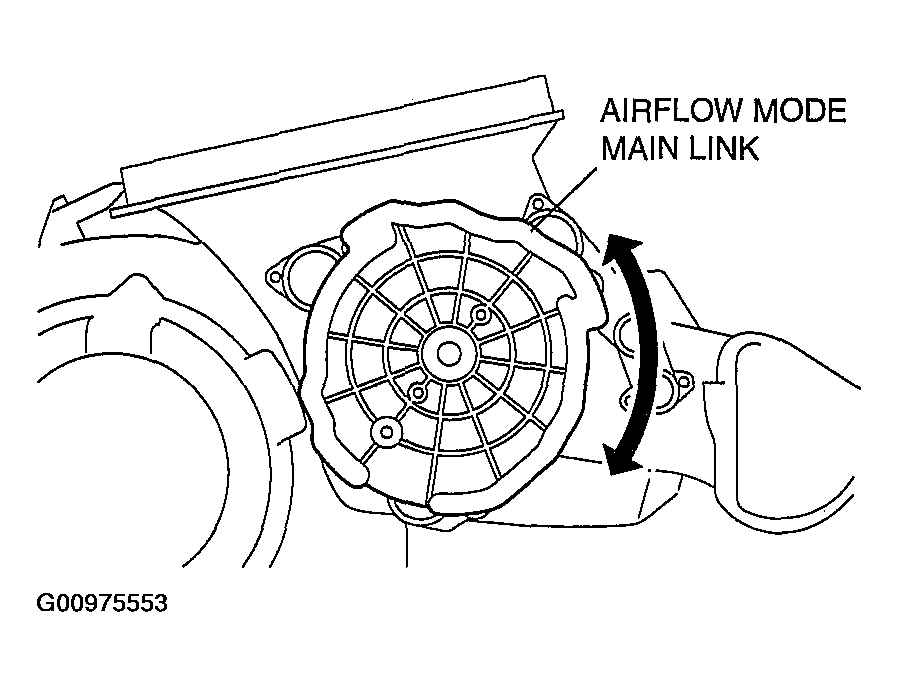

Fig 2: Locating Airflow Mode Main Link
Courtesy of MAZDA MOTORS CORP.
