Climate Control Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

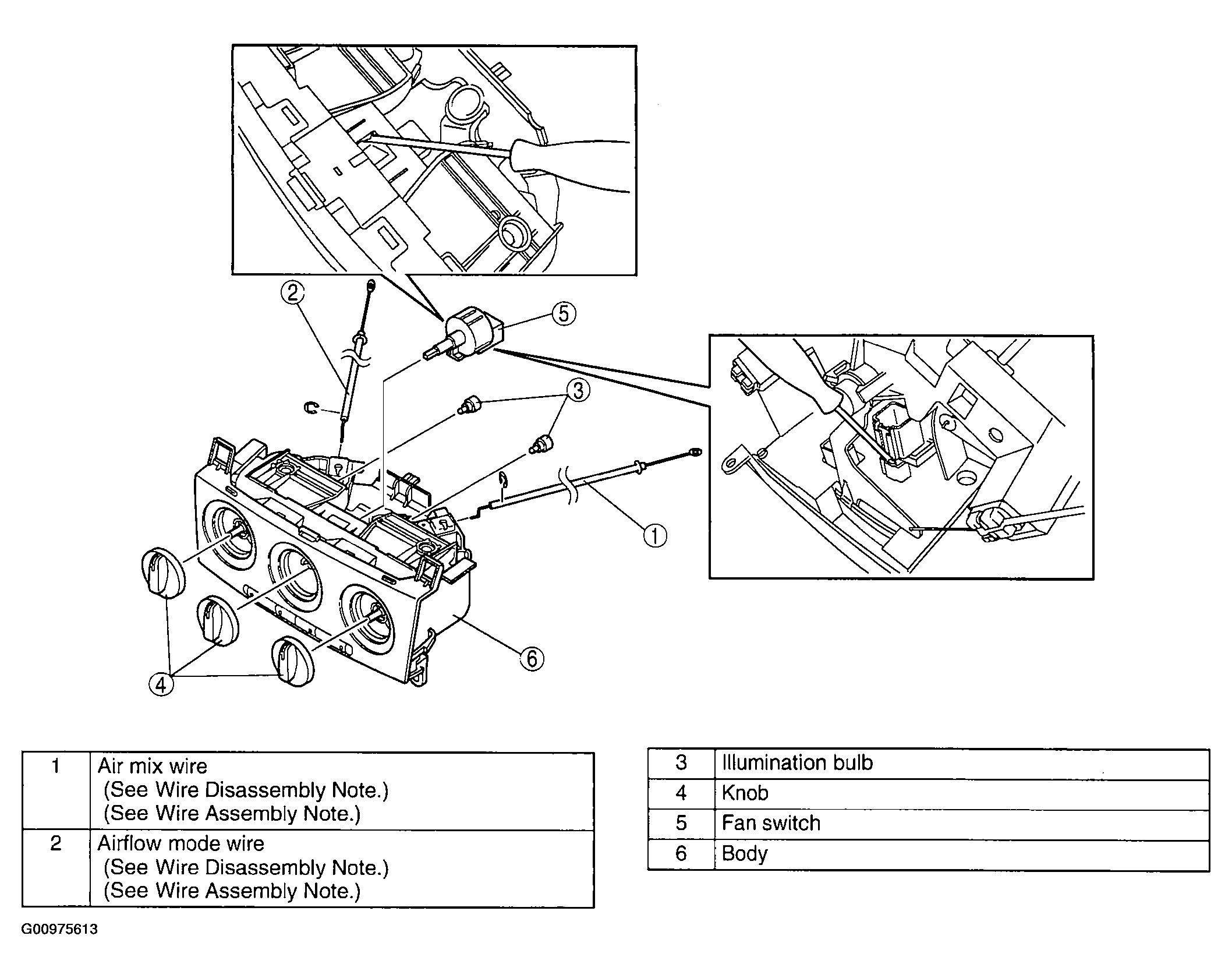

    Fig 1: Disassembling/Assembling Climate Control Unit
    G00975613Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
