Wire Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the wires at the positions shown in the figure.

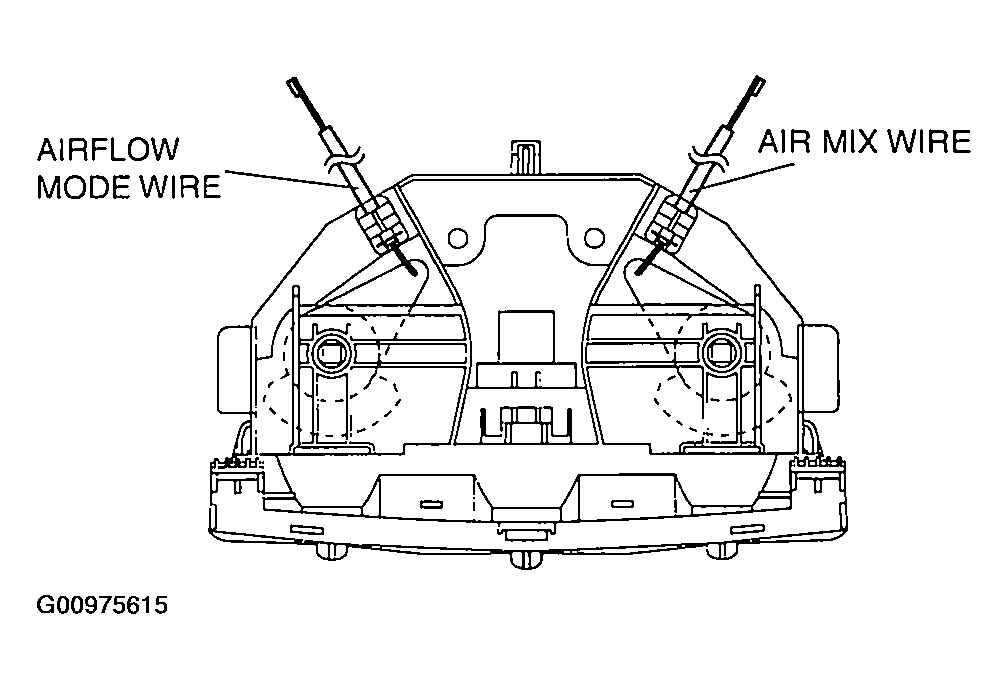

Fig 1: Assembling Wires
Courtesy of MAZDA MOTORS CORP.
Assemble E-ring with the wire pressed against surface A.
- If the E-ring has been lost, the one at the wire end can be removed and reused.

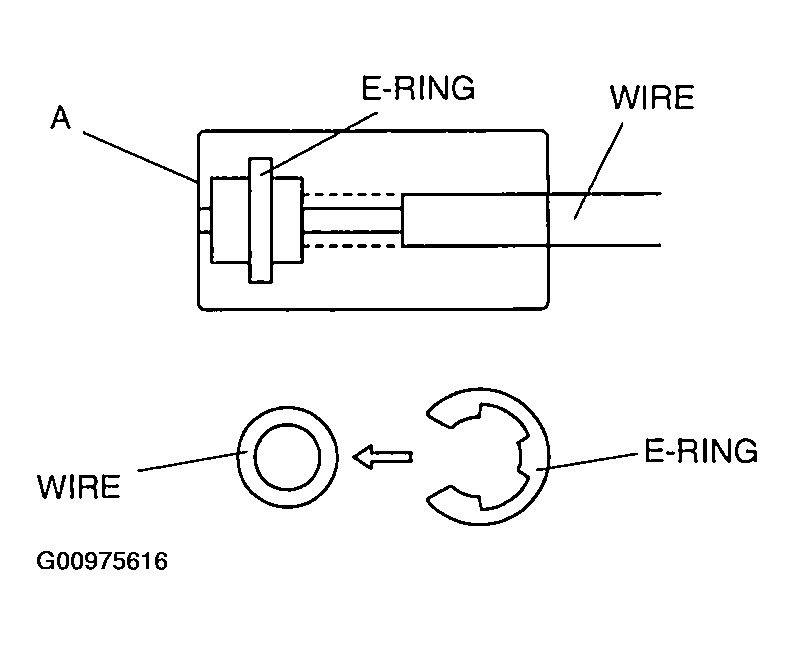

Fig 2: Assembling E-Ring With Wire
