Climate Control Unit Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Pass each wire through the following routes and connect to A/C unit.

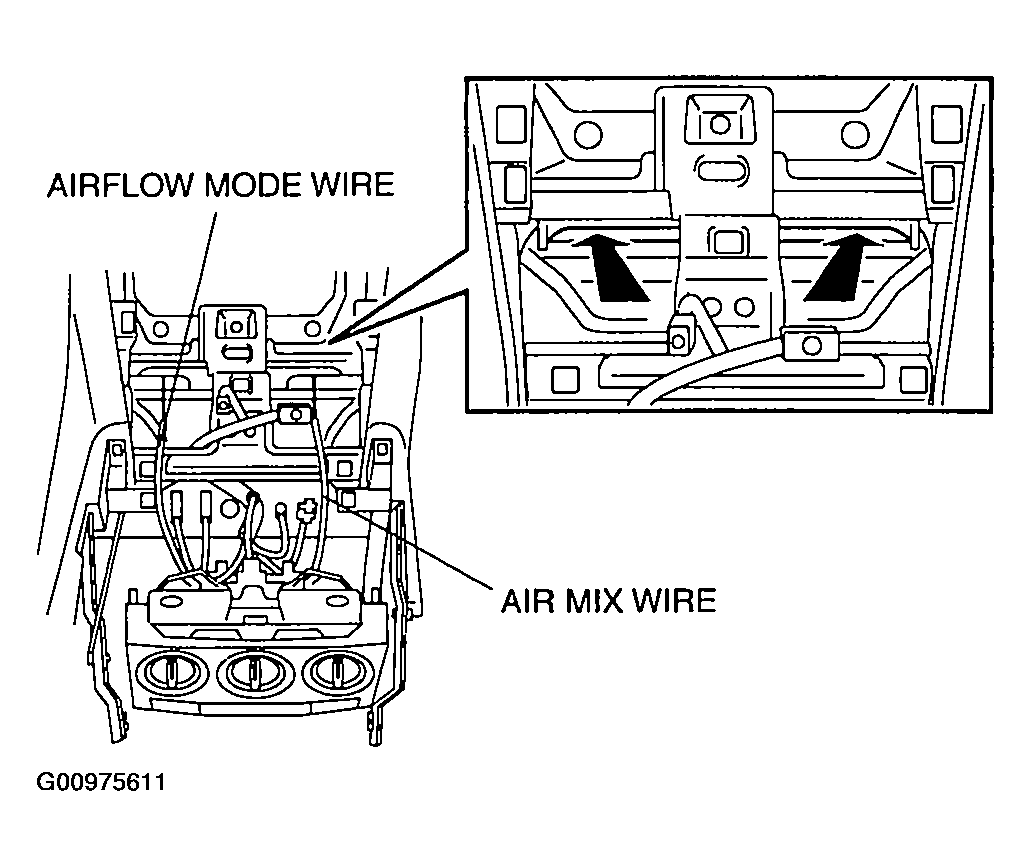

Fig 1: Locating Airflow Mode Wire & Air Mix Wire (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

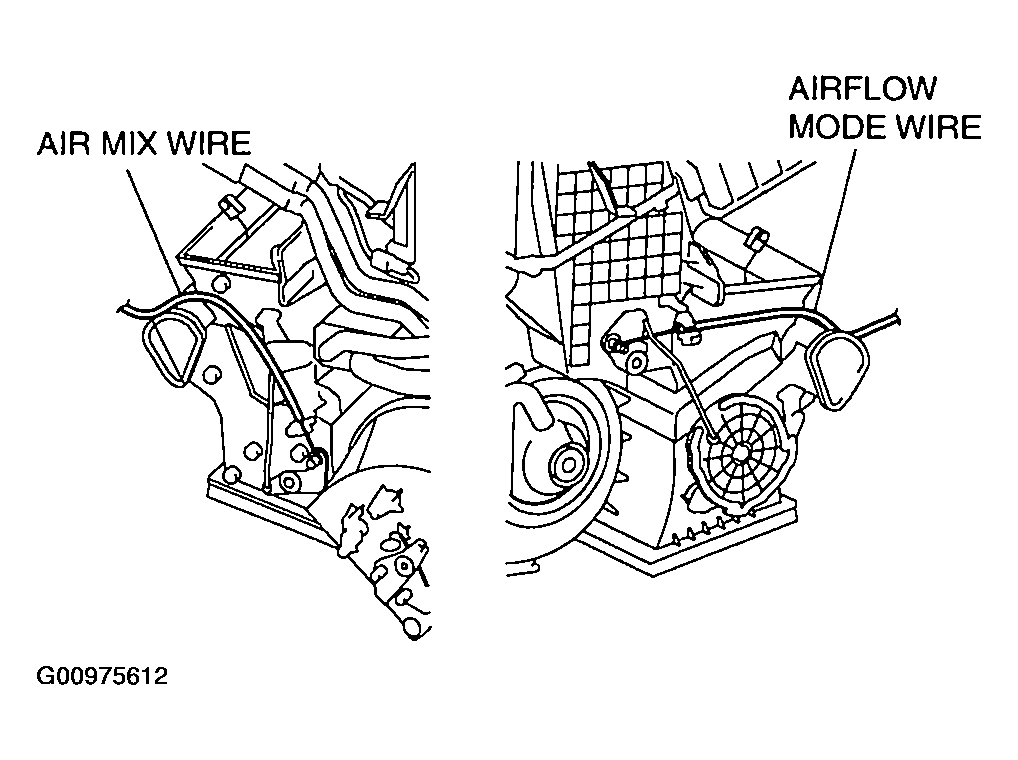

Fig 2: Identifying Airflow Mode Wire & Air Mix Wire (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Connect the climate control unit connectors.
Adjust the climate control unit wires. CLIMATE CONTROL UNIT WIRE ADJUSTMENT .
Install the following parts:
1. PJB and PJB bracket. See FUSES & CIRCUIT BREAKERS .
2. Glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
3. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
4. Lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
5. Front side trim. See FRONT SIDE TRIM REMOVAL/INSTALLATION .
6. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
7. Detach the hood release lever from the lower panel. See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .
8. Ashtray panel. See CONSOLE REMOVAL/INSTALLATION .
9. Climate control unit
10. Center panel module. See INTERIOR TRIM .
Connect the negative battery cable.
