Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wire connector.

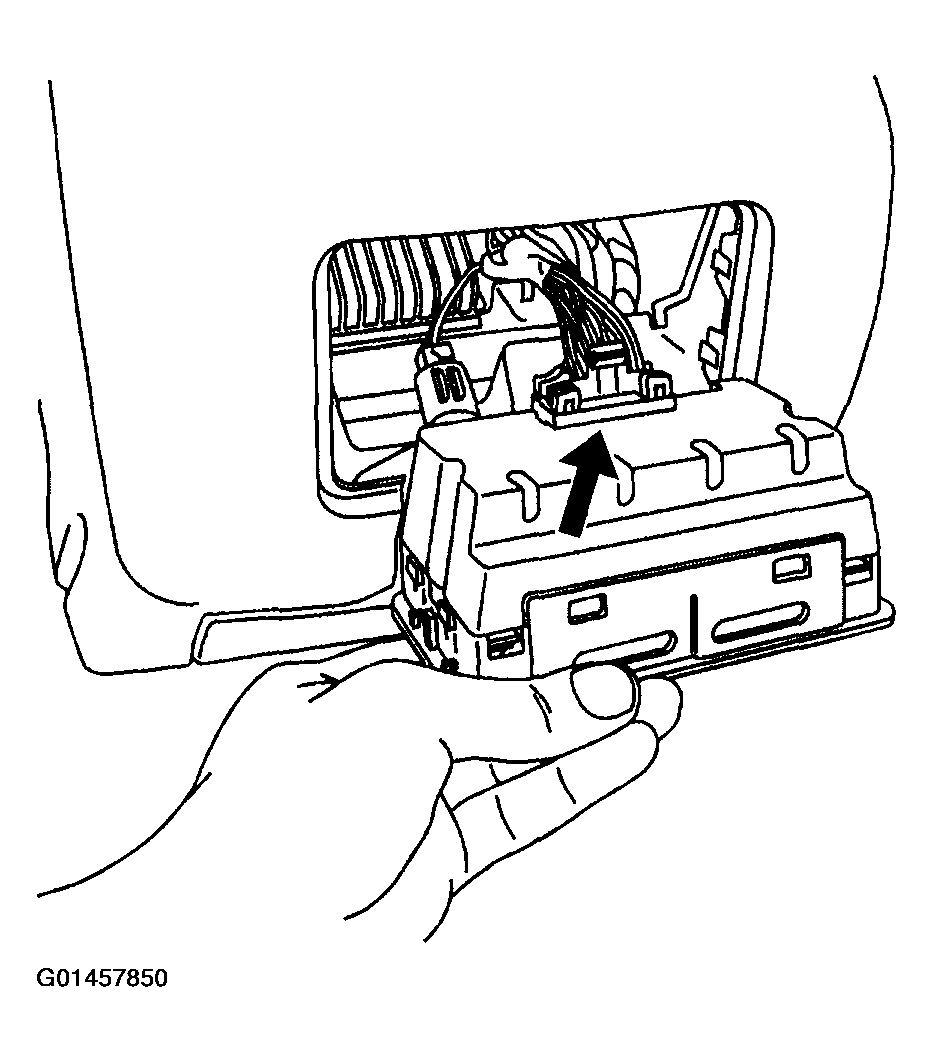

    2. Fig 1: Connecting Wire Connector
    G01457850Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat audio control to the console end panel till it clicks in place.
  3. Inspect the operation of the rear audio controls.

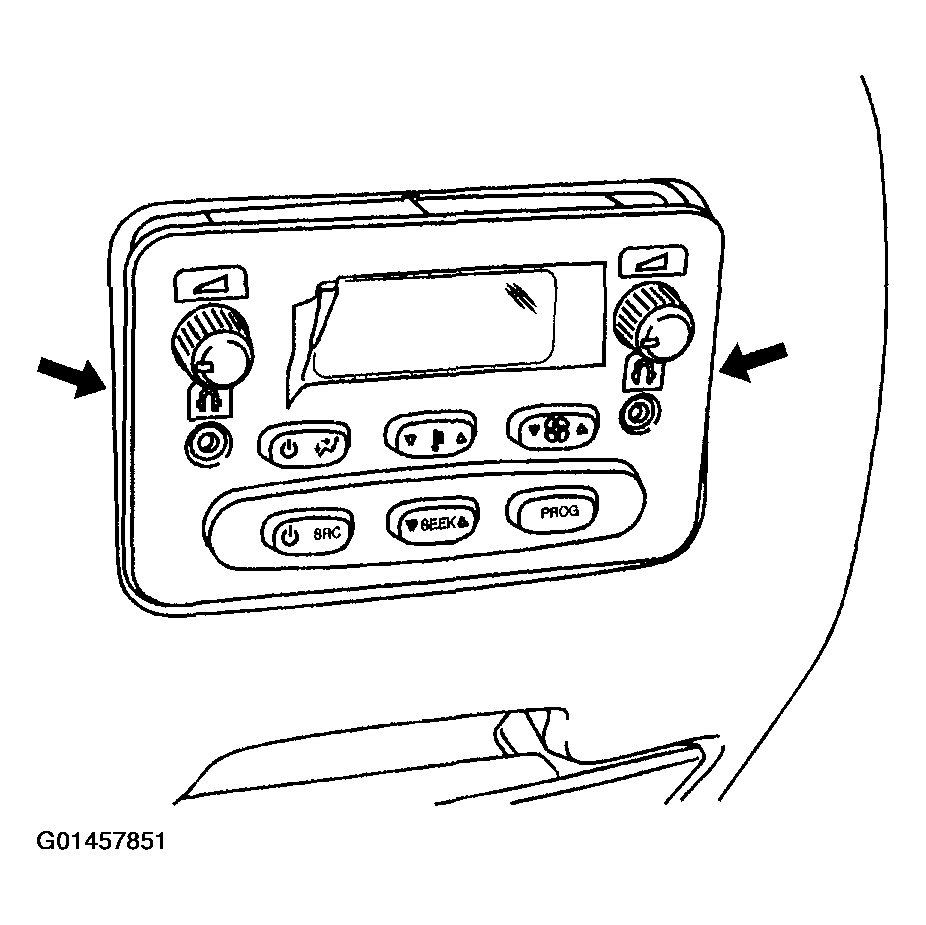

    4. Fig 2: Inspecting Operation Of Rear Audio Controls
    G01457851Courtesy of GENERAL MOTORS CORP.
