Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear quarter trim panel.
Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in INTERIOR TRIM .
Disconnect the electrical connectors (3,4) from the auxiliary HVAC control module (1).
Remove the screws from the auxiliary HVAC control module (1).
Remove the auxiliary HVAC control module (1) from the auxiliary HVAC module (2).

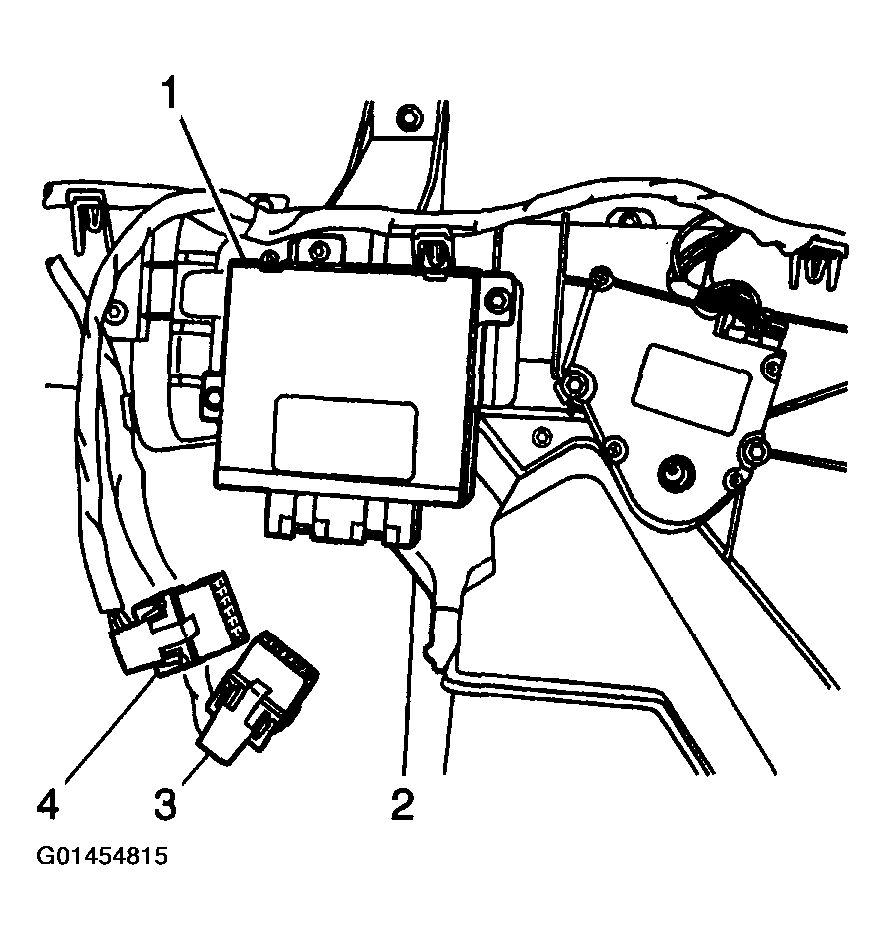

Fig 1: Removing HVAC Control Module - Auxiliary
Courtesy of GENERAL MOTORS CORP.
